Description:

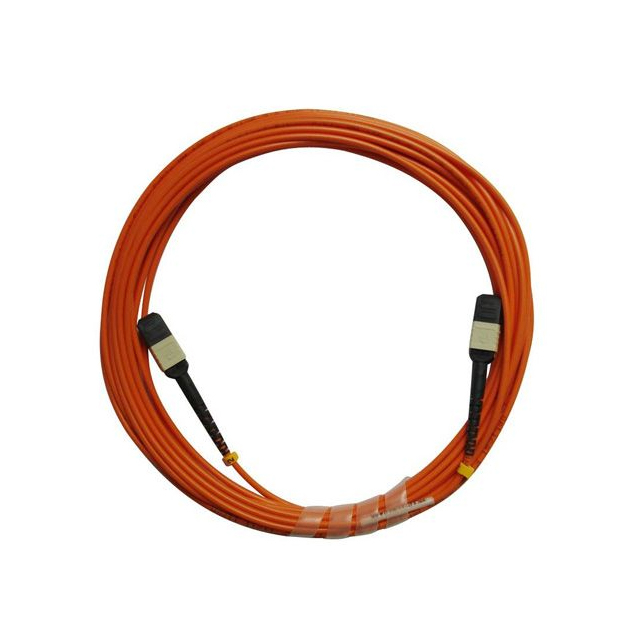

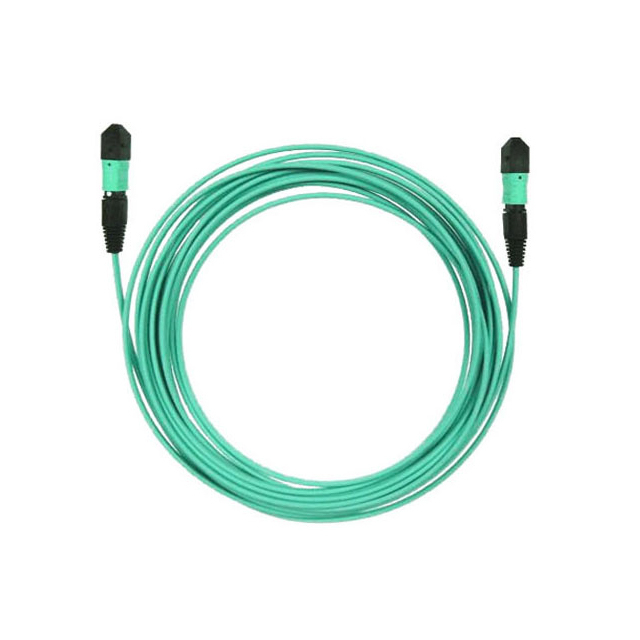

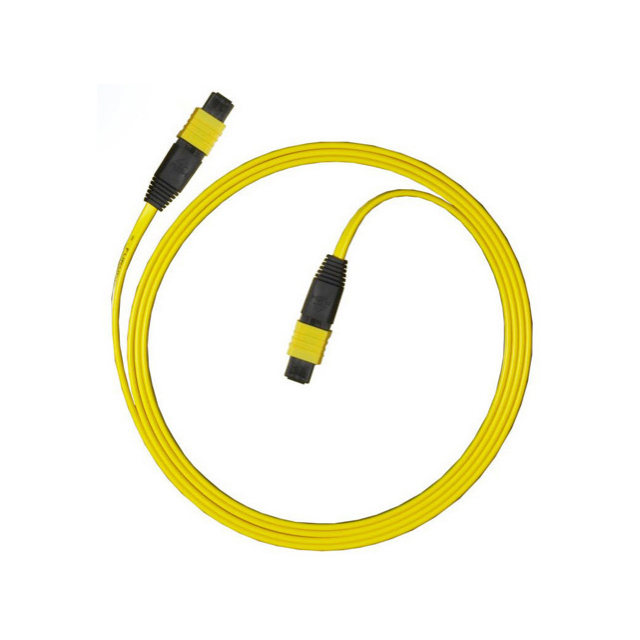

MPO MTP Patchcord Cable Assemblies consist of 4F, 8F, 12F, 24F or 48F fiber optic cable and MPO-MPO or MTP-MTP connectors. They can be quickly connected to plug and play Modules for high performance and high density fiber connections.
Features:
1. MPO / MTP connector patchcord
2. Available from 4 to 48F fiber optic cable

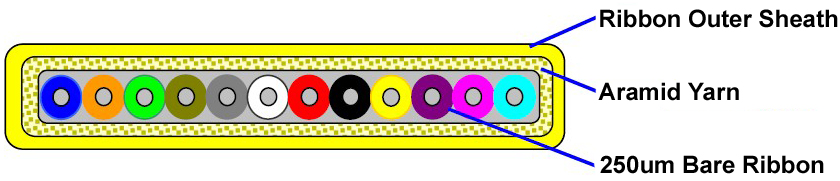

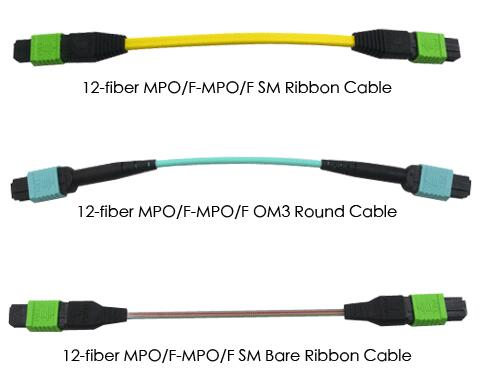

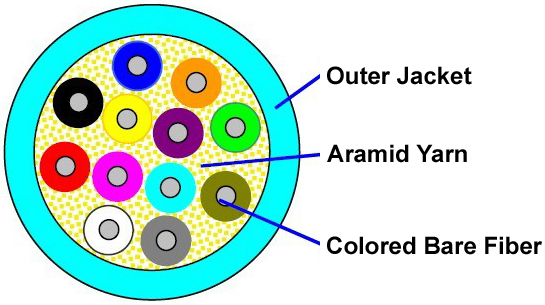

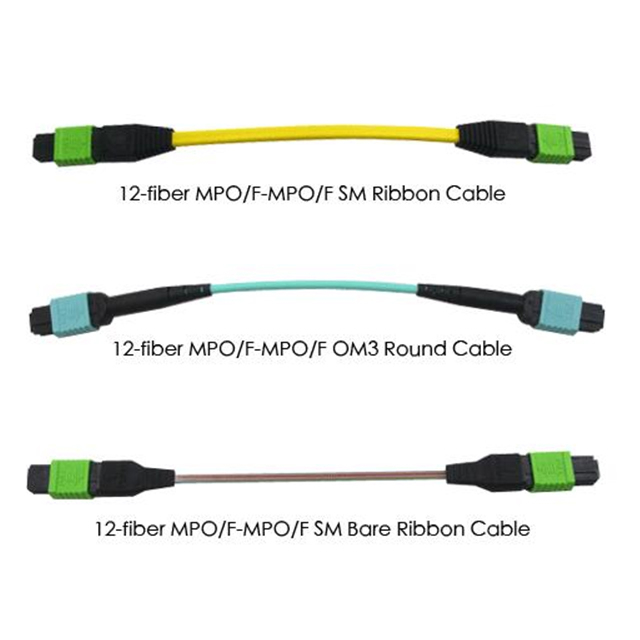

3. Choices of different cable structure for different installation needs: round cable, ribbon cable and bare ribbon.
4. Available in multi-mode (OM1 62.5/125um, OM2/OM3/OM4 50/125um in 10/40/100G) and single mode (G652D, G657A1, etc.) fiber types
Applications:
1. High Density Fiber Management
2. DACS
3. LAN/WAN Premises
Standard:
1. TIA/EIA 604-5, IEC 61754-7, Telcodia GR-1435-CORE Issue 2
2. Low smoke (IEC 61304), Zero Halogen (IEC 60754-1), Fire retardant (IEC 60332-3C), Corrosion resistance (IEC 60754-2)
Mechanical Performance:
Fiber | Static Bending Radius (mm) | Dynamic Bending Radius (mm) | Working Temperature (°C) |
8~12 | 10D | 20D | -20~+60 |
Ordering Information:
Name | PCA: Patchcord Cable Assemblies |
A End Connector | MZ: MPO female MP: MPO male TZ: MTP female TP: MTP male |
B End Connector | MZ: MPO female MP: MPO male TZ: MTP female TP: MTP male |
Loss Grade | S: standard loss L: loss loss |
Fiber Type | A: G.652D B: G.657A1 C: G.657A2 D: OM1 E: OM2 F: OM3 G: OM4 |
Fiber Count | 8: 8 fibers 12: 12 fibers 24: 24 fibers |
Cable Jacket | LZ: LSZH NR: OFNR NP: OFNP |
Length | 001: 1 meter 010: 10 meters 999: 999 meters |
Polarity | A: 1-1, 2-2, 3-3,... B: 1-12, 2-11, 3-10,... C: 1-2, 2-1, 3-4, 4-3,... |
Packing | Default: PE bag R: wooden reel |
