Description
The Polarization-Maintaining (PM) Optical Circulator is non-reciprocating, unidirectional, three-port devices that are used in a wide range of optical setups. Available with a center wavelength of 1064, 1310 (O-Band), or 1550 nm (C-Band), these circulators are fast axis blocked and hence are designed to work with light that is launched into the slow axis.

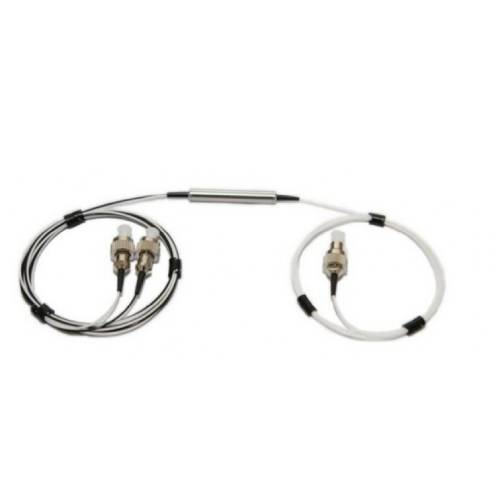

PM Optical Circulator 1064nm is a 3 port fiber optic device build with PM panda fiber, transmits signal from port1 to port 2 and another signal from port 2 to port 3 while maintaining the polarization. PM Circulator features low insertion loss, high isolation between ports, low PDL, high extinction ratio, high reliability and stability. The device can be built with 250um bare fiber pigtails, 900um pigtails or 3mm cable.
Features
Low insertion loss
Low PDL
High return loss
High extinction ratio
High stability and reliablity
Applications
Raman amplifier
Metro area network
Dispersion compensation
Specifications
Parameters | Unit | P Grade |
Configuration | -- | Port 1 to Port 2 to Port 3 |
Operation Wavelength | nm | 1064±5 |
Typical Insertion Loss (λc at 23℃) | dB | 1.8 |
Max. Insertion Loss (at 23℃) | dB | 2.1 |
Typical Isolation (at 23℃) | dB | >25 |
Min. Isolation (at 23℃) | dB | >20 |
Min. Extinction Ratio (at 23℃) | dB | 20 |
Directivity | dB | >50 |
Return Loss | dB | >50 |
Fiber Type | -- | Port 1: Hi1060 or PM980 Panda Fiber Port 2 & Port 3: PM980 Panda Fiber |
Power Handling (CW) | mW | 300 |
Working Temperature | ℃ | 0 to +70 |
Storage Temperature | ℃ | -40 to +70 |
Package Dimensions | mm | Ø5.5 x L35 or specify |
Notes: 1. The PM fiber and the connector key are aligned to the slow axis. |
2. IL is 0.3dB, RL is 5dB and ER is 2dB lower for each connector added. |
Package Dimensions:
Ordering information:
PMCIR- | X | XXXX | X | X | XX | XX |
Circulator Type | Port Type | Wavelength | Pigtail Type | Fiber Type | Fiber Length | Fiber Connector |
F=Slow axis working, Fast axis blocked X=specify | 3=3 Port | 1064=1064nm XXXX=specify | 1=250um bare fiber 2=900um loose tube X=specify | 1=PM980 2=Nufern FUD-3460 10/125 fiber X=specify | 05=0.5m 10=1m 15=1.5m XX=specify | NC=non connector AF=FC/APC FC=FC/UPC AS=SC/APC SC=SC/UPC AL=LC/APC LC=LC/UPC XX=specify |
