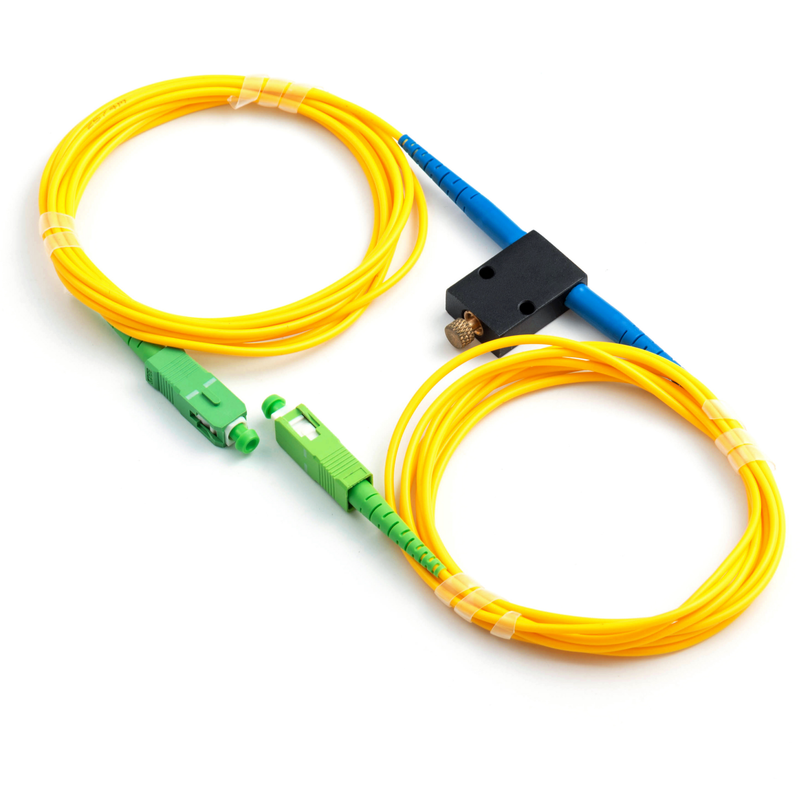

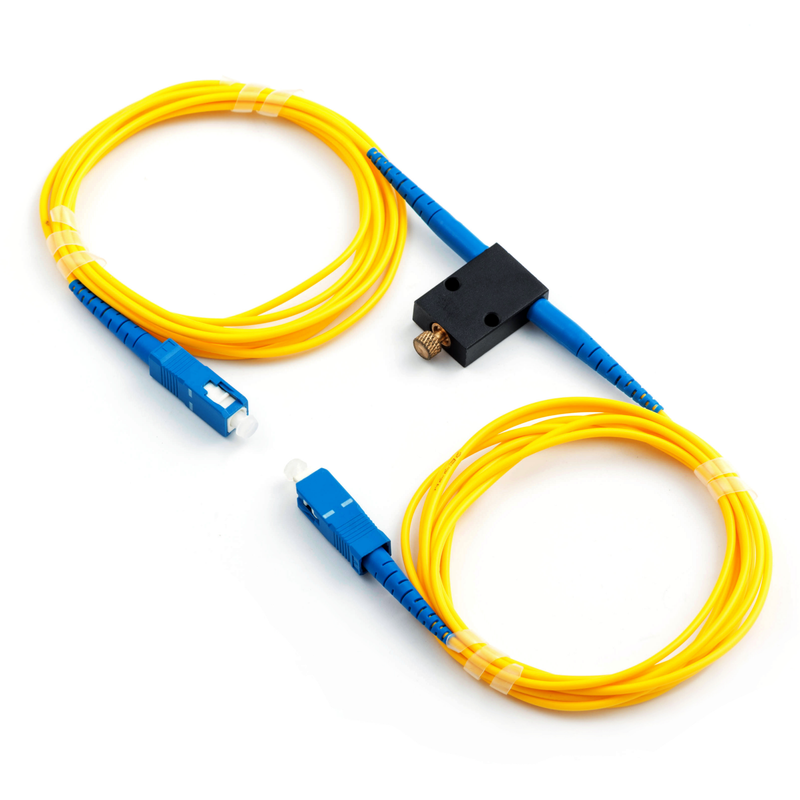

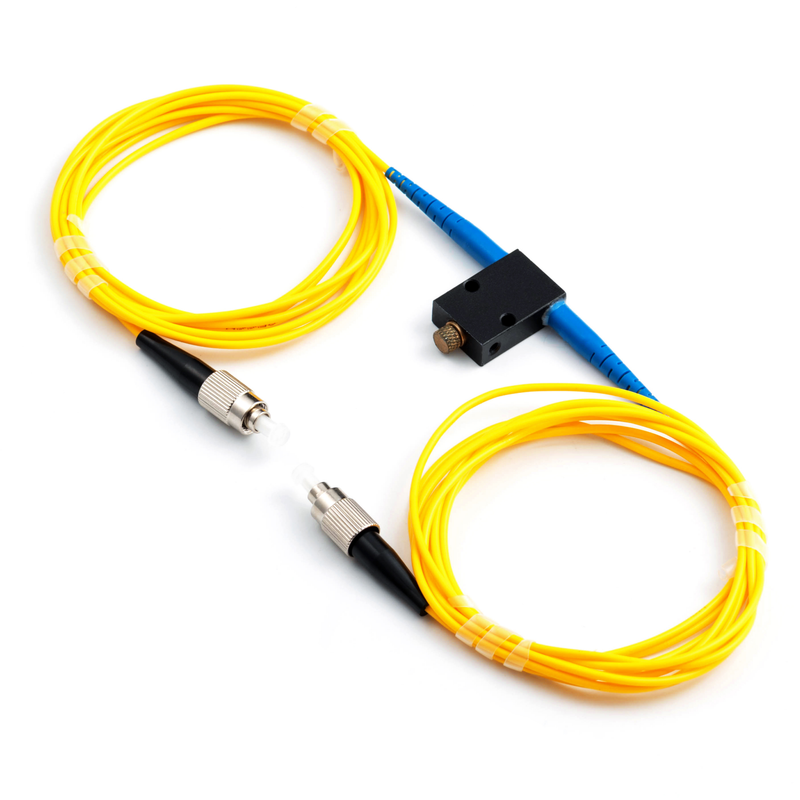

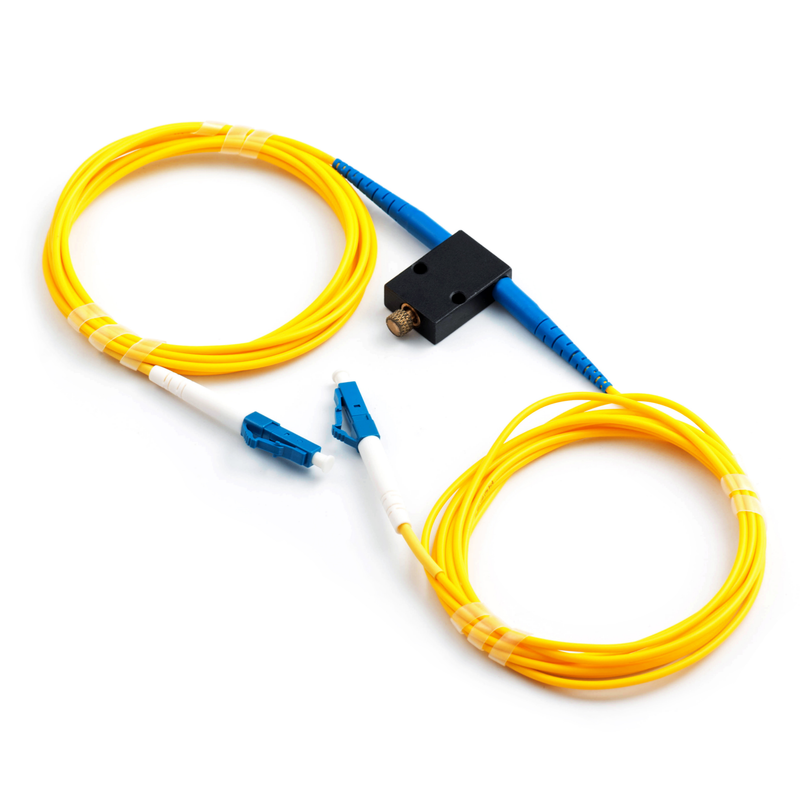

Polarization Maintaining Mechanical Adjustable Optical Attenuator

Working wavelength (nm)

1310/1550

1060/850

Max. insertion loss **

(23℃ all sop) (dB)

0.8

1.0

Attenuation range (dB)

0.8 to 60

1.0 to 60

Extinction Ratio (dB)

Typ.20

Max. PDL (dB)

≤0.5

Min. return loss (input/output) (dB)

≥50

Fiber type

PM Panda Fiber

Connector type

Customization

Max. optical power (mW)

500

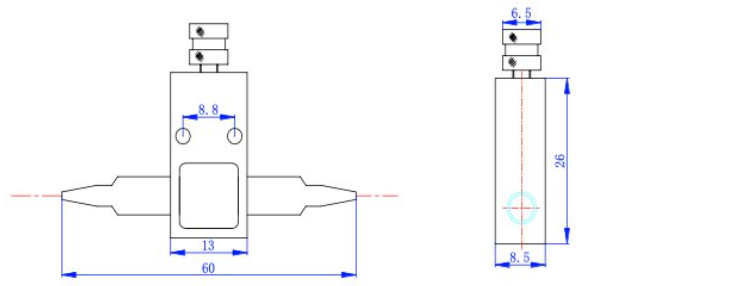

Dimensions (mm)

26 x 13 x 8.5

Max. tensile load (N)

5

Working temperature (℃)

-5 to +70

Storage temperature (℃)

-40 to +85

Notes: 1. The PM fiber and connector key are aligned to the slow axis.

2. at 23℃, IL is 0.3dB higher, RL is 5dB and ER is 2dB lower for each connector added.

Fiber Type

Wavelength

Pigtail Jacket

Fiber Length

Fiber Connector

1=SM fiber

2=MMF 50/125

3=MMF 62.5/125

X=Customization

1550=1550nm

1310=1310nm

850=850nm

X=Customization

1=250um bare fiber

2=900mm loose tube

3=2mm cable

4=3mm cable

5=Customization

05=0.5m

10=1m

15=1.5m

X=Customization

NC=non connector

AF=FC/APC

FC=FC/UPC

AS=SC/APC

SC=SC/UPC

AL=LC/APC

LC=LC/UPC

X=Customization
