PRODUCT DETAIL

Model:
MPO MTP PLC Splitter

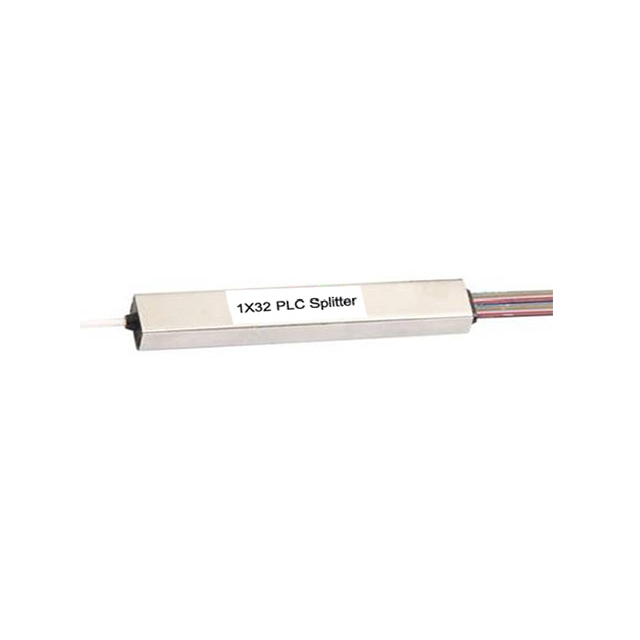

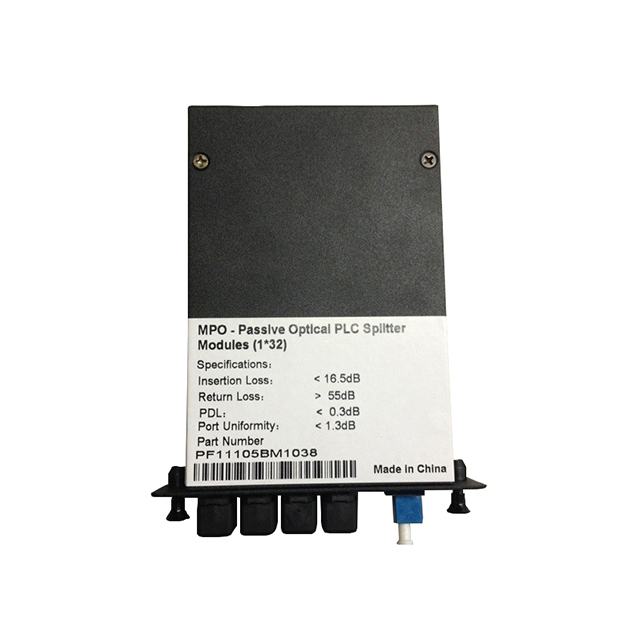

Bare Fiber MPO MTP PLC Splitte	Cassette Module MPO MTP PLC splitter

Features:

1. Compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel counts
5. Wide wavelength range
6. Large operating and temperature range
7. Customized packaging and configuration
8. Full Telcordia GR1209/1221 qualifications

Specification:

1×N (N>2) PLCS (With connector) Optical parameters
Parameters		1×2	1×4	1×8	1×16	1×32	1×64
Operation wavelength (nm)		1260~1650
Insertion loss (dB) Max		4.1	7.4	10.5	13.8	17.1	20.4
Return loss (dB) Min	APC	55	55	55	55	55	55
Return loss (dB) Min	UPC	50	50	50	50	50	50
PDL (dB) Max		0.2	0.2	0.3	0.3	0.3	0.3
Directivity (dB) Min		55	55	55	55	55	55
WDL (dB)		0.4	0.4	0.4	0.5	0.5	0.5
Pigtail length (m)		1.2(±0.1) or customer specified
Fiber type		250um bare fiber
Operation temperature (°C)		-40~85
Storage temperature (°C)		-40~85
Dimension (L×W×H) (mm)		40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4
2×N (N>2) PLCS (With connector) Optical parameters
Parameters			2×4	2×8	2×16	2×32	2×64
Operation wavelength (nm)		1260~1650
Insertion loss (dB) Max			7.7	10.8	14.1	17.4	20.7
Return loss (dB) Min	APC		55	55	55	55	55
Return loss (dB) Min	UPC		50	50	50	50	50
PDL (dB) Max			0.2	0.3	0.4	0.4	0.4
Directivity (dB) Min			55	55	55	55	55
WDL (dB)			0.4	0.4	0.5	0.5	0.5
Pigtail length (m)		1.2(±0.1) or customer specified
Fiber type		250um bare fiber
Operation temperature (°C)		-40~85
Storage temperature (°C)		-40~85
Dimension (L×W×H) (mm)			50×4×4	50×4×4	60×7×4	60×7×4	60×12×6
