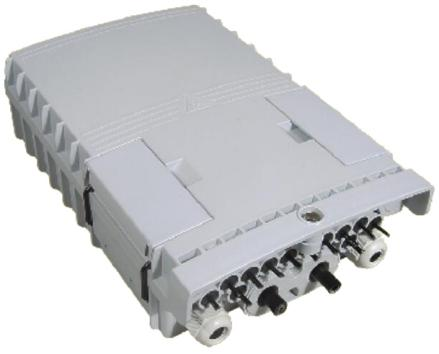

3S FOTB-12-E Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level

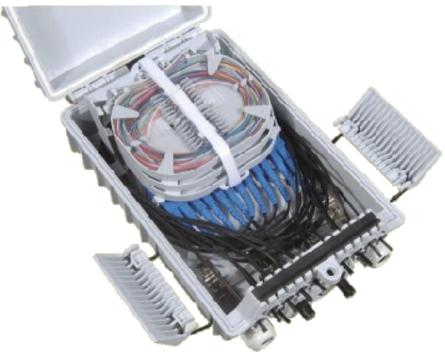

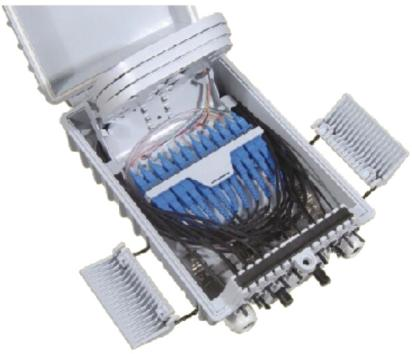

Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
1 uncut cable port and 2 round cable ports for feeder cables
Splice holder for 36pcs of Fiber Splice Protective Sleeves, 3 trays, 12 fibers/tray
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
274*175*82
SC
12 Ports
LC
24 Ports
1.2kg
2kg
White
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-12-E-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
12
E
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
