Description

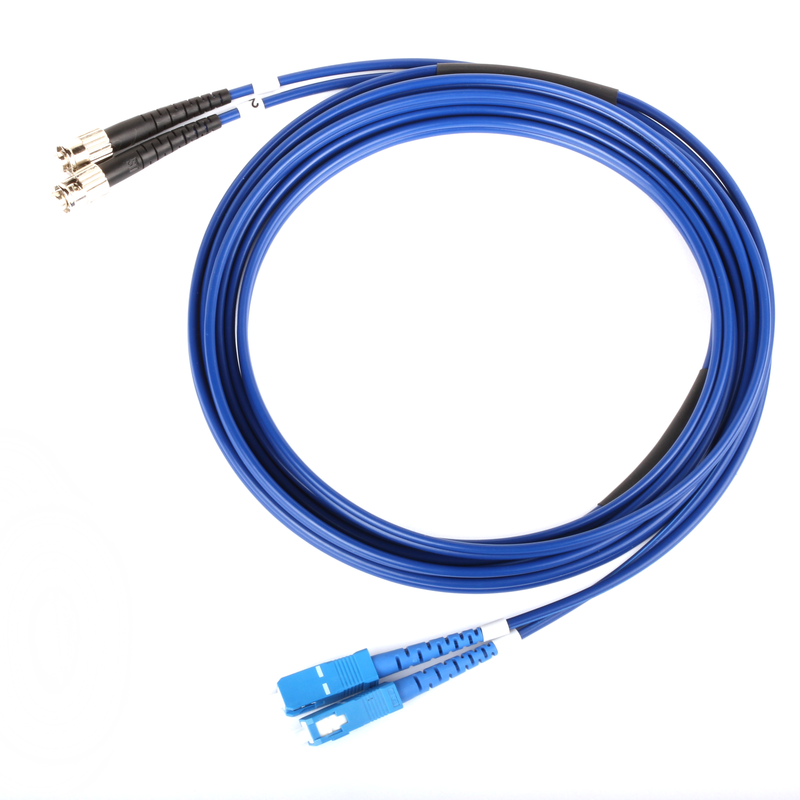

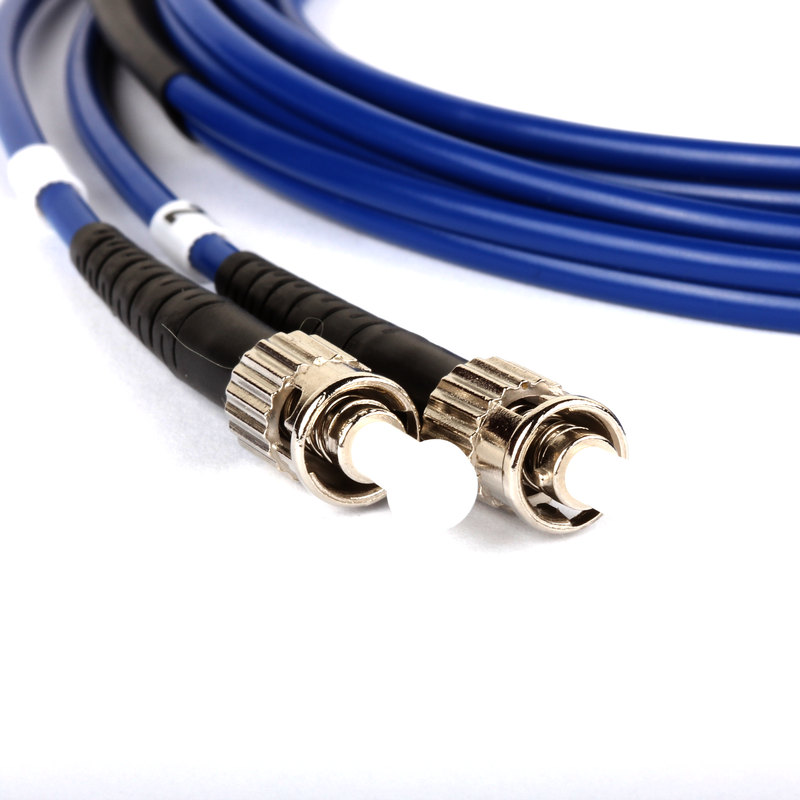

ST/UPC to SC/UPC armored patchcord is an armoured fiber optic cable with terminated connectors ST/UPC and SC/UPC at both ends. The armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.
Features
1. Compact design
2. Low insertion loss and high return loss
3. Conform to ITU-T G.652D or others
4. High reliablity suitable for both single mode and multi-mode
5. Wide wavelength range
6. Large operation temperature range
7. Customized configuration
Specifications
Connector Type | SC/FC/ST/LC/MU/Nil(non-connector)/ E2000/MTRJ(W/O)/MTRJ(W)/DIN |
Polishing Type | UPC/APC |
Fiber Type | Single mode/Multi-mode (50/125 or 62.5/125) |
Insertion Loss (dB) | ≤0.3 |
Return Loss (dB) | UPC: ≥55, APC≥60 |
Repeatability (500 times) (dB) | ≤0.2 |
Bending Radius (mm) | ≥30 |
Tensile Strength (kg/100mm) | ≤12 |
Working Temperature (°C) | -20°C~+80°C |
Storage Temperature (°C) | -20°C~+80°C |
Working Humidity | <90%RH |
Fiber Length (m) | customization |
Armouring Cable Structure
