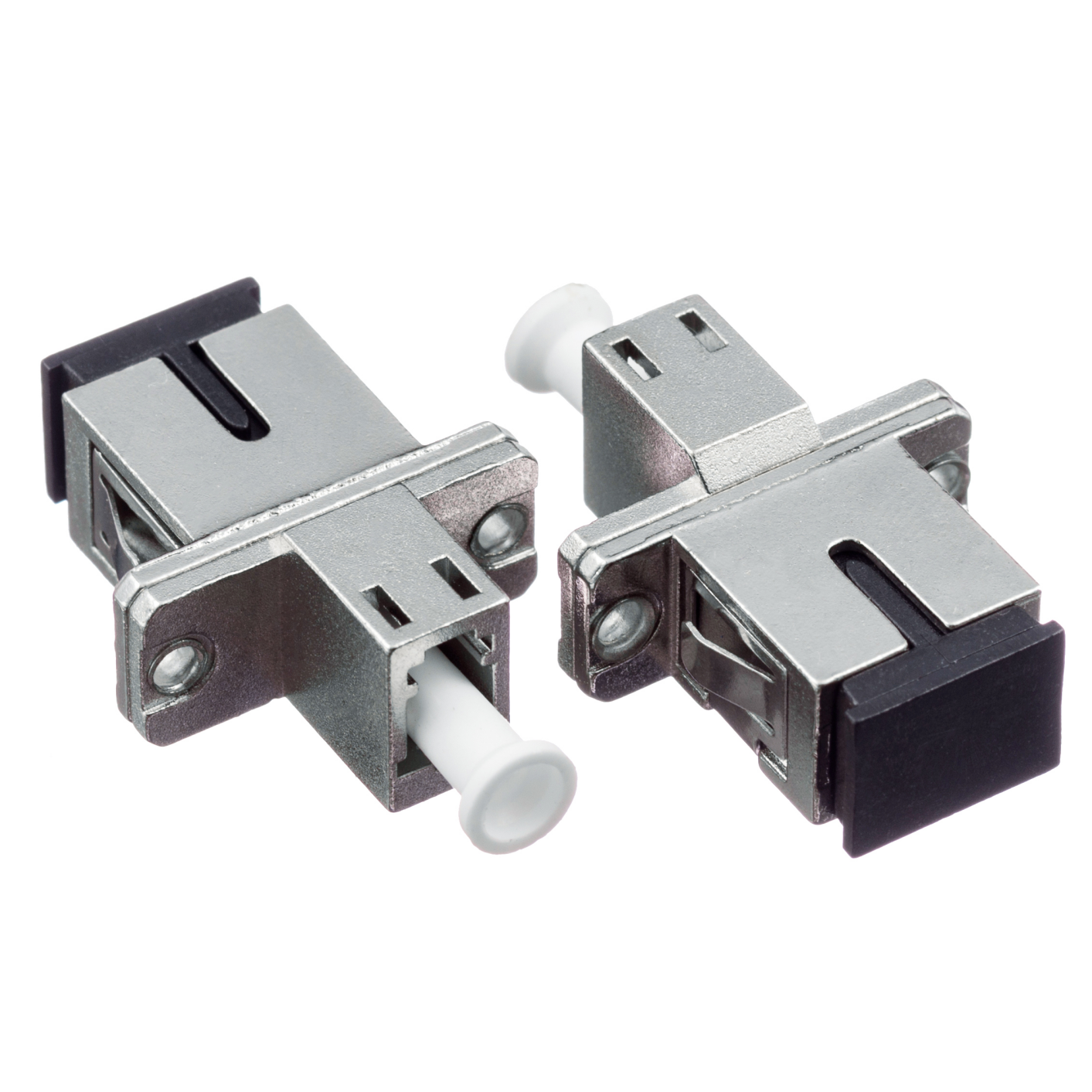

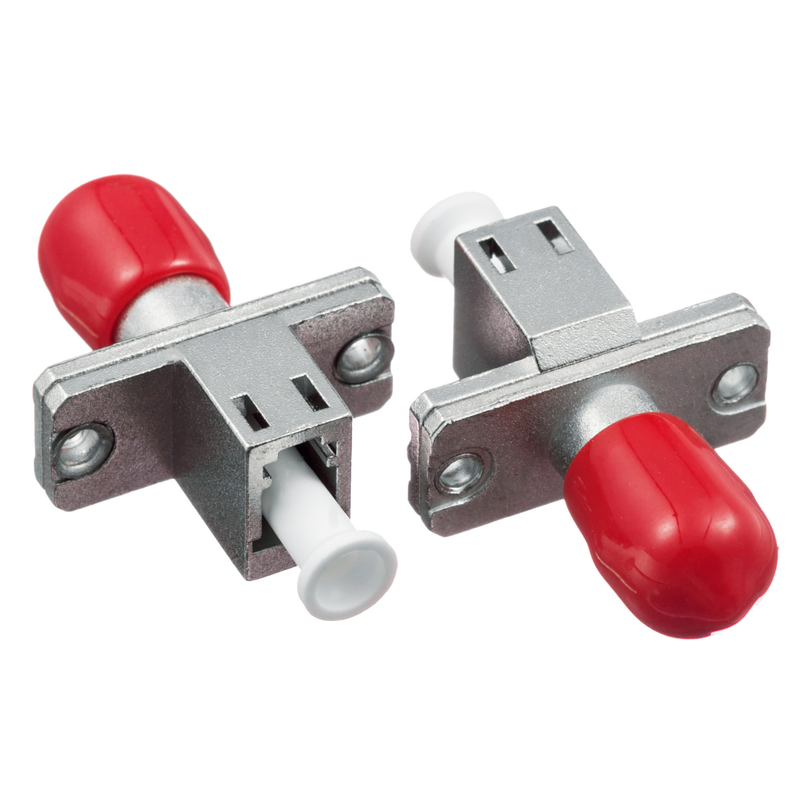

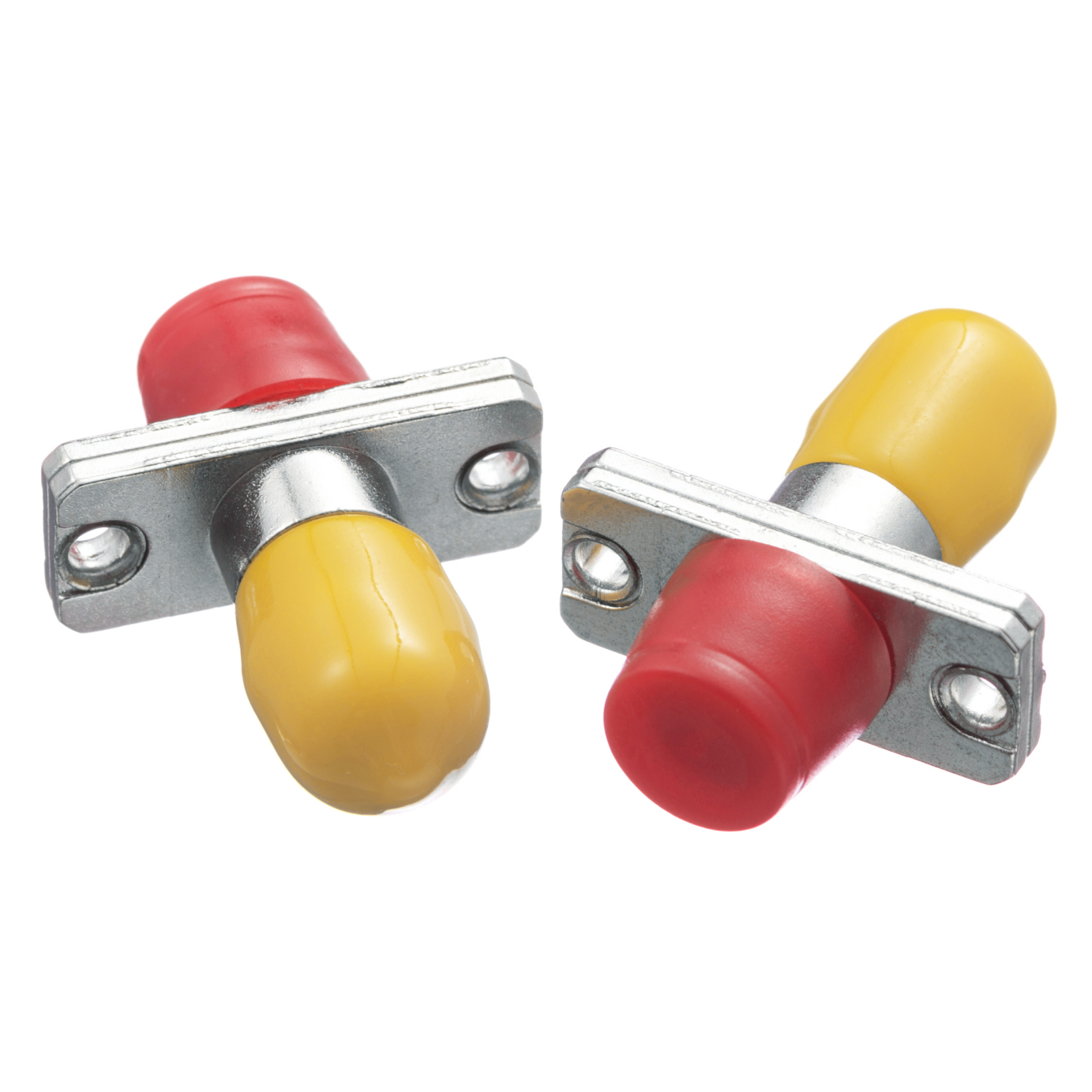

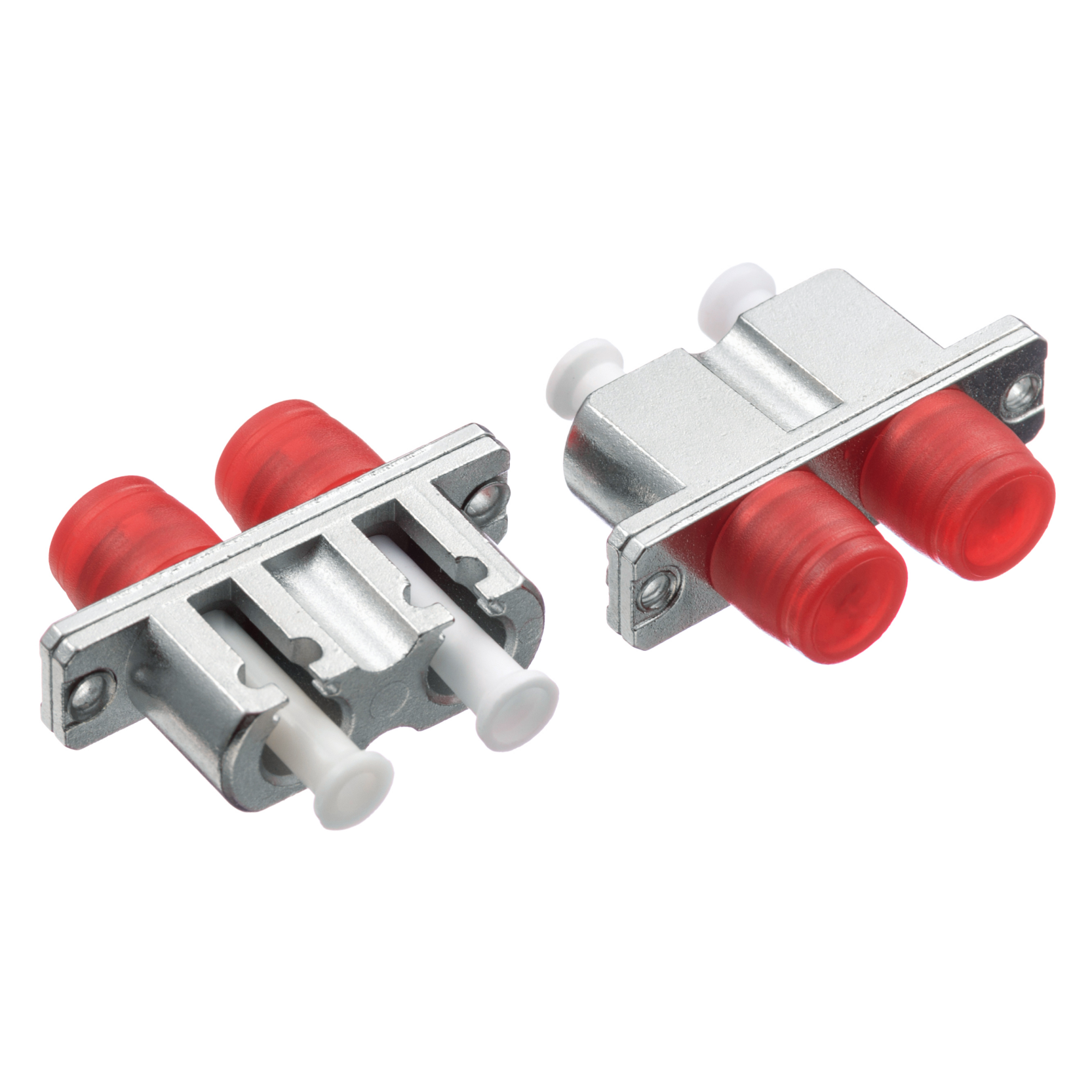

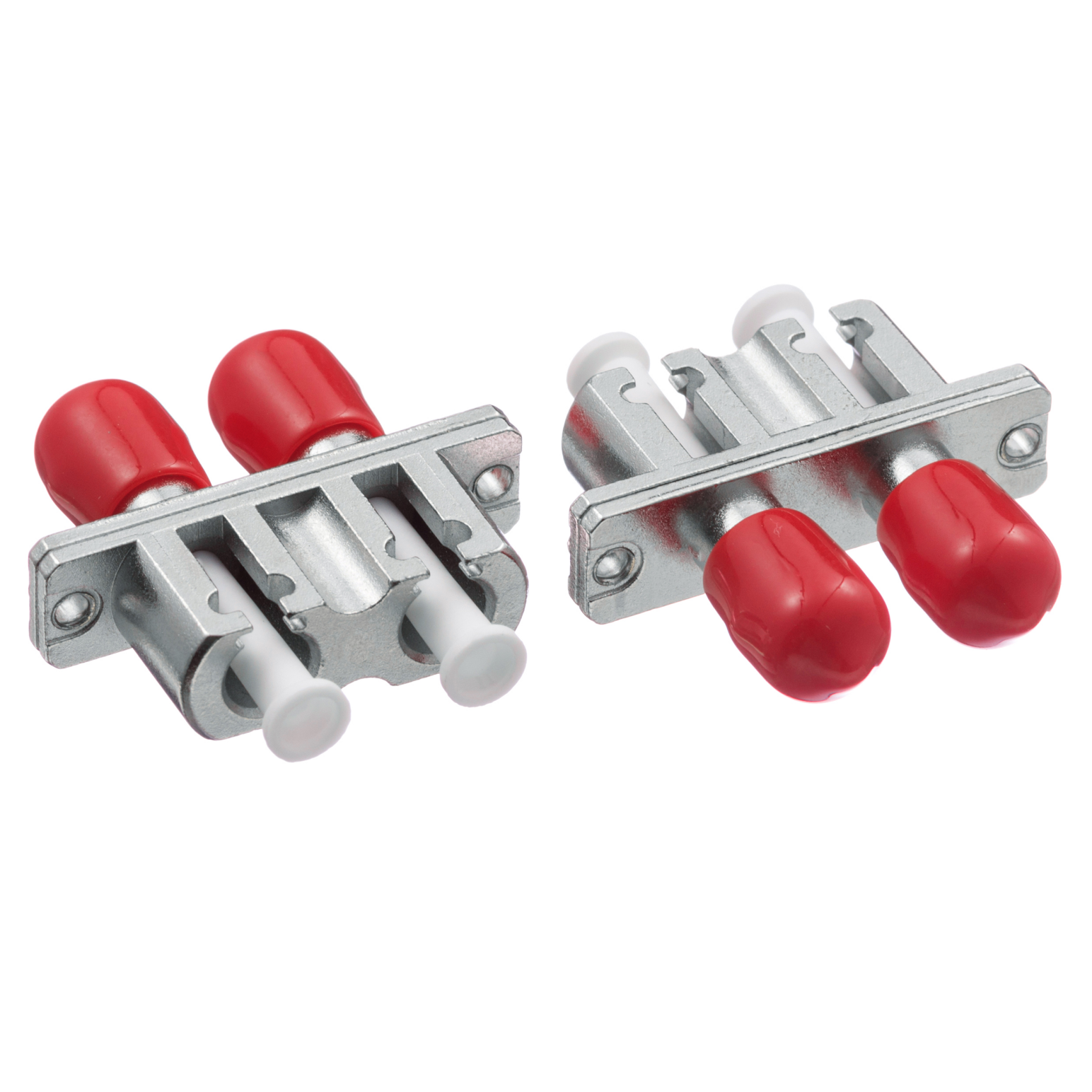

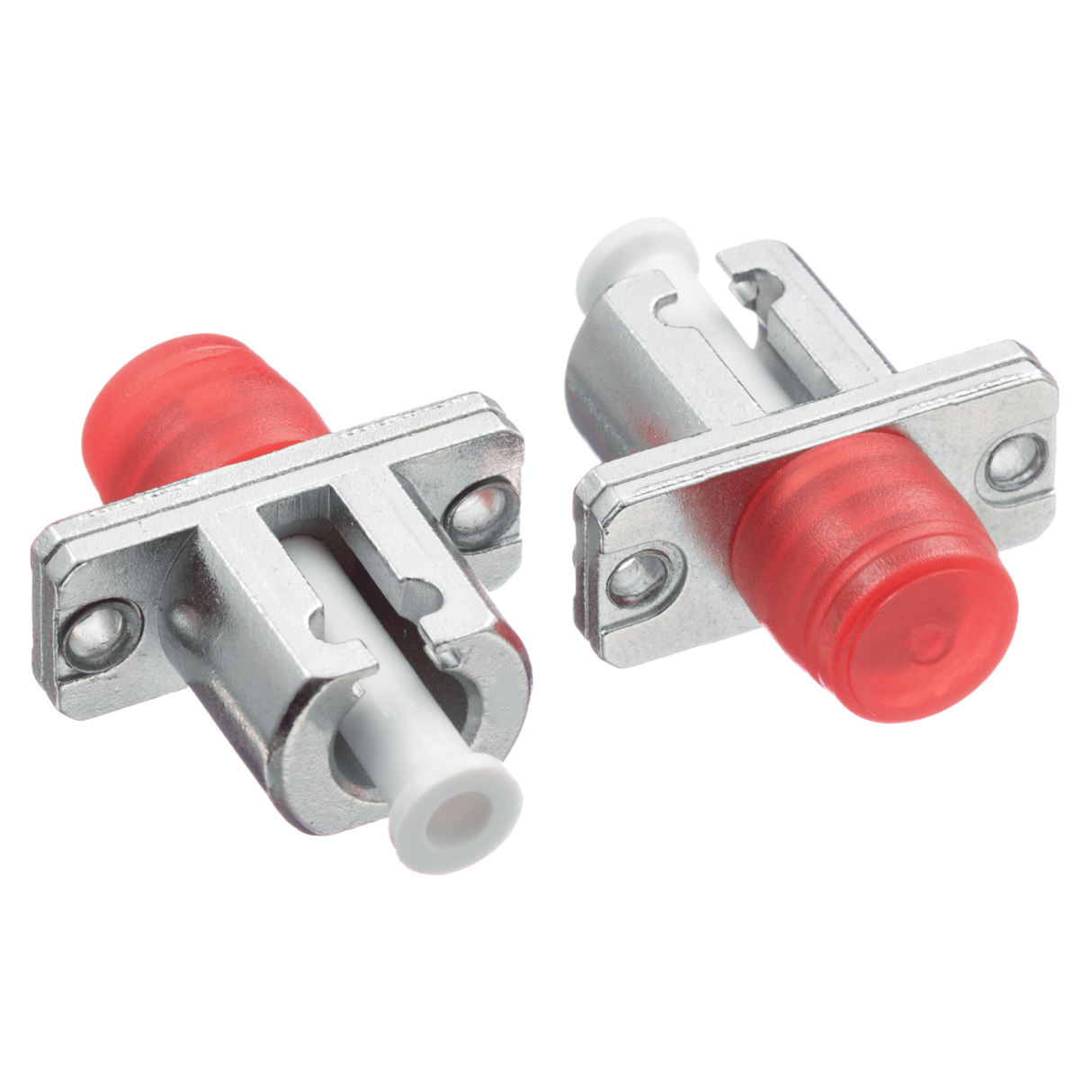

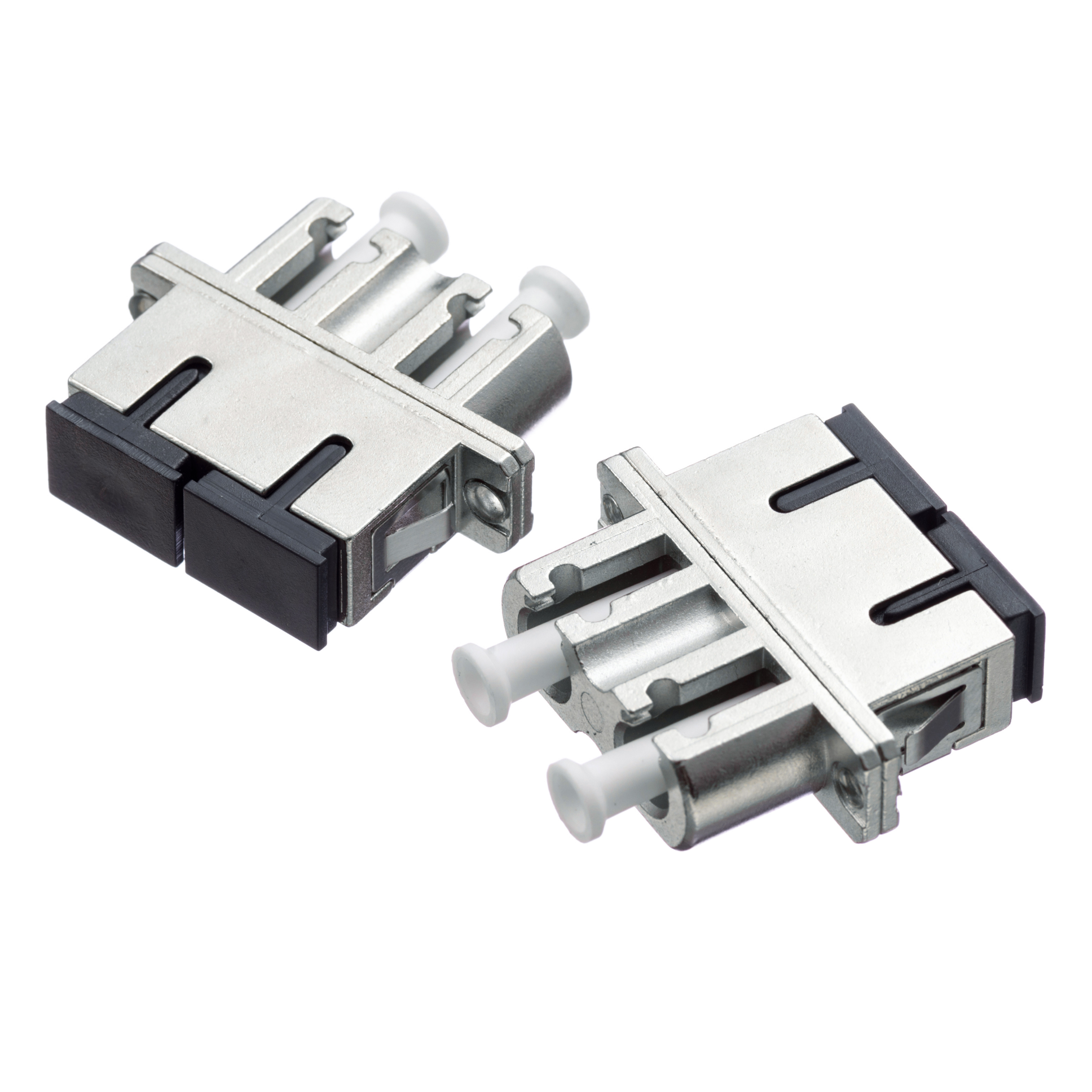

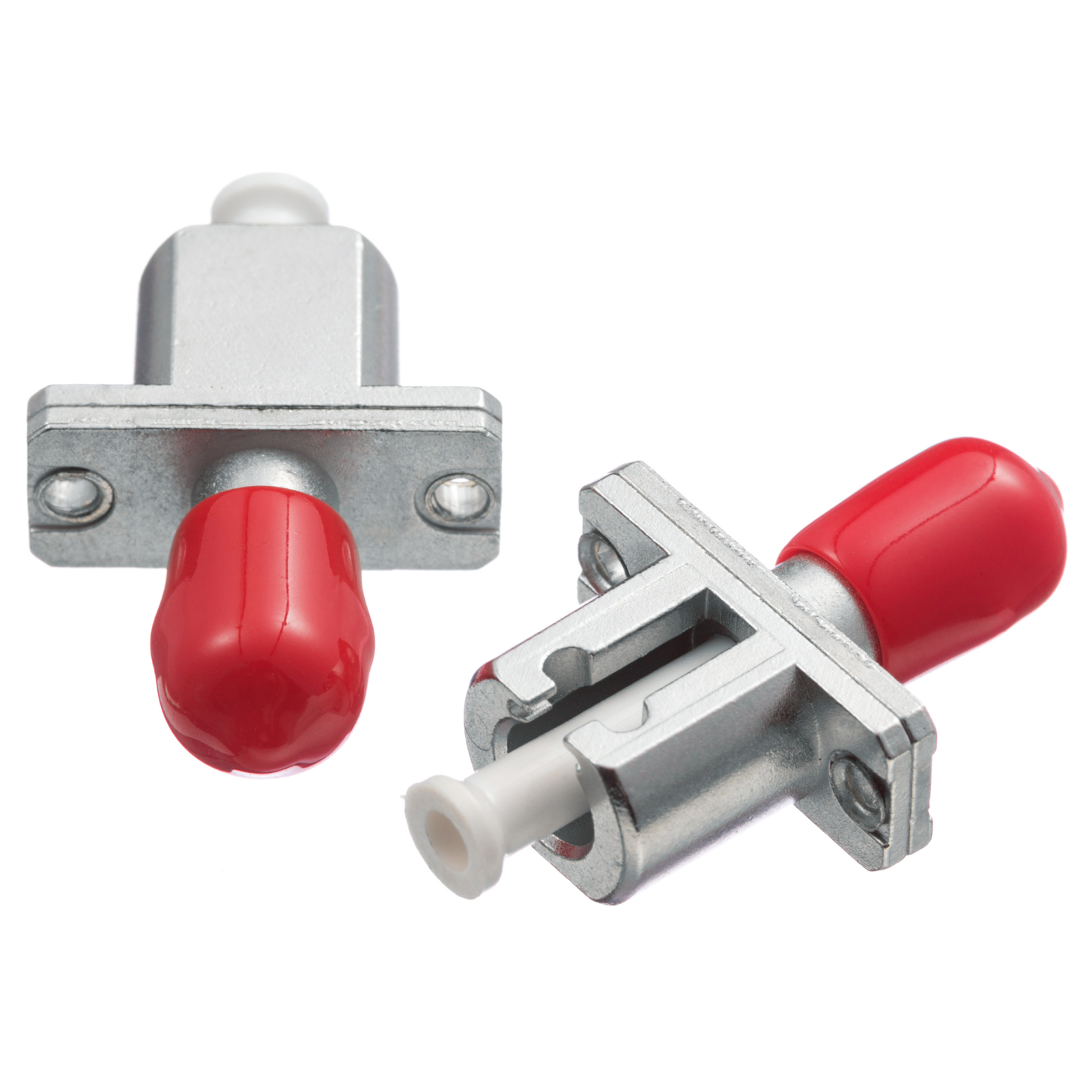

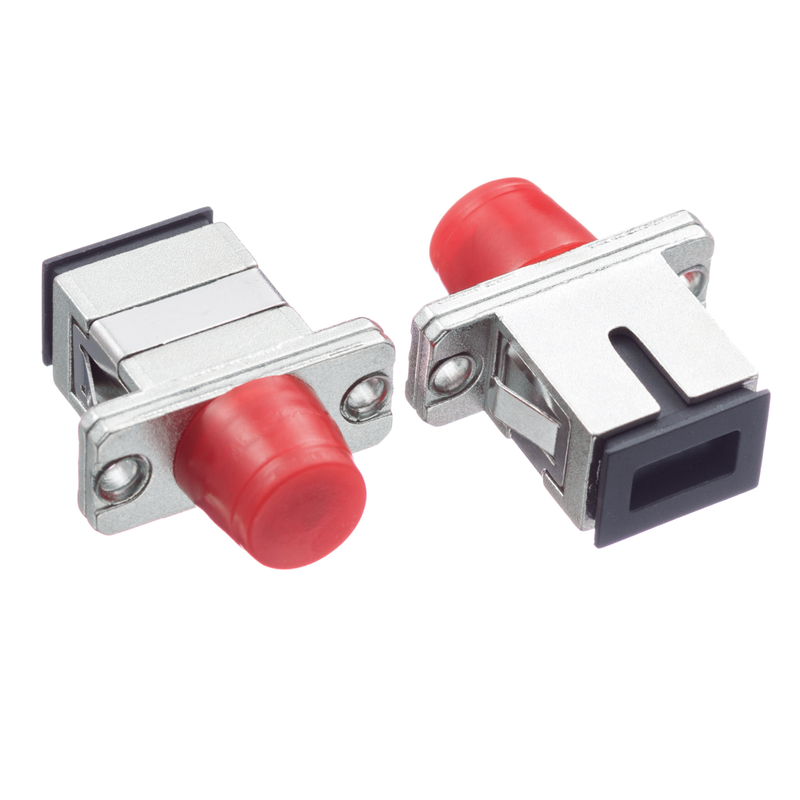

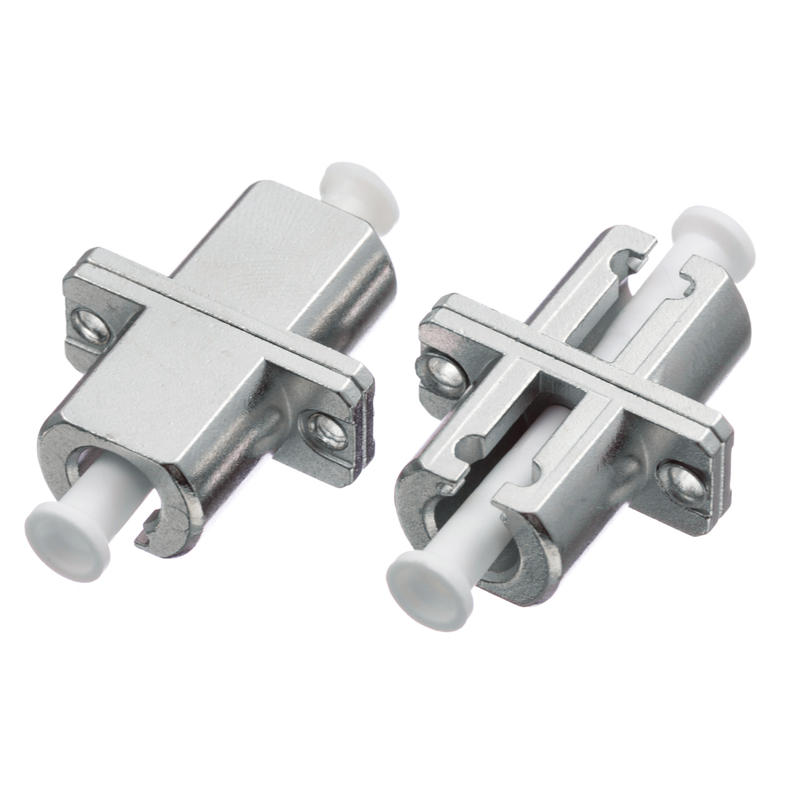

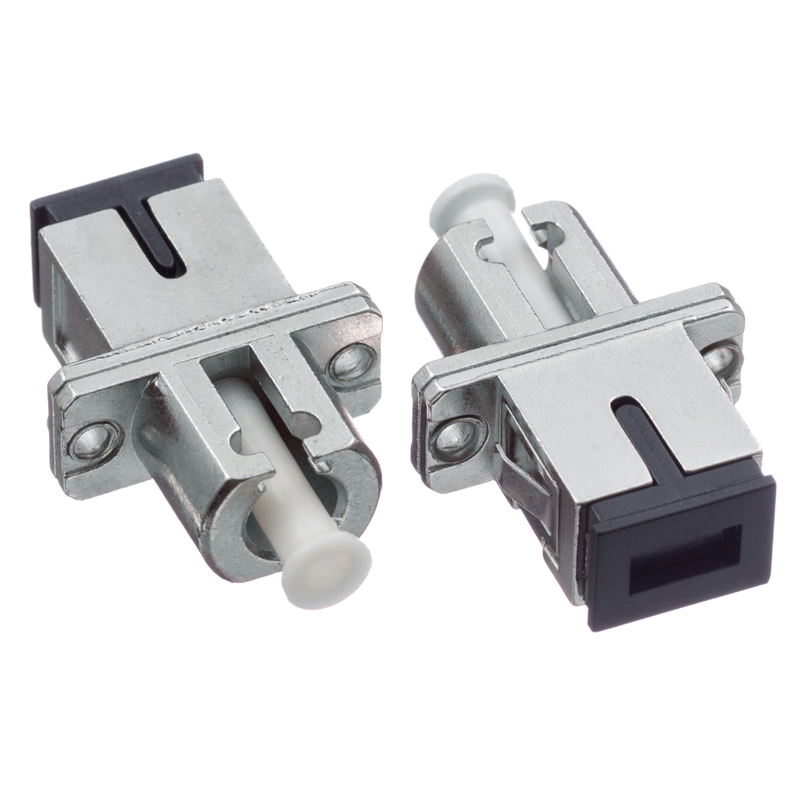

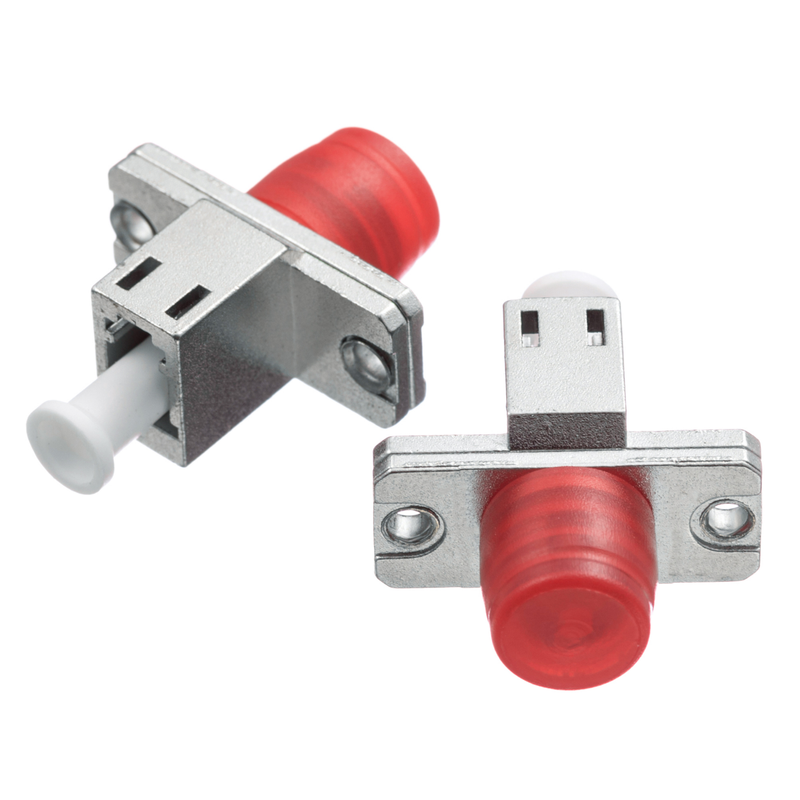

FC SC ST LC Hybrid Fiber Optic Adapter
 | | | | |
| | | | |
| | | | |
Description:
A hybrid adaptor provides two interfaces of different type for interconnecting both connectors. A hybrid adaptor is used in switching different connector so that it is widely applied in optical fiber management system, optical testing project and etc.
Features:
Easy to use
Can be embedded in any termination box, splicing tray and etc

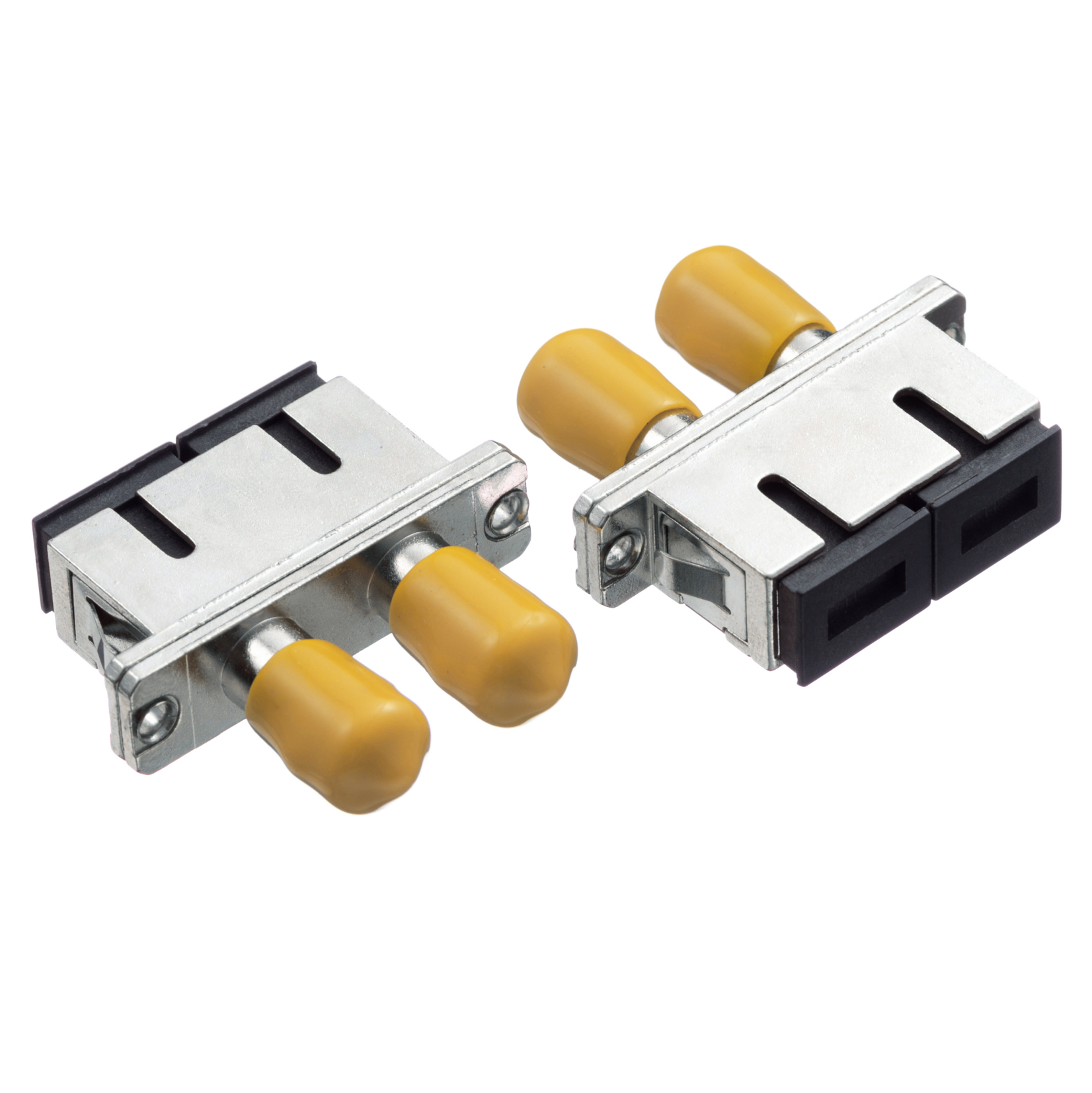

Both simplex and duplex type are available
Both UPC and APC polishing mode is available
Suitable for interconnecting of two different type connectors
Using metal material makes it firm and durable
Zirconia internal tube ensures a low insertion loss
Specifications:
Mating Sleeve Fiber Optic Adapter | Single Mode (9/125) | Multi Mode (50/125) |
Multi Mode (62.5/125) |
Insertion Loss (dB) | ≤0.2 |
Return Loss (dB) | UPC ≥ 50, UPC ≥ 60 | -- |
Repeatability (dB) | 0.1 Max. |
Working Temperature (℃) | -40 to +75 |
Durability (times) | ≥ 1000 |
