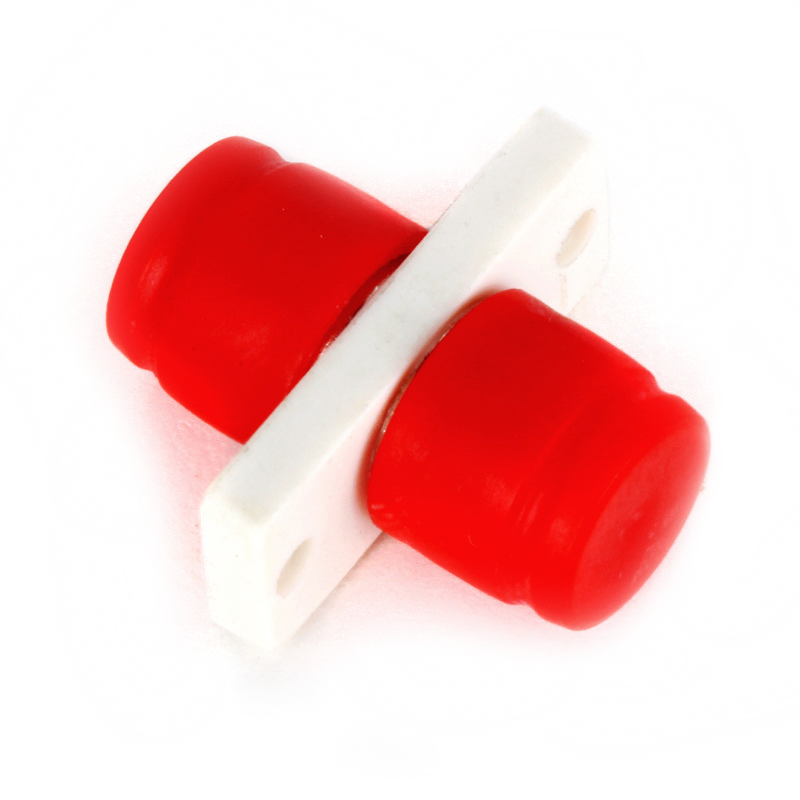

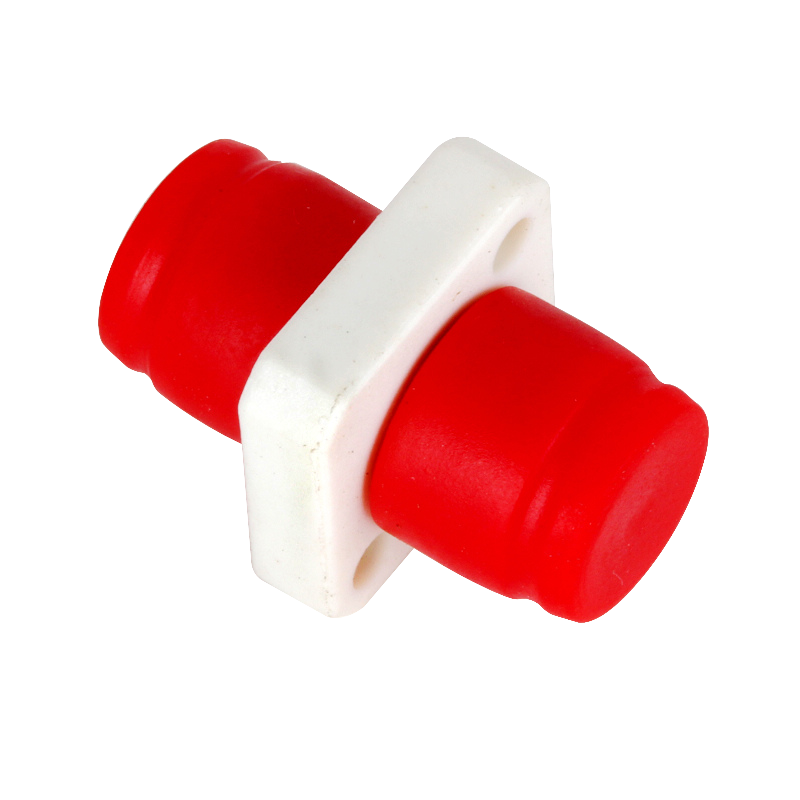

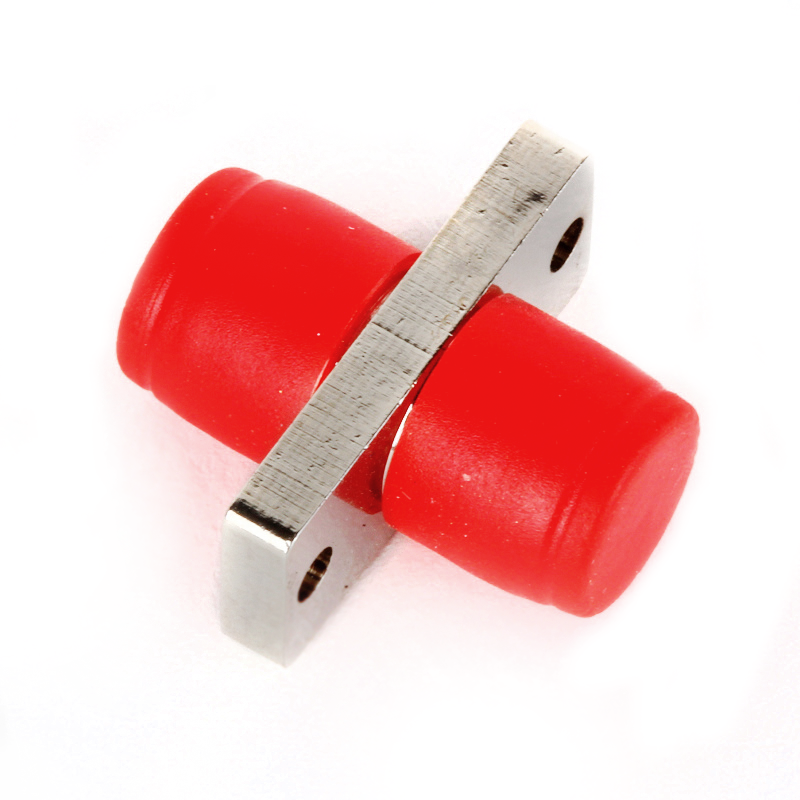

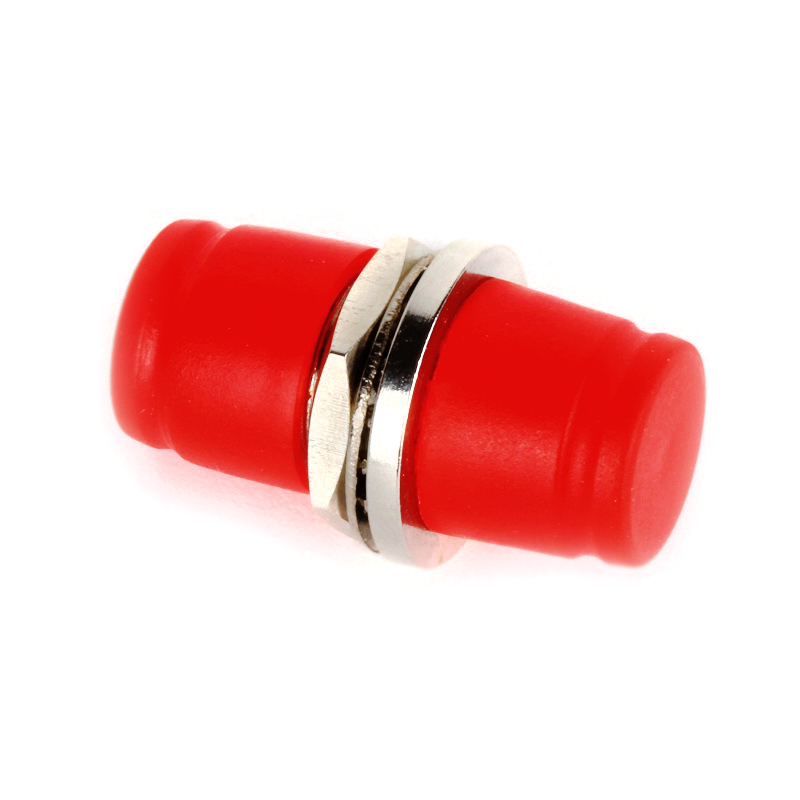

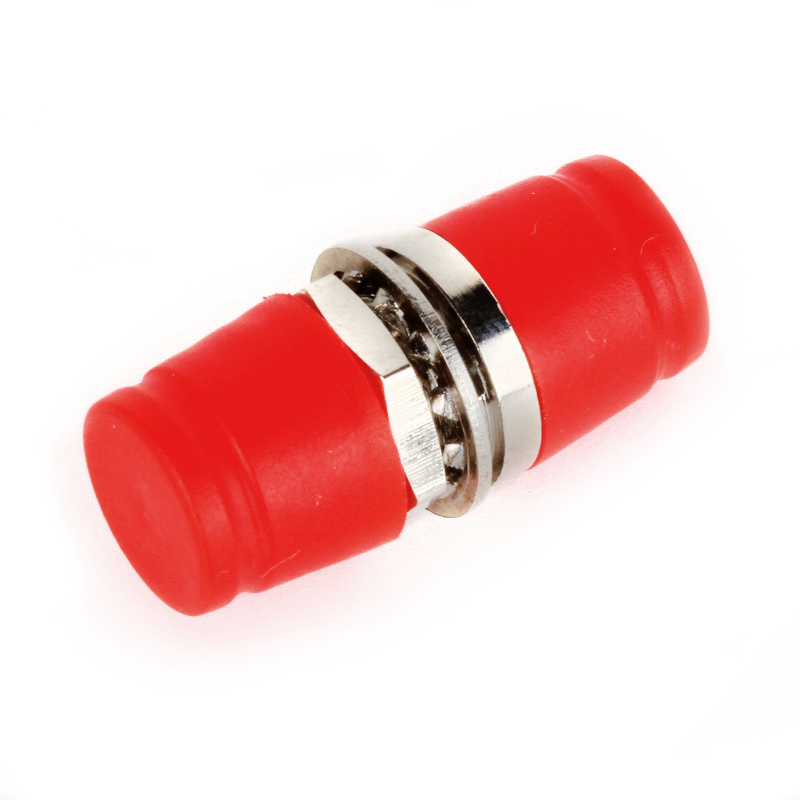

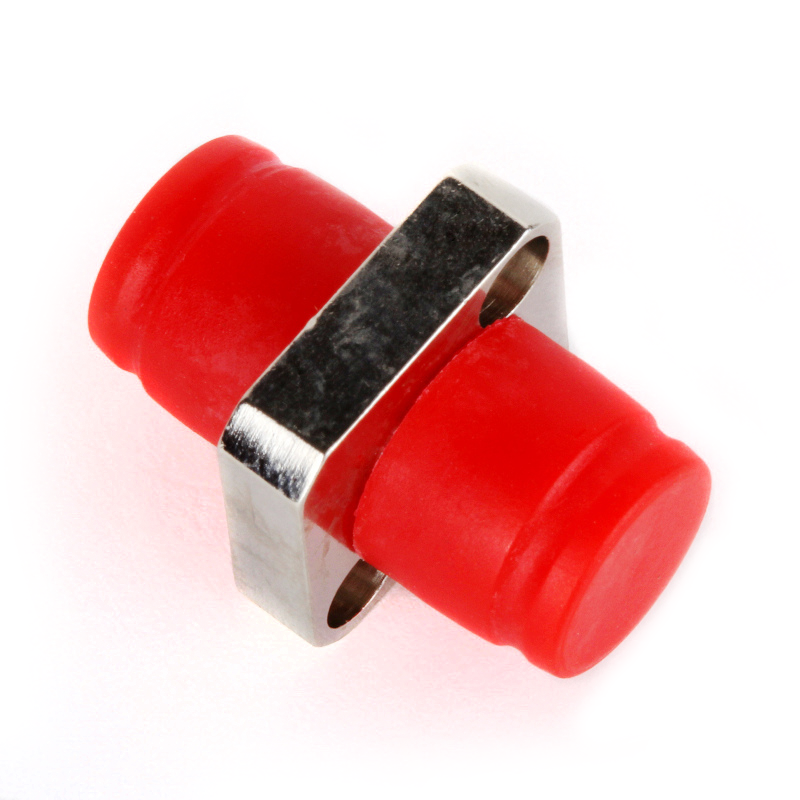

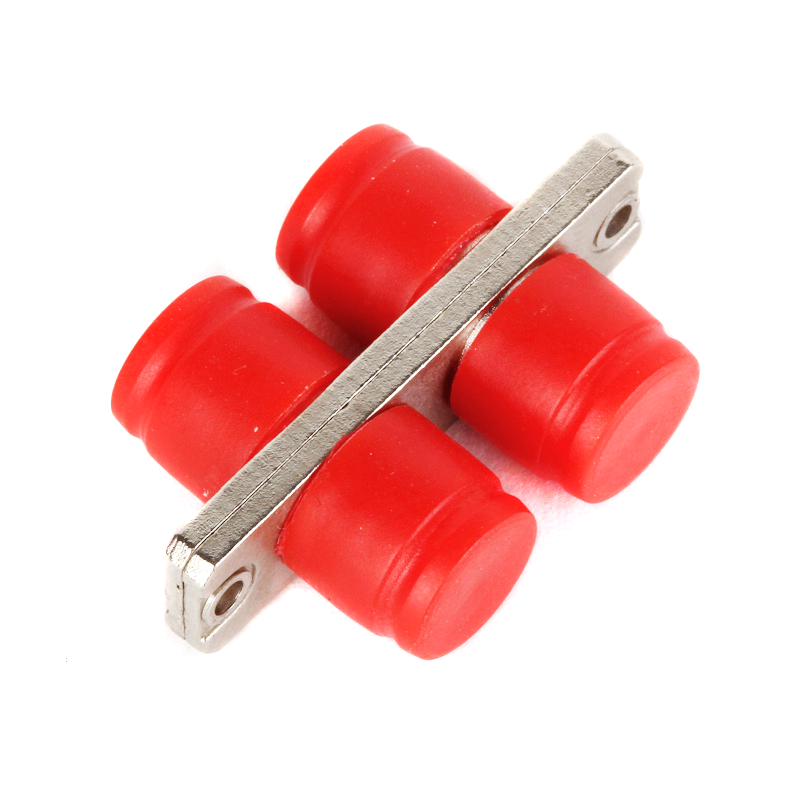

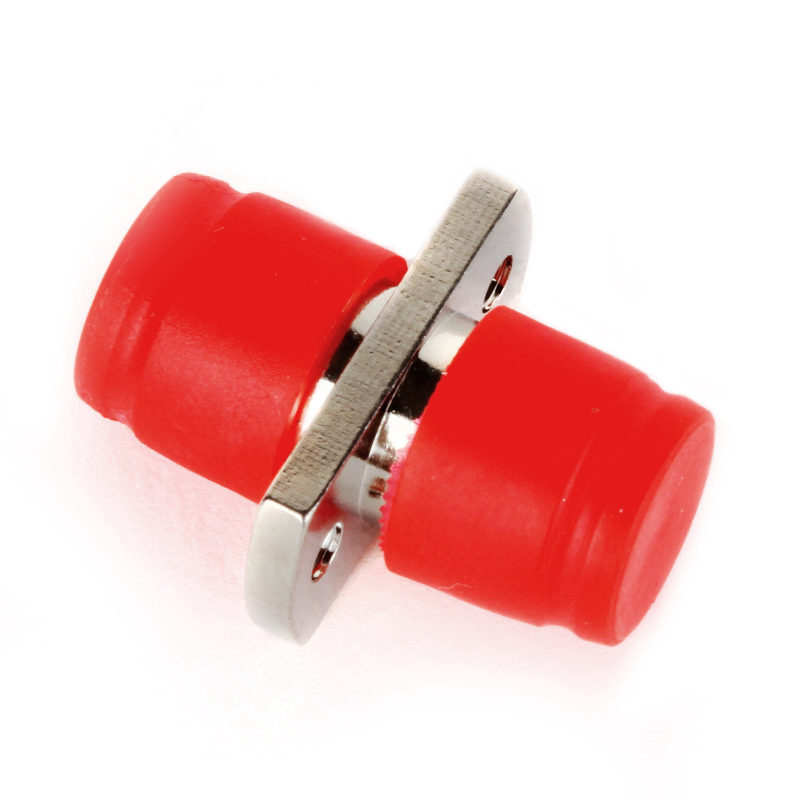

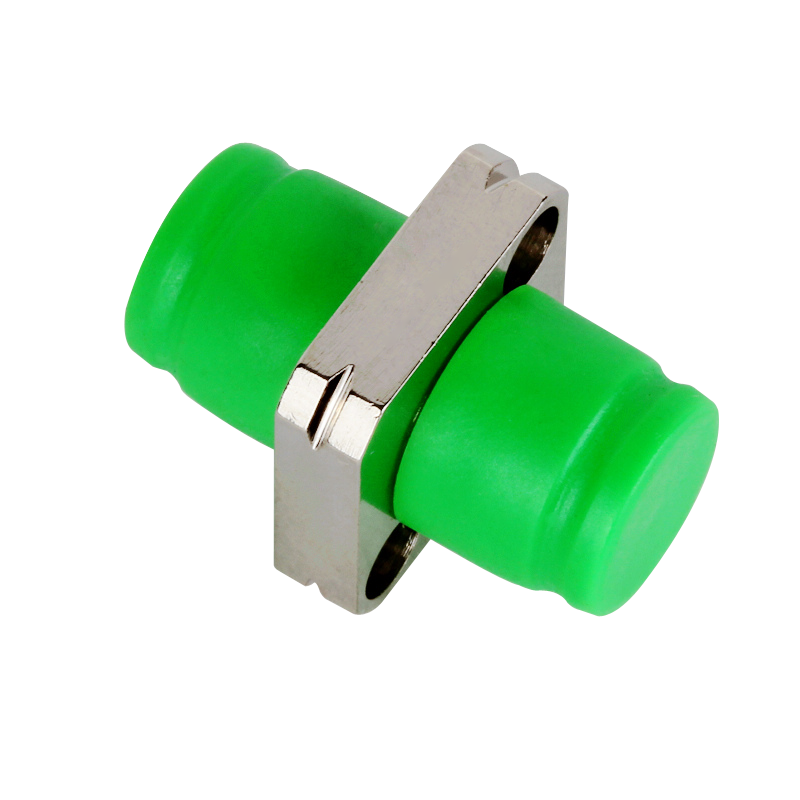

Mating Sleeve Fiber Optic Adapter Female to Female - FC Adapter
 | | |
| | |
| | |
Description:
FC Mating Sleeve Fiber Optic Adapter is a fiber optic adapter female to female type, by using a sleeve to precisely connect two sides optical fiber connectors to allow optical signals to be transmitted at sufficiently low insertion loss. The mating sleeve fiber optic adapter series include SC, LC, FC, ST, MU, D4, DIN, E2000 and SMA etc.
Features:
1. Precision connection with sleeve
2. SM & MM connector can be used interchangeably
3. Low insertion loss, high return loss
4. High interchangeability & reliability
5. Compliance with IEC and ROHS standards
6. High precision of mechanical dimensions
Specifications:
Mating Sleeve Fiber Optic Adapter | Single Mode (9/125) | Multi Mode (50/125) |
Multi Mode (62.5/125) |
Insertion Loss (dB) | ≤0.2 |
Return Loss (dB) | UPC ≥ 50, UPC ≥ 60 | -- |
Repeatability (dB) | 0.1 Max. |
Working Temperature (℃) | -40 to +75 |
Durability (times) | ≥ 1000 |
