| Part Number | FOSC-BDH-E17S12-5817-A | FOSC-BDH-E17S12-5817-B | FOSC-BDH-E17S12-5817-C |
| Max.Capacity (Single core) | 144F
| 360F
| 648F |
| Dimension (mm) | 370×φ270 | 505×φ270 | 625×φ270 |
| Weight (kg) | 5.5~6.2 | 7.5~8 | 9.5~12 |
Packing (mm)
| 400×330×290(1 pcs) | 650×315×285(1 pcs) | 775×315×285(1 pcs) |
| Fiber Optic Splice Tray | 12pcs x 12F tray or 24pcs x 6F tray | 30pcs x 12F tray or 60pcs x 6F tray | 54pcs x 12F tray or 108pcs x 6F tray |
Cable Port Q'ty
| 17 | 17 | 17 |
| Applicable Cable Dimension (mm) | 1pcs oval port: φ14-φ25 4pcs round port: φ10-φ20 12pcs round port: φ10-φ16 |
| Sealing method | Heat shrink | Heat shrink | Heat shrink |

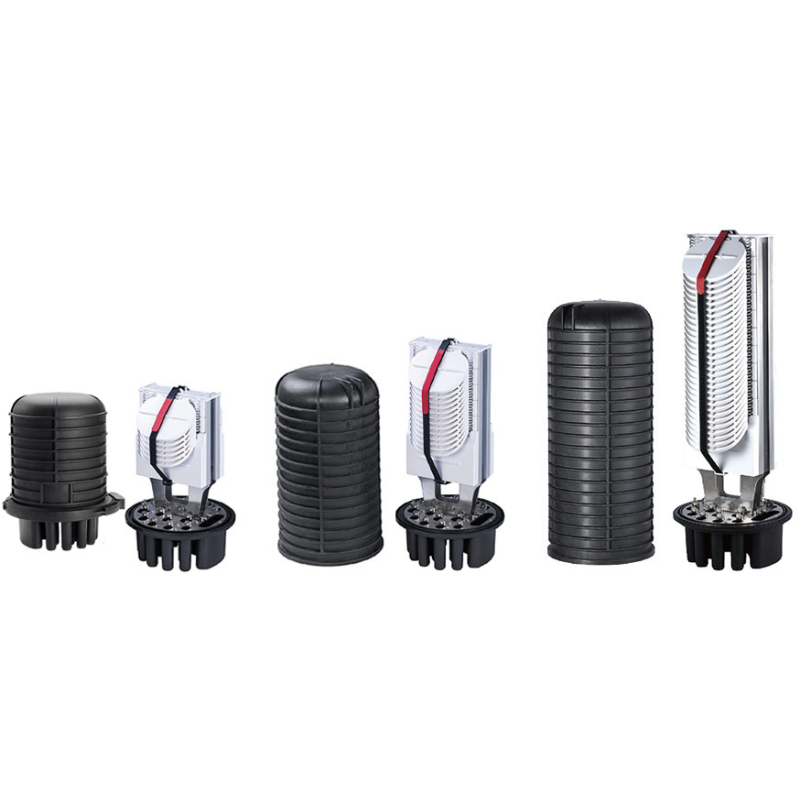

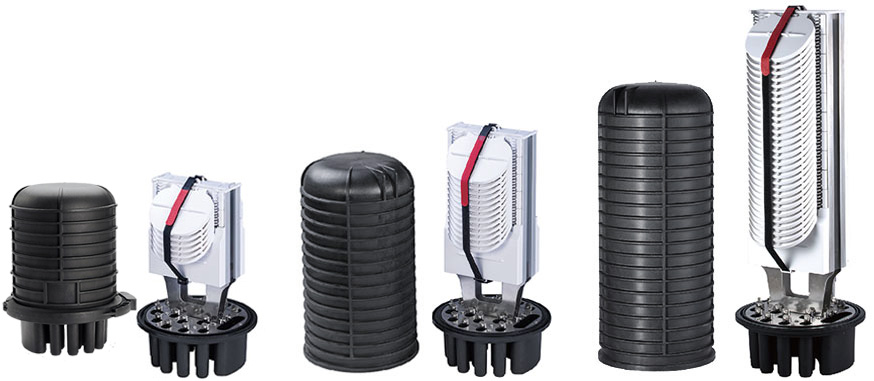

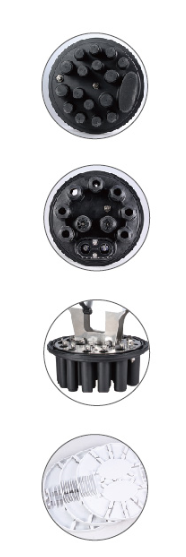

FOSC-BDH-E17S12-5817 series fiber optical splice dome type closure has 17pcs optical cable ports. 16pcs round optical ports are used for cut cable and 1pcs oval optical port is for uncut cable. This type closure is suitable for wall-mounted, aerial, direct buried, pipe-lined and pole mounted. The design highlights is closure's cable ports base can be interchangeable. There are two type closure cable ports. One is heat shrink sealing with 17pcs cable ports, and one is mechanical sealing type with 11pcs cable ports.
1. FOSC-BDH-E17S12-5817-A

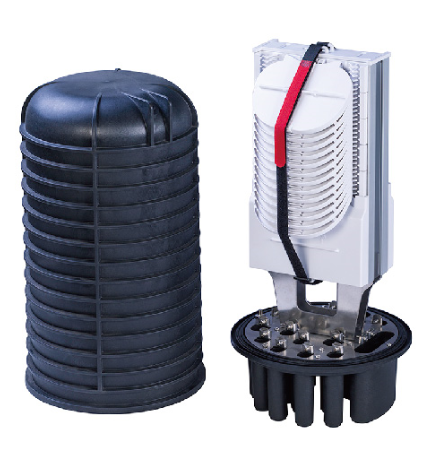

2. FOSC-BDH-E17S12-5817-B

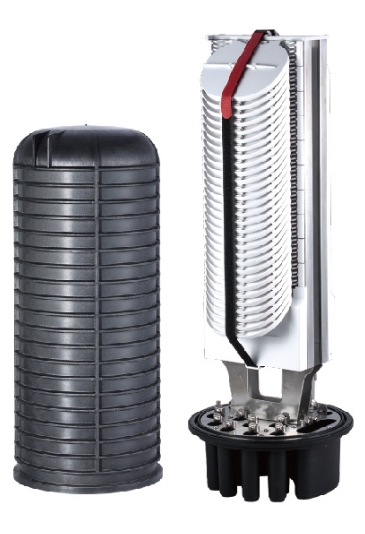

3. FOSC-BDH-E17S12-5817-C
