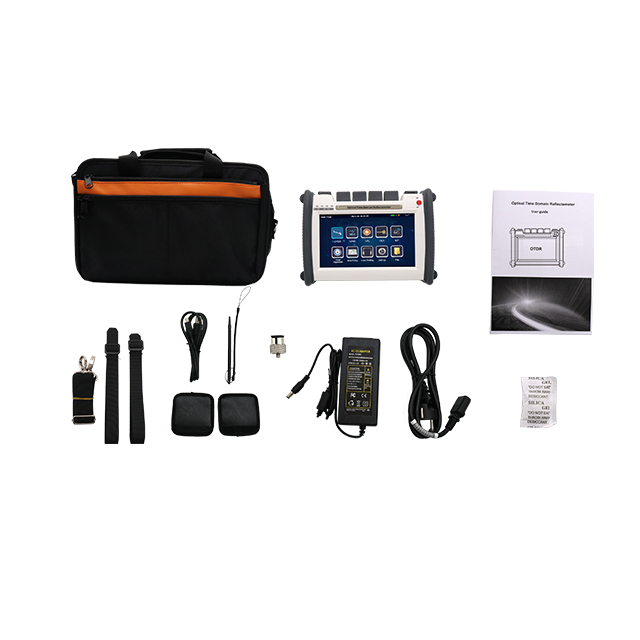

2200MAX is a professional handheld OTDR fiber tester designed for FTTH installation, fiber network maintenance and troubleshooting.
• Integrated OTDR, optical power meter, light source and VFL functions • 7-inch touchscreen display with multiple wavelength options • Supports SM/MM fiber testing for telecom and access networks • Rugged portable design for field engineers and contractors • Fast fault location and accurate fiber link verification
Built for field engineers working long days outside: the 2200MAX eliminates the pain of dead batteries mid‑test, carrying multiple separate tools, and screen glare in direct sunlight.
This rugged OTDR features a 7‑inch anti‑reflection touchscreen and intelligent dual‑battery power supply, supporting up to 12 hours continuous working for long field tasks.
It integrates 6 test functions in one unit: OTDR, power meter, light source, VFL, event map and loss test, with up to 45dB dynamic range and 0.8m ultra‑short dead zone.
Filtered models support live PON testing without interrupting customer service, making it the all‑in‑one solution for FTTx construction, trunk line maintenance, CATV and outside‑plant engineering.
Key Features

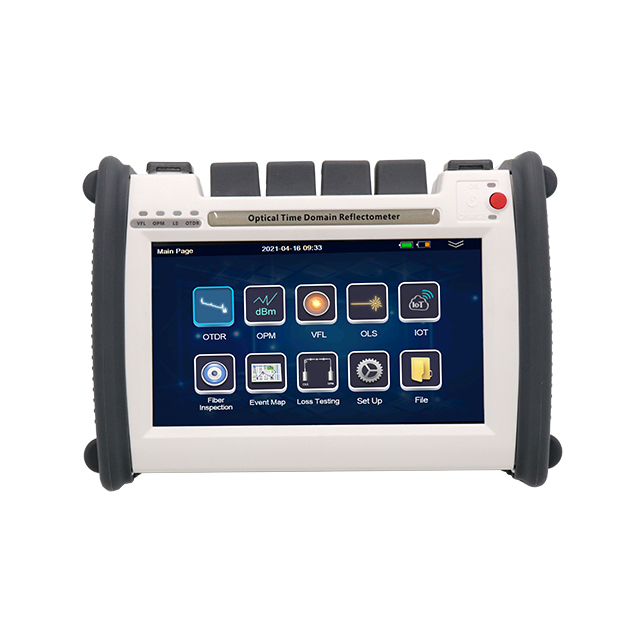

7" sunlight‑readable anti‑glare touchscreen
Dual‑battery intelligent power system, 12‑hour continuous field working
Up to 45dB high dynamic range, 0.8m ultra‑short event dead zone

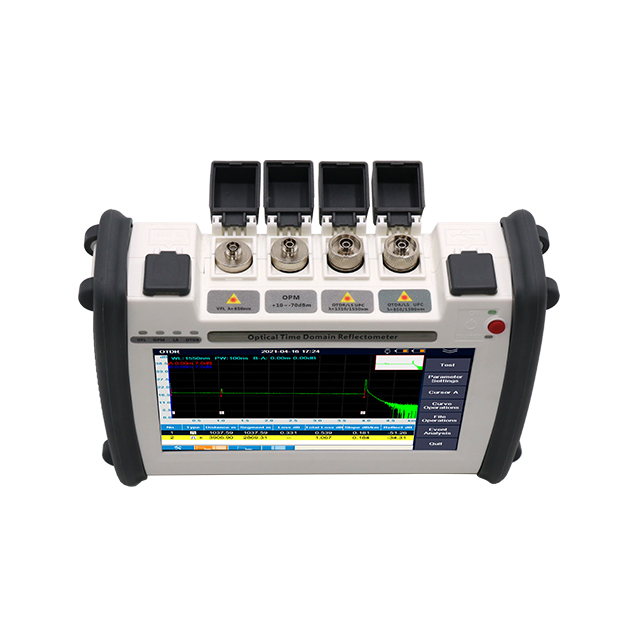

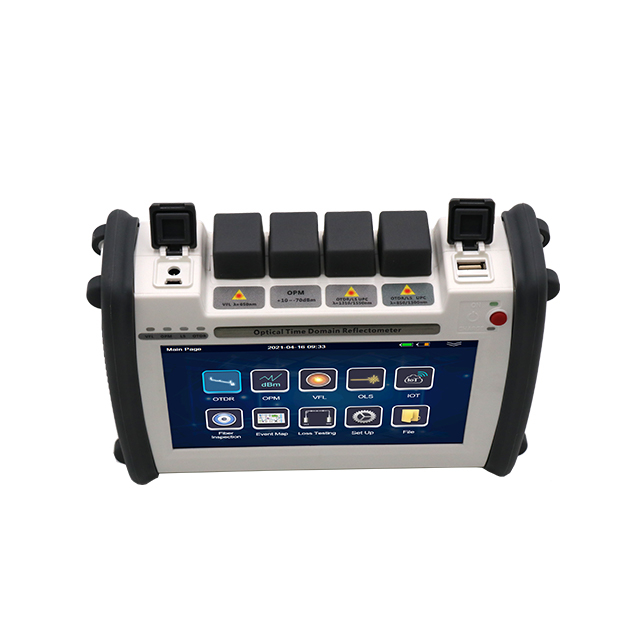

6‑in‑1 integrated: OTDR + OPM + OLS + VFL + Event Map + Loss Test
PON online test with 1625/1650nm filter (no service interruption)
MMF 850/1300nm multi‑mode module optional
16GB internal storage, save over 100 000 test traces
Standard Telcordia SOR trace file, PDF report export via PC software
Rugged drop‑resistant field housing, auto laser protection
256k sampling points, 5cm high sampling resolution
More models (37/42dB, 1650nm filtered, custom wavelength, WiFi/Bluetooth/GPS) available on request.
Filtered versions support live‑fiber testing without interrupting end‑user service.
Free PC analysis software included for report generation.
Technical Specifications
OTDR Module
Item
Parameter
Pulse Width
3ns ~ 20μs (SM), 3ns ~ 2μs (MM)
Distance Range
100m‑240km (SM), 500m‑40km (MM)
Max Sampling Points
256 000 points
Sampling Resolution
Min 5cm
Distance Accuracy
±(1m + 3×10⁻⁵ × distance + sampling resolution)
Linearity
≤0.05dB/dB
IOR Setting
1.2000‑1.5999, step 0.0001
File Format
Telcordia SOR (SR‑4731)

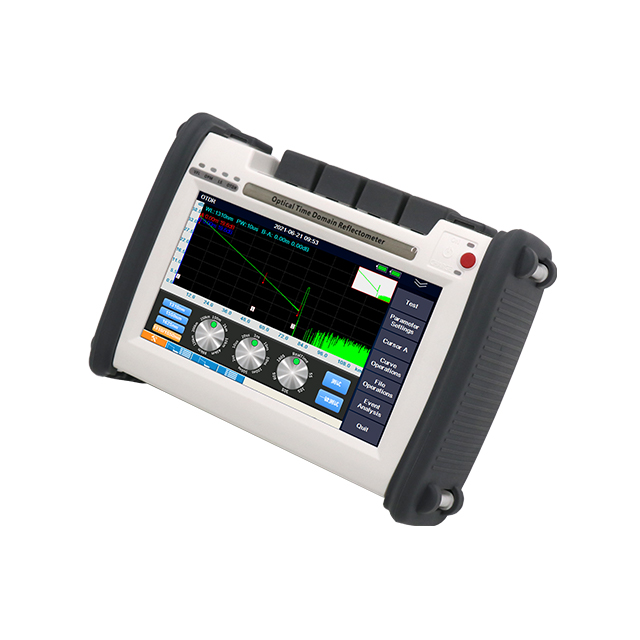

Event Analysis
Auto event map, pass‑fail threshold, multi‑curve comparison
