OFI-D Optical Live Fiber Identifier Product Details View  | |

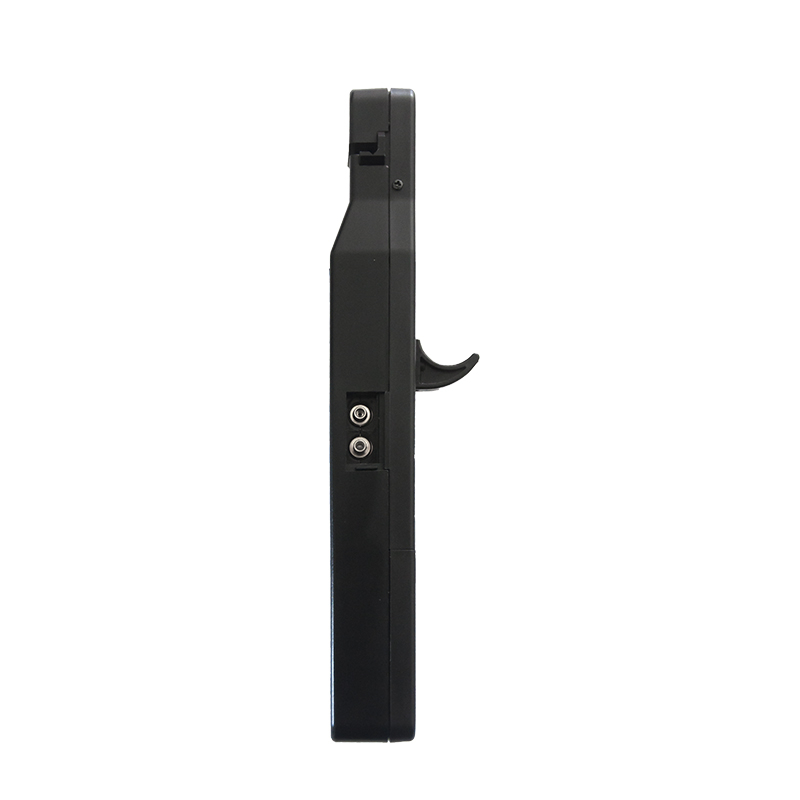

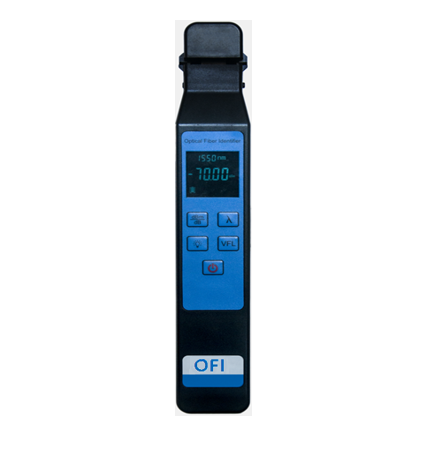

| OFI-D Optical Fiber Identifier Front View | OFI-D Built in OPM & VFL Port |
Description:
OFI-D Optical Fiber Identifier is an useful and import fiber optic testing tool for nondestructive fiber identification project. OFI-D optical fiber identifier is built with both visual fault locator and optical power meter function. Visual fault locator is used for finding fiber optic break points. OFI-D optical fiber identifier can measure the fiber optical signal direction and power value by using the macro bending technology on line for nondestructive testing.
Features:
1. TFT color screen
2. Indicate the signal directions and power value
3. Indicate the signal presence or absence(Live or dark fiber)
4. Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
5. Displays the relative core power
6. Don't need to replace adaptor
7. Lower power indication
8. Build in VFL function
9. Build in OPM function
Technical Specifications:
Part Number | OFI-D |
Optical Fiber Identifier Module |
Identified Wavelength Range | 750-1700nm |
Insertion Loss | 1.0dB |
Fiber Type | ＜ 3mm Fiber |
Identified Signal Type | 270Hz/1KHz/2KHz |
Display Type | LED |
Detector Type | 1mm InGaAs |
Minimum detection power | -35dBm(1550nm) |
-30dBm(1310nm) |
Optical Power Meter (OPM) Module |
Calibration Wavelength (nm) | 850、1300、1310、1490、1550、1625 |
Measuring Range (dBm) | -50~+26 |
Fiber Connector | Universal 2.5mm connector |
Visual Fault Locator (VFL) Module |
Wavelength (nm) | 650±10 |
Output Power (mW) | 10 |
Fiber Connector | Universal 2.5mm connector |
General Information |
Display screen | TFT color screen |
Power Supply | 1.5V AA x 2pcs |
Operating Temperature (℃) | -20～+60 |
Storage Temperature (℃) | -30～+70 |
Dimension (mm) | 220 x 38 x 28, 145g (battery not included) |
Package | Main unit, user manual, carry case |
