Description

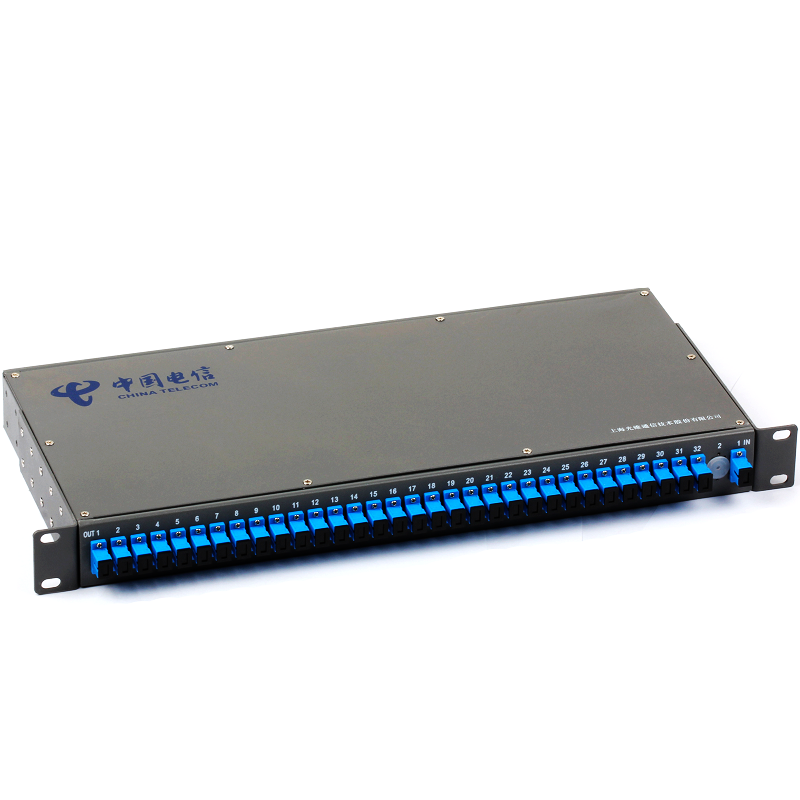

3S provides a high precise rack mounted type PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact rack mount design. The dimension of 1U or 2U rack mount splitter can be customized based on the requirements of our client. It can be placed into ODF to process the standard operation. It can be easily applied in FTTx construction, optical network construction, CATV networks and etc.
Features
1. Compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel counts
5. Wide wavelength range
6. Large operating and temperature range
7. Customized packaging and configuration
8. Full Telcordia GR1209/1221 qualifications
Specification
1×N (N>2) PLCS (With connector) Optical parameters |
|
Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|
Operation wavelength (nm) | 1260~1650 |
|
Insertion loss (dB) Max | 7.7 | 11.0 | 14.0 | 17.2 | 21.3 |
Return loss (dB) Min | APC | 55 | 55 | 55 | 55 | 55 |
|
UPC | 50 | 50 | 50 | 50 | 50 |
|
PDL (dB) Max | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
|
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 |
|
Pigtail length (m) | 1.0(±0.1) or customer specified |
|
Fiber type | SMF-28e with 2mm cable or customization |
|
Operation temperature (°C) | -20~65 |
|
Storage temperature (°C) | -40~85 |
|
Dimension (L×W×H) (mm) | 483×200×1U/483×200×2U/customization |
|
2×N (N>2) PLCS (With connector) Optical parameters |
|
Parameters | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|
Operation wavelength (nm) | 1260~1650 |
|
Insertion loss (dB) Max | 8.1 | 11.5 | 14.5 | 17.8 | 21.8 |
|
Return loss (dB) Min | APC | 55 | 55 | 55 | 55 | 55 |
|
UPC | 50 | 50 | 50 | 50 | 50 |
|
PDL (dB) Max | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
|
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 |
|
Pigtail length (m) | 1.0(±0.1) or customer specified |
|
Fiber type | SMF-28e with 2mm cable or customization |
|
Operation temperature (°C) | -20~65 |
|
Storage temperature (°C) | -40~85 |
|
Dimension (L×W×H) (mm) | 483×200×1U/483×200×2U/customization |
|
