Description:

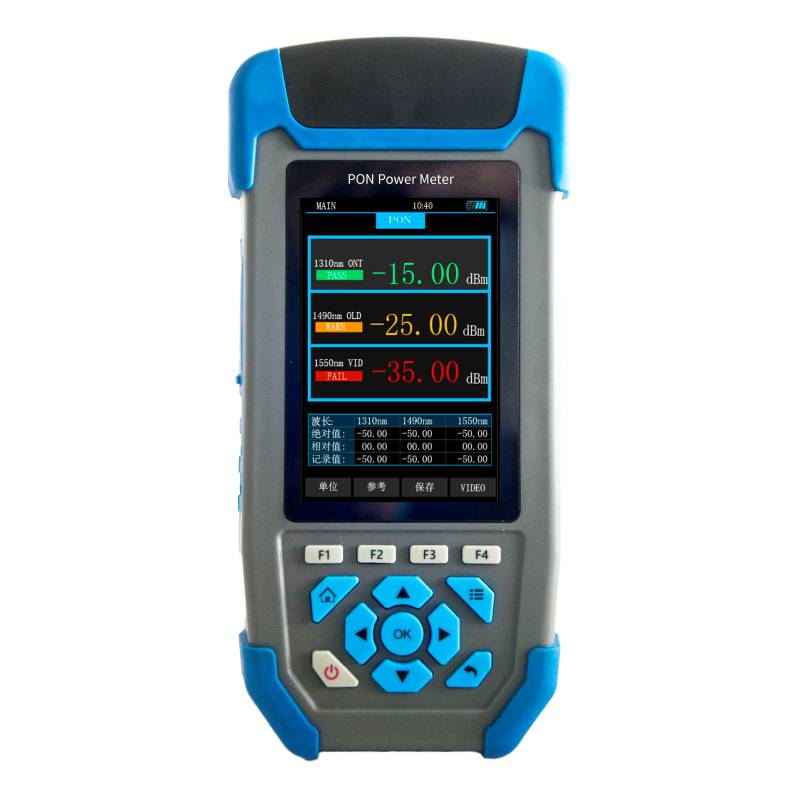

PPM-C PON Power Meter is a high precision FTTH PON networking testing instrument with 3.5 inch TFT color screen. The PPM-C PON power meter has 2 optical ports, ONT port and OLT port. ONT with working wavelength 1310nm outputs is used for testing upsteam signal under burst mode measurement. OLT port with working wavelength 1490nm and 1550nm outputs is used for testing downsteam signal - voice and video.
PPM-C PON power meter is built in multiple useful functions with PON power meter, wide-range optical power meter, visual fault locator and RJ45 line sequence calibration. PPM-C PON power meter can record and upload the test data too. It is widely used in the FTTH construction, inspection and maintenance of CATV and other optical line projects.
Features:
1. 3.5-inch TFT color screen
2. Support PON Power Meter Mode
3. Supports Standard Optical Power Meter Mode
4. Support Red Light (Visual Fault Locator) Mode
5. Support RJ45 Wire Sequencing Test Mode
6. Support Lithium Battery, AC adapter, USB Power Supply Mode
7. Intelligent Power Management and Power Detection Function
8. Support Date and Time Setting
9. Support Power Saving Mode
Technical Specifications:
PON Power Meter Module |
Wavelength | 1310nm Upstream | 1490nm Downstream | 1550 Downstream |
Pass band (nm) | ±50 | ±15 | ±10 |
Measurement Range | -40~+10dBm | -40~+12dBm | -40~+25dBm |
Isolation@1310nm | - | >40dB | >40dB |
Isolation@1490nm | >40dB | - | >40dB |
Isolation@1550nm | >40dB | >40dB | - |
Uncertainty | <±0.5dB |
Polarization Dependent Loss | <±0.25dB |
Linearity | ±0.1dB |
Through Insertion Loss | <1.5dB |
Display Resolution | 0.01dB |
Connector | SC/UPC |
Visual Fault Locator Module |
Wavelength | 650±20nm |
Power | 10mW |
Mode | CW/1Hz/2Hz |
Connector | 2.5mm universal connector |
Optical Power Meter Module |
Measurement range (dBm) | -70 ~ +10 | -50 ~ +26 |
Uncertainty (dB) | ≤0.5 |
Calibration wavelength（nm） | 1310/1490/1550/1625 |
Unit | dBm、dB、xW |
Linearity(dB) | ≤0.1 |
Measurement Accuracy (dB) | 0.01 |
RJ45 Cable Sequence (One-click automatic testing) |
General Information |
Display | 3.5 inch TFT LCD display, high resolution 320*480 |
Data Interface | Micro USB |
Power Supply | Lithium battery 3.7V 4000mAh, power adapter 5V DC, 2A |
Battery Working Time | >20h |
Operating Temperature (℃) | -20～+50 |
Storage Temperature (℃) | -30～+70 |
Relative Humidity | 0～95%（RH） |
Weight | 395g |
Dimension（mm） | 188×88×44 |
Package | PON power meter, User manual, Certification report, 5V power adapter, Micro USB cable, PC software CD |
