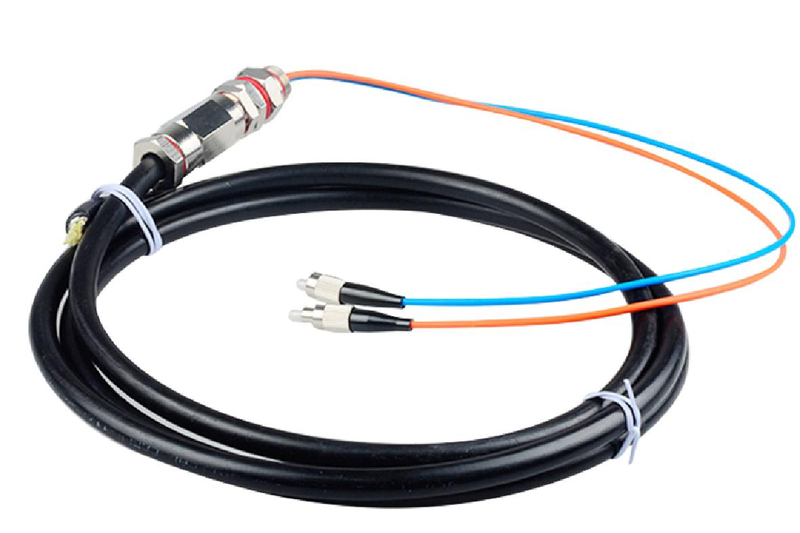

Description of Waterproof Pigtail
The waterproof pigtail/patch cord is using high quality connector parts, with high quality waterproof cables and corrosion-resistant high quality waterproof unit. The waterproof pigtail/patchcord is used in outdoor harsh environment and mainly used in outdoor connection of the optical receivers and the backbone cables.
Waterproof pigtail/patch cord with fiber cores 2 fibers, 4 fibers, 6 fibers, 8 fibers and 12 fibers are used more in the field. The waterproof pigtail/patch cord has strong adaptability to environment. It has optical connector on one end and durable waterproof connector. Easy to install, reliable, able to withstand the harsh environment of the wild Long life, jacket toughness, tensile, good grounding. According to customer requirements, 3S Telecom can customize assembly FC, SC, ST, LC, MU, SMA and other connectors.

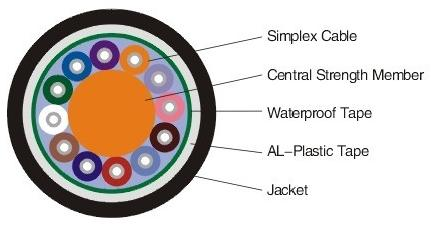

1. Cable Specifications:
Applications:
1. Used as pigtails and patch cords
2. Used in optical connections in optical communication equipment rooms and distribution frames
Technical Parameters:
Fiber Count | Dimension (mm) | Tensile Strength (N) | Crush (N/100mm) | Min. Bending Radius (mm) | Cable Weight (kg/km) |
Short Term | Long Term | Short Term | Long Term | Dynamic | Static |
2 | 8.7 | 400 | 200 | 1,000 | 500 | 20D | 10D | 54 |
4 | 8.7 | 400 | 200 | 1,000 | 500 | 20D | 10D | 60 |
6 | 10.0 | 600 | 300 | 1,000 | 500 | 20D | 10D | 81 |
8 | 11.7 | 800 | 400 | 1,000 | 500 | 20D | 10D | 108 |
10 | 13.3 | 1,000 | 500 | 1,000 | 500 | 20D | 10D | 134 |
12 | 15.0 | 1,200 | 600 | 1,000 | 500 | 20D | 10D | 183 |
Remark:
1. “D” is the outer diameter of the cable.
2. The cable dimension and weight are in accordance with 2.0mm simplex cable.
Environmental Properties:
Temperature Range | -20°C~+60°C |
Transmission Properties:
Fiber Type | SM 9/125um (1310nm/1550nm) | 62.5um (OM1) (850nm/1300nm) | 50um (OM2) (850nm/1300nm) | 50um (OM3) (850nm/1300nm) |
Maximum Attenuation (dB/km) | 0.8/0.6 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 |
Typical Attenuation (dB/km) | 0.4/0.3 | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 |
Minimum LED Bandwidth (MHz·km) | --- | 200/500 | 500/500 | 1500/500 |
Note:
Other fiber types are available upon request.
2. Waterproof Pigtail Specifications
Mode | SM | MM |
Polishing | PC | UPC | APC | PC |
Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB |
Interchangeability | ≤0.2dB |
Salt Spray | ≤0.2dB |
Repeatability | ≤0.1dB (1,000 times) |
High Temperature | ≤0.2dB (+85°C 168 hours) |
Low Temperature | ≤0.2dB (-40°C 168 hours) |
Temperature Cycle | ≤0.2dB (-40°C~85 °C 21 cycles 168 hours) |
Humidity | ≤0.2dB (95% 75°C 168 hours) |
Durability | ≥1,000 matings |
Tensile Strength | ≥90N |
Vibration | ≤0.1dB (10-55Hz 1.5mm) |
Falling | ≤0.2dB (1.5m high, 8 times) |
Operating Temp. | -40°C~+80°C |
Features:
1. Excellent reliability and stability
2. Easy to install and maintenance
3. Low insertion loss and high return loss
4. Color-coded 2.0mm fiber jackets for easy fiber identification
Applications:
1. CATV
2. FTTX, FTTH (Fiber to the Home)
Standard:

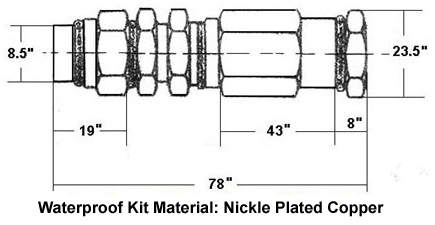

1. Waterproof Kit: 5/8-24UNEF-2A
Ordering Information:
Brand | 3S |
Name | WPA=Waterproof Patchcord; WPI=Waterproof Pigtail |
Connector 1 | SU=SC/UPC; SA=SC/APC; FU=FC/UPC; FA=FC/APC; TU=ST/UPC; TA=ST/APC; LU=LC/UPC; LA=LC/APC; etc |
Connector 2 | SU=SC/UPC; SA=SC/APC; FU=FC/UPC; FA=FC/APC; TU=ST/UPC; TA=ST/APC; LU=LC/UPC; LA=LC/APC; etc None=without connectors |
Fiber Count | 1=1 fiber; 2=2 fibers; 4=4 fibers; 6=6 fibers; 8=8 fibers; 12=12 fibers |
Fiber Type | 2D=SM G.652.D; 5=SM G.655; 7A1=SM G.657.A1; 7A2=SM G.657.A2; 7B2=SM G.657.B2; 7B3=SM G.657.B3; OM1=MM 62.5/125um; OM2=MM 50/125um; OM3=MM 10G 50/125um 150m; OM33=MM 10G 50/125um 300m; OM4=MM 10G 50/125um 550m |
Total Cable Length | 1=1m; 1.5=1.5m; 2=2m; etc |
Pigtail Length | 0.5=0.5m; etc |
For example:
Picture | Model | Description |
| 3S-WPI-K | Waterproof Kit |

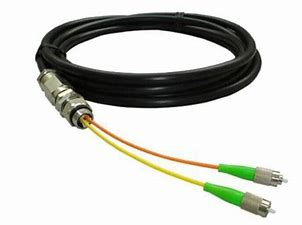

| 3S-WPI-FA-2-2D-1.5-0.5 | Waterproof Pigtail, FC/APC, 2 fibers, SM: OS1 9/125um, G.652D, total cable length: 1.5m, pigtail length: 0.5m |
| 3S-WPI-SA-4-2D-1.5-0.5 | Waterproof Pigtail, SC/APC, 4 fibers, SM: OS1 9/125um, G.652D, total cable length: 1.5m, pigtail length: 0.5m |
