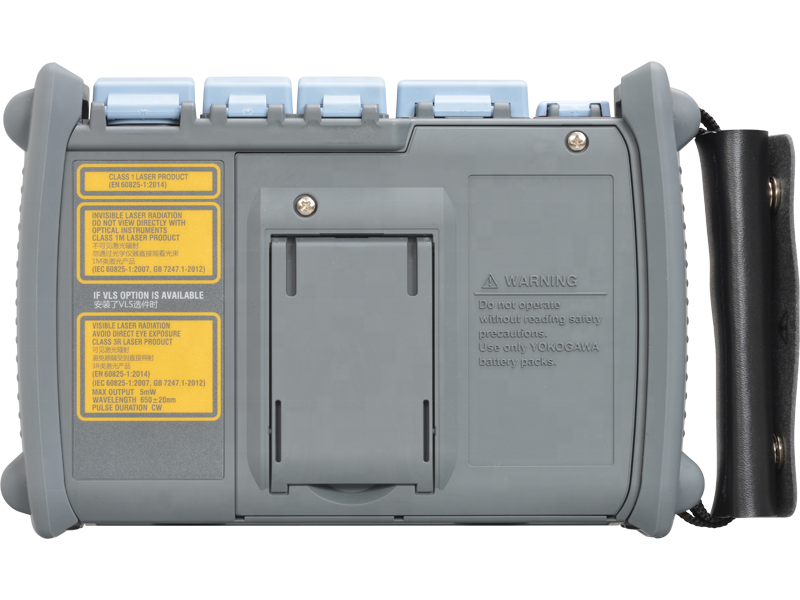

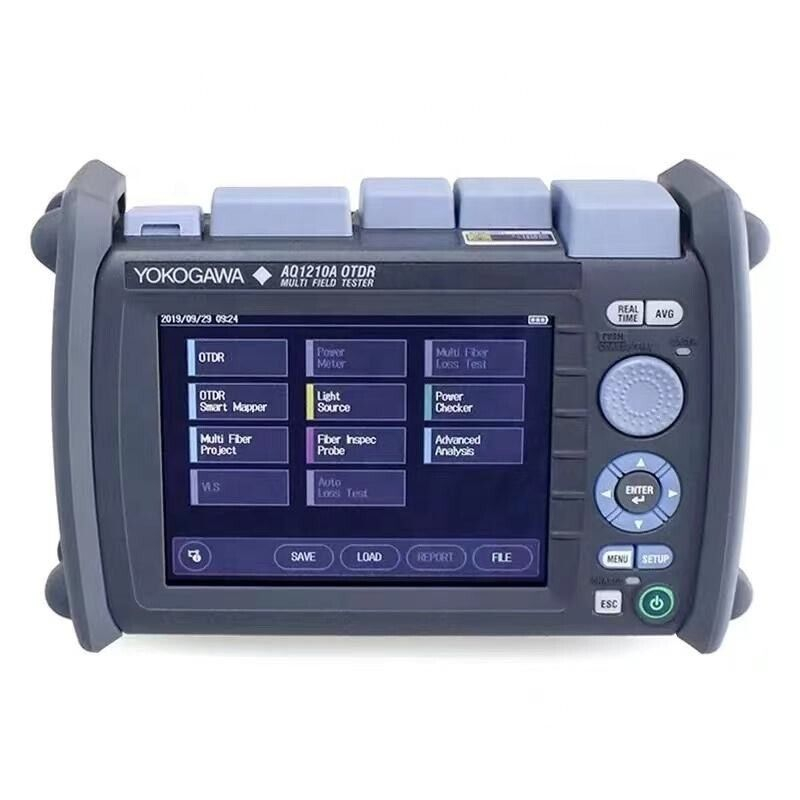

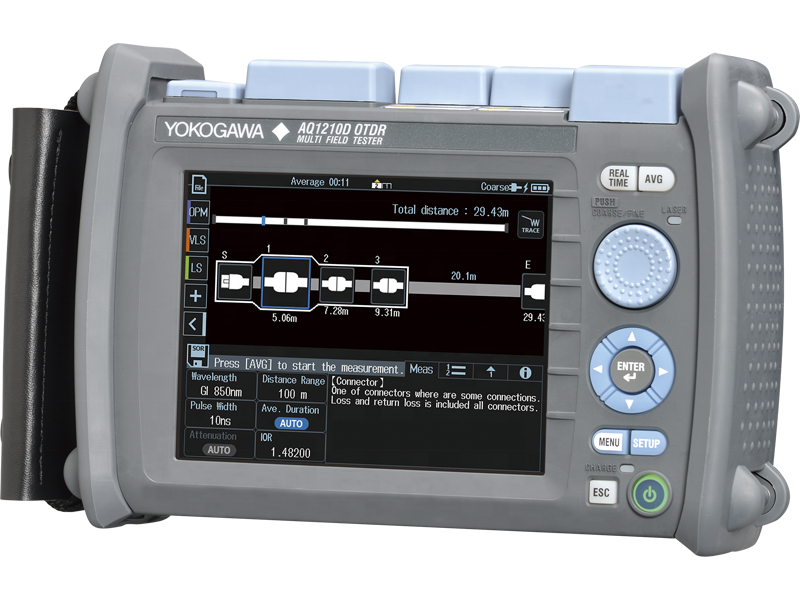

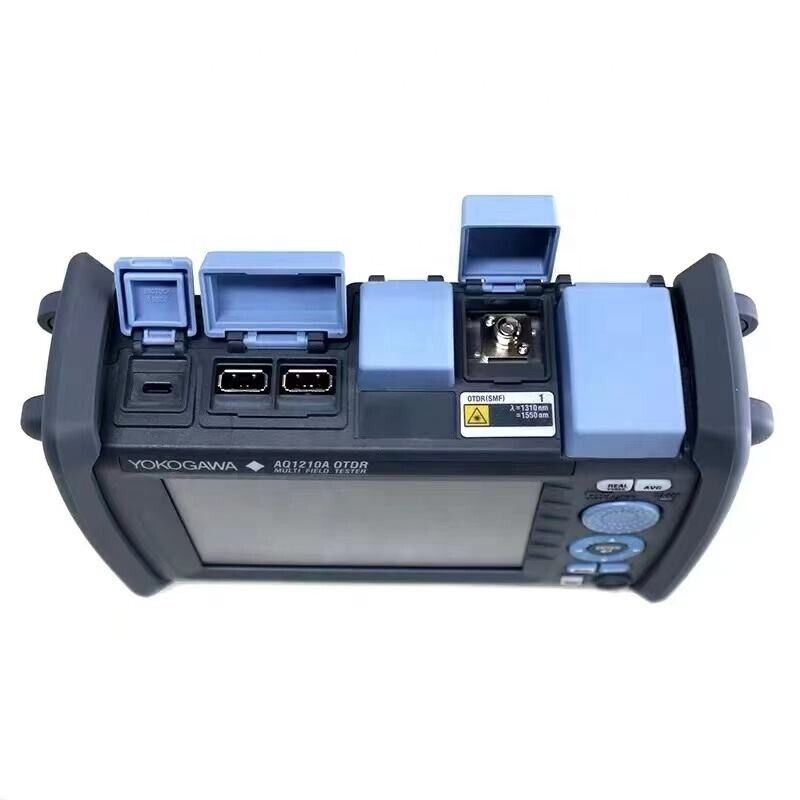

Items | Specifications |
Model | AQ1210A | AQ1215A | AQ1210E | AQ1215E | AQ1215F | AQ1216F | AQ1210D |
Wavelength (nm) | 1310 ±20/1550 ±20 | 1310 ±20/ 1550 ±20, 1625 ±10 | 1310 ±20/ 1550 ±20, 1625 ±20 | 1310 ±20/ 1550 ±20, 1650 ±5 | 1310 ±20/ 1550 ±20, 1650 ±20 | 1310 ±20/ 1550 ±20, 850 ±15/ 1300 ±30 |
Number of optical ports | 1 | 2 (Port 2: 1625 nm, including a filter) | 2 (Port 2: 1650 nm, including a filter) | 2 (Port 2: 850/1300 nm) |
Applicable fiber | SM (ITU-T G.652) | SM (ITU-T G.652), GI (50/125 μm, 62.5/125 μm) |
Distance range (km) | 0.1 to 256 | 0.1 to 512 | 0.1 to 256 | 0.1 to 512 | 0.1 to 256, 0.1 to 100 |
Pulse width (ns) | 5 to 20000 | 3 to 20000 | 5 to 20000 | 3 to 20000 | 5 to 20000, 3 to 1000/3 to 5000 |
Event dead zone (m) | 0.75 | 0.5 | 0.75 | 0.5 | 0.75, 0.5 |
Attenuation dead zone (m) | 4 | 2.5 | 4 | 2.5 | 4, 2.5 |
PON dead zone (m) | 35 | 30 | 35 | 30 | 35, — |
Dynamic range (dB) | 37/35 | 42/40 | 37/35, 35 | 42/40, 39 | 42/40, 37 | 42/40, 40 | 37/35, 25/27 |
Loss measurement accuracy | ±0.05 dB/dB | ±0.03 dB/dB | ±0.05 dB/dB | ±0.03 dB/dB | ±0.05 dB/dB |
Optical return loss measurement accuracy | ±2 dB |
Number of sampling points | max. 256000 |
Sampling resolution | min. 5 cm | min. 2 cm | min. 5 cm | min. 2 cm | min. 5, 2 cm |
Optical connector | SC/FC/LC/SC Angled-PC (1310/1550/1625/1650 nm), SC/FC/LC (850/1300 nm) |
Dimensions | Approx. 210 mm (W) × 148 mm (H) × 69 mm (D) (excluding projections) |
Weight | Approx. 1 kg (including battery) |
