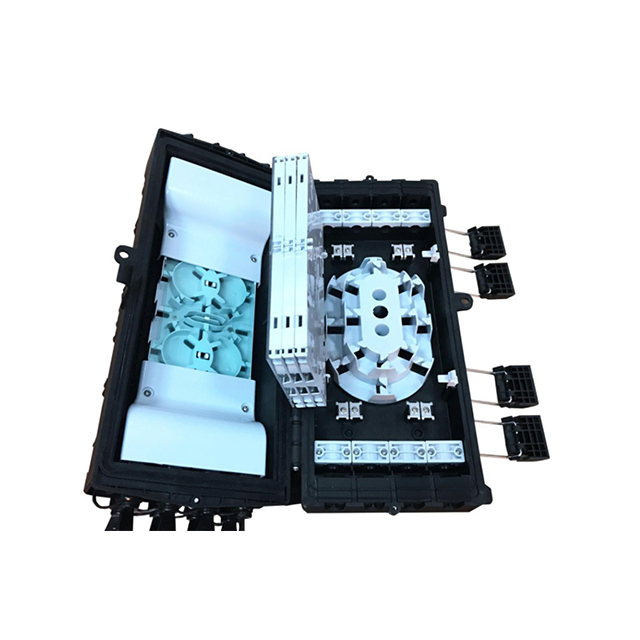

3S FOTB-PC-16-E Pre-connectorized Fiber Optical Termination Box is a fiber optical distribution box with fiber optic connectors terminated in advance at the factory end. It can meet the capacity of 8 users or 16 user. And it provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Features:
Material: PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
When the end user needs to open, there is no need to open the lid.
Fiber bend radius control more than 40mm
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, 1*8 or 1*16 micro type PLC splitter installation, easy maintenance
8 or 16 ports cable entrance for FTTH Drop Cable
Configuration:
Material
Description
Size (Pic 1)
A*B*C
Max Capacity
Installation Size (Pic 2)
Into the largest cable diameter (mm)
D*E
F*G
PP
Splitter Box
393*198.5*121
16(SC/APC)
180*352
35*348
16
