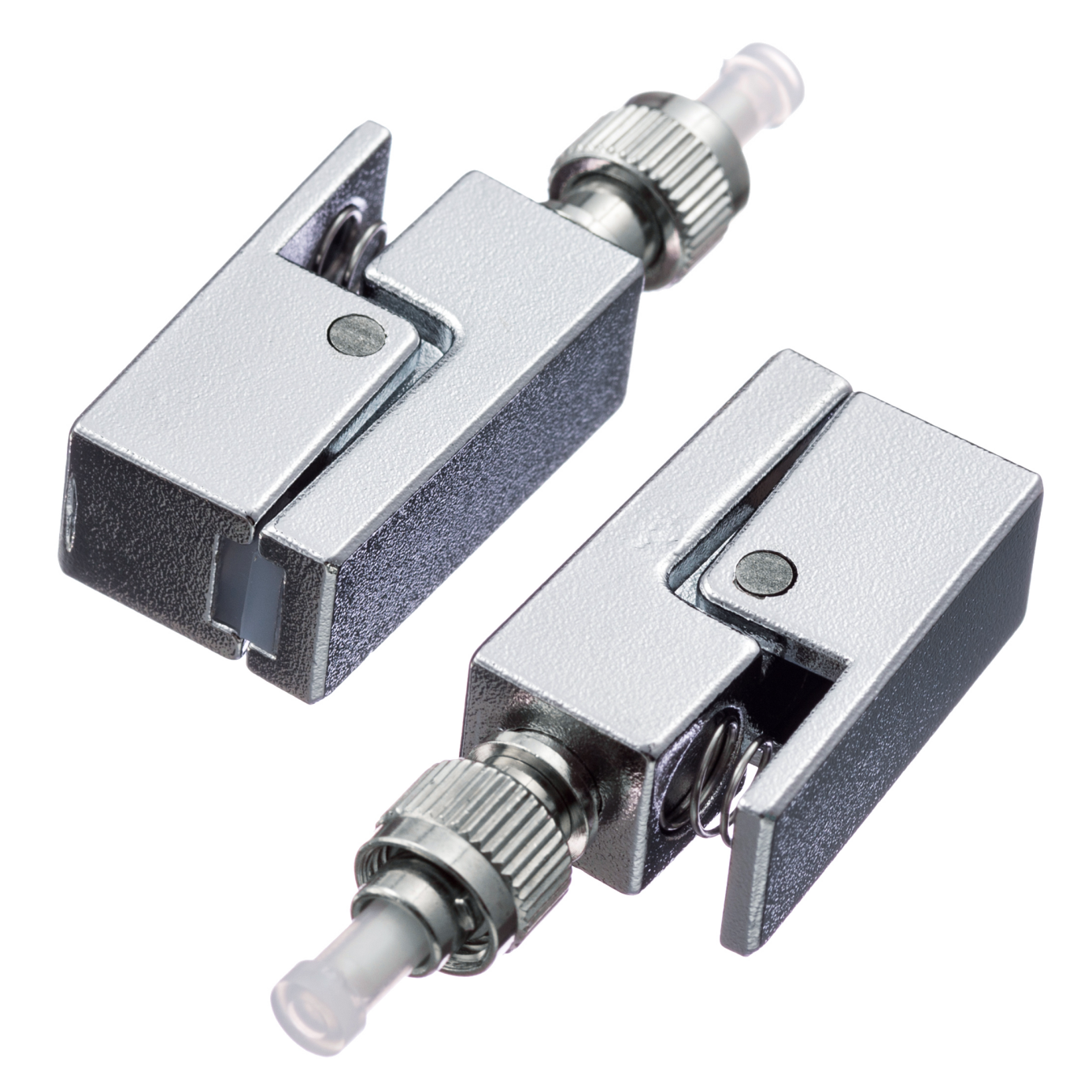

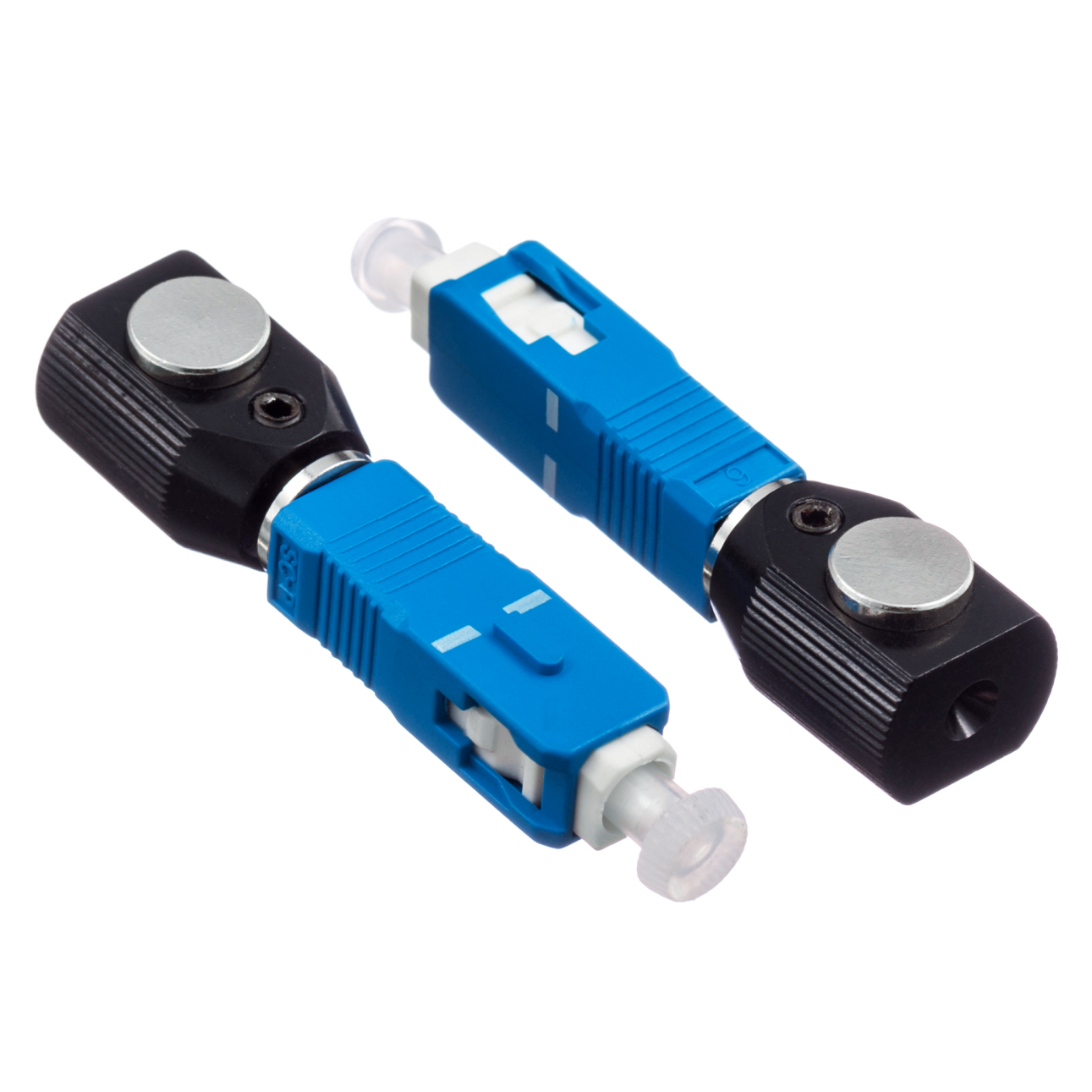

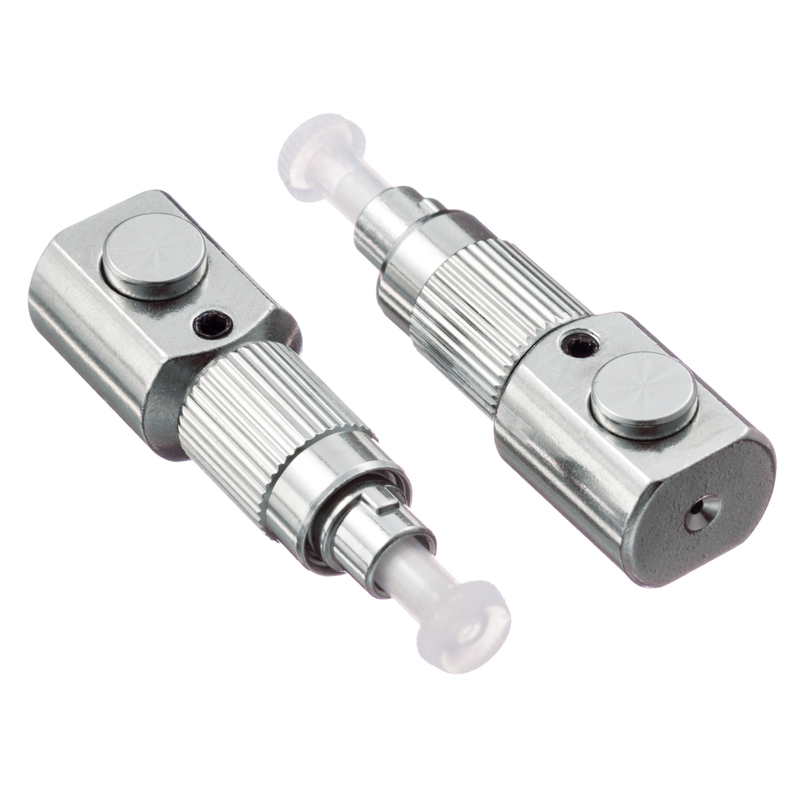

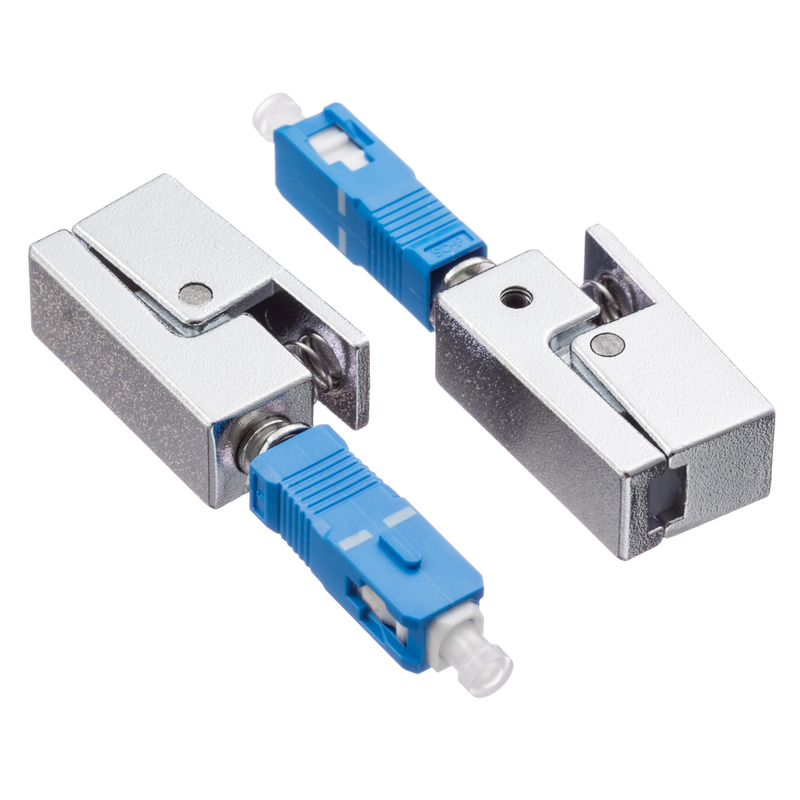

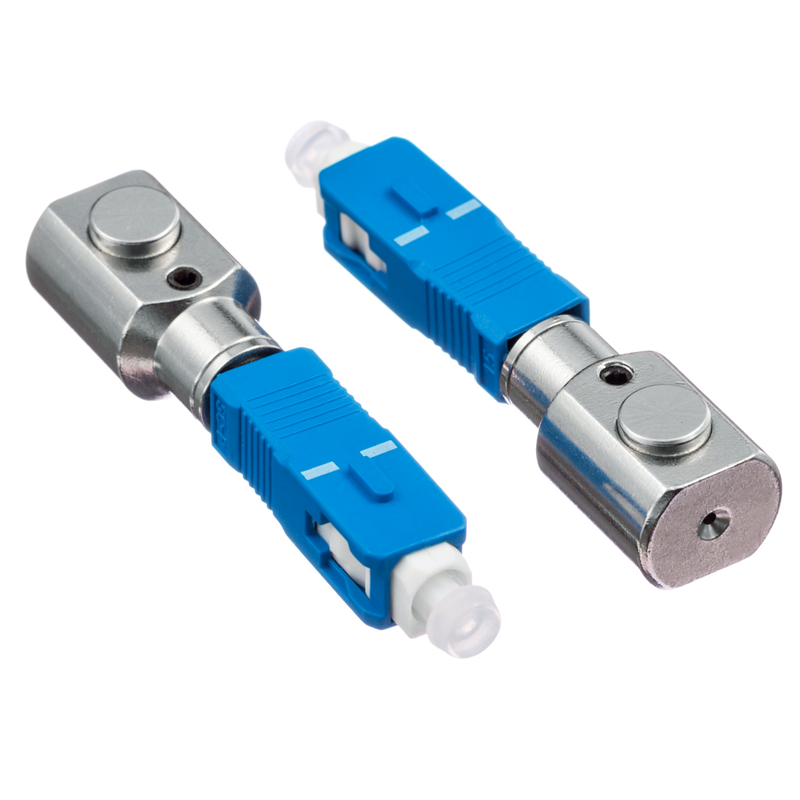

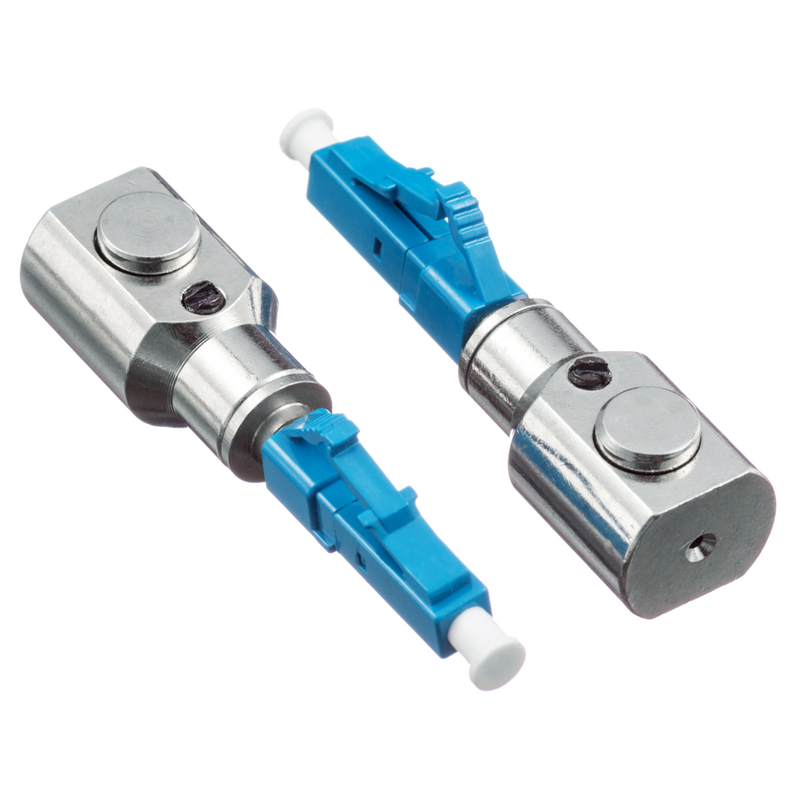

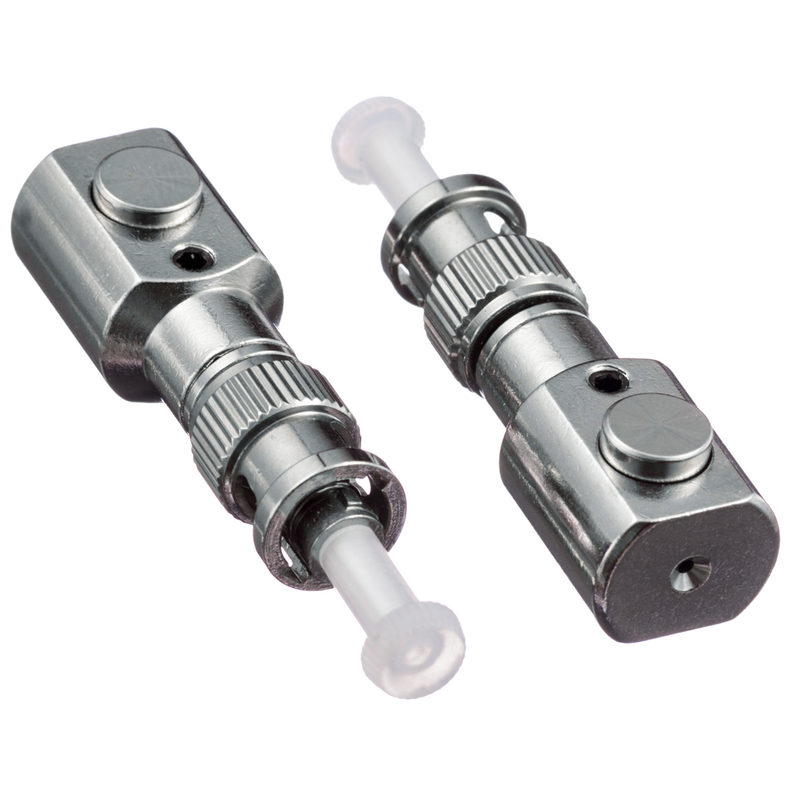

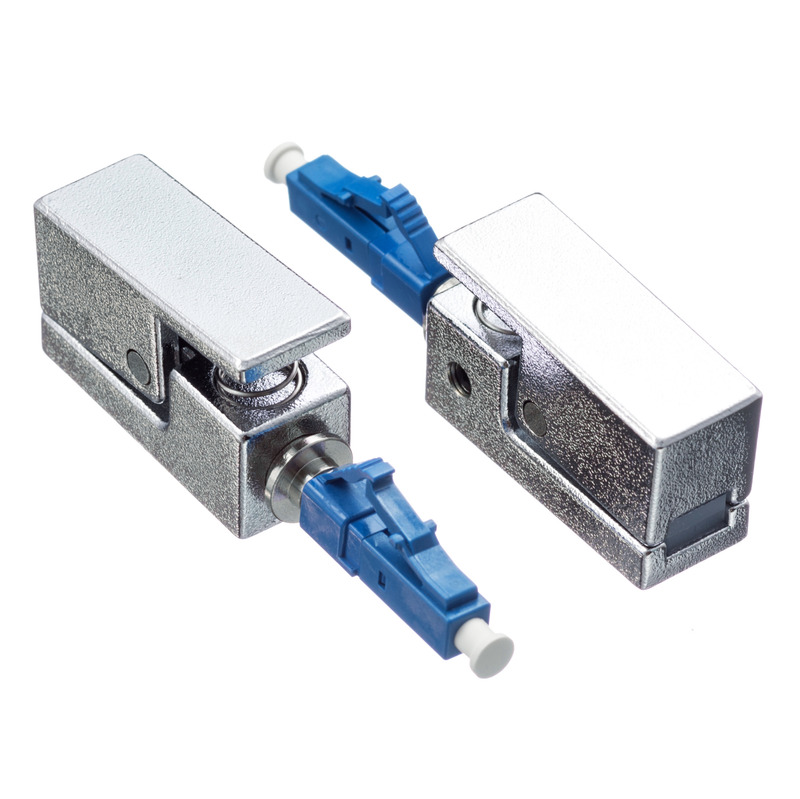

FC SC ST LC Bare Fiber Optic Adapter
 | | |
| | |
| | |
Description:
FC SC ST LC Bare Fiber Adaptor is a special hybrid fiber optic adaptor. Unlike a common adaptor, this adaptor is only for 0.25mm bare fiber (with tight buffered coating). Designed for bare fibers make it widely used in optical communication and testing equipment, optical distribution frame and etc. Special metal material also makes it durable and precision.
Features:
1. Precision connection with sleeve
2. SM & MM connector can be used interchangeably
3. Low insertion loss, high return loss
4. High interchangeability & reliability
5. Compliance with IEC and ROHS standards
6. High precision of mechanical dimensions
Specifications:
Mating Sleeve Fiber Optic Adapter | Single Mode (9/125) | Multi Mode (50/125) |
Multi Mode (62.5/125) |
Insertion Loss (dB) | ≤0.2 |
Return Loss (dB) | UPC ≥ 50, UPC ≥ 60 | -- |
Repeatability (dB) | 0.1 Max. |
Working Temperature (℃) | -40 to +75 |
Durability (times) | ≥ 1000 |
