ODF-F4
3STelecom

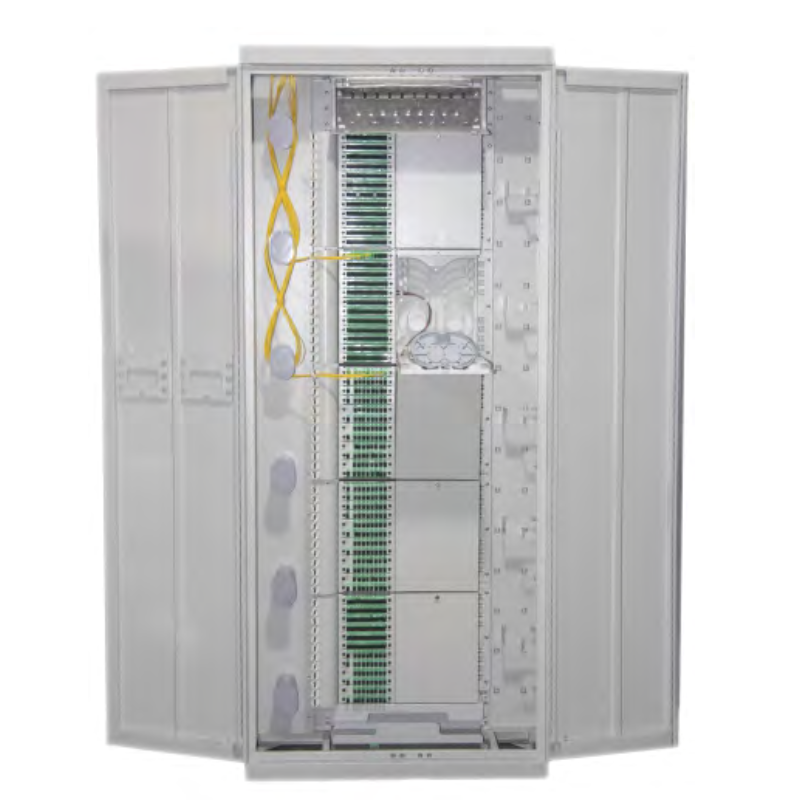

ODF-F4 Series High Density Fiber Patch Panel Module ODF
1.Discription
3S ODF-F4 Optical Distribution Frame is used in FTTx project , which include splicing , patching , spliting and storage etc.

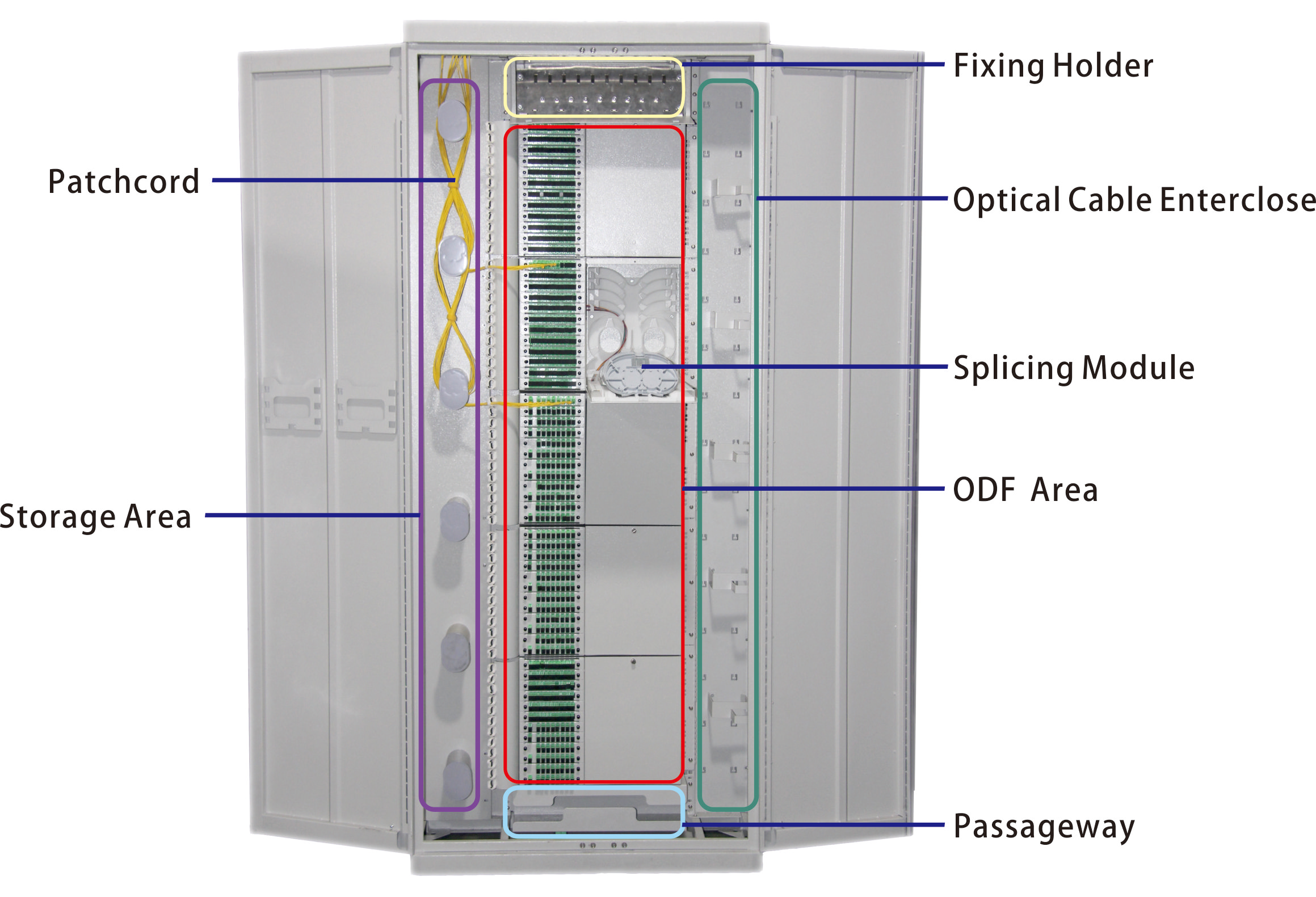

The structure is as the following picture.
2.Features
※ Made of cold rolled steel ;
※ Reasonable inner structure , good appearance ;
※ Open type or totally closed type ;
※ Reasonable guiding line system to ensure the fiber diameter ≥ 30mm ;
※ Module design ;
※ Cable fixing equipment and grounding system ;
※ Splitter management ;
※ Single cable and ribbon cable ;
3.Technical Parameters
3.1 Dimension And Capacity
Dimension(mm) H ×W×D | Splicing Module | Maximum Splicing capacity | Installation size (mm) |
2200×900×300 | 5 | 720 | 830*470 |
3.2 Working Environment
Working Temp : -5℃~+40℃
Relative Humidity : ≤85%(+30℃)
Atmosphere Pressure : 70kpa~106kpa
3.3 Electrical Property
IL of Adaptor : ≤0.5dB
Return Loss : PC≥40dB , UPC≥50dB , APC≥60 dB
3.4 Hi-voltage Protection And Grounding System
Voltage Limited : ≥3000V/1min Without Puncture And Arc
Insulation≥ 1000MΩ/500V(DC);
Grounding System : Grounding Line ≥6mm2
4. Structure
4.1 Fixing Holder
Capacity Of Fixing Cable : 10
Installation Site : Bottom Or Roof.
4.2 ODF Area
Capacity : 36U
Installation Type:19 Inch
4.3 Passageway
Application: Crossing patchcord.
Installation Site : Bottom Or Roof.

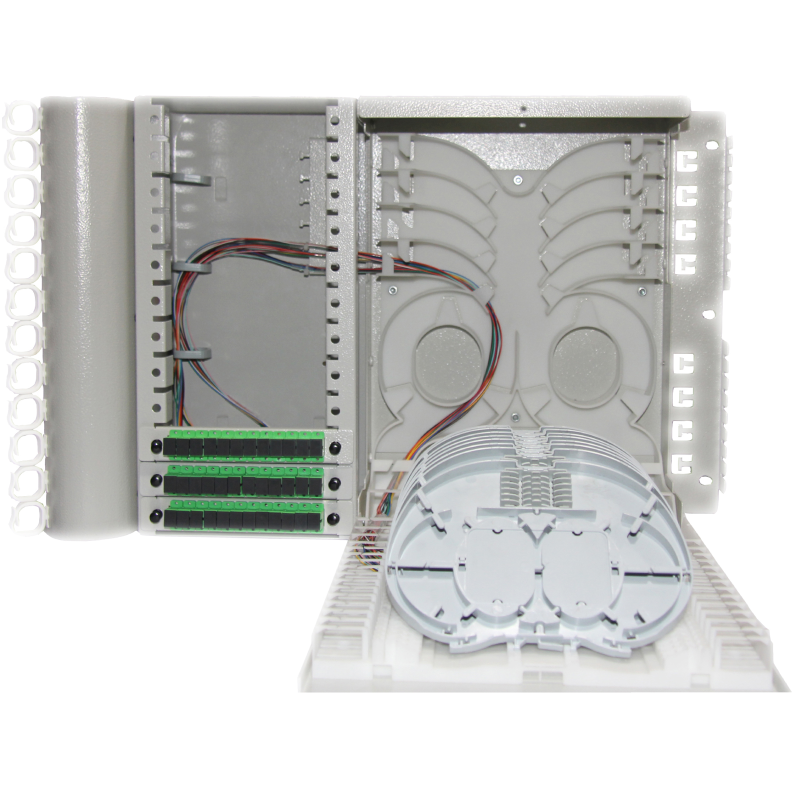

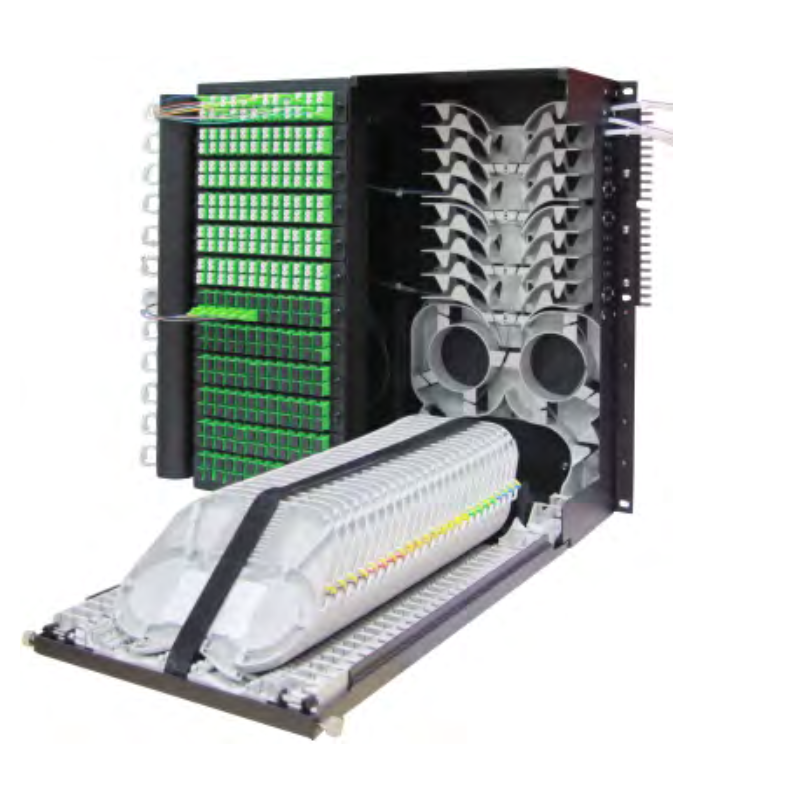

5. Splicing Module
Splicing Capacity : 144F
Adaptor Type : SC , LC.
Dimension(mm) H ×W×D : 320*510*130 MM

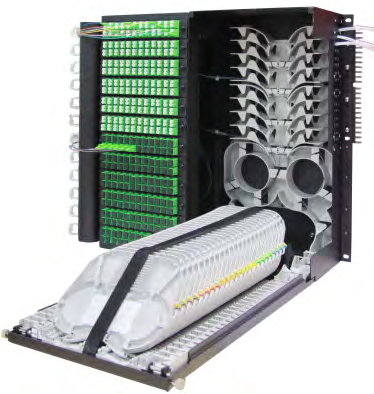

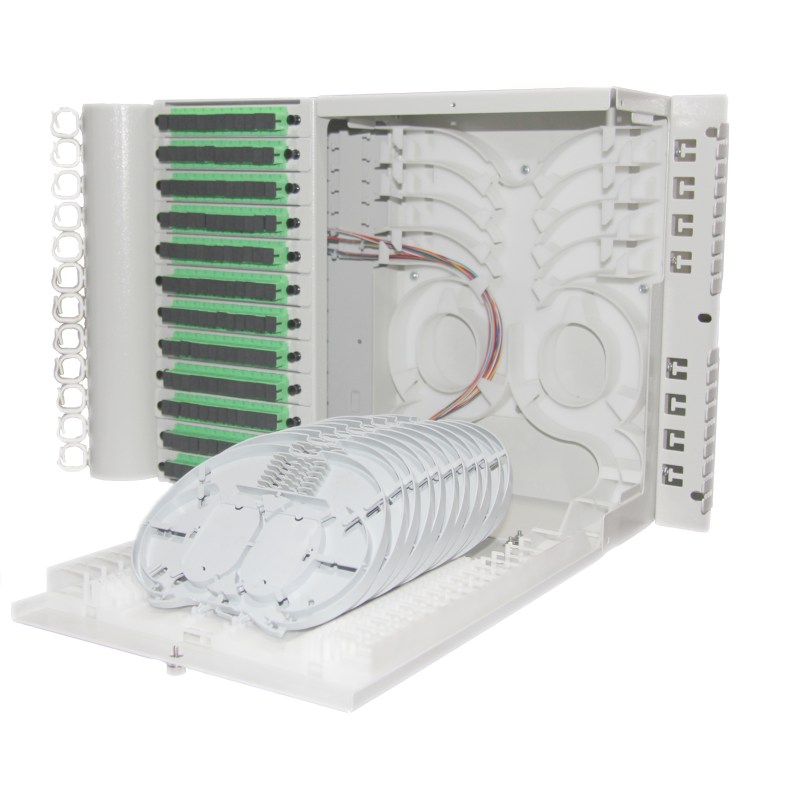

The appearance is as the following Fig :

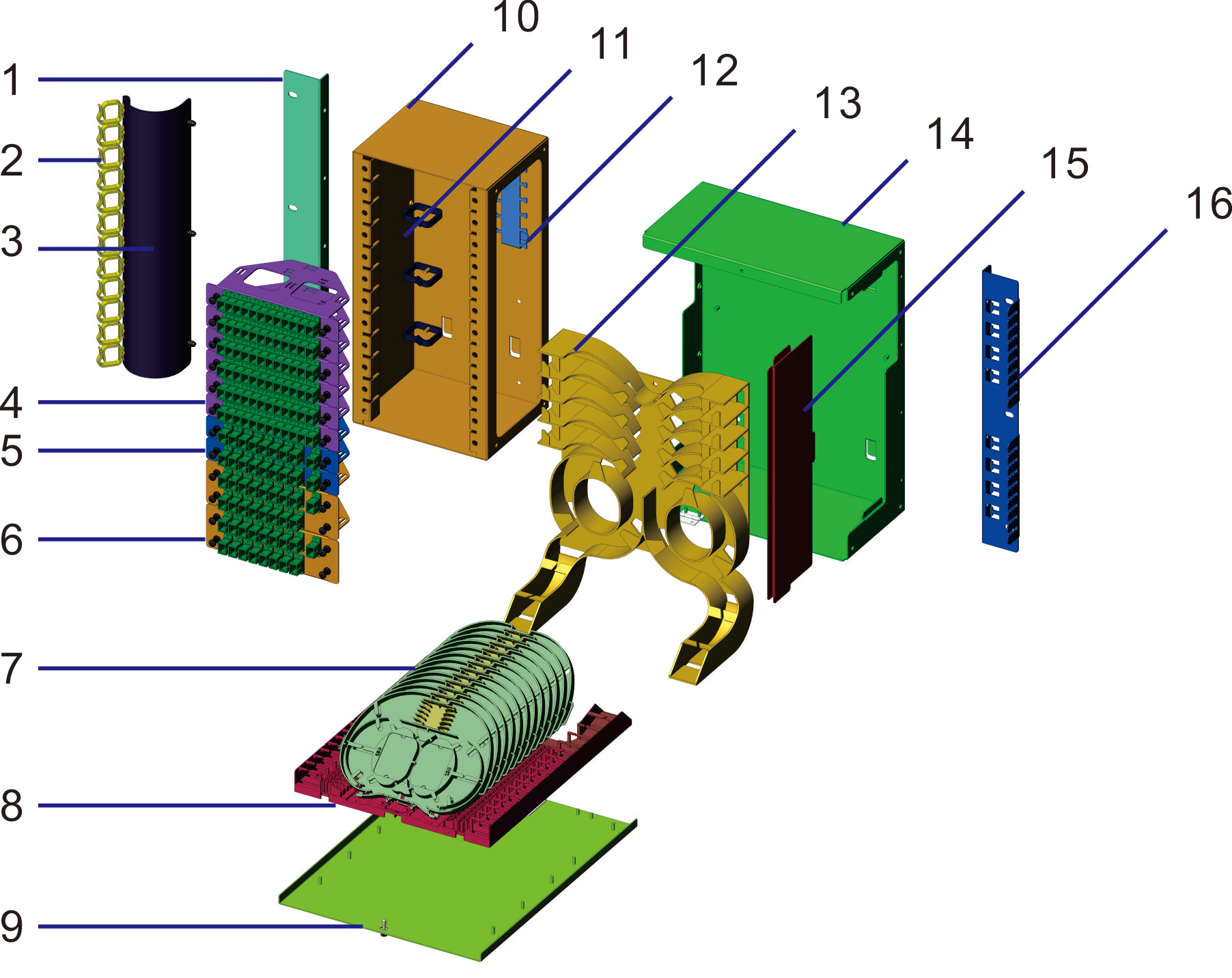

The view of parts is as the following Fig :
No. | Name | Application |
1 | Hanger A | To install ODF. |
2 | Loop | For Patch Cord. |
3 | Loop Plate | To install loop with ODF. |
4 | Patch Panel | To install adaptors(12 pcs). |
5 | Splitter Panel | To install 1:8 PLC. |
6 | Splitter Panel | To install 1:16 PLC. |
7 | Splice Tray | To hold 12 splice tray. |
8 | Base Panel | To hold Splice Tray. |
9 | Door | To install Basepane. |
10 | Holder Frame | To hold kinds of panel. |
11 | Loop | For pigtail. |
12 | Pigtail Plate | To hold pigtail. |
13 | Passageway Panel | To defend pigtail and fiber. |
14 | Splice Frame | To hold parts of splicing. |
15 | Side Panel | To defend parts. |
16 | Hanger B | To install ODF and hold cable. |
6.Note
Never look at the adapter in order to avoid hurting the eyes!
