PRODUCT DETAIL

Model:
Male to Female Attenuator
Brand:
3STelecom

Product Description

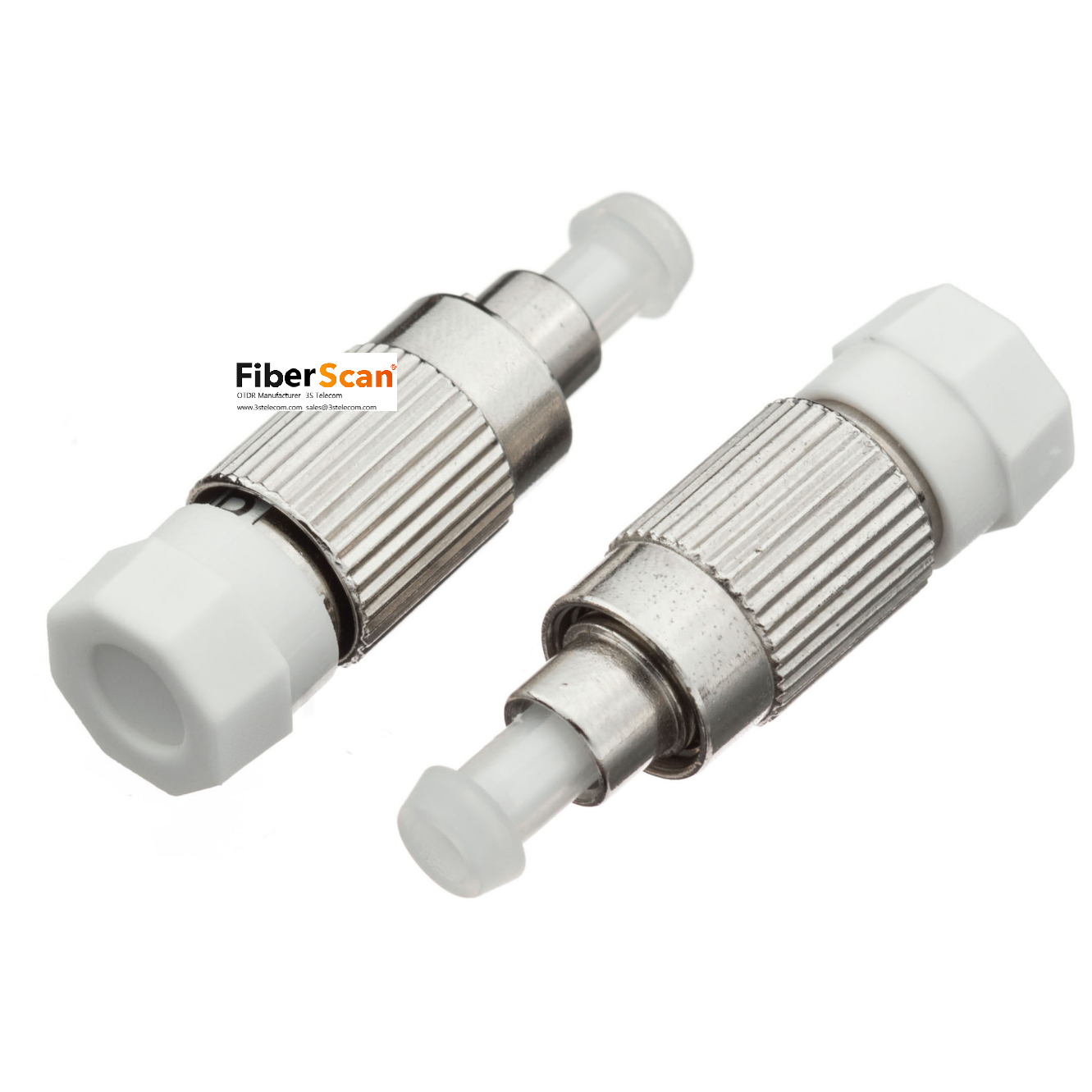

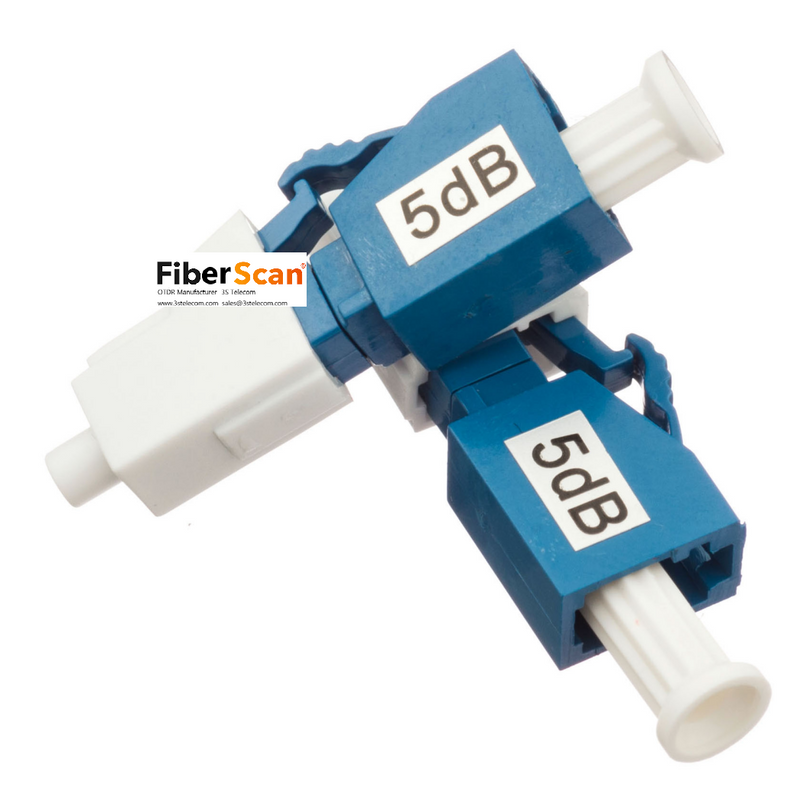

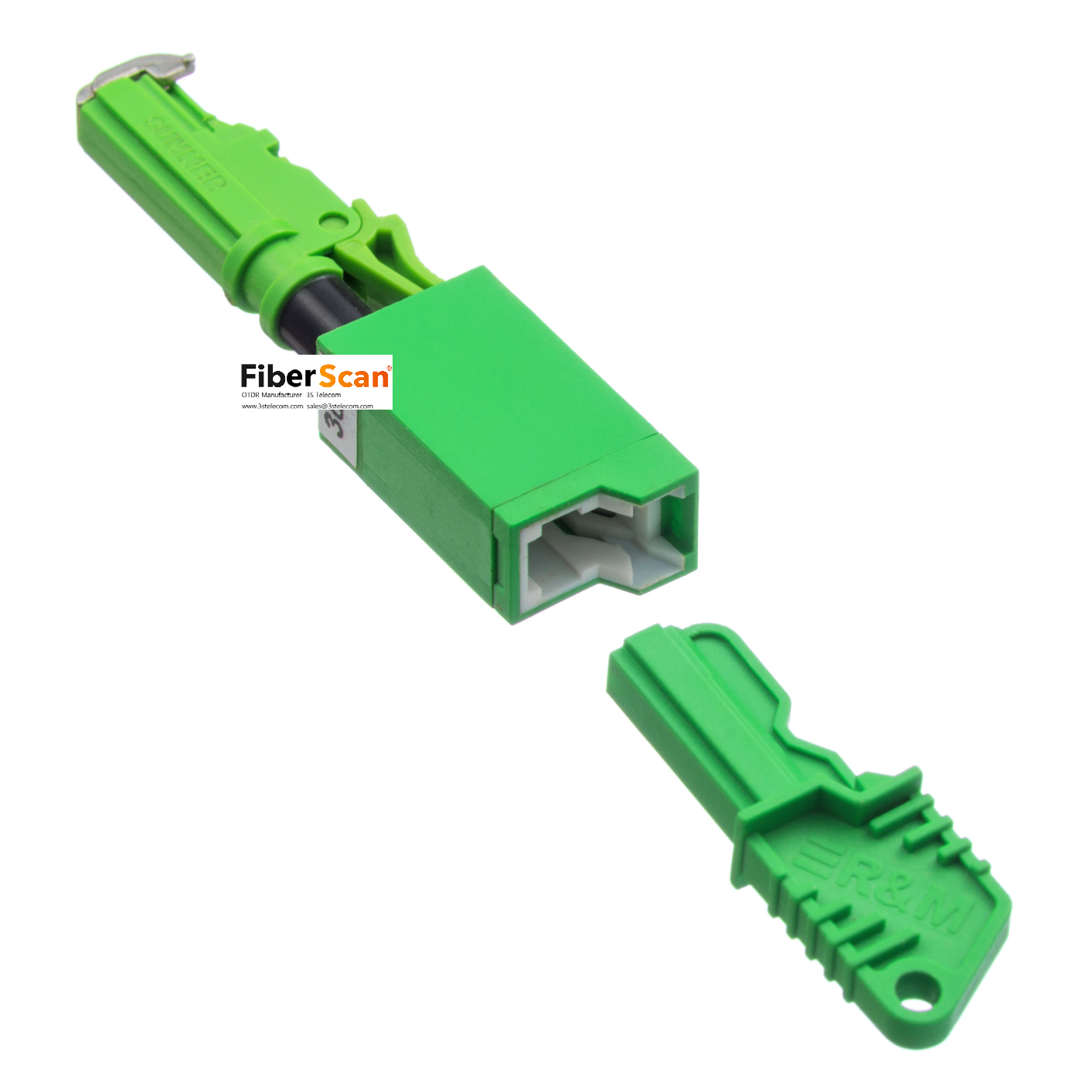

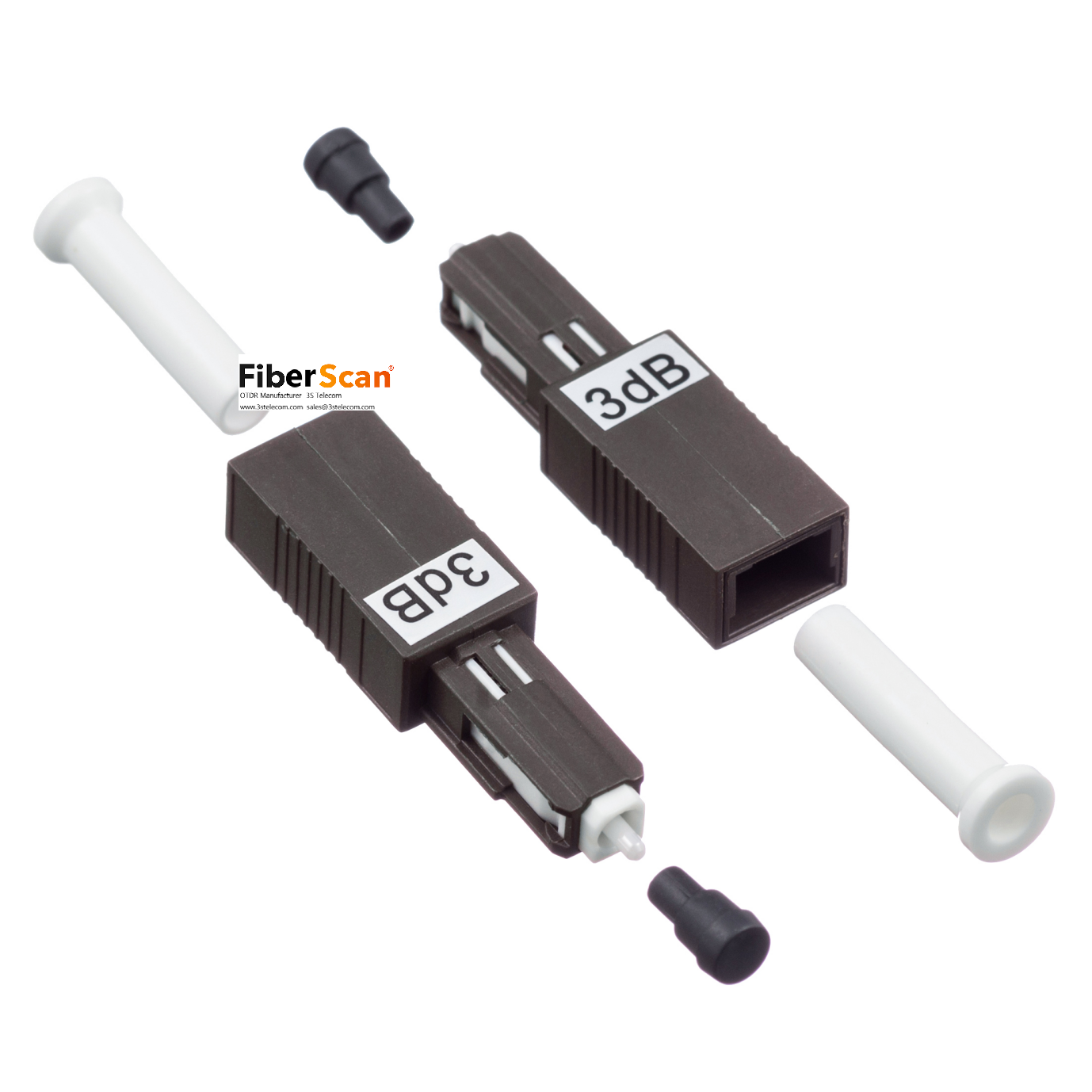

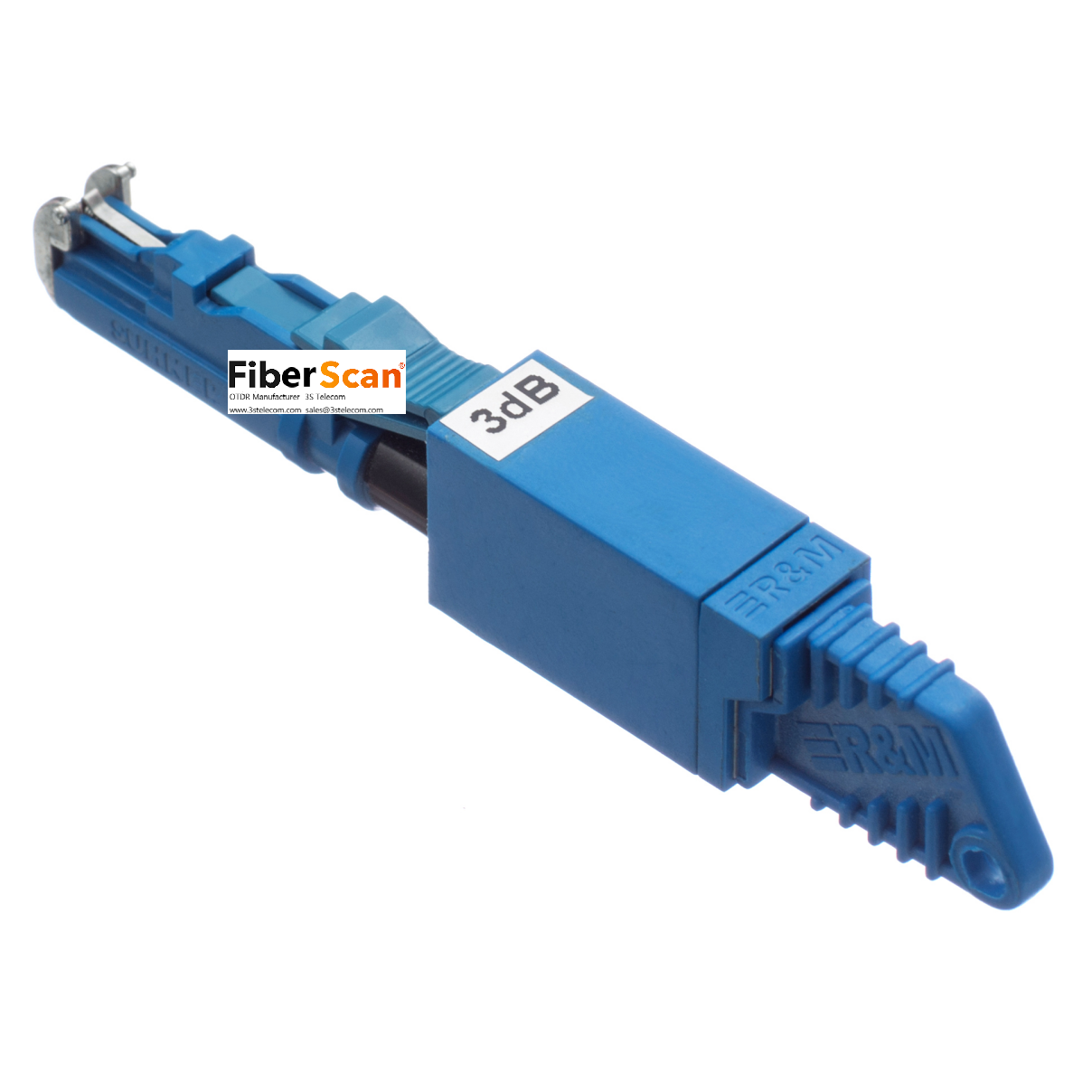

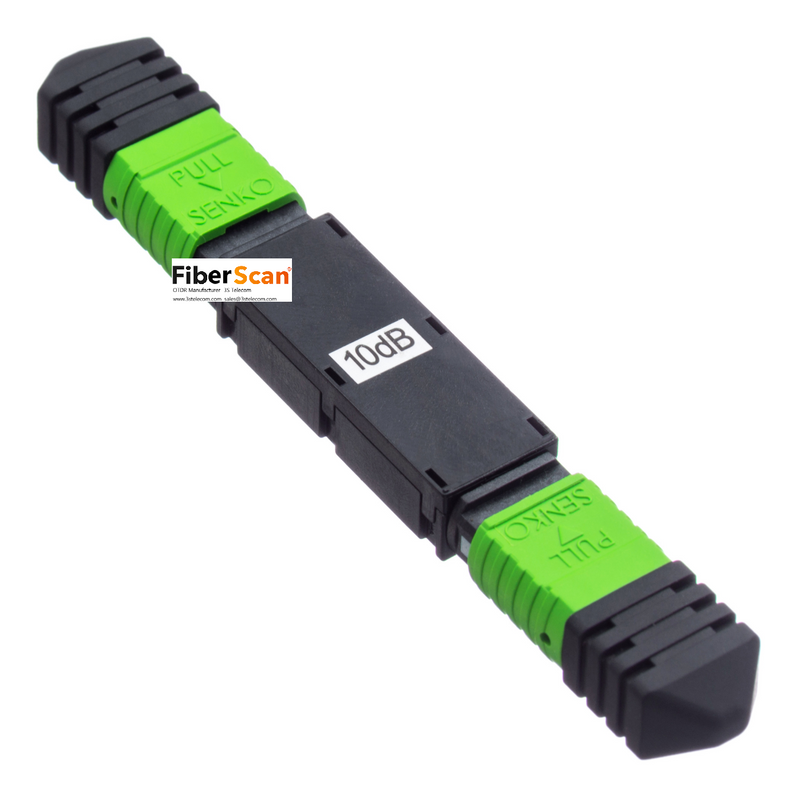

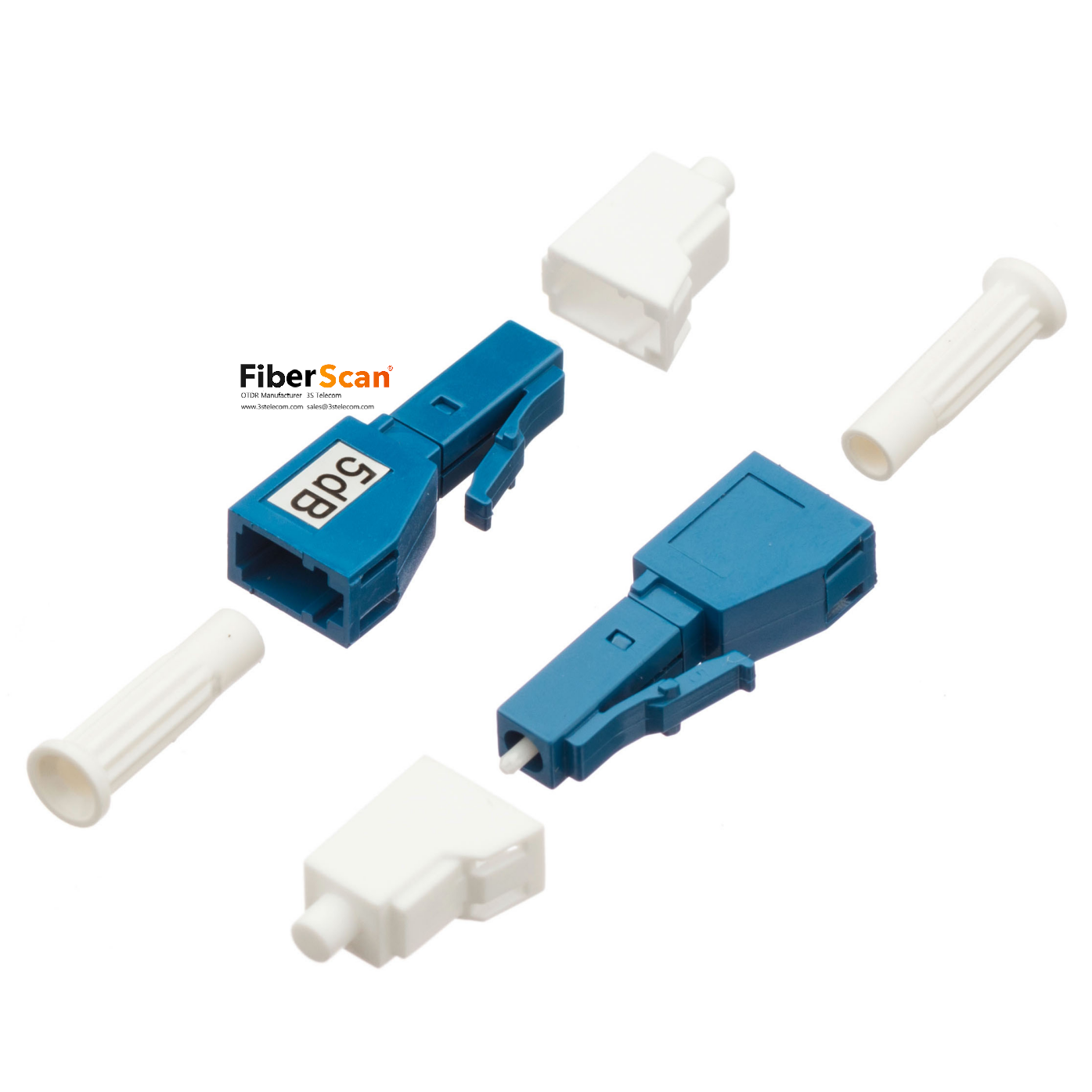

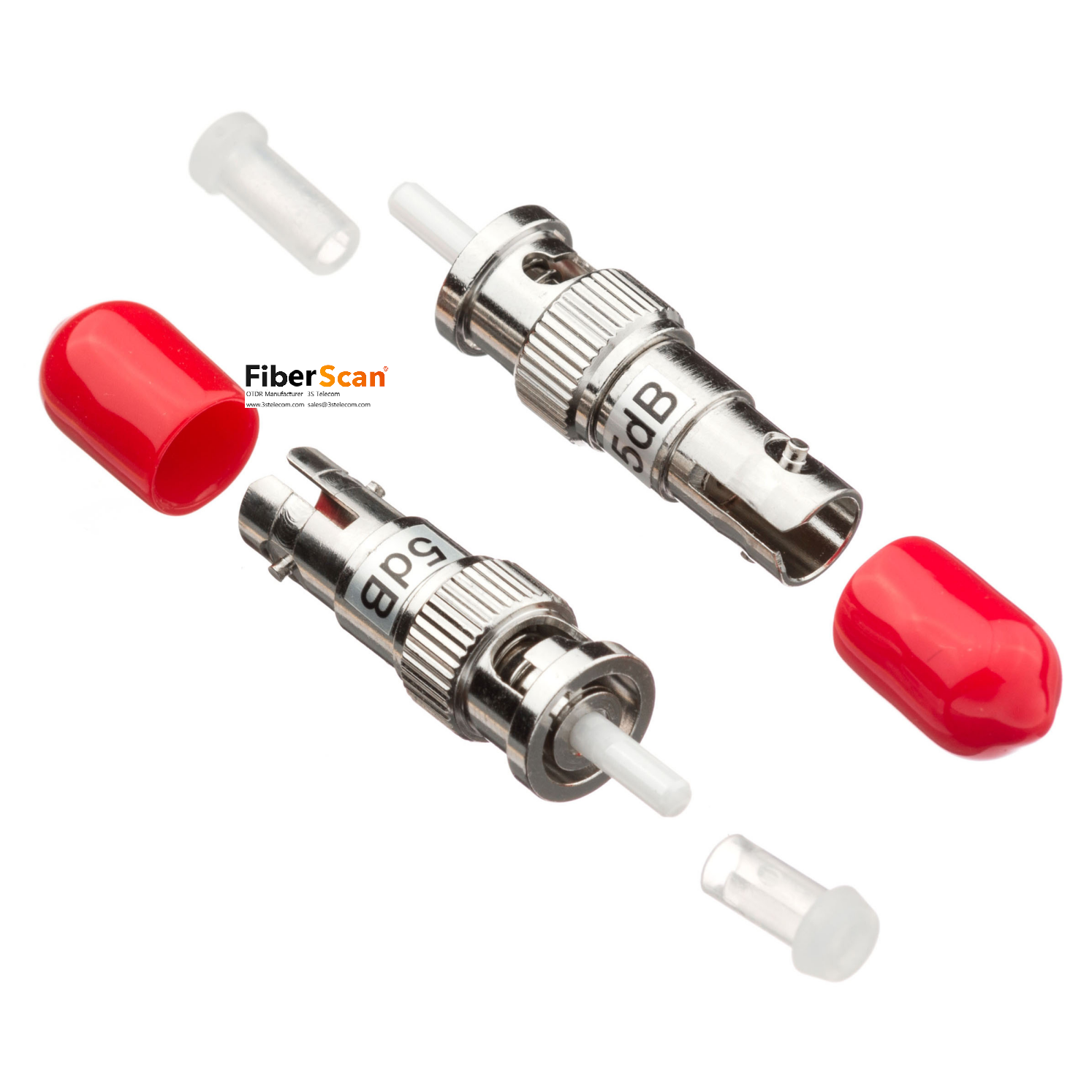

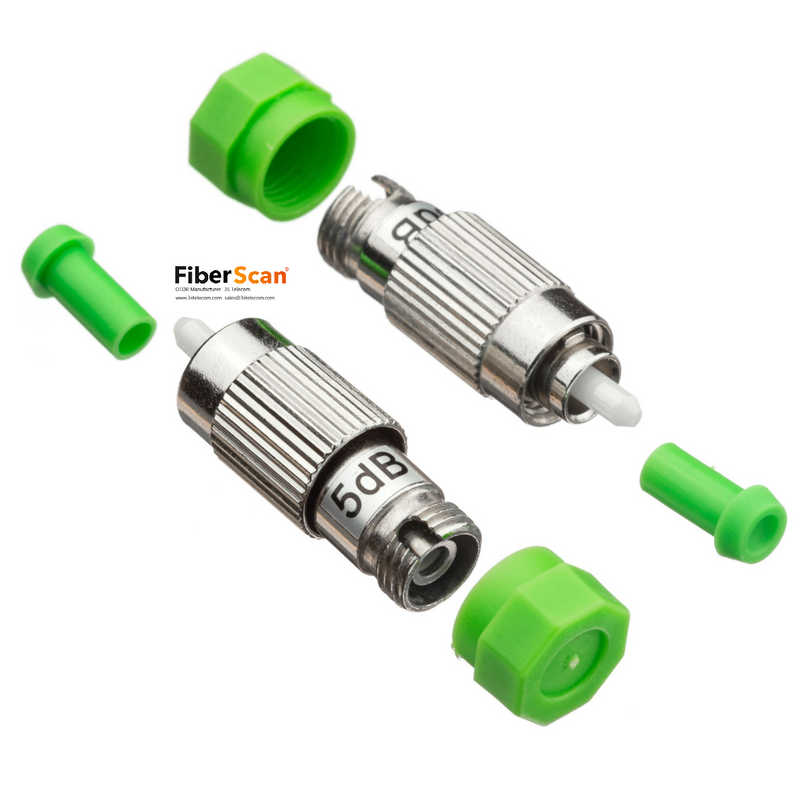

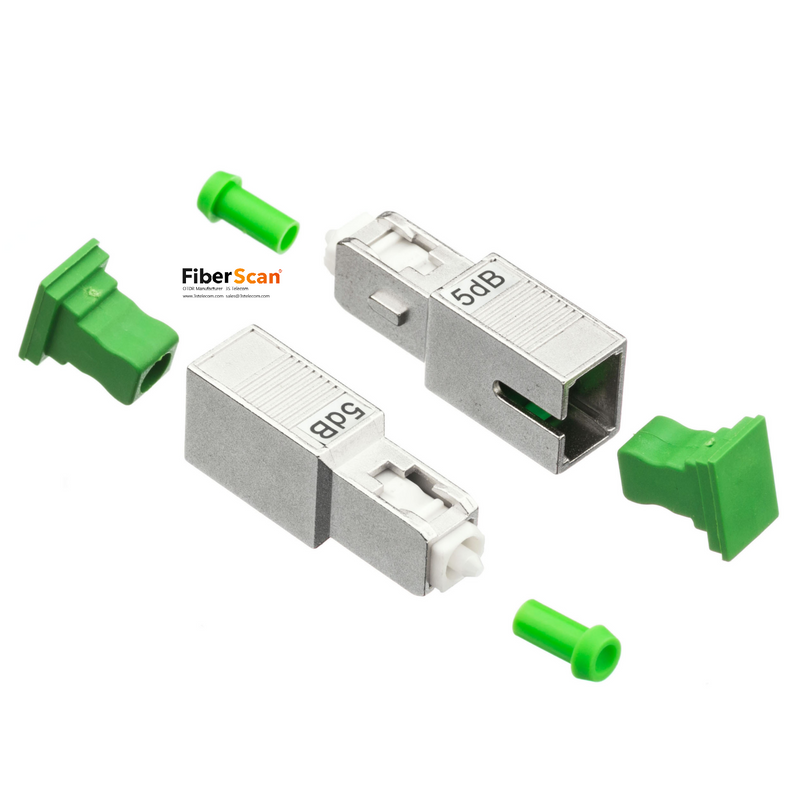

**Male to Female Fixed Attenuation Fiber Optic Attenuator**

Description:

A female to male mechanical fixed attenuation attenuator is assembled with a fixed type connector, so it can only be connected with one patchcord. It can be used in CATV, LAN, WAN, and telecommunications applications.

Features:

Easy to use
Bulkhead design
Compact design，plug and play
Stable attenuation value
Protect equipment from being overpowered

Specifications:

Fiber Optic Attenuator	Parameter
	Single mode	Multi-mode
Work Wavelength	1310nm, 1550nm	850nm, 1300nm
Attenuation Value	0-20dB (1 step)
Connector Type	FC SC ST LC MU
Attenuation Tolence	0-9dB: ±0.5dB; 10-20dB: ±10%
Return Loss	UPC ≥ 50, UPC ≥ 60	--
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC
