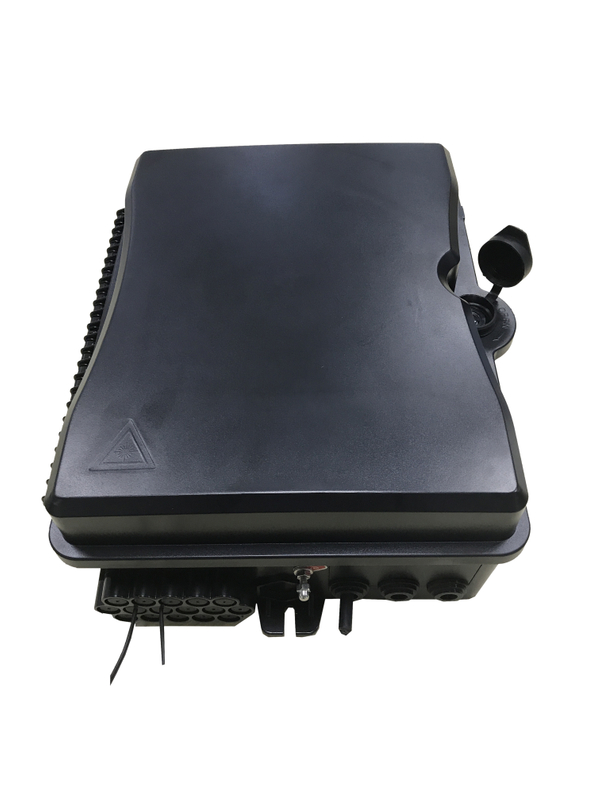

3S FOTB-16-I Fiber Optical Termination Box is a box with 16 ports cable entrance for FTTH drop cable. It provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level

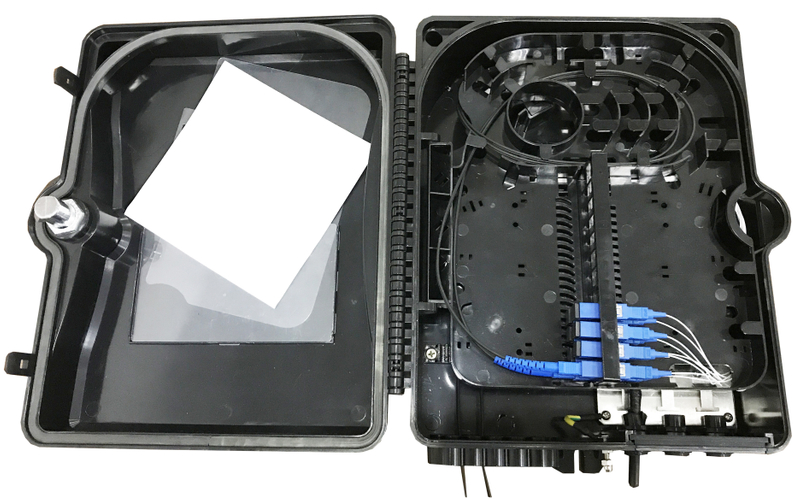

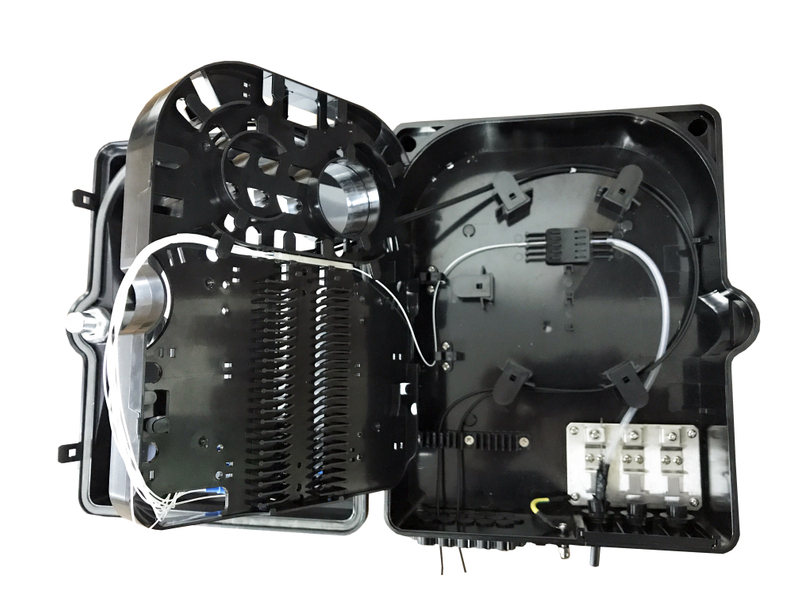

Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Fiber bend radius control more than 40mm
3 cable ports for feeder cables
16 ports cable entrance for FTTH drop cable
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
302*236*113
SC
16 Ports
2.5kg
3.5kg
Black
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-16-I-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
16
I
SC: SC/UPC
AS: SC/APC
SC: SC/UPC
AS: SC/APC
