Description:

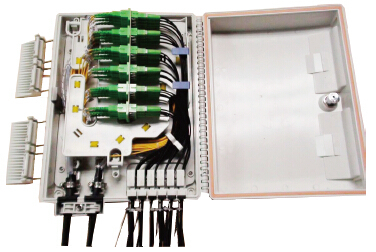

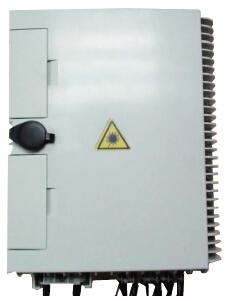

3S FOTB-24-A Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
1. Manage small & large quantities of fiber with a high packing density
2. Material is PC + ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68
3. Easy to maintain and extend the capacity
4. Fiber bend radius control more than 40mm
5. Suitable for the fusion splice or mechanical splice or fast connector
6. Capacity of fiber up to 24 ports
7. SC adapter is acceptable
8. Efficient cable management
9. Burglar-proof padlock
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 305*225*100 | SC 24 Ports | 2.9kg | 3.9kg | White |
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-24-A-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB | 24 | A | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC |
