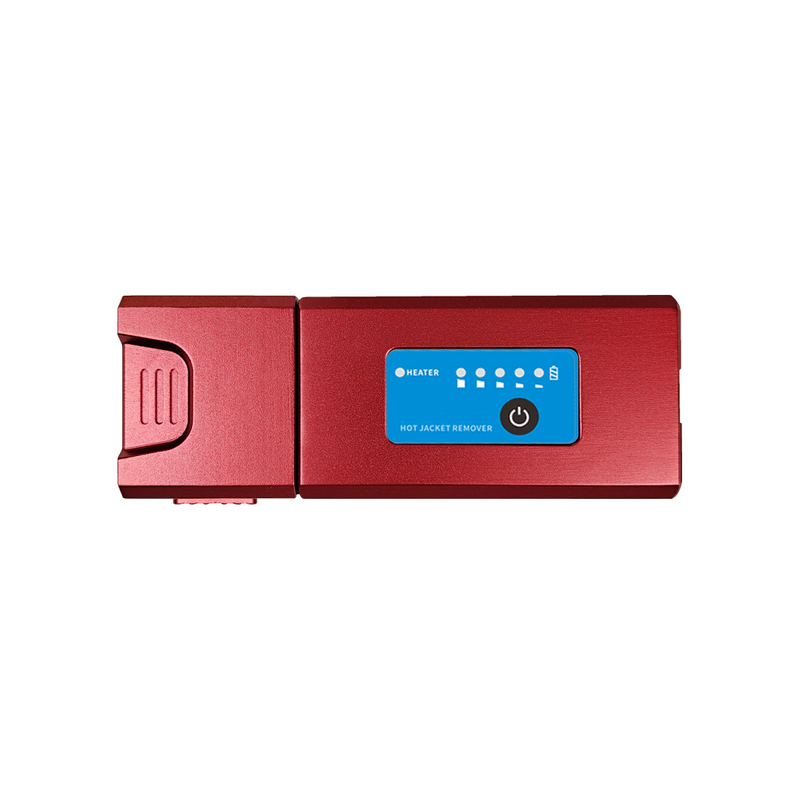

Description: 3S HJR-60 Hot Jacket Remover is also know as the thermal stripper or thermal jacket remover. It is designed with small size, light weight, easy to use, low peeling force, high quality of fiber stripping, easy to remove coating layer. It adopts guide slot guidance and hot peeling method to ensure no damage to optical fiber.
Specification:
HJR-60 Hot Jacket Remover
Application
Nondestructive thermal stripping of single-core, bundle, and ribbon optical fibers
Optical fiber material
Silica
Coating material
UV hardening resin
Fiber cladding diameter
125μm
Applicable fiber type and number of cores
Bundle optical fiber;
Invisible optical fiber;
Pigtail(φ900um):1-12 cores;
Bare optical fiber (φ250um):1-48 cores;
Ribbon fiber (φ250um):2-48 cores;
Coat stripping length
Max. 30mm
Temperature setting
150-170 ℃
Battery capacity
6000mAh lithium battery
Charging interface
Type-C
Bidirectional charging
Power bank function
Input/output power
10~15W
Net weight
About 250g
Dimension
116(L)mm × 44(W)mm × 28(H)mm
Standard Package:
Name
Q’ty
Hot Jacket Remover
1PCS
Power adapter
1PCS
Dual Type-C charging cable
1PCS
Carry bag
1PCS
Cleaning brush
1PCS
Hexagonal wrench
1PCS
User's manual
1PCS
