Description:

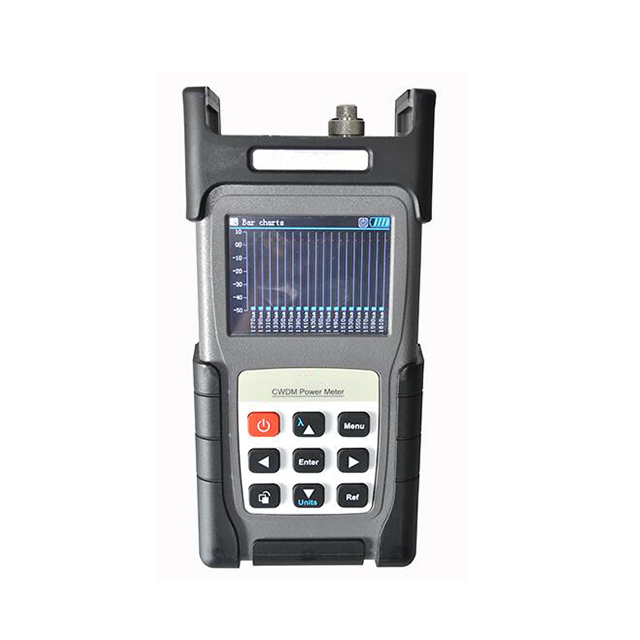

CWDM-18A CWDM Optical Power Meter is specially designed for CWDM installation, maintenance and troubleshooting, which is able to measure and monitor power values of 18 CWDM channels. CWDM-18A CWDM Optical Power Meter can replace high-cost spectrometers and carry out quick and reliable measurements in all environments. Because of its light, compact and sturdy design, CWDM-18A CWDM Optical Power Meter is an ideal tool for CWDM installation and maintenance.
Features：
1. Support optical power measurement of 18 channels
2. Handheld, compact and easy to operate
3. TFT LCD display, high resolution 320*240
4. Display the data in histogram or list
5. Inbuilt clock, fiber cable number editable
6. Threshold setup: pre-store user defined threshold value for testing
7. USB port for uploading data directly
8. No preheat, quick launch
9. Intelligent power saving design
10. Inbuilt rechargeable batteries for continuous 10 hours’ testing
Specification:
Channel | 18 |
Channel Spacing | 20nm |
Power Range | -40~+10dBm |
Uncertainty | ±5% |
Resolution | 0.01dB |
Wavelength | 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610nm or 1271/1291/1311/1331/1351/1371/1391/1411/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611nm |
Data Storage | 1,000 records |
Communication Port | USB |
Connector | FC/PC (interchangeable SC, ST) |
Power Saving | Auto-off after 10 minutes unused |
Power Supply | Rechargeable batteries/AC adapter |
Power Adapter | 8.4V |
Battery Working Time | >10h |
Weight | 850g |
Operation Temperature | -10℃～60℃ |
Storage Temperature | -25℃～70℃ |
