FIM-C Fiber Optic Inspection Microscope Support Wifi and USB Connection to Smart Phone and PC, Support Pass/Fail Judgement Analysis
| |
Description

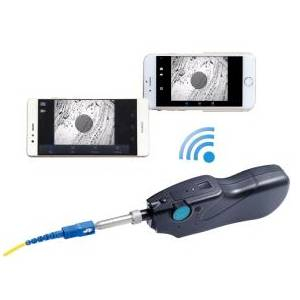

FIM-C Fiber Optic Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 400 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly. FIM-C supports muti connection way with smartphone and PC like WiFi and USB. It supports Pass/Fail analysis too.
Features

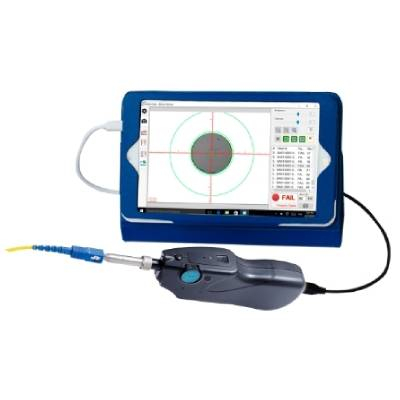

1. WiFi connection to Smartphone and USB connection to Smartphone and PC
2. Android App and iOS (Apple) App both
3. Pass/Fail Analysis to IEC 61300-3-35
4. Several tips available (Both female and male tips)
5. External Interface: micro USB
6. Save inspected images and reports
7. Real-time report in field through smartphone
8. Built-in rechargeable battery
9. No need exterior Wireless AP or Module
10. Ergonomics design and Easy Focus
11. Emergency lamp and power indicator light available
Specification
Items | Value |
Magnification | 400X |
Resolution | <1.0μm |
Field of View | X: 0.3487mm Y: 0.2632mm |
Laser Source | Blue LED |
Focus Method | Unidirectional manual |
Focus Time | 1~5 seconds |
Snapshot Button | yes |
WiFi and USB Switch Button | yes |
Communication Port | Micro USB |
Connection Standard | WiFi 802.11 and USB2.0 |
Wireless Frequency | 2.4GHz |
Wireless Transmission Distance | 20m |
Smartphone Compatibility | Android 4.4 and above; IOS 8.0 and above |
Voltage | 5V |
Battery | 3100mHA Lithium battery |
Charging Time | ≤5h |
Testing Time | ≥5h |
Dimension | 19*5*3cm |
Weight | 0.175kg |
Working Temperature | -10℃~50℃ |
Storage Temperature | -20℃~60℃ |
Humidity | <90% (non-condensing) |
Standard Accessories: |
Name | Quantity |
FIM-C Fiber Microscope | 1pc |
Adapter SC-PC-F (for SC/PC adaptor and connector) | 1pc |
Adapter FC-PC-F (for FC/PC adaptor and connector) | 1pc |
Adapter LC-PC-F (for LC/PC adaptor and connector) | 1pc |
USB cable | 1pc |
Optional Accessories: |
Name | Quantity |
ST-PC-F (For ST/PC adaptor) | 1pc |
MU-PC-F (For MU/PC adaptor) | 1pc |
E2000-F-PC (For E2000/PC adaptor) | 1pc |
MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc |
1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc |
SMA-M (For SMA/PC connector) | 1pc |
FC-F-APC (For FC/APC adaptor) | 1pc |
SC-F-APC (For SC/APC adaptor) | 1pc |
LC-APC-F ((For LC/APC adaptor) | 1pc |
E2000-APC-F ((For E2000/APC adaptor) | 1pc |
2.5M-APC (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc |
MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) | 1set |
Tip60 (60 degree base for special tips) | 1pc |
FC-PC-60F (For FC/PC adaptor at 60 degree testing) | 1pc |
SC-PC-60F (For SC/PC adaptor at 60 degree testing) | 1pc |
LC-PC-60F (For LC/PC adaptor at 60 degree testing) | 1pc |
LC-APC-60F (For LC/APC adaptor at 60 degree testing) | 1pc |
SC-APC-60F (For SC/APC adaptor at 60 degree testing) | 1pc |
1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC at 60 degree testing) | 1pc |
