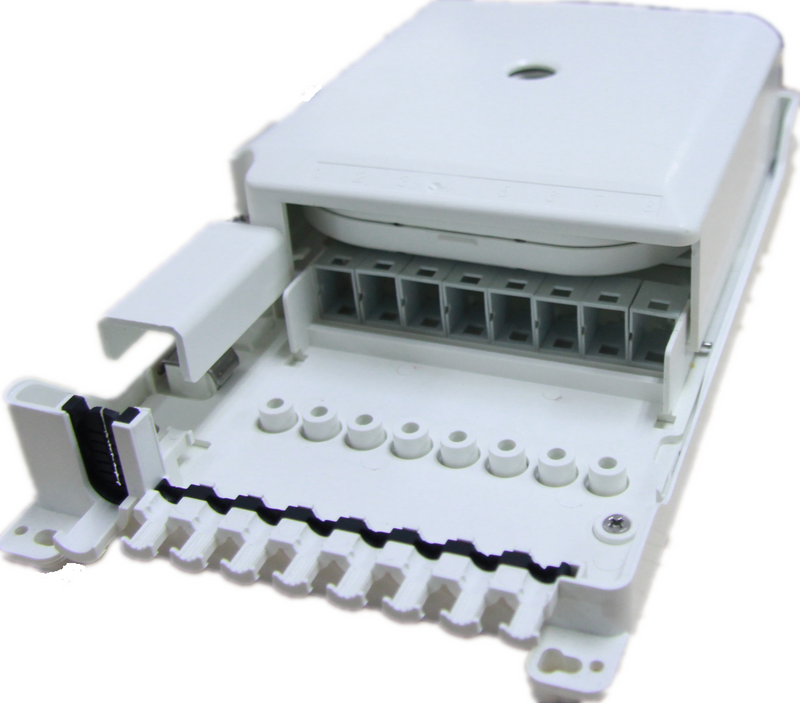

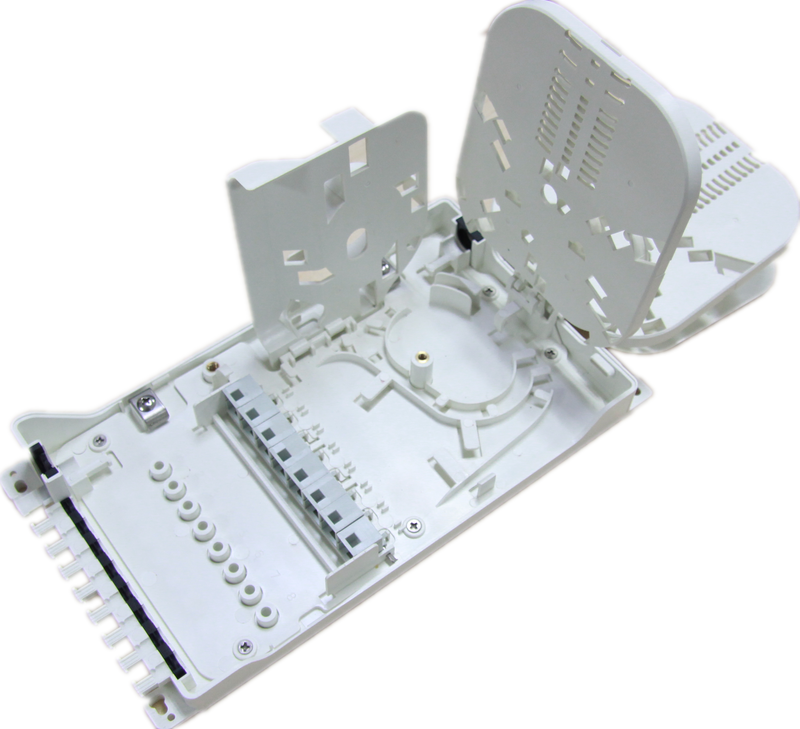

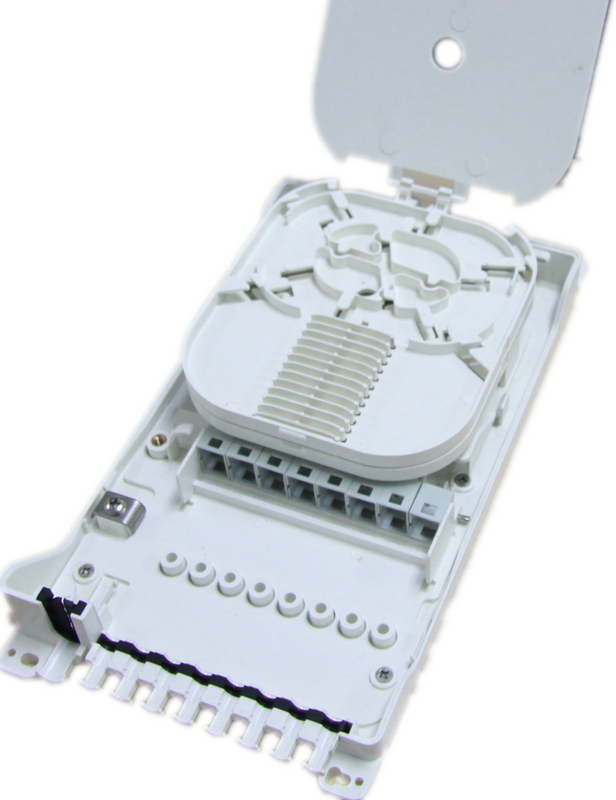

3S FOTB-8-G Fiber Termination Box is a newly designed box with 8 ports cable entrance for FTTH drop cable. It provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting.
Features:
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Fiber bend radius control more than 40mm
1*8 micro type Splitter can be installed
All splicing trays can be extended up to a self-locking position of 120 degrees
The adapter can be rotated at an angle
8 ports cable entrance for distribution cables for option, 2*3mm FTTH Drop Cable, 3mm armored cable
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
235*127*55
SC
8 Ports
0.6KG
1KG
White
How to order aFiber Optical Termination Box?
Model Rules:FOTB-8-G-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
8
G
SC: SC/UPC
AS: SC/APC
SC: SC/UPC
AS: SC/APC
