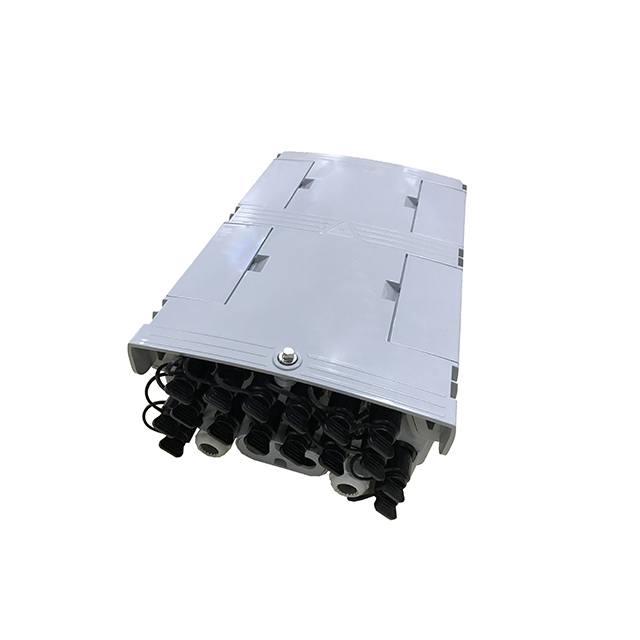

3S FOTB-PC-16-A Pre-connectorized Fiber Optical Termination Box is a fiber optical distribution box with the capacity 16cores. It is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in the box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Fiber bend radius control more than 40mm
16 ports cable entrance for pre-terminated distribution cables
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

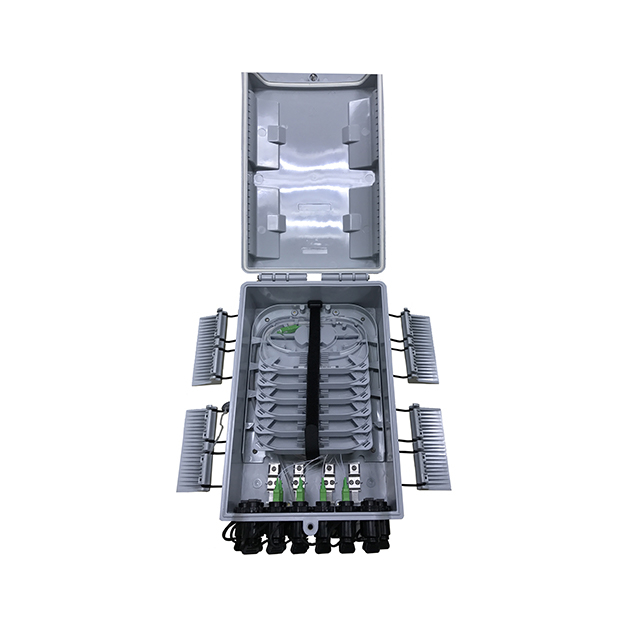

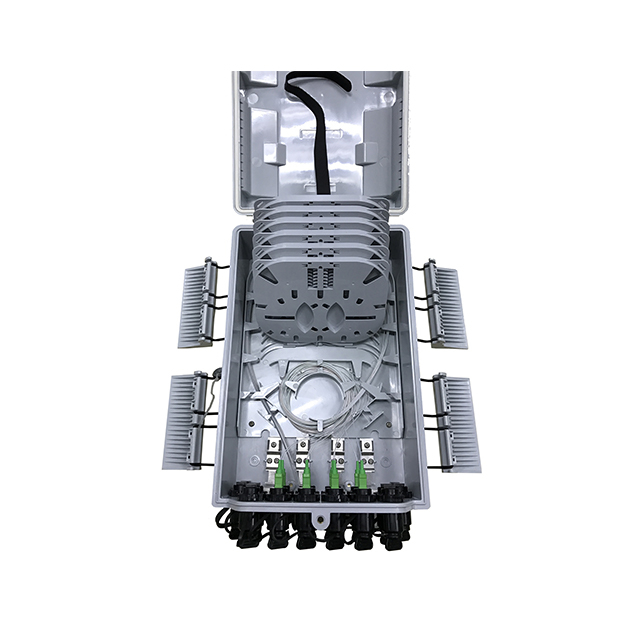

Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Support wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 330*210*121 | SC 16 Ports | 2.5kg | 3kg | White |
How to order a Pre-connectorized Fiber Optical Termination Box?
Model Rules: FOTB-PC-16-A-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB-PC | 16 | A | SC: SC/UPC AS: SC/APC | SC: SC/UPC AS: SC/APC |
