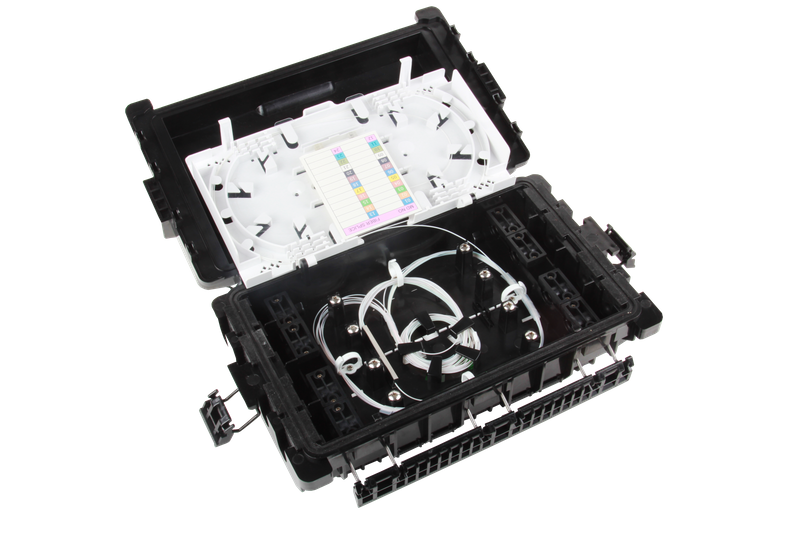

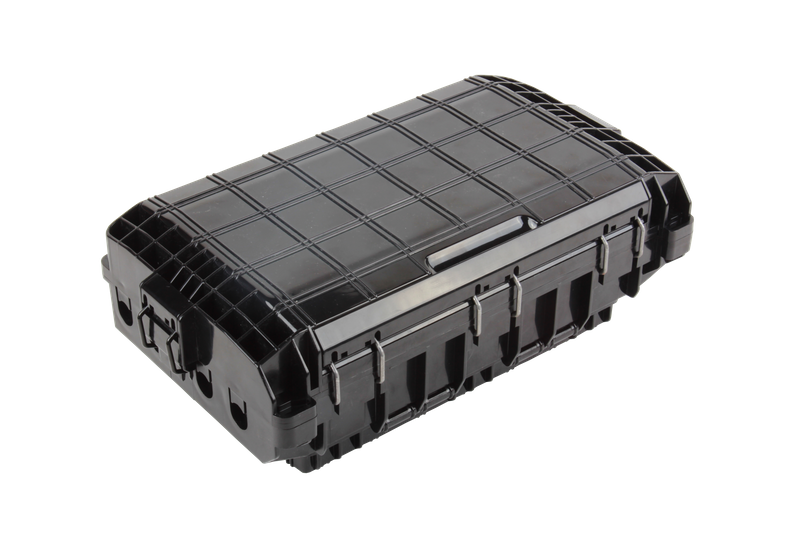

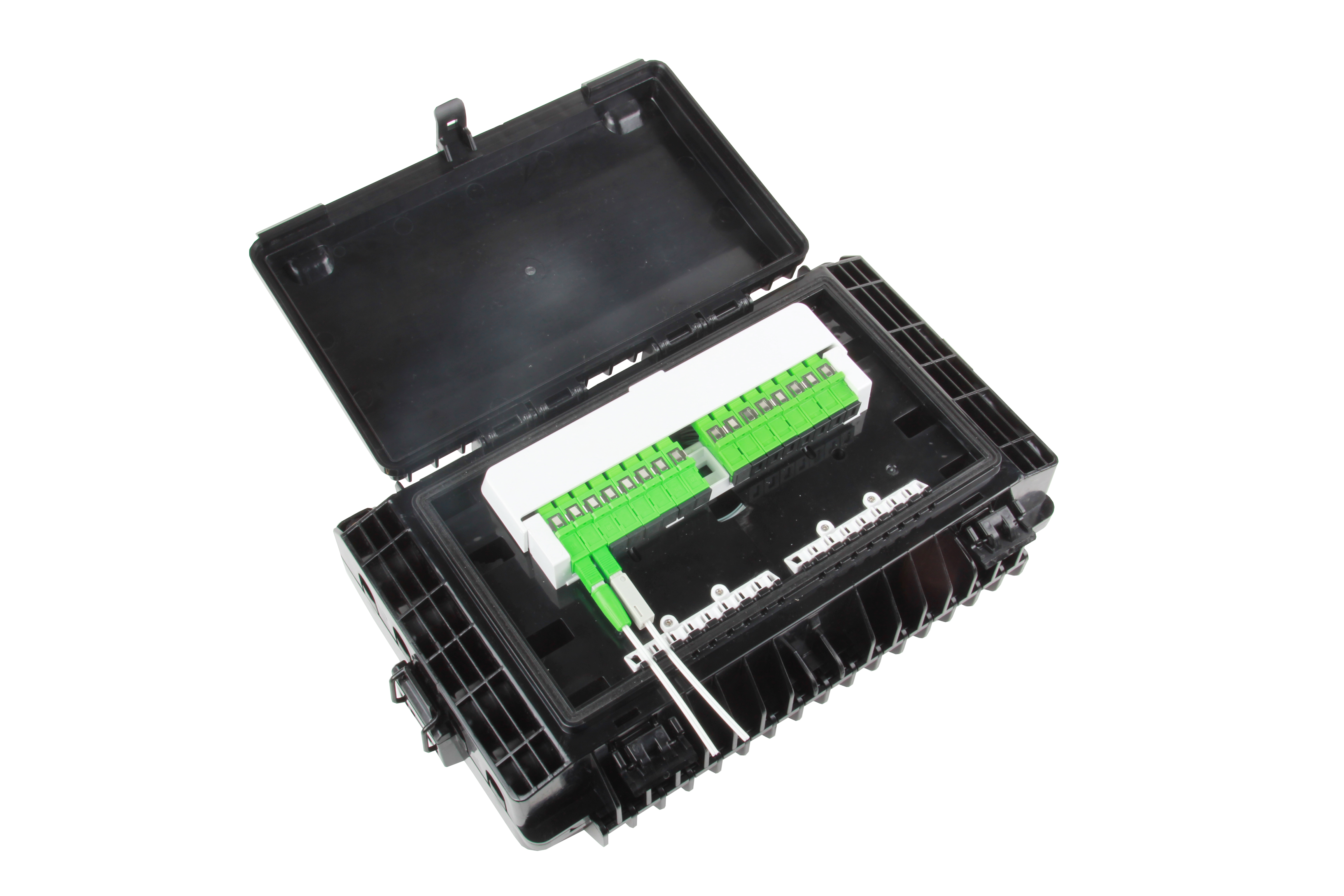

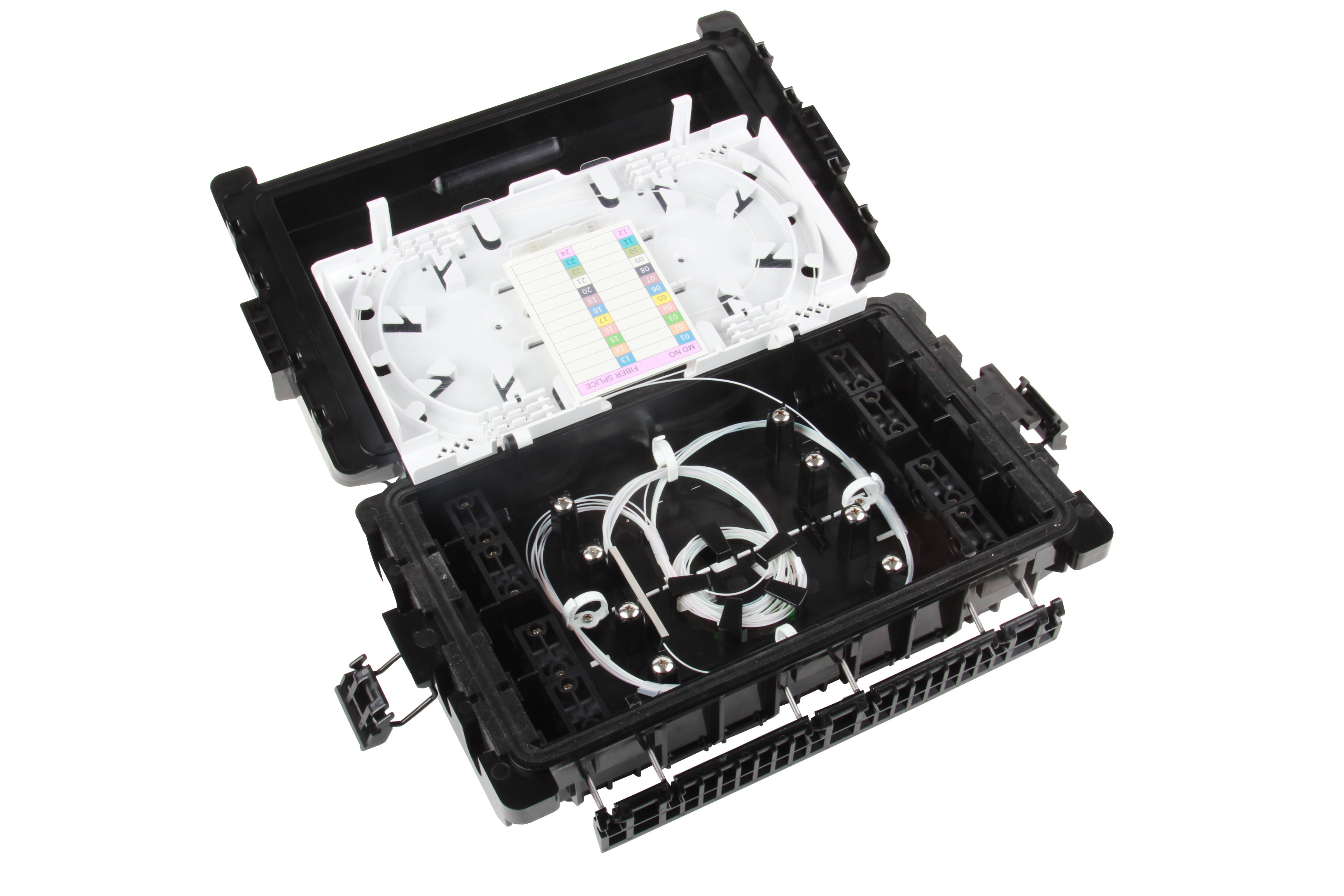

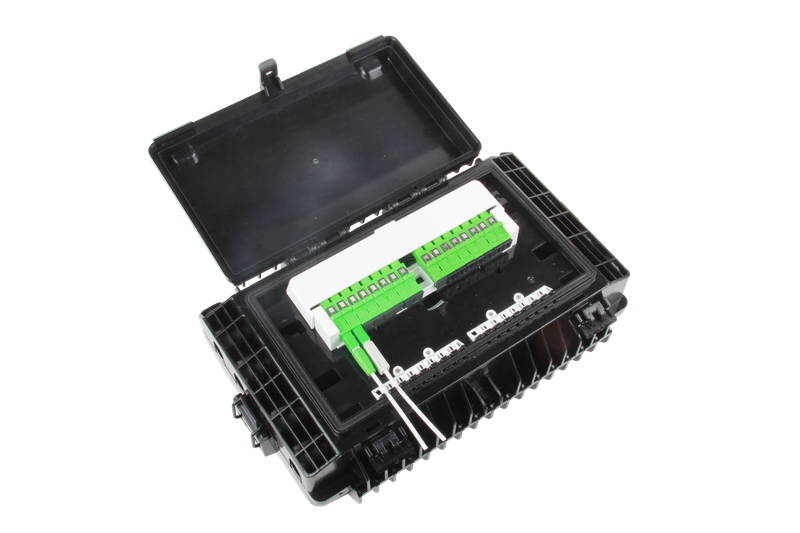

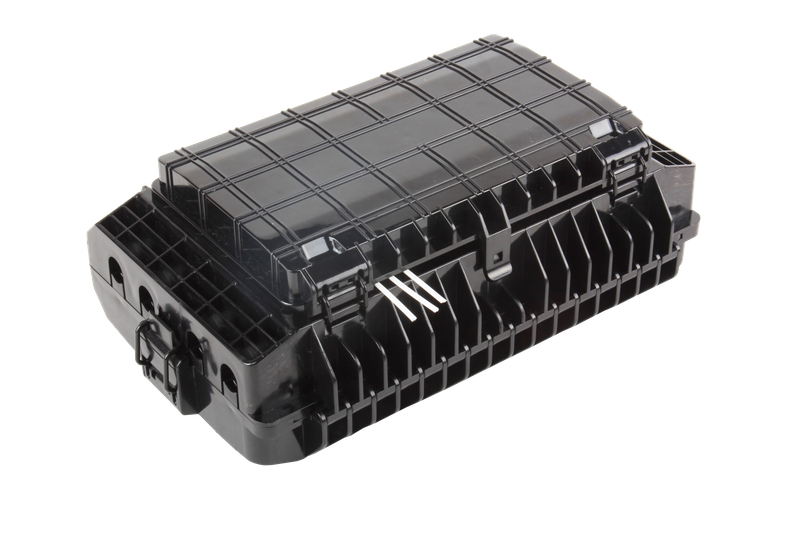

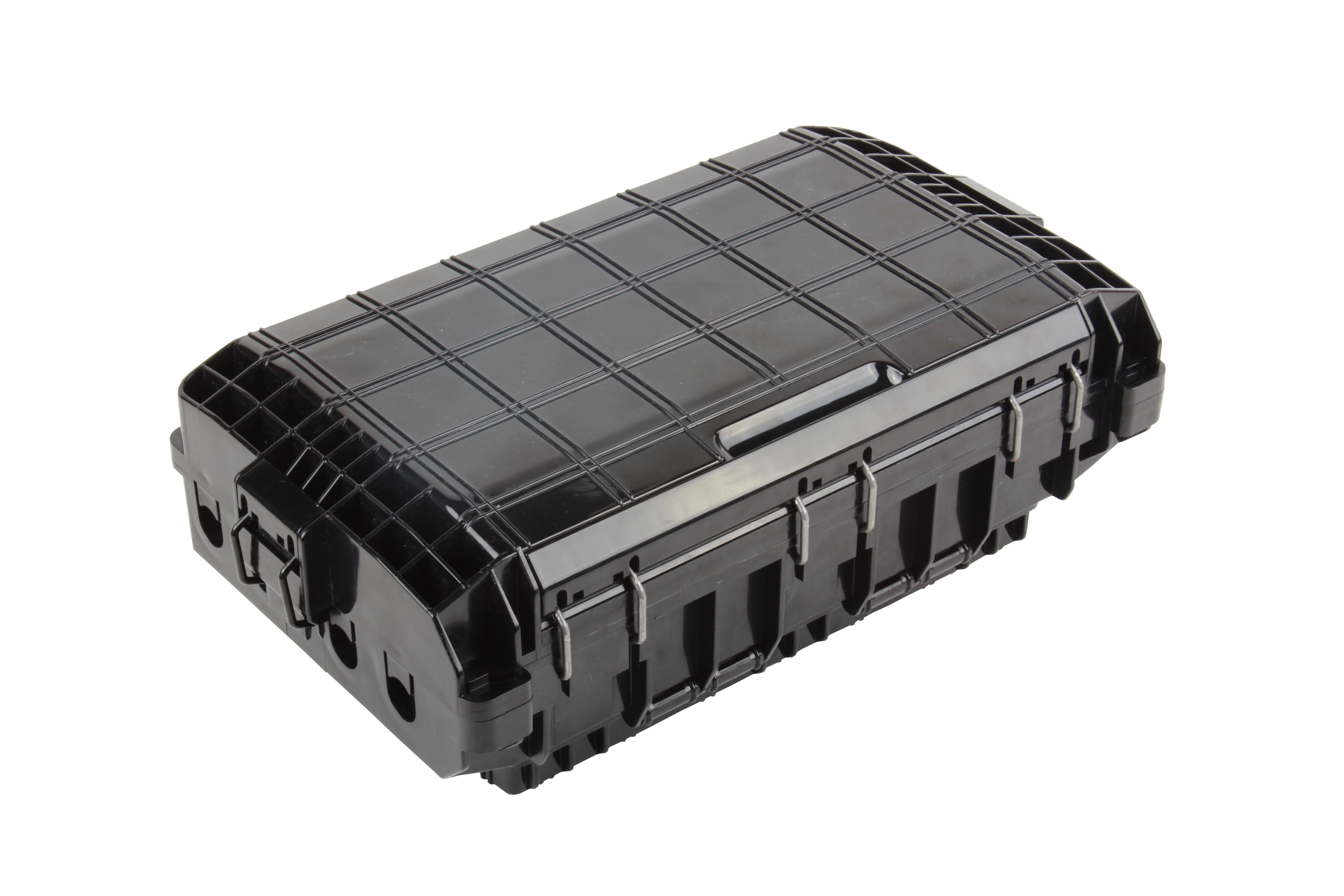

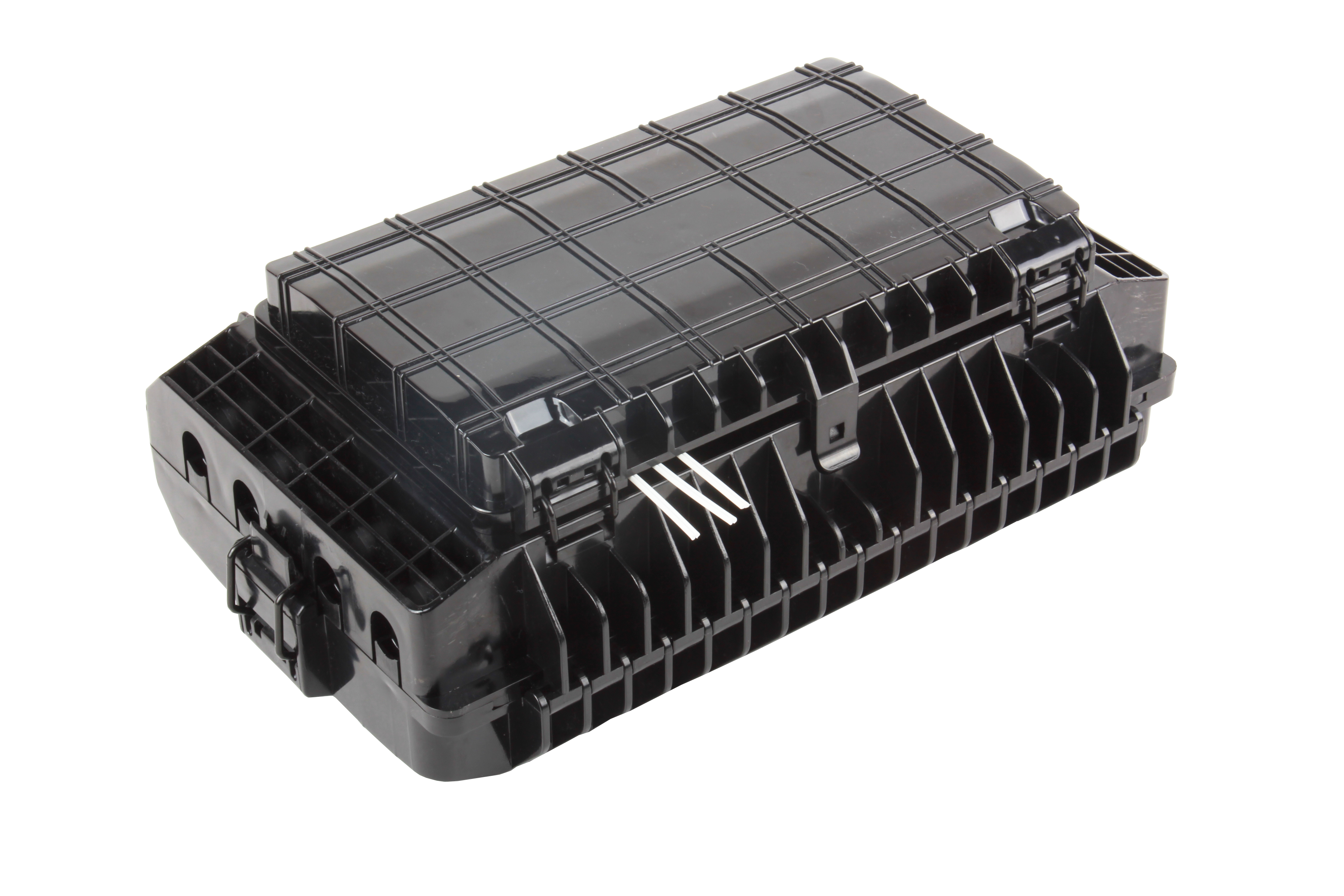

3S FOTB-16-H Fiber Optical Termination Box is a inline type box with two layers, one is for splice cassette and PLC splitter installation and one is for adapters and drop cable. It provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Fiber bend radius control more than 40mm
8 cable ports for feeder cables
Two layers, one for splice cassette and PLC Splitter installation and the other for adapters and Drop Cable
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 340*204*123.5 | SC 16 Ports | 2.5kg | 3.5kg | Black |
Note: Standard accessories are for aerial installation.
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-16-H-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB | 16 | H | SC: SC/UPC AS: SC/APC | SC: SC/UPC AS: SC/APC |
