Description:
CWDM-18B CWDM Optical Power Meter is specially designed for CWDM installation, maintenance and troubleshooting, which is able to measure and monitor power values of 18 CWDM channels. CWDM-18B CWDM Optical Power Meter can replace high-cost spectrometers and carry out quick and reliable measurements in all environments. Thanks for its light, compact and sturdy design, CWDM-18B CWDM Optical Power Meter is an ideal tool for CWDM installation and maintenance.
Features：
1. Support optical power measurement of 18 channels
2. Handheld, compact and easy to operate
3. 3.5 inch TFT LCD display, high resolution 320*480
4. Display the data in histogram or list
5. Single channel power information can be viewed
6. User define threshold and stored
7. CWDM power meter / normal power meter / VFL / RJ45 sequence / cable length / cable tracker
8. Portable battery charging
Specification:
CWDM Optical Power Meter |
Detector Type | InGaAs |
Fiber Type | SMF 9/125um |
Connector | FC/UPC |
Wavelength Range | 1270-1610nm |
Power Range | -70 -+10dBm |
Channel | 18 |
Channel Spacing | 20nm |
Channel Band Pass | ±6.5nm |
Uncertainty | ±0.5dB |
Resolution | 0.01dB |
Return Loss | >45dB |
Isolation of Adjacent Channel | ≥25dB |
Unit | mW / uW / nW / dBm / dB(RFF) |
Data Storage | 1,000 records |
Normal Optical Power Meter |
Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |
Power Range | -70 - +10dBm | -50 - +26dBm |
Unit | mW / uW / nW / dBm / dB(RFF) |
Accuracy | ±0.25dB (5%) |
Resolution | 0.01dB |
Visual Fault Locator |
Wavelength | 650±20nm |
Power | 10mW |
Mode | CW/1Hz/2Hz |
Connector | 2.5mm universal connector |

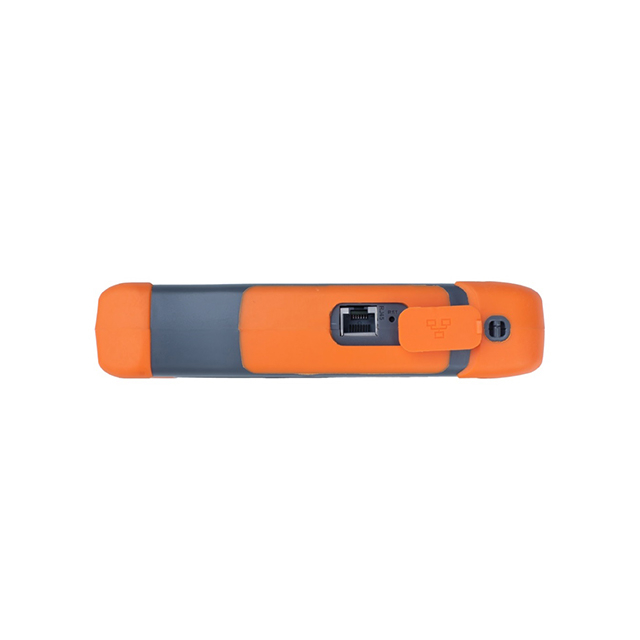

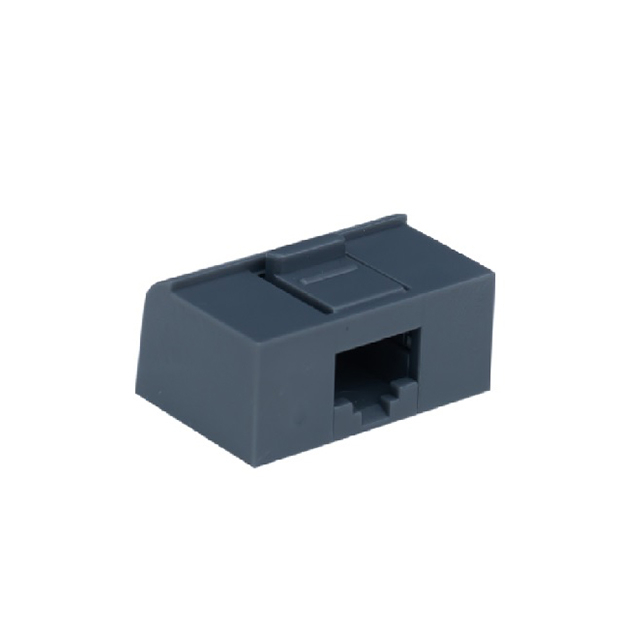

RJ45 Cable Length / RJ45 Cable Sequence / RJ45 Cable Tracker (need to purchase external cable tracker module) |
Test Distance | 300m |
General Information |
Display | 3.5 inch TFT LCD display, high resolution 320*480 |

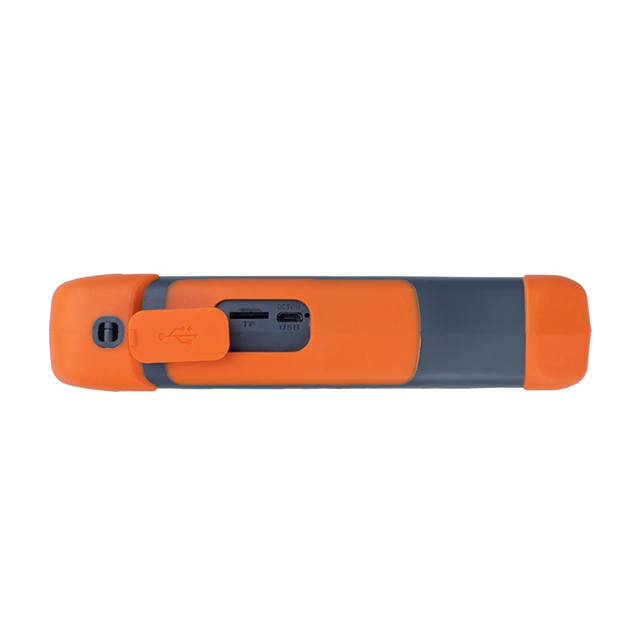

Data Interface | Micro USB |
Power Supply | Lithium battery 3.7V 4000mAh, power adapter 5V DC, 2A |
Battery Working Time | >12h |
Weight | 350g |
Size | 173 x 82 x 37mm |
Operation Temperature | -10℃～50℃ |
Storage Temperature | -40℃～70℃ |
Relative Humidity | 0 ~ 95% No Condensation |
