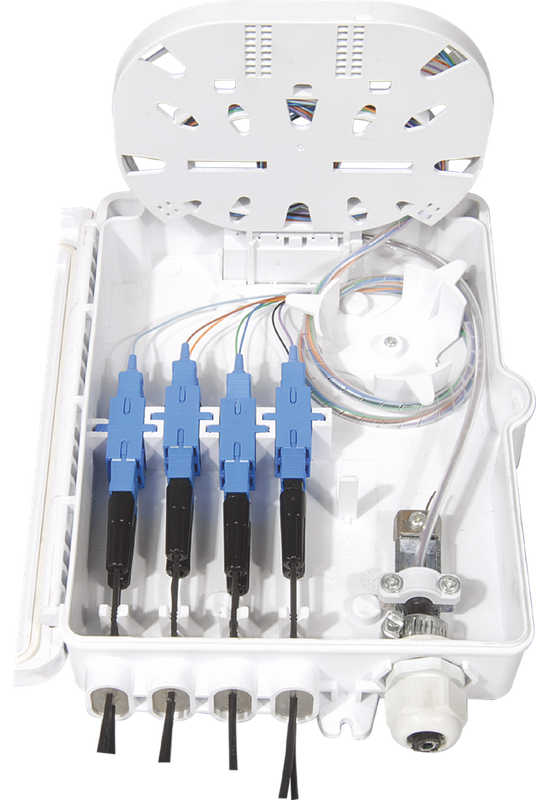

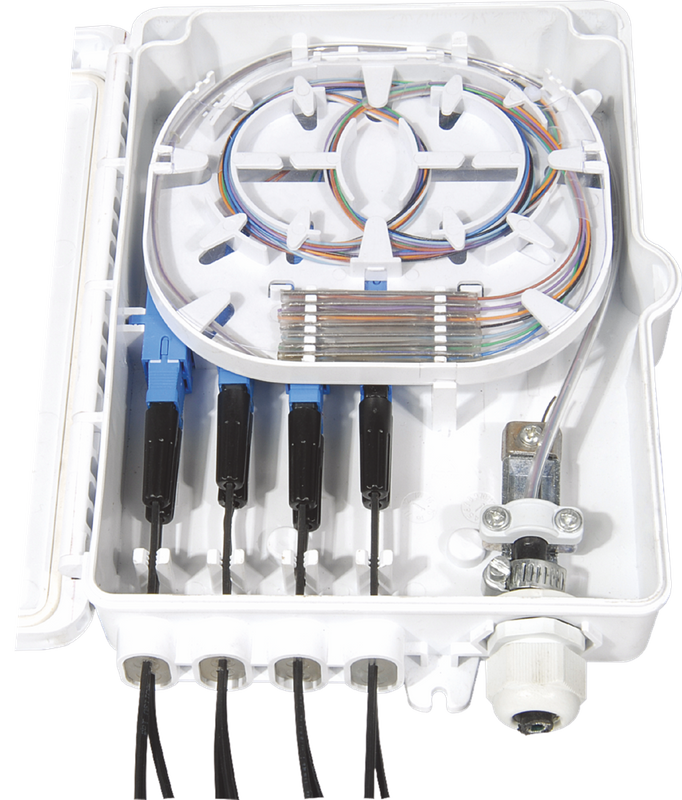

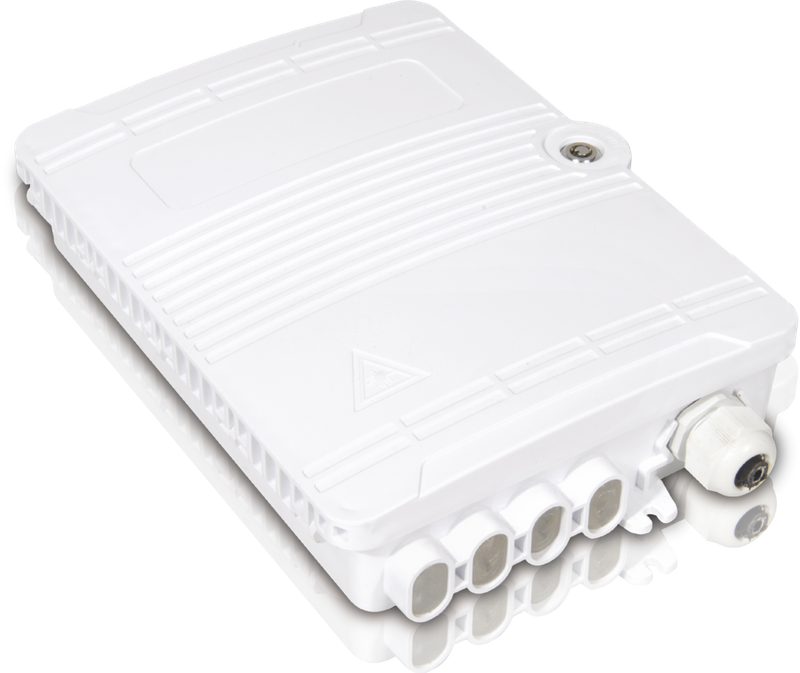

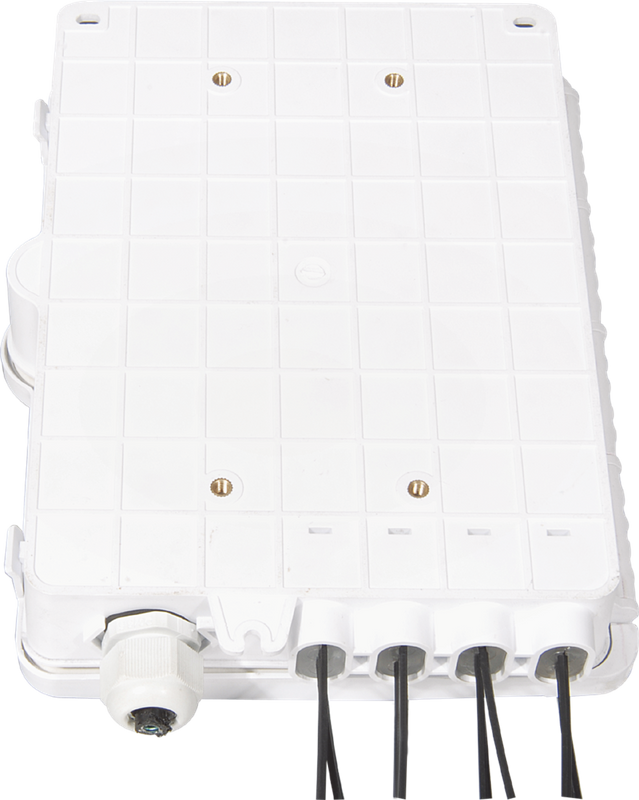

3S FOTB-8-B Fiber Optical Termination Box is a box with 8 cable entrance ports for FTTH drop cable. It supports installation micro type PLC splitter and provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
8 ports cable entrance for FTTH drop cable
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
213*163*47
SC
8 Ports
LC
16 Ports
1.2kg
1.7kg
White
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-8-B-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
8
B
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
