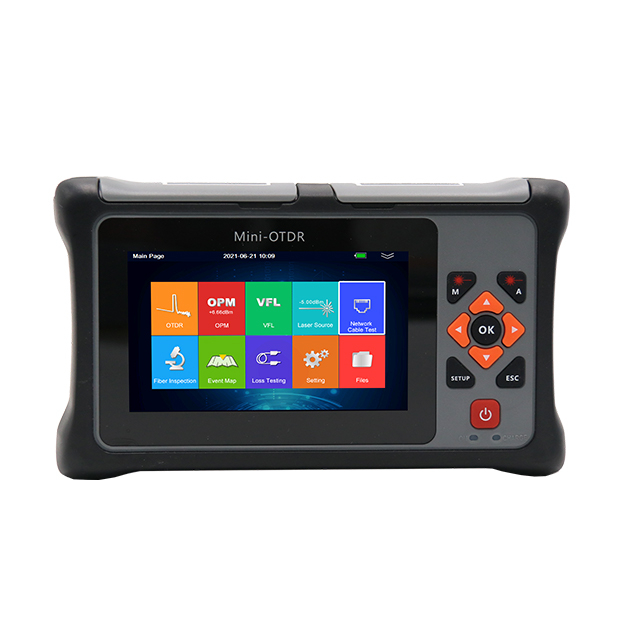

1100MINI is ultra -pocket- size mini OTDR for FTTH last- mile installation and daily troubleshooting. Only 560g for one -hand operation, equipped with auto -rotate touchscreen, 9- in -1 multi functions and Type- C power bank charging.
• Pocket -size Ultra- light — only 560g, supports comfortable one- hand field operation • 9- in -1 Multi function Tester — built in LED headlamp plus RJ45 cable sequence test • Auto- rotate HD Touchscreen — works with gloves and stylus for complex site conditions • Type- C Power- bank Charging — up to 10- hour continuous testing for all- day field jobs
Carrying heavy fiber test instruments for FTTH last- mile onsite repair creates extra burden for field technicians.

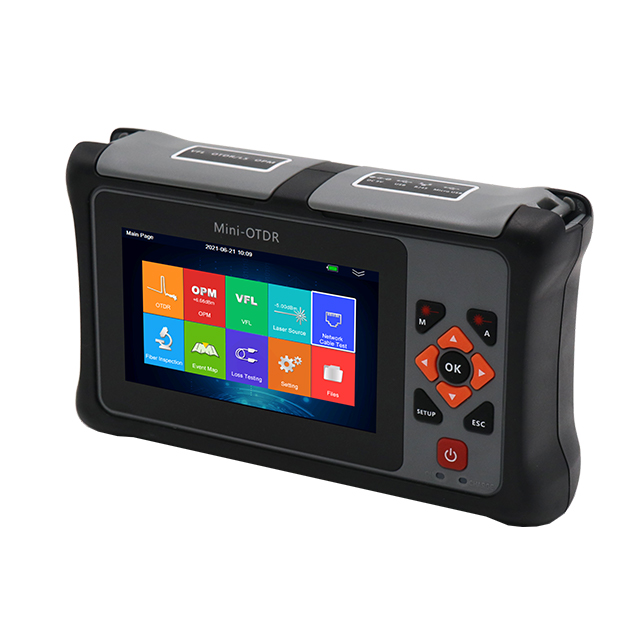

Built for daily FTTH last- mile installation and troubleshooting work, the 1100MINI ultra -pocket OTDR weighs merely 560 grams and supports easy one- hand operation. You can easily place it inside your work pocket for pole climbing or narrow customer premise work.
Equipped with a 4.3- inch high- definition auto- rotate touchscreen, the screen supports operation with work gloves or stylus, and can automatically switch between horizontal and vertical view. One- button auto- test allows new technicians to get complete fault test results with minimal training.

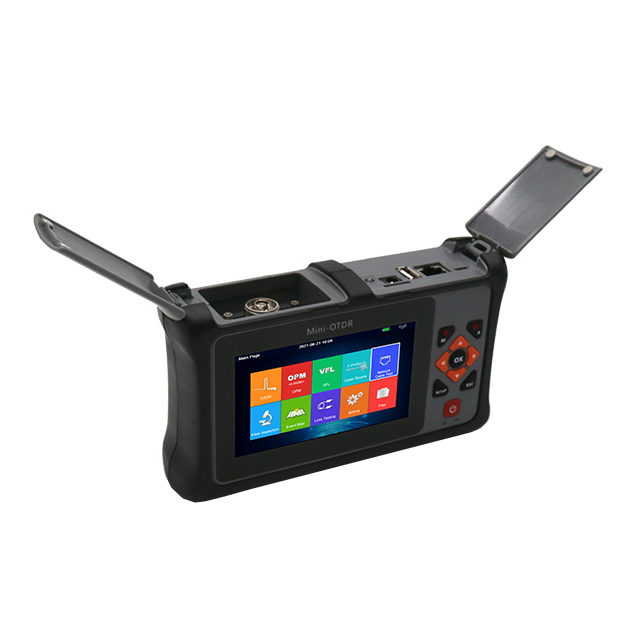

This unit integrates 9 practical functions: OTDR, optical power meter, light source, VFL, event map, insertion loss test, built -in LED headlamp, RJ45 cable sequence test and optional cable tracker. Adopting universal Type -C interface, you can power it with ordinary mobile phone power banks and achieve up to 10 hours continuous field testing.
It is a cost -effective portable tester for FTTH last -mile deployment, CATV maintenance and LAN structured cabling verification.
Need glove- operable physical- keys for heavy -duty outdoor work? Check our 2100PRO OTDR.
For long -haul backbone fiber testing, view flagship 2200MAX OTDR.
For professional deep PON ODN troubleshooting through 1:64 splitter, see 2000PON OTDR.
For compact entry- level pocket tester with RJ45 and flashlight function, view 1500PRO OTDR.
Key Features
Pocket- size ultra- light weight unit — only 560g, convenient for one hand onsite operation
4.3- inch HD auto- rotate touchscreen, supports horizontal and vertical view switch
Touchscreen works with work gloves and stylus for complex field environments
9 -in -1 integrated tester: OTDR + OPM + OLS + VFL + Event Map + Insertion Loss Test + LED headlamp + RJ45 cable sequence test + optional cable tracker

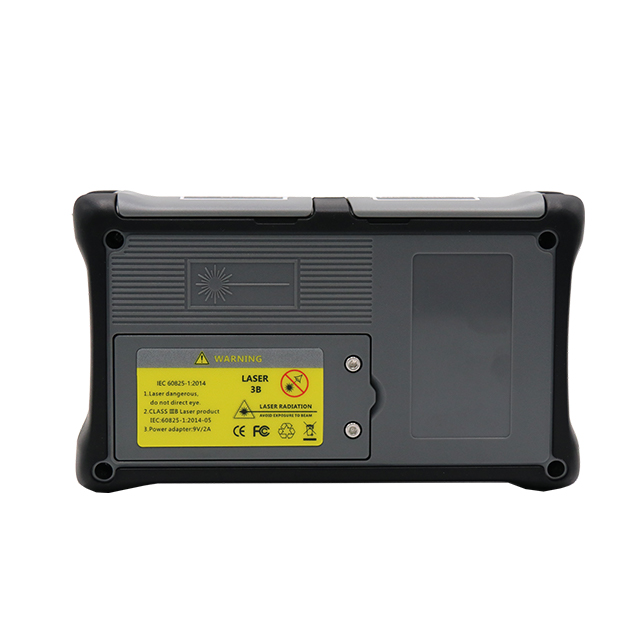

Beginner- friendly one- button auto- test, fast complete fault test results
2m event dead zone, accurate detection for short fiber jumpers and patch cords
Universal Type- C charging, compatible with common power banks, up to 10 -hour continuous testing
Standard Telcordia SOR trace format, 8GB SD card storage, rugged screen shock protection
Application
FTTH last mile installation and field test
CATV network daily maintenance
Access network troubleshooting and fault repair
FTTA base station fiber testing
LAN / WAN structured cabling verification
Short jumper and patch cord inspection
Quick Selection Quide
Short distance FTTH entry test → choose A22
Standard last mile installation → choose A24
Longer access link test → choose A26
Live PON test with filter → choose S27F
Model
Wavelength (nm)
Dynamic Range (dB)
Dead Zone (m)
Max Range
1100MINI‑A22
1310/1550
22/20
2/6
70km
1100MINI‑A24
1310/1550
24/22
2/6
80km
1100MINI‑A26
1310/1550
26/24
2/6
90km
1100MINI‑S27F
1550 filtered
27
2/6
100km, live PON test
Note: Standard accessories include main unit, built in battery, FC/SC adapters, Type C cable, carry pouch, user manual. ST/LC adapters and RJ45 cable tracker function available on request.
Technical Specifications
OTDR Module
Parameter
Value
Pulse Width
3ns ~ 20μs
Distance Range
100m ~ 100km
Distance Accuracy
±(1m + 3×10⁻⁵×distance + sampling resolution)
Linearity
±0.2dB/dB
Reflectance Accuracy
±3dB
IOR Range
1.0000 ~ 2.0000, 0.0001 step
File Format
Standard SOR (Telcordia SR‑4731)
Laser Safety
Class 3B, live fiber detection
OPM / OLS / VFL / Extra Functions
Parameter
Value
OPM Wavelength
850‑1650nm calibrated wavelengths
OLS Modulation
CW / 270Hz / 1kHz / 2kHz
VFL
650nm, CW / blink mode
RJ45 Test
Cable sequence check, optional cable tracker
Extra Function
Built‑in LED headlamp
General Specifications
Parameter
Value
Display
4.3" 800×480 TFT auto‑rotate touchscreen
Battery
3.7V/5200mAh Li‑ion, air transport certified
Battery Life
10 hours continuous testing
Charging
Type‑C, supports power bank charging, less than 3h full charge
Storage
8GB SD card, around 100000 test traces
Interface
FC/SC/ST universal optical port, Type‑C, SD slot
Language
English, Spanish, French, Russian, etc.
Environment & Mechanical
Parameter
Value
Operating Temperature
‑10°C ~ +50°C, ≤95% RH non‑condensing
Storage Temperature
‑20°C ~ +75°C, ≤95% RH non‑condensing
Dimensions
175 x 105 x 45 mm (pocket size)
Weight
Only 0.56kg (with battery)
Certification
CE, RoHS, laser safety IEC 60825
FAQ
Q1: What are the main differences between 1100MINI,1500PRO,2100PRO,2200MAX and 2000PON?
A: 1100MINI is ultra pocket 560g mini OTDR for FTTH last mile short distance work, supports one hand operation and auto rotate touchscreen. 1500PRO is compact mini tester at 380g with 7 in 1 functions. 2100PRO is mid range FTTH model with touch plus hard key dual operation for glove friendly field work. 2200MAX is flagship unit for long haul backbone testing. 2000PON is dedicated PON OTDR which can test through 1:64 PLC splitter for operator grade ODN maintenance.
Q2: Can 1100MINI test through 1:64 PLC splitter like 2000PON?
A: No. S27F filtered model supports basic live PON test, but cannot pass through 1:64 splitter. For splitter downstream fault diagnosis, please select 2000PON.
Q3: What is special about the 4.3 inch touchscreen?
A: The 4.3 -inch HD touchscreen supports automatic horizontal and vertical rotation. It can be operated with work gloves or stylus in harsh field conditions.
Q4: What practical extra functions does 1100MINI provide?
A: It includes built -in LED headlamp for dark cabinet or manhole environments, RJ45 cable sequence test, and optional RJ45 cable tracker function.
Q5: Can I use power bank to charge 1100MINI in field work?
A: Yes. It uses universal Type C charging interface. You can work all day with external power bank, and it achieves up to 10 hour continuous testing after full charge.
Q6: Is PC analysis software available and what trace format does it save?
A: Test traces are saved as standard Telcordia SOR format. Free PC analysis software supports trace review and report processing.
