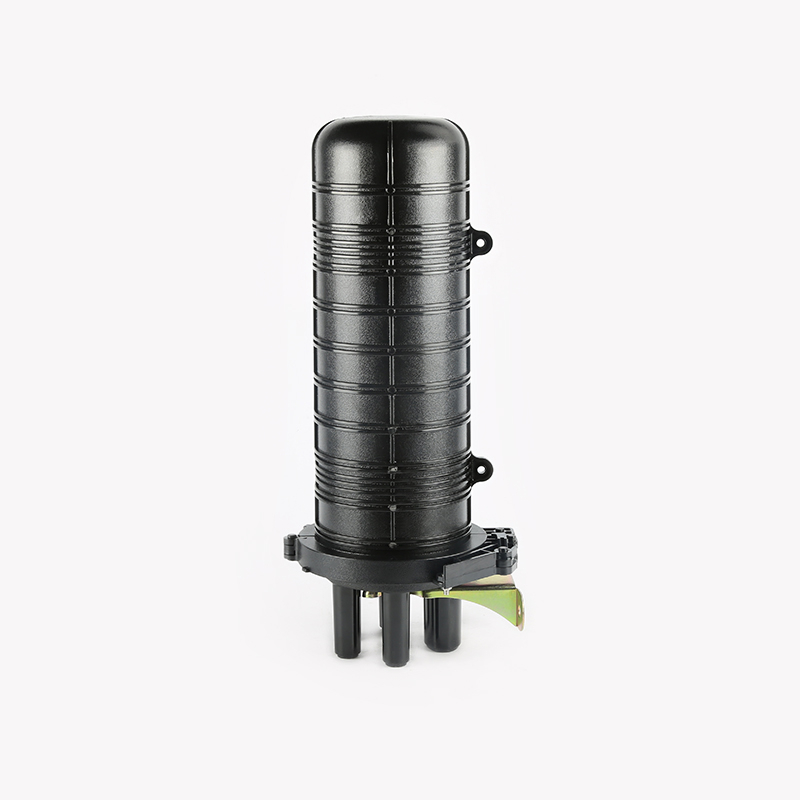

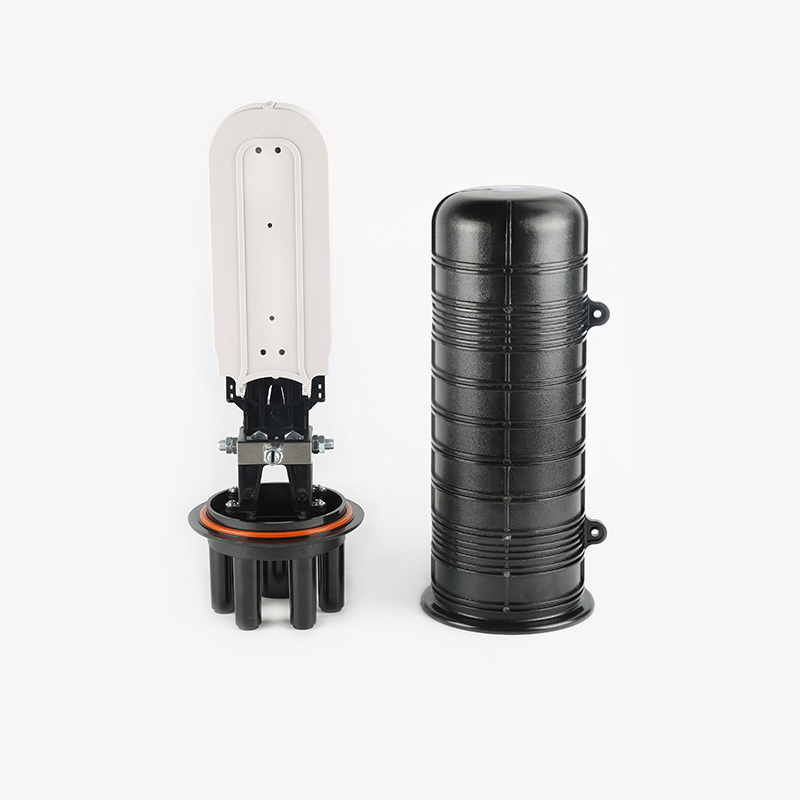

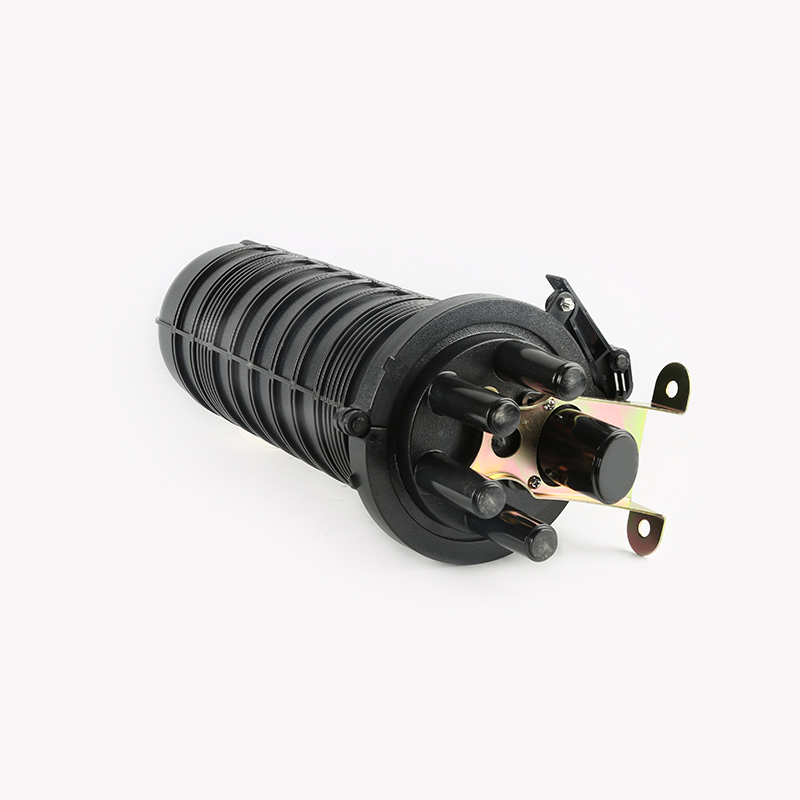

Features of Dome Type Fiber Optic Splice Closure:

1. Vertical type design

2. Easy to assemble

3. Both double sides splicing tray are allowed

4. High quality ABS body material ensure the durability

5. Suitable for 5mm~18mm cables

6. Aerial, underground, pipeline, hand-holes assembling are available.

7. Adapt to the ambient temperature from -40℃~65℃

8. All accessories can be customized

Specifications of Dome Type Fiber Optic Splice Closure:

Model	FOSC-BDH-A4S24-4VG	FOSC-BDH-B5S24-4VG	FOSC-BDH-C5S48-6VG
Type	Cap type (Vertical type)	Cap type (Vertical type)	Cap type (Vertical type)
Outside dimension	440×190mm	420×190mm	490×220mm
Weight (excluding outside box)	2570~2820g	2370~2620g	3070~3820g
Number of inlet/outlet ports	4 pieces	5 pieces	5 pieces
Diameter of fiber cable	5~25mm	5~25mm	5~35mm
Capacity of FOSC	Bunchy: 24~96 (cores)	Bunchy: 12~96 (cores)	Bunchy: 12~288 (cores)
Body material	ABS	ABS	ABS
Assembling method	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes
Temperature	-40℃~65℃	-40℃~65℃	-40℃~65℃

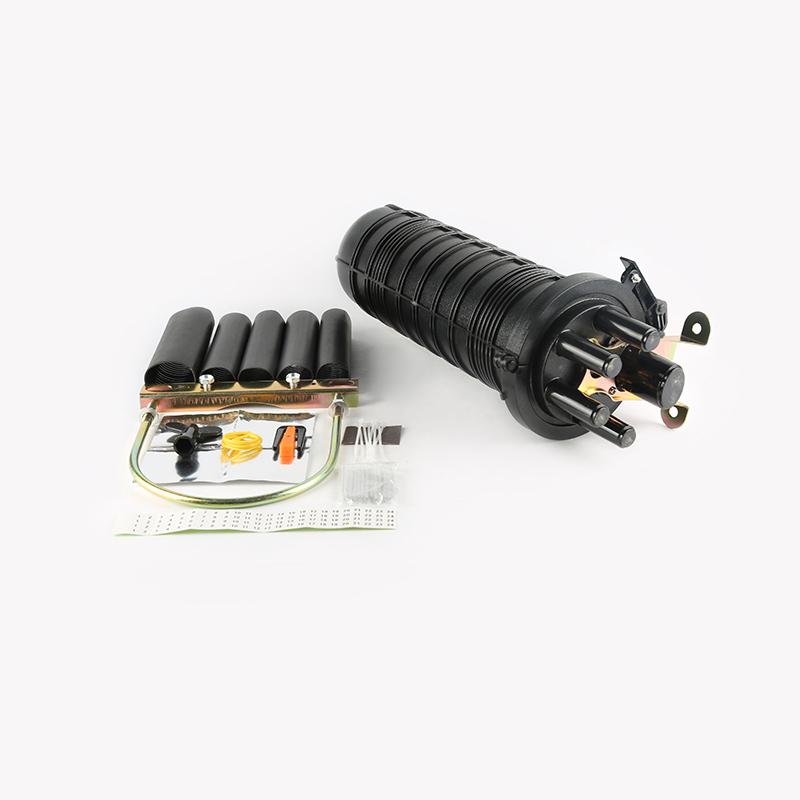

Standard accessories	1FOSC cover, 1Fiber optic splice tray (FOST), nFiber holding tray, 1Base,1Plastic hoop, 1Seal fitting	1FOSC cover, 1Fiber optic splice tray (FOST), nFiber holding tray, 1Base,1Plastic hoop, 1Seal fitting	1FOSC cover, 1Fiber optic splice tray (FOST), nFiber holding tray, 1Base,1Plastic hoop, 1Seal fitting
Option	Pressure testing valve and Earthing deriving device (kit)

Model	FOSC-BDH-D7S24-10VG	FOSC-BDM-A4S24-4VG	FOSC-BDM-B4S24-4VG
Type	Cap type (Vertical type)	Cap type (Vertical type)	Cap type (Vertical type)
Outside dimension	450×220mm	430×190mm	310×190mm
Weight (excluding outside box)	2870~3620g	2670~2900g	2100~2380g
Number of inlet/outlet ports	7 pieces	4 pieces	4 pieces
Diameter of fiber cable	5~35mm	5~18mm	5~17mm
Capacity of FOSC	Bunchy: 12~240 (cores)	Bunchy: 12~96 (cores)	Bunchy: 12~48 (cores)
Body material	ABS	ABS	ABS
Assembling method	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes	Aerial, Pipeline, Underground, hand-holes
Temperature	-40℃~65℃	-40℃~65℃	-40℃~65℃
Standard accessories	1FOSC cover, 1Fiber optic splice tray (FOST), nFiber holding tray, 1Base,1Plastic hoop, 1Seal fitting	1FOSC cover, 1Fiber optic splice tray (FOST), nFiber holding tray, 1Base,1Plastic hoop, 1Seal fitting	1FOSC cover, 1Fiber optic splice tray (FOST), nFiber holding tray, 1Base,1Plastic hoop, 1Seal fitting
Option	Pressure testing valve and Earthing deriving device (kit)
