Description

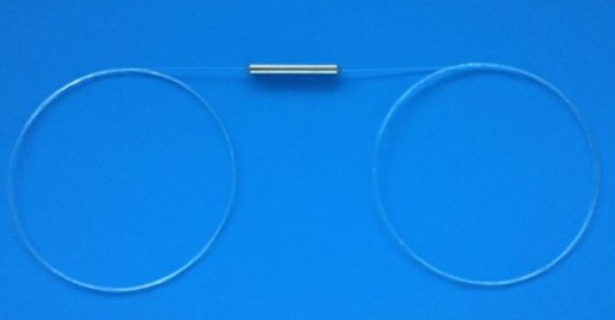

The Polarization Maintaining (PM) Filter Coupler (both axis working) is characterized with low insertion loss, high return loss, high extinction ratio and excellent environmental stability and reliability, widely applied as a PM splitter, which can divide the signal into various ratios. The PM Filter Coupler supports the light wave of each polarization to work, without blocking any polarization. So, it performs properly in FOCT, GYRO, and other polarization maintaining fiber system. It is widely used in fiber optic system monitoring and WDM system testing application.
Features
Low insertion loss
High return loss
High extinction
Compact size
Applications
Fiber optic system monitoring
WDM systems testing
Raman amplifier
Specifications (1x2 & 2x2)
Parameters | Unit | Values |
1 x 2 | 2 x 2 |
Operation Wavelength | nm | 1310/1550 |
Max. Excess Loss | dB | 0.7 | 1.0 |
Max. Uniformity | dB | 0.6 | 0.8 |
Tap Ratio | % | 1±0.2%, 2±0.4%, 4±0.8%, 5±1.0%, 10%, 20% and 50% | 10%, 20% and 50% |
Extinction Ration (at 23 ºC) | dB | Type 20 | Type 18 |
Directivity | dB | >50 |
Return Loss | dB | >50 |
Power Handling (CW) | mW | 500 |
Working Axis | -- | Both Axes Working |
Fiber Type | Tap Port | -- | SMF-28 or PM Panda Fiber |
Input & Output Port | -- | PM Panda Fiber |
Working Temperature | ℃ | 0 to +70 |
Storage Temperature | ℃ | -40 to +85 |
Package Dimensions | mm | Ø3.0 X L25 or specify |
Notes: 1. The PM fiber and the connector key are aligned to the slow axis. |
2. IL is 0.3dB higher, RL is 5dB and ER is 2Db lower for each connector added. |

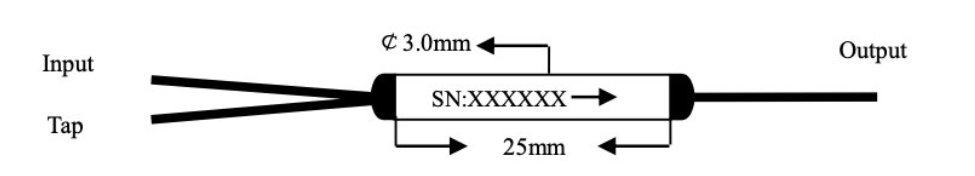

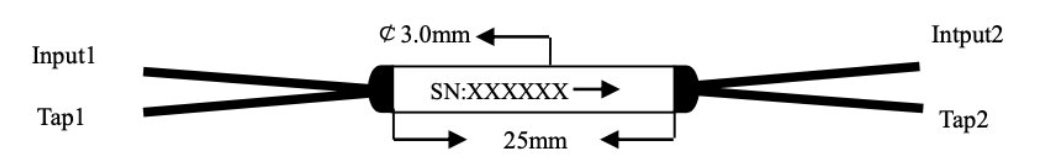

Package Dimensions
Ordering Information:
MiNi-PMFC-X | XXXX | XX/XX | X | X | XX | XX |
Coupler Type | Wavelength | Tap Ratio | Axis | Pigtail Type | Fiber Length | Fiber Connector |
