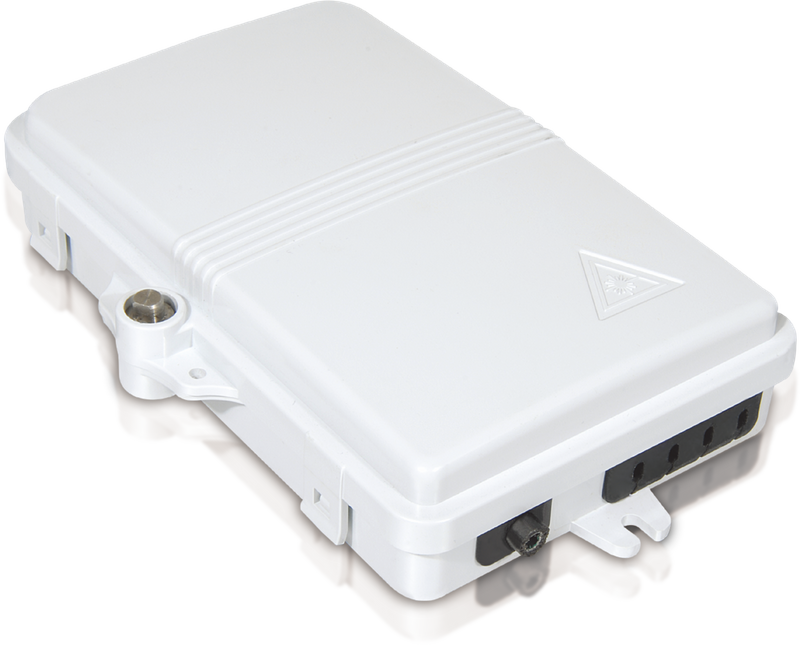

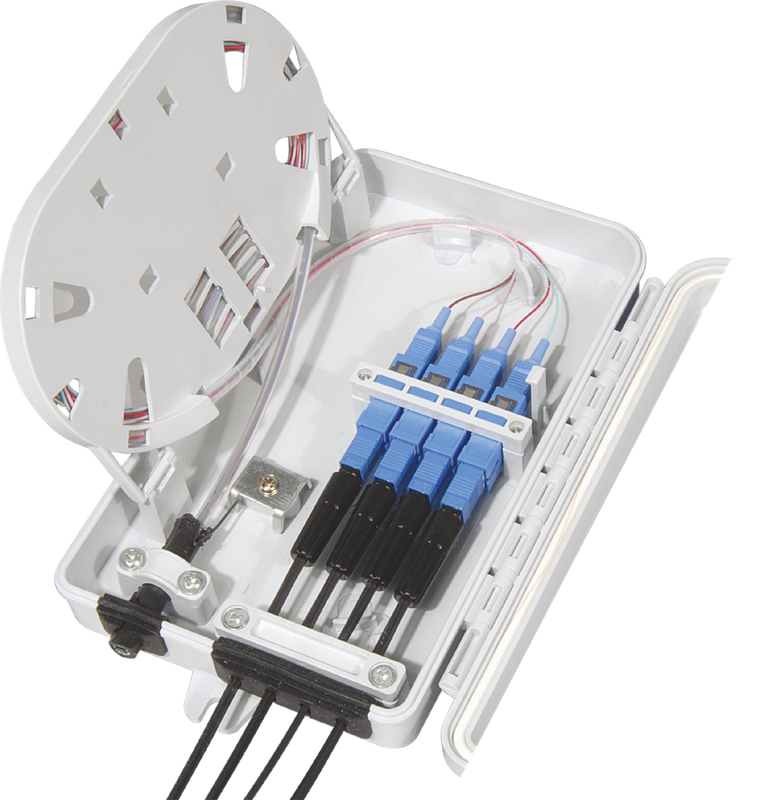

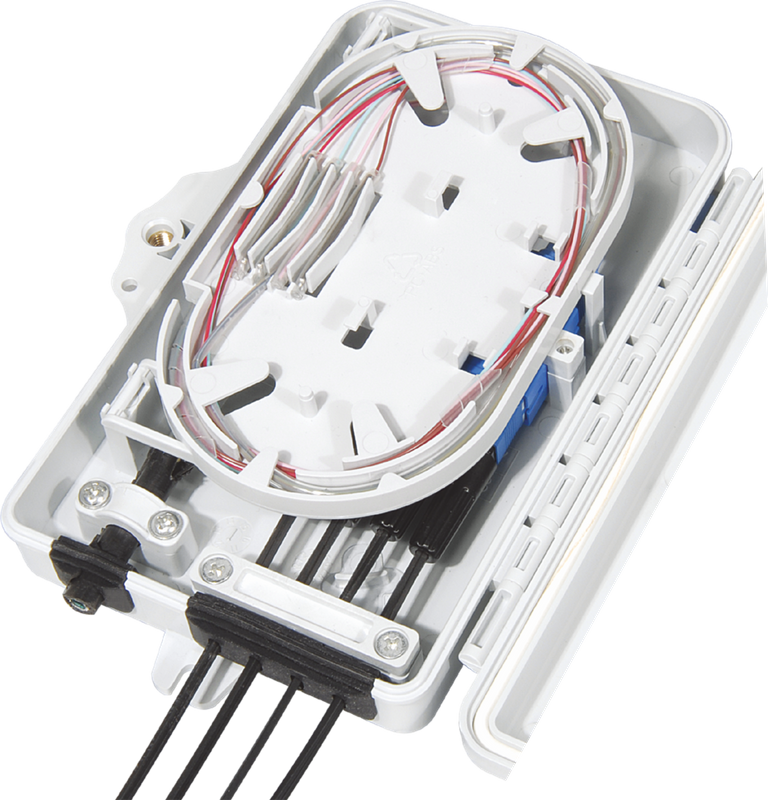

3S FOSB-4-A Fiber Optical Splitter Box is a optical termination box which can install micro type PLC splitter with 4 output ports for FTTH drop cable. It provides a high density wall mounted solution for next generation networks, which aims to provide and manage fiber splitter in a limited space. It is designed for FTTH (Fiber to the Home) with protective housing for all the passive fiber equipment installed inside.
Features:
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 1*4 spitter can be installed as an option
8. 4 ports cable entrance for FTTH drop cable
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
ABS | A*B*C(mm) 186*116*40 | SC 4 Ports | LC 8 Ports | PLC 1×4 | 0.8kg | 1kg | White |
How to order a Fiber Optical Splitter Box?
Model Rules: FOSB-4-A-XX-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail | XX: Splitter |
FOSB | 4 | A | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | P1: 1×2 P2: 1×4 |
