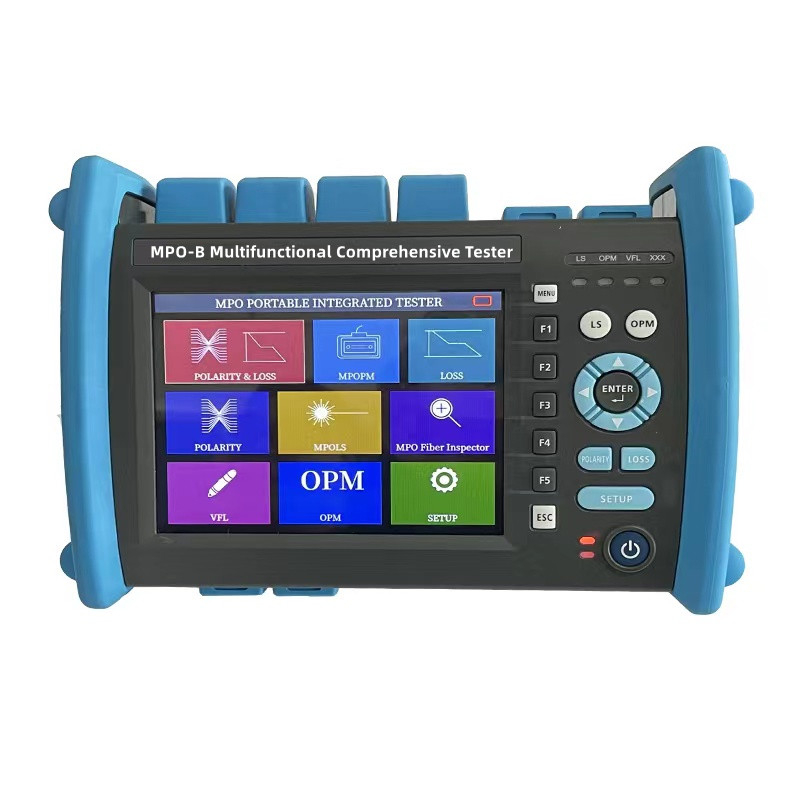

MPO-B Multifunctional Comprehensive Tester
MPO OPM | MPO OLS | MPO Polarity & Loss | MPO End Face Inspection | VFL | General OPM
| |

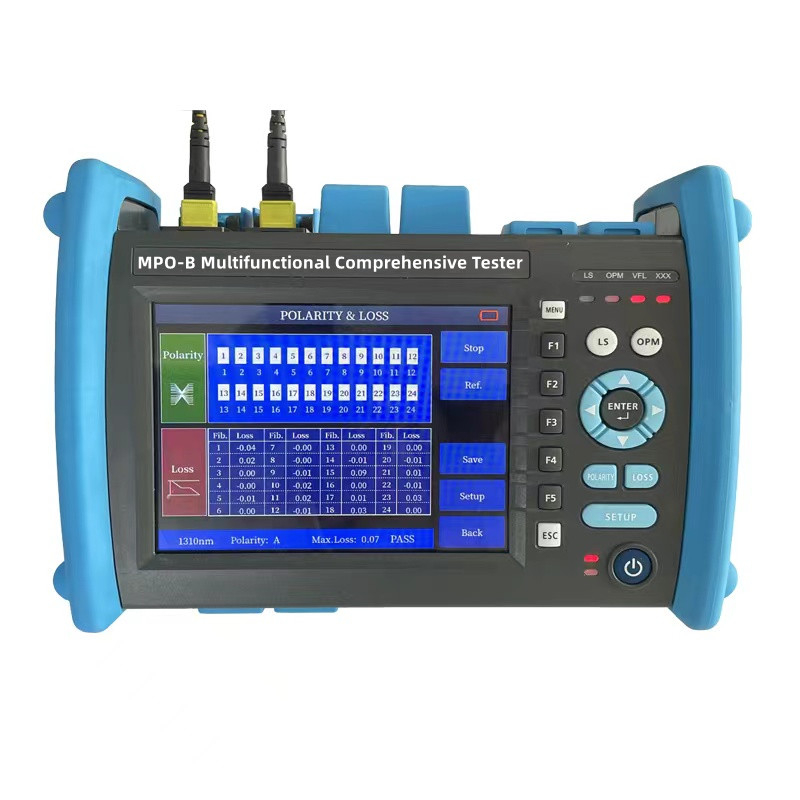

| MPO Main Functions Interface | MPO Polarity & Loss Test Inteface |
Description
MPO-B Multifunctional Comprehensive Tester is a MPO multi-fibers' loss & polarity tester equipped with a 5.6-inch color touch screen. It integrates the basic functions of MPO multi-fibers' loss & polarity testing, and also includes other functions like MPO fiber end face inspection, general optical power meter and visual fault locator.
| |

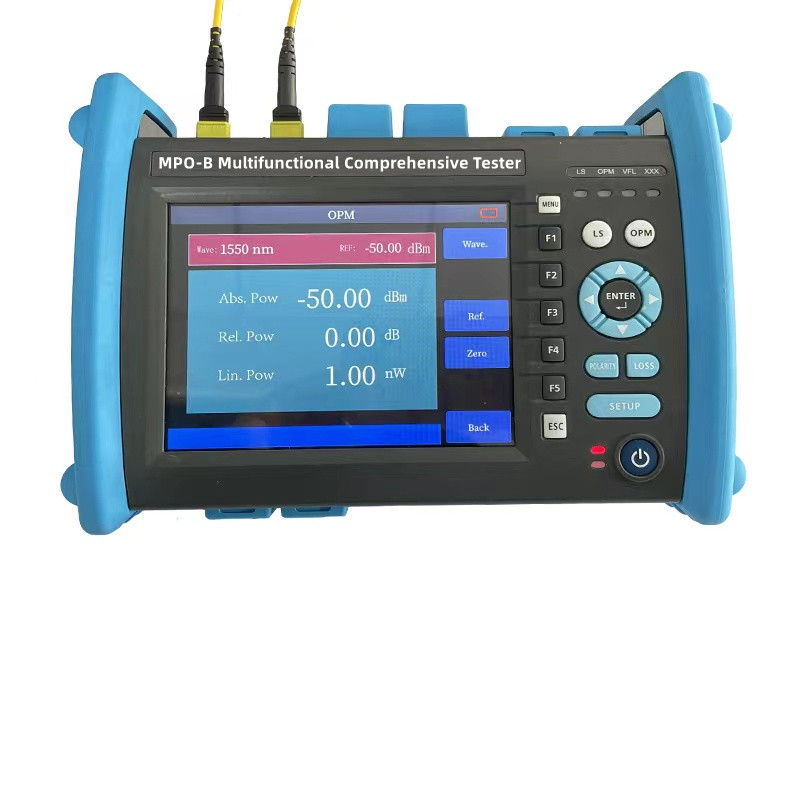

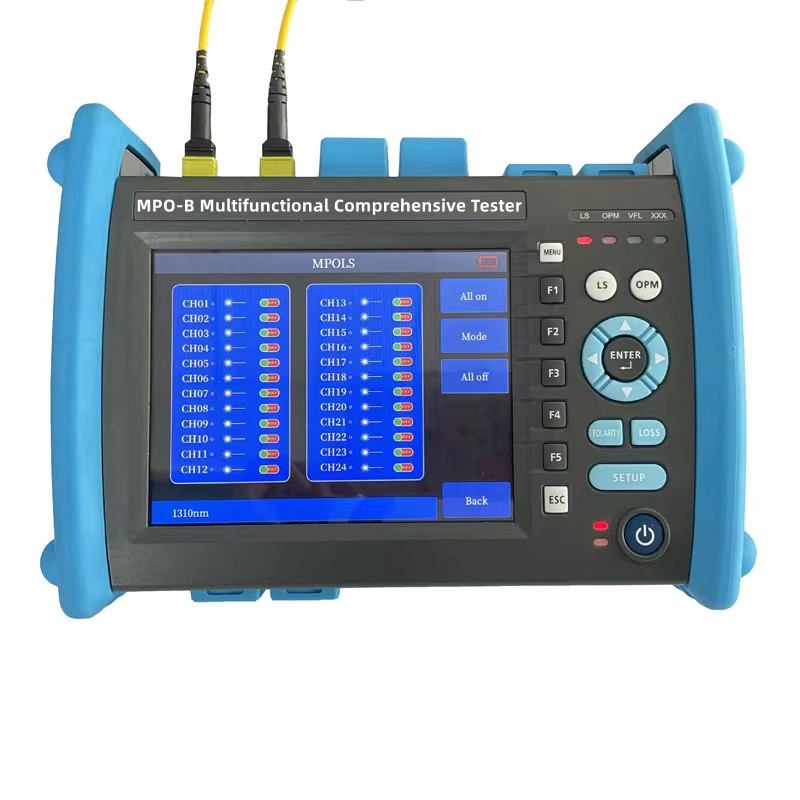

| MPO Power Meter Test Interface | MPO Light Source Interface |
MPO multi-fibers' loss & polarity test function supports 24-core MPO polarity and loss testing (downward compatible with 12-core, etc.).
MPO fiber end face inspection ensure the cleanliness of MPO connectors. MPO end face inspection is a very important procedure before MPO loss and polarity test. Once the MPO connectors are got polluted, it will affect the efficiency of transmission and transfer the pollution to the next link.
MPO-B is a multi-functions and comprehensive tester for MPO link solution. It ensures a fast and reliable workflow when testing and verifying the MPO connectors link. It greatly facilitates the data center, central office and on-site construction and maintenance work.
| |

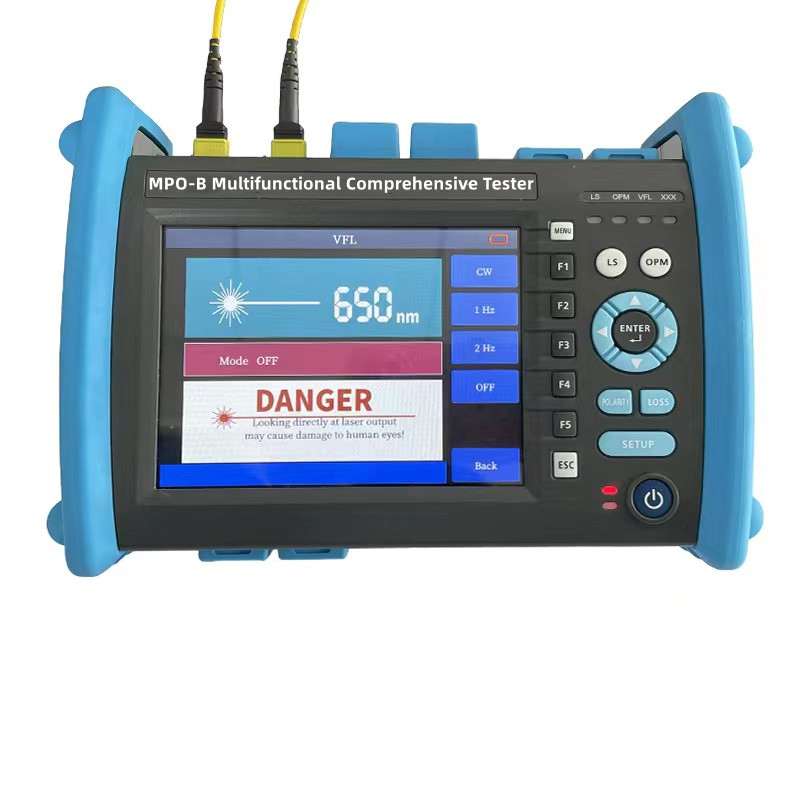

| MPO End Face Inspection Interface | MPO Tester - Visual Fault Locator Test Interface |
Features
Support single instrument polarity and loss testing at the same time
Support 24-core and 12-core testing
5.6 -inch LCD touch screen
Support custom pass or not in threshold
Any of two instruments can remote different systems in pair
Support USB type fiber end face detector (hard device optional)
Applications
Specifications
Part Number | MPO-B |
MPO OLS |
Wavelength | 1550nm(optional) |
Output power | ≥-5dBm |
Spectral width (FWHM) | ≤5nm |
Frequency | CW、270、1K、2KHZ |
Power stability | ≤±0.1 |
MPO OPM |
Detector type | InGaAs |
Wavelength | 850 / 1300/ 1310 / 1550nm |
Measuring range | +3～-50 dBm |
Power measurement linearity | ±0.1 dB |
Power measurement uncertainty | ±0.25 dB |
Port | MPO Male connector |
Power unit | dBm / dB / xW |
Resolution ratio | 0.01dB |
Polarity detection | A, B, C & user-defined |
Record storage | Applied |
General power meter |
Wavelength test range | 800～1700nm |
Wavelength | 850/1300/1310/1490/1550/1625nm |
Measuring range | +26 ～ -50 dBm |
Uncertainty | ≤ 0.25 dB |
VFL |
Wavelength | 650nm |
Output power | 10mW |
General |
Display size | 5.6-inch TFT color screen |
Power supply | 7.4V 4000mAh lithium battery / Micro USB |
Automatic shutdown time | user-defined optional |
Low battery warning | Icon flashing |
Communication interface | Micro USB |
Operating temperature（℃） | -10～+60 |
Storage temperature（℃） | -25～+70 |
Dimension(mm) | 260×155×73 |
Weight(g) | 1250 |
Packing List
No. | Name | Quantity |
1 | Main device | 1 |
2 | User manual | 1 |
3 | Test certifications | 1 |
4 | 5V power adapter | 1 |
5 | Micro USB cable | 1 |
6 | 24core SM MPO/APC Female head
24core MPO/PC Female head A-polar type | 1 |
7 | 12core SM MPO/APC Female head
12-core MPO/PC Female head A-polar type | 1 |
