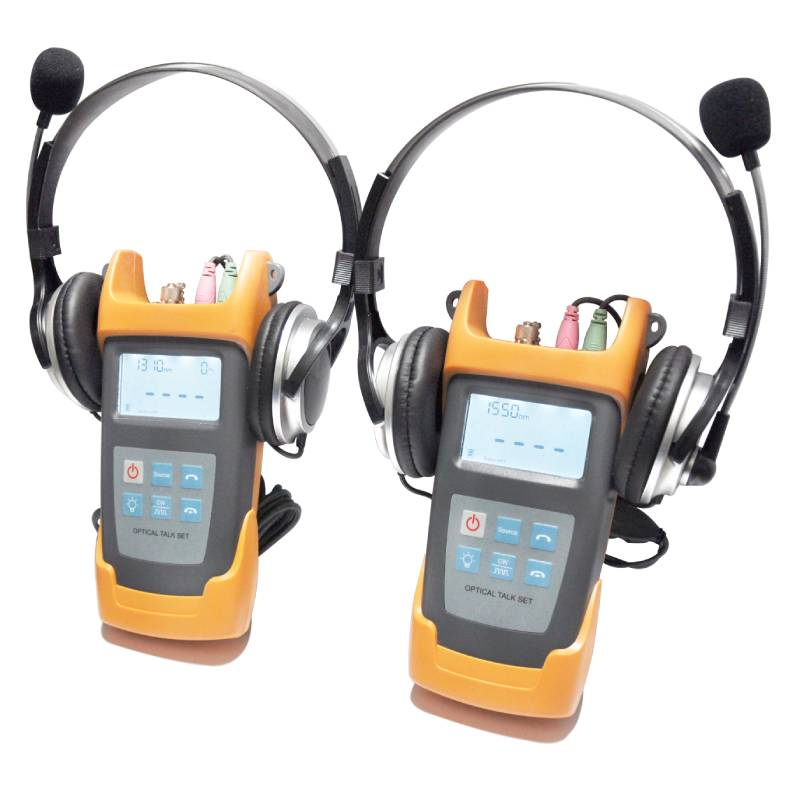

OTS-10A & OTS-10B Optical Talk Set is an intelligent and efficient instrument that combines the functions of both a digital optical phone and a stabilized light source in one set. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. OTS-10A & OTS-10B Optical Talk Set can carry out full-duplex communication with high quality connection without distance limit.
Features:
1. Full duplex digital communication with high quality conversation connection & low background noise;
2. Together with Optical Clip-on Coupler, enables on line communications available
3. Combining functions of both a digital optical phone call and a stabilized light source.
4. Large LCD display with backlight
5. Low battery power indication
Specifications
Model Number | OTS-10 |
Wavelength(nm) | 1310/1550 |
Emitter Type | FP-LD |
Transmission Distance(KM) | ≥100 |
Dynamic Range(dB) | ≥ 33 |
Output Power(dB) | -5~-7 |
Modulation(Hz) | CW,270,1K,2K |
Output Stability (dB,30min,20 °C ) | ≤ 0.1 |
Power Supply | 3 pcs 1.5V Alkaline Batteries |
Battery Operating Time | 5 hours |
Optical Connector | FC/PC |
Operating Temperature(°C) | -10 ~ +60 |
Storage Temperature(°C) | -25 ~ +70 |
Dimension | 29*23*8.5cm |
Weight | 3.5kg |
Fiber Optic Clip-on Coupler device is optional. |
