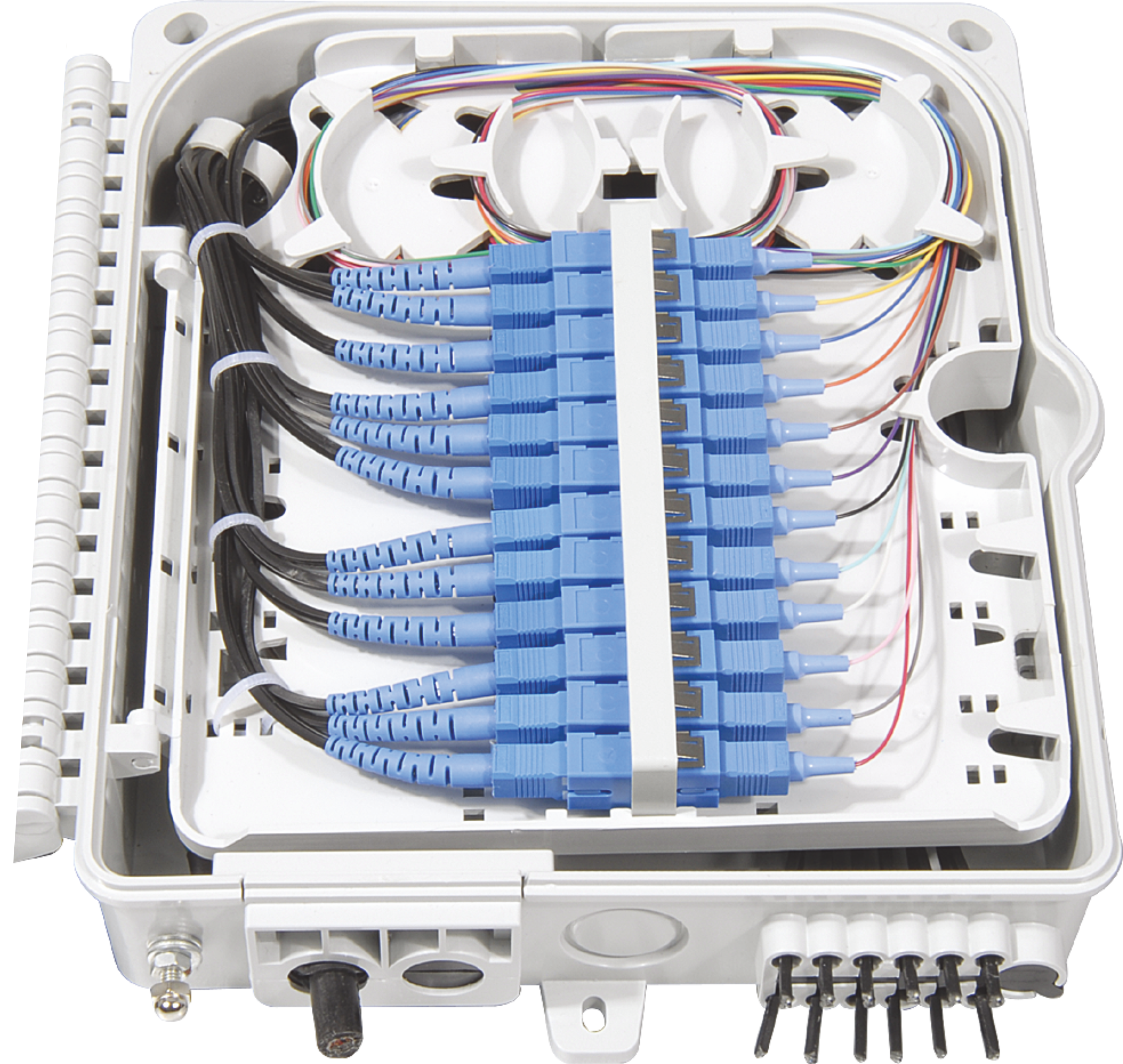

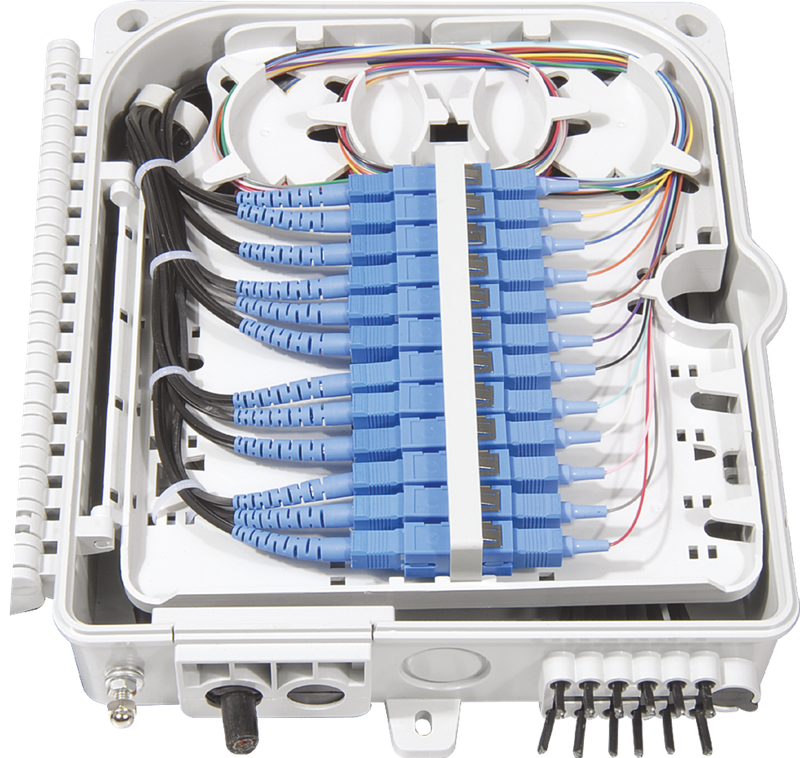

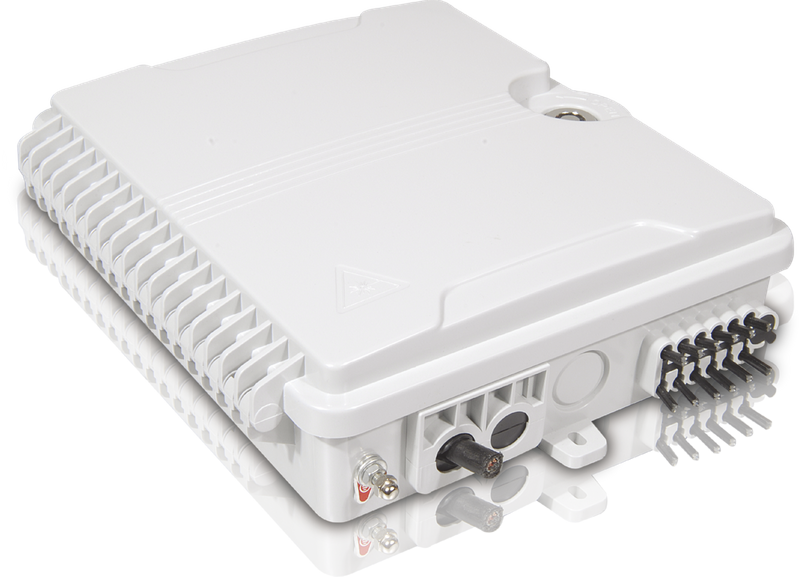

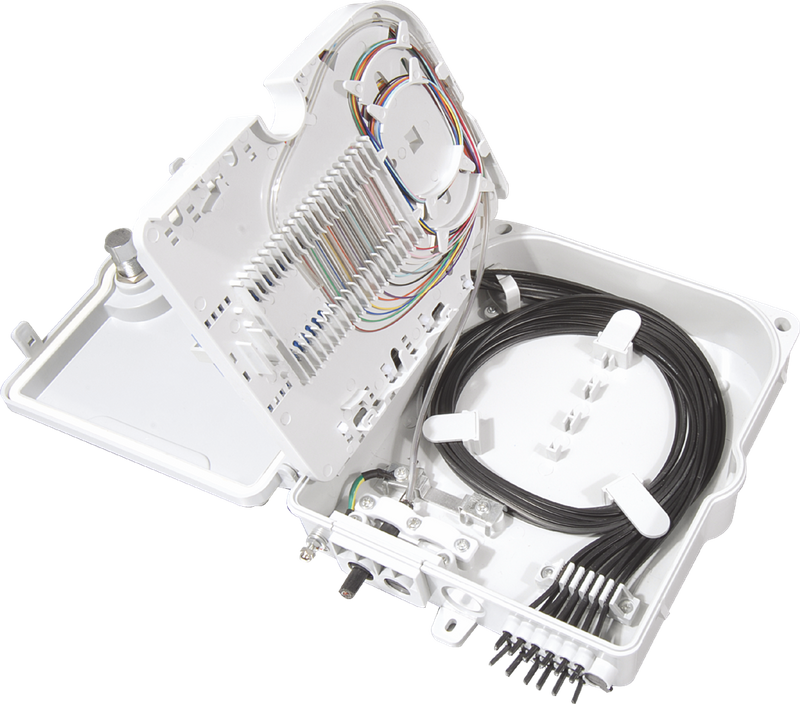

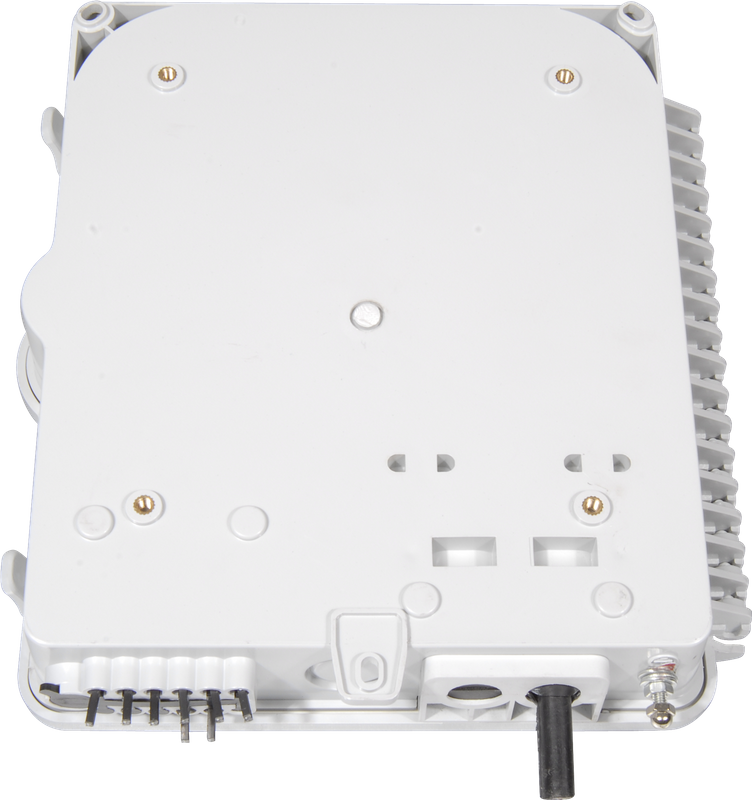

3S FOTB-12-B Fiber Optical Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
12 ports cable entrance for FTTH drop cable
Configuration:
Material | Size | Max Capacity | Empty Weight | Loaded Weight | Color |
PC+ABS | A*B*C(mm) 225*200*65 | SC 12 Ports | LC 24 Ports | 1.2kg | 2kg | White |
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-12-B-XX-XX
Model | Capacity | Type | XX: Adapter | XX: Pigtail |
FOTB | 12 | B | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC | SC: SC/UPC AS: SC/APC LC: LC/UPC AL: LC/APC |
