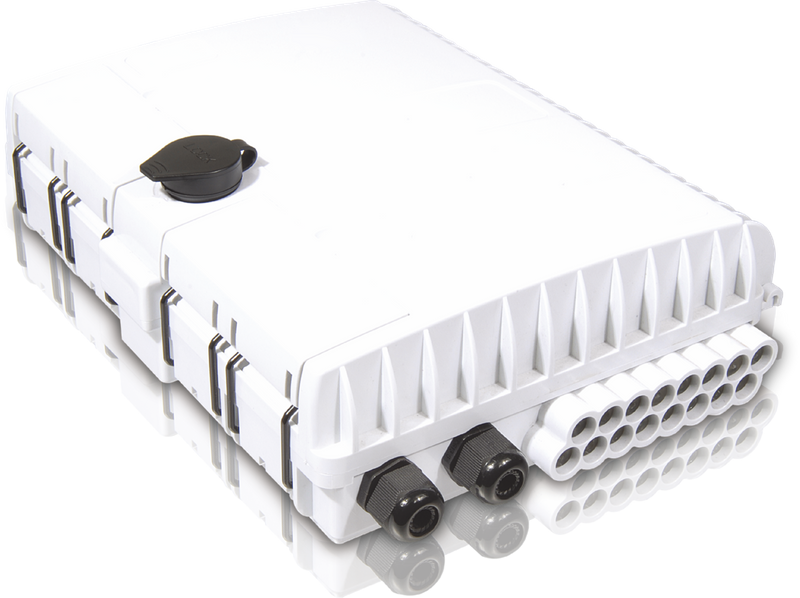

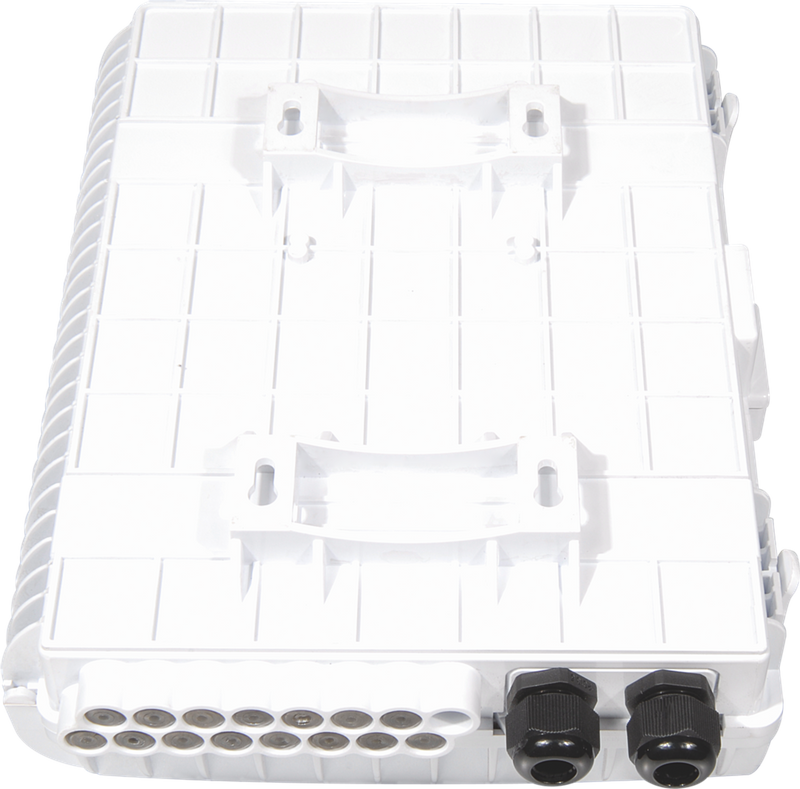

3S FOTB-16-A Fiber Optical Termination Box is a box with 16 ports for FTTH drop cable. It provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Features:
Water-proof design with IP65 Protection level

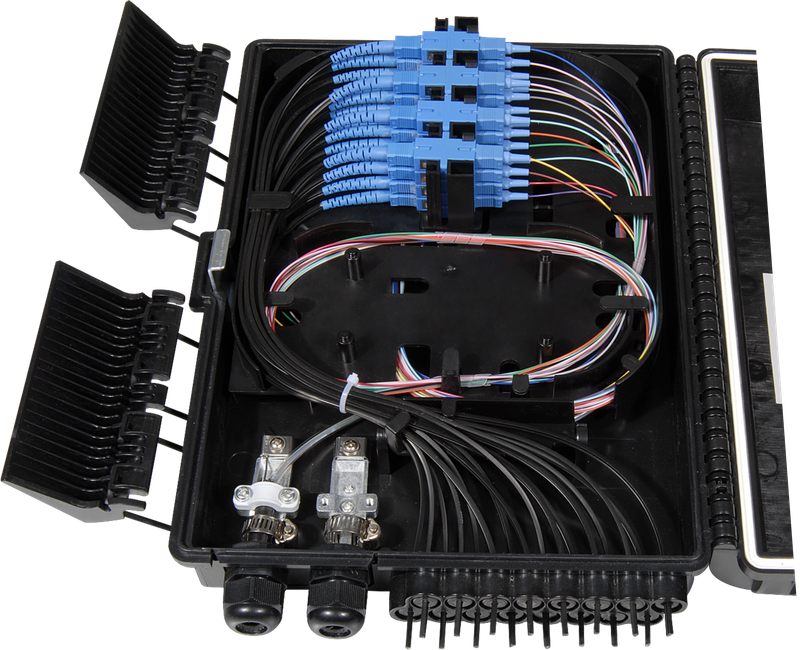

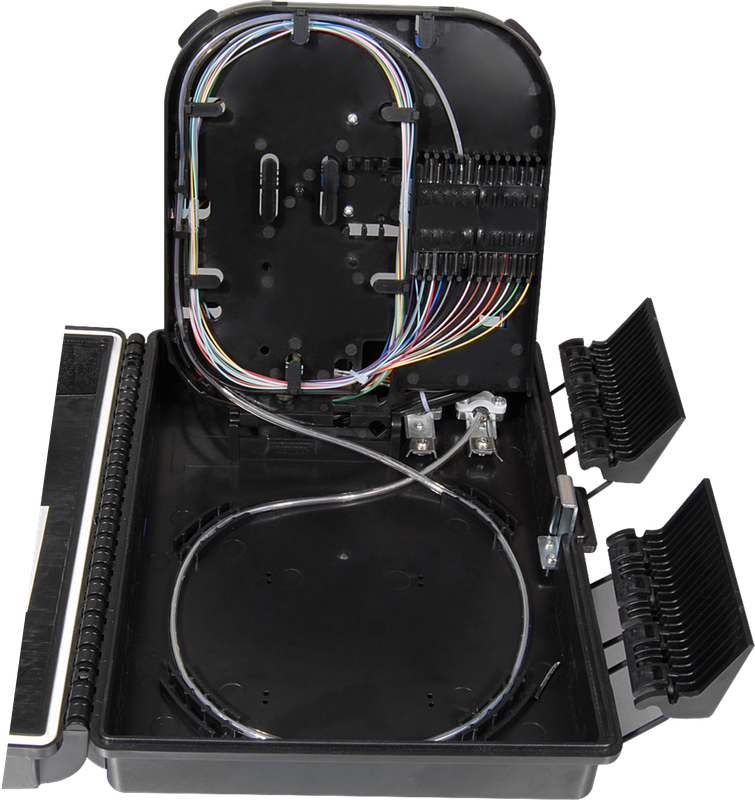

Integrated with splice cassette and cable management system
Manage small & large quantities of fiber with a density
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
Capacity of fiber up to 16 ports
Varies of adapters are available
1×8, 1×16 PLC Splitter can be installed as an option
Efficient cable management
UV protection and anti-aging material
Burglar-proof padlock
Configuration:
Material
Size
Max Capacity
Empty Weight
Loaded Weight
Color
PC+ABS
A*B*C(mm)
293*219*84
SC
16 Ports
LC
32 Ports
PLC
1×16
1.4kg
1.8kg
White/
Black
How to order a Fiber Optical Termination Box?
Model Rules: FOTB-16-A-XX-XX
Model
Capacity
Type
XX: Adapter
XX: Pigtail
FOTB
16
A
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
SC: SC/UPC
AS: SC/APC
LC: LC/UPC
AL: LC/APC
