Description

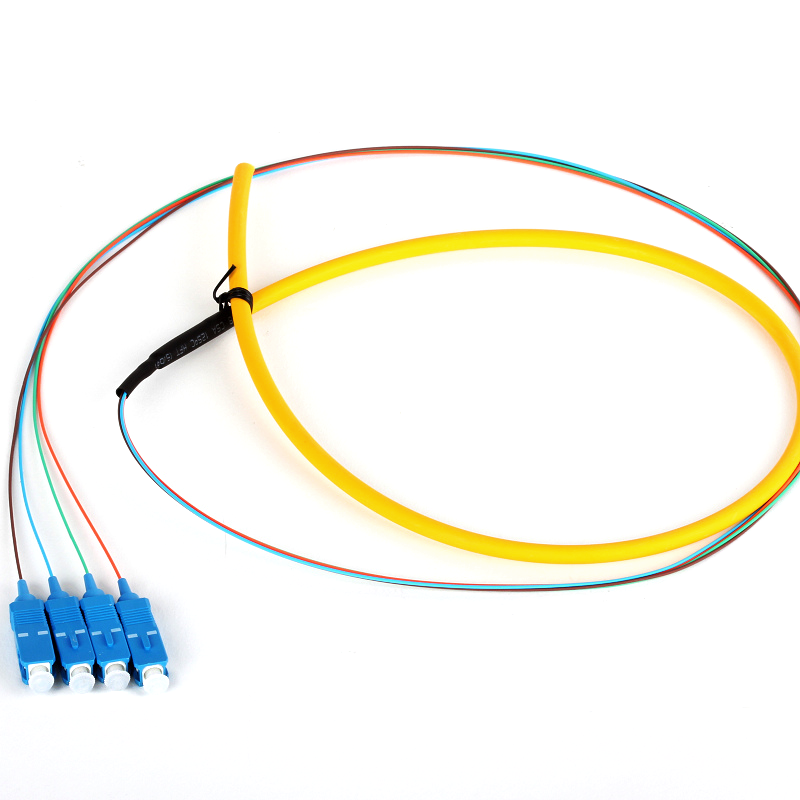

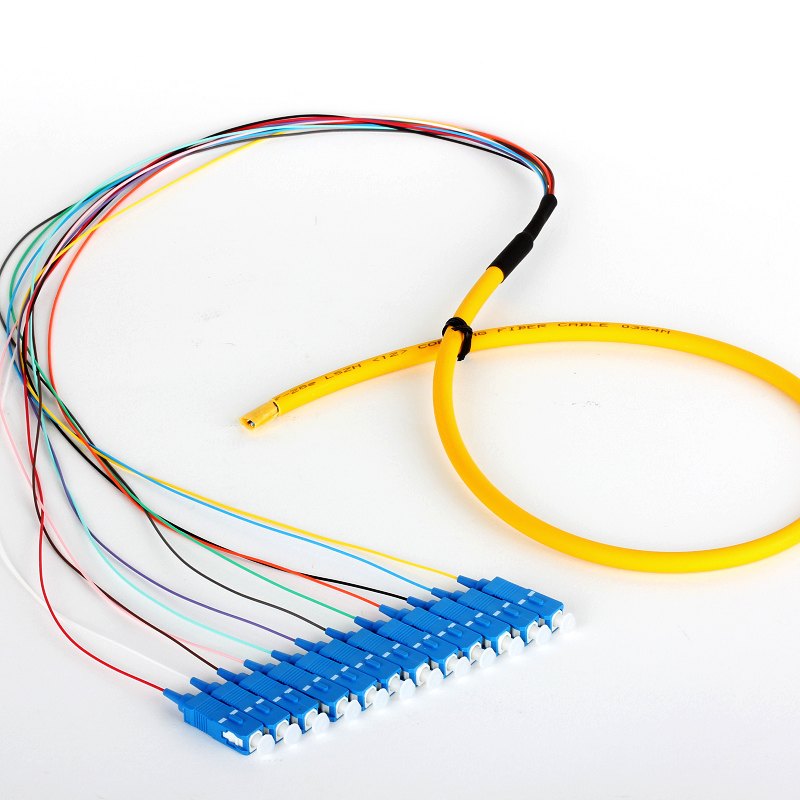

A bunch fanout patchcord is an indoor fiber optic cable with multi fibers like 4 fibers, 6 fibers, 8 fibers and 12 fibers at branch point terminated by fiber optic connectors FC SC ST LC etc. 3S provides a high precise optical patchcord for the construction of optical network. We give users a wide choice of patchcords connectors, including ST, FC, SC, LC and etc. With UPC or APC polishing. 3S patchcord is composed of high-grade connectors and the ferrule is made of zirconia. Customers can order the common type patchcord we offer as well the special type customized by customer for special application. Bunch type patchcord is for the brief look of many patchords, it's often used in big project. It can be used in FTTx construction, optical network constuction, LAN, WAN and metro networks, CATV configuration.
Features
1. Compact design
2. Low insertion loss and high return loss
3. Conform to ITU-T G.657A or G.652D, etc.
4. High reliablity wide wavelength range
5. Large operation temperature range
6. Customized configuration
Specifications
Connector Type | SC/FC/ST/LC/MU/Nil(non-connector)/ E2000/MTRJ(W/O)/MTRJ(W)/DIN |
Polishing Type | UPC/APC |
Fiber Type | Single mode/Multi-mode (50/125 or 62.5/125) |
Fiber Count Available | 4, 6, 8, 12, 24 |
Sheath Material | LSZH |
Insertion Loss (dB) | <0.4 |
Return Loss (dB) | UPC: ≥55, APC≥60 |
Repeatability (500 times) (dB) | ≤0.2 |
Bending Radius (mm) | ≥30 |
Tensile Strength (kg/100mm) | ≤15 |
Working Temperature (°C) | -20°C~+80°C |
Storage Temperature (°C) | -20°C~+80°C |
Working Humidity | <90%RH |
Sheath Color | Yellow |
Connector Length (mm) | 50 |
Fiber Length (m) | customization |
