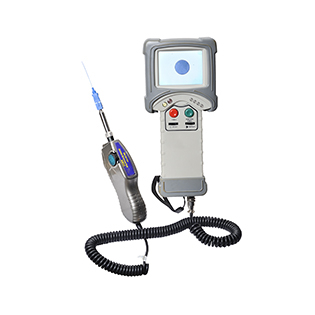

Model | FIM-F |
Image Zoom | 200X |
Display Screen | 3.5'' TFT |
AV Output | PAL/NTSC |
Resolution | 0.75um |
Video | N/A |
Audio | N/A |
Multiple in Display | N/A |
Power Supply | Li-ion battery 2200mAh & AC/DC adaptor |
Data Storage | N/A |
Connect to TV | N/A |
Connect to PC | optional |
USB Interface | optional |
Number of Channels | 1CH |
Back Light | yes |
Battery Life | >5 hours |
Storage Temperature | -10°C-40°C |
Working Temperature | -20°C-60°C |
Dimension | 240mm*100*35mm |
Net Weight | 580g |
Standard Accessories: |
Name | Quantity |
FIM-1 probe | 1pc |
3.5 inch display | 1pc |
SC-PC-F (For SC/PC adaptor) | 1pc |
FC-PC-F (For FC/PC adaptor) | 1pc |
LC-PC-F (For LC/PC adaptor) | 1pc |
2.5PC-M (For 2.5mm connectors, SC/PC, FC/PC, ST/PC) | 1pc |
Lithium battery | 1pc |
DC 12V 2A adaptor | 1pc |
User manual | 1pc |
Soft case | 1pc |
Optional Accessories: |
Name | Quantity |
USB function related | 1pc |
ST-PC-F (For ST/PC adaptor) | 1pc |
MU-PC-F (For MU/PC adaptor) | 1pc |
E2000-F-PC (For E2000/PC adaptor) | 1pc |
MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc |
1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc |
SMA-M (For SMA/PC connector) | 1pc |
FC-F-APC (For FC/APC adaptor) | 1pc |
SC-F-APC (For SC/APC adaptor) | 1pc |
LC-APC-F ((For LC/APC adaptor) | 1pc |
E2000-APC-F ((For E2000/APC adaptor) | 1pc |
2.5M-APC (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc |
MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) | 1set |
Tip60 (60 degree base for special tips) | 1pc |
FC-PC-60F (For FC/PC adaptor at 60 degree testing) | 1pc |
SC-PC-60F (For SC/PC adaptor at 60 degree testing) | 1pc |
LC-PC-60F (For LC/PC adaptor at 60 degree testing) | 1pc |
LC-APC-60F (For LC/APC adaptor at 60 degree testing) | 1pc |
SC-APC-60F (For SC/APC adaptor at 60 degree testing) | 1pc |
1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC at 60 degree testing) | 1pc |
