Description

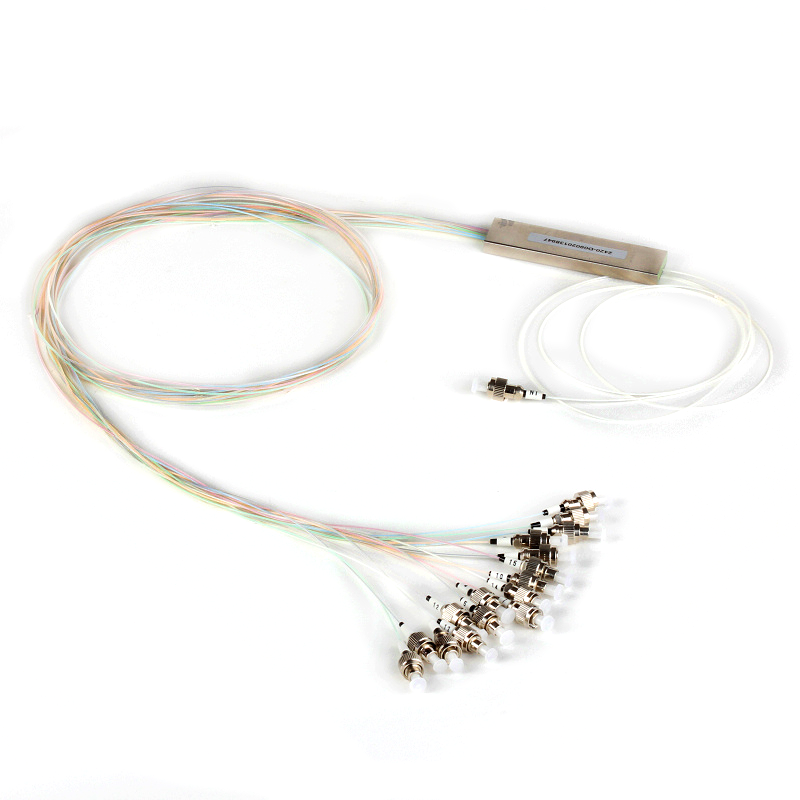

3S provides a high precise PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact micro type design. It is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes, in favor of splicing and staying in tray without additional space reservation.
3S provides a high precise Micro type PLC splitter for the construction of optical network. Low requirements of placing position and environment, compact micro type design. It is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes, in favor of splicing and stay in tray without additional space reservation. It can be easily applied in FTTx construction, optical network construction, CATV networks and etc.
Features
1. Compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel counts
5. Wide wavelength range
6. Large operating and temperature range
7. Customized packaging and configuration
8. Full Telcordia GR1209/1221 qualifications
Specification
1×N (N>2) PLCS (With connector) Optical parameters |
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operation wavelength (nm) | 1260~1650 |
Insertion loss (dB) Max | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.4 |
Return loss (dB) Min | APC | 55 | 55 | 55 | 55 | 55 | 55 |
UPC | 50 | 50 | 50 | 50 | 50 | 50 |
PDL (dB) Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 |
Directivity (dB) Min | 55 | 55 | 55 | 55 | 55 | 55 |
WDL (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Pigtail length (m) | 1.2(±0.1) or customer specified |
Fiber type | SMF-28e with 0.9mm tight buffered fiber |
Operation temperature (°C) | -40~85 |
Storage temperature (°C) | -40~85 |
Dimension (L×W×H) (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
2×N (N>2) PLCS (With connector) Optical parameters |
Parameters |
| 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operation wavelength (nm) | 1260~1650 |
Insertion loss (dB) Max |
| 7.7 | 10.8 | 14.1 | 17.4 | 20.7 |
Return loss (dB) Min | APC |
| 55 | 55 | 55 | 55 | 55 |
UPC |
| 50 | 50 | 50 | 50 | 50 |
PDL (dB) Max |
| 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
Directivity (dB) Min |
| 55 | 55 | 55 | 55 | 55 |
WDL (dB) |
| 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Pigtail length (m) | 1.2(±0.1) or customer specified |
Fiber type | SMF-28e with 0.9mm tight buffered fiber |
Operation temperature (°C) | -40~85 |
Storage temperature (°C) | -40~85 |
Dimension (L×W×H) (mm) |
| 50×4×4 | 50×4×4 | 60×7×4 | 60×7×4 | 60×12×6 |
