Description

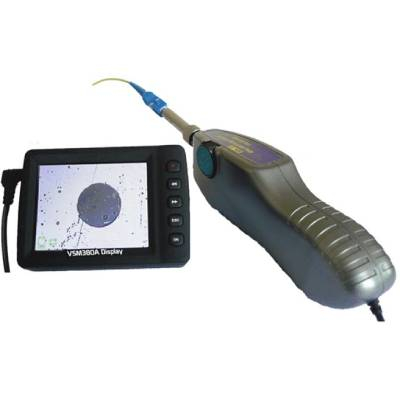

FIM-B Fiber Optic Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 400 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.
Not only portable and easily in-hand, FIM-B Fiber Optic Microscope is also multi-functional. It can detect simplex and duplex fiber ends located in both male and female connectors. Also, working stably is it's another feature. It eliminates the need to find solutions for hard-to-reach areas inspection, which can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking .
Features
1. Consistent alignment, simple to operate
2. Unidirectional focusing, quick and accurate imaging.
3. 400X magnification, clear image
1. Small, light, and portable
2. Changeable high capacity batteries
3. Photo, video and record tested fiber
4. Brightness and Contrast adjustable
Specification
Fiber Microscope Probe: |
|
Magnification | 400X |
|
Resolution | <1μm |
|
View of Field | X: 0.3165 Y: 0.285 |
|
Focus Direction | unidirectional |
|
Focus Speed | 2~6S |
|
Alignment | >98% |
|
Output Port | Dual pins AV port |
|
Weight | 110g |
|
Dimension | 180L*22W*56H (mm) |
|
Display: |
|
Screen Dimension | 2.7 inch / 960*240 |
|
Enlarged Size | 22mm |
|
Picture | Single-framed 640x480JPG |
|
Timer | 5/15/30mins selections |
|
Batteries | Li-ion1800mAh |
|
Languages | English/Chinese/Russian |
|
TF Storage | Support 32G |
|
Input/Output Port | AV /USB2.0 |
|
Weight | 85g |
|
Dimension | 78L*22W*56H (mm) |
|
Standard Accessories: |
Name | Quantity |
Fiber microscope probe | 1pc |
2.7 inch display | 1pc |
SC-PC-F (For SC/PC adaptor) | 1pc |
FC-PC-F (For FC/PC adaptor) | 1pc |
LC-PC-F (For LC/PC adaptor) | 1pc |
2.5PC-M (For 2.5mm connectors, SC/PC, FC/PC, ST/PC) | 1pc |
Li-ion batteries | 2pcs |
Charger | 1pc |
USB cable | 1pc |
Earphone cable | 1pc |
8G TF Reader | 1pc |
Soft case | 1pc |
Optional Accessories: |
Name | Quantity |
ST-PC-F (For ST/PC adaptor) | 1pc |
MU-PC-F (For MU/PC adaptor) | 1pc |
E2000-F-PC (For E2000/PC adaptor) | 1pc |
MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc |
1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc |
SMA-M (For SMA/PC connector) | 1pc |
FC-F-APC (For FC/APC adaptor) | 1pc |
SC-F-APC (For SC/APC adaptor) | 1pc |
LC-APC-F ((For LC/APC adaptor) | 1pc |
E2000-APC-F ((For E2000/APC adaptor) | 1pc |
2.5M-APC (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc |
MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) | 1set |
Tip60 (60 degree base for special tips) | 1pc |
FC-PC-60F (For FC/PC adaptor at 60 degree testing) | 1pc |
SC-PC-60F (For SC/PC adaptor at 60 degree testing) | 1pc |
LC-PC-60F (For LC/PC adaptor at 60 degree testing) | 1pc |
LC-APC-60F (For LC/APC adaptor at 60 degree testing) | 1pc |
SC-APC-60F (For SC/APC adaptor at 60 degree testing) | 1pc |
1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC at 60 degree testing) | 1pc |
