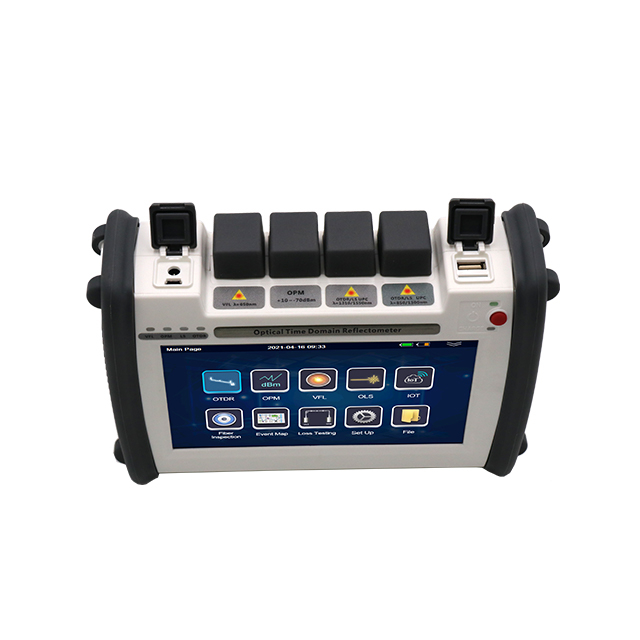

High Quality Max Connector OTDR

Introduction of 2200Max Series OTDR

2200Max series Optical Time Domain Reflectometer (OTDR) is an intelligent handheld Fiber Optic Tester. It is used to detect fiber optic communication system. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse. Therefore, 2200Max OTDR is specially designed for that kind of application. It's economic with outstanding performance.

Features of 2200Max Series OTDR

• Integrated design, smart and rugged

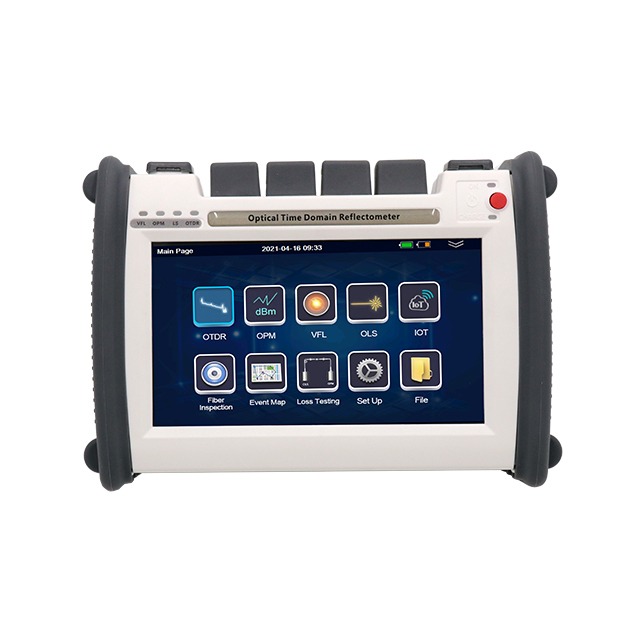

• 7-inch anti-reflection LCD screen

• PON online test module (1625nm) is optional

• MMF test module (850/1300nm) is optional

• Support multi-language display and input







Applications of 2200Max Series OTDR

• FTTX test with PON networks


• CATV network testing

• Access network testing

• LAN network testing

• Metro network testing

• Lab and Factory testing

• Live fiber troubleshooting

Benefits and Main functions of 2200Max Series

• Humanized Test Interface

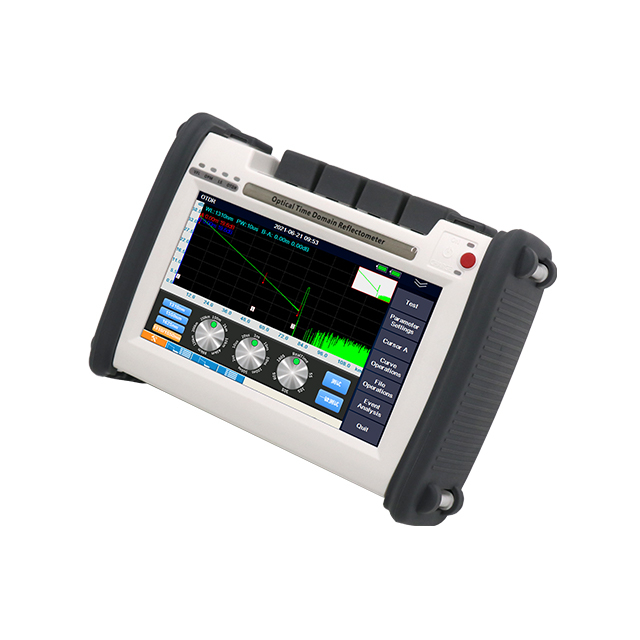

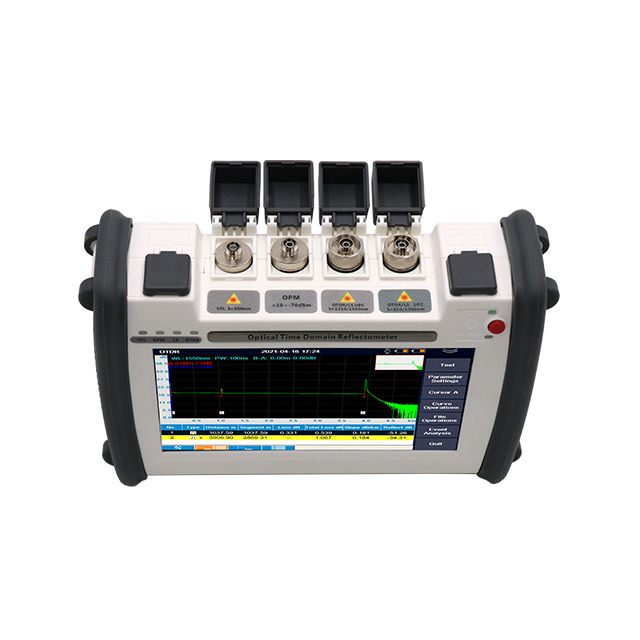

2200Max series OTDR could display Splice loss, Connector loss, Fiber attenuation, Reflection of points, Link opitcal return loss and distance to fiber events etc. With test information in a smart way, user could get detailed information immediately.

• Quick Fit in Short Time


Simplified display style and structured menus help effective in reducing the time of study.

• FTTH Test within PON Networks

2200Max series OTDR, like by using wavelength 1625nm or 1650nm, are dedicated to the testing of PON network maintenance and troubleshooting without service disruption.

• Last Mile Master

2200Max series OTDR could easily test through 1*32 PLC splitter in PON test (Model: 2200MAX-AB40).

• Fiber Microscope

Microscope is optional for 2200Max series OTDR. 400X amplification and variety of accessories ensure perfect terminal condition before test.

• The essential first step

Taking time to properly inspect connector end faces can prevent a slew of problems down the lines, saving you time, money and headaches.

• Result transfer

Check test results on PC or PDA through USB; 16GB large internal memory space could store more than 100,000 groups of results.

• Data Manager

Use Data Manager to elaborate and print out result files on upper computer within a few steps.

• High Compatibility

OTDR PC Simulator supports below system

-Windows 10

   -Windows Vista (32/64 bit system)

   -Windows 7 (32/64 bit system)

   -Windows 8 (32/64 bit system)

   -Microsoft Office Excel 2007

   -Microsoft Office Excel 2010

   -Microsoft Office Excel 2013

• Delicate Report


Simplified display style easy to read, support multi-result printing.
