1100MiNi OTDR Singlemode Dual 1310/1550nm 26/24dB SC/APC

You are here: Home » Products » OTDR » 1100MiNi Series OTDR » 1100MiNi OTDR Singlemode Dual 1310/1550nm 26/24dB SC/APC

PRODUCT CATEGORY

Contact Us

Random Products

2100Pro OTDR FTTx Fiber Optic Reflectometer

FOTB-2-A Fiber Optical Termination Box-2 Cores

FOTB-2-B Fiber Optical Termination Box-2 Cores

FOTB-8-H Fiber Optical Termination Box-8 Cores

FOTB-8-I Fiber Optical Termination Box-8 Cores

FOTB-16-H Inline Fiber Optical Termination Box-16 Cores

FOSB-16-A Fiber Optical Splitter Box-16 Cores

FOSB-16-B Fiber Optical Splitter Box-16 Cores

China High Precision Fiber Optic Fusion Splicing Machine

CWDM Optical Power Meter 18 Channels Wavelength 1270 to 1610nm

FTTH Passive Optical Network PON Power Meter

Visual Fault Locator 1mW 10mW 15mW 30mW

One-click Fiber Optic Cleaner SC 2.5mm Adapters Ferrules Cleaners

Cassette Fiber Optic Connector Cleaner with Interchangeable Cleaning Reel

FC-800 Fiber Optic Cleaver with Scrap Collector

Polarization Maintaining Mechanical 1x1 Optical Switch

Tray Type PLC Splitter for ODF Application

SC/UPC Field Quick Assembly Connector Single Mode Fast Connector

MPO Multi-fibers Loss & Polarity Tester

NTT AT NEOCLEAN-E One-click Pen SC FC ST E2000 Cleaner

PRODUCT DETAIL

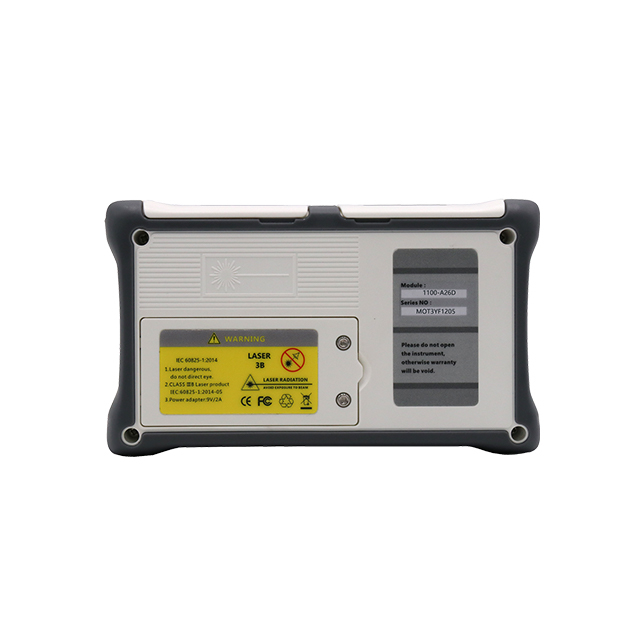

Model:
1100MiNi Series OTDR
Brand:
3STelecom

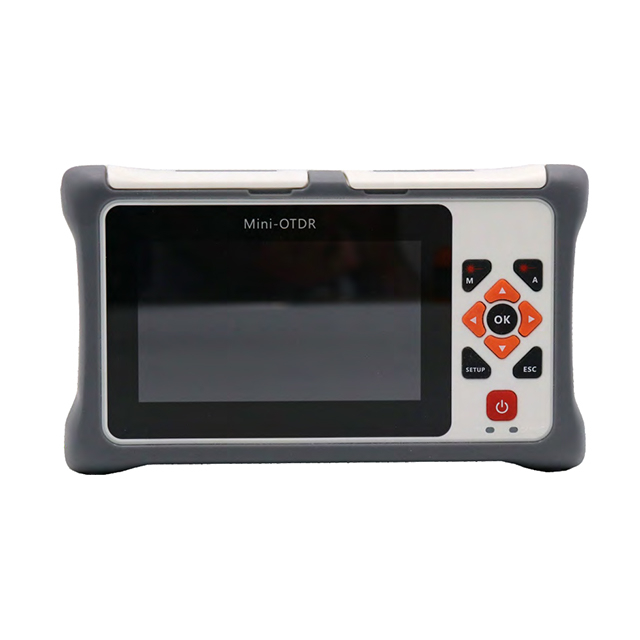

3S 1100MiNi Series OTDR is a smart and portable testing tool. It is easy for engineers to use in the field. We are OTDR factory in China and we can provide 3 colors for customers option. It has black color, white color and orange colors. We can provide OTDR OEM and ODM service too.

Key Features:

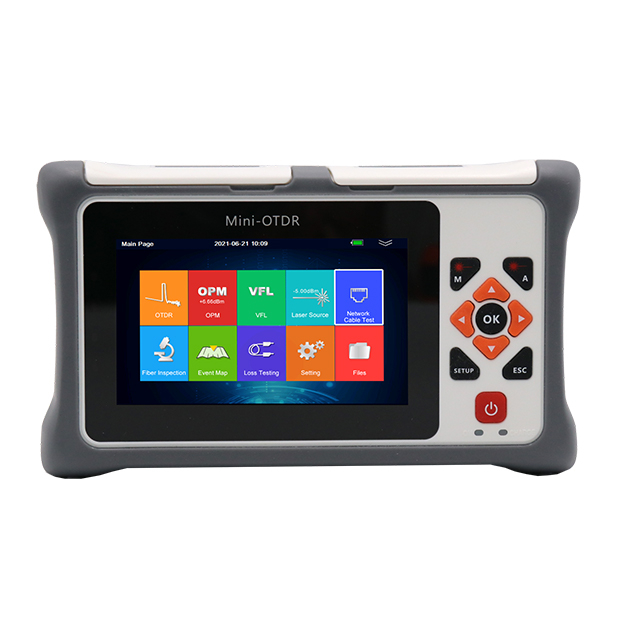

4.5 inch full view touch screen
Pocket size, easy to carry
Robust design, good protection for machine and screen
Screen support horizontal and vertical view perfectly, good adaption to users' habits
Support portable charger charging, do not worry about battery not enough
Support screen capture for every interface

Applications:

FTTx test with PON networks
CATV network testing
Access network testing
LAN network testing
Metro network testing
FTTA Trouble shooting

General Specification

Size/Weight	175 x 105 x 45mm / 0.56kg (Battery included)
Display	4.3 inch touch-sensitive TFT-LCD, resolution 800x480

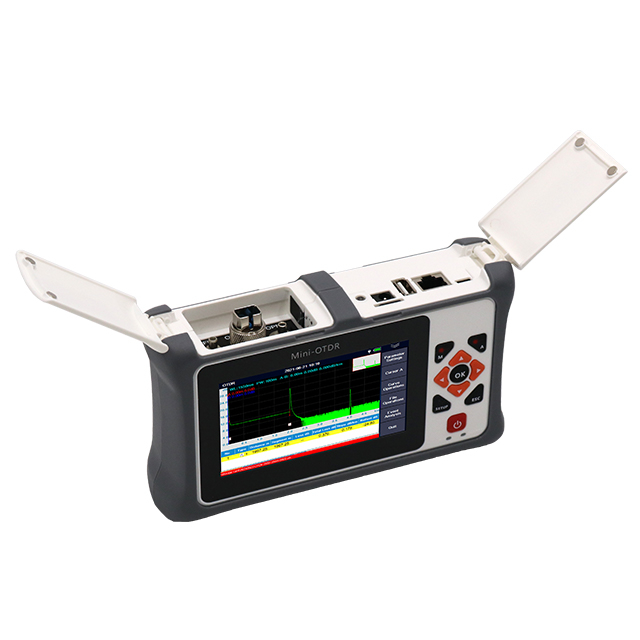

Interface	2xUSB port (Type A x 1, Micro USB x 1), 1 x OTDR port, 1 x VFL port, 1 x OPM port, 1 x Charging port
Power Supply	Power supply AC/DC adapter Input: 100V(ac) to 240V(ac), 50~60Hz, 0.8A Output: 9V(DC), 2A
Battery	3.7V(dc)/5200mAh x 1pcs rechargeable lithium battery (with Air Traffic Certification) Operating time: 10 hours①, Telcordia GR-196-CORE Charging time: <3 hours (power off)
Power Saving	Backlight: Common/Highlight/Power saving/Customized Auto Power Off: Never/1min/5min/10min/30min/60min
Data Storage	Internal memory: SD card 8GB (about 100,000 groups of curves)
Language	Multi-language support including but not limited to Chinese, English, Spanish, French, Korean, Russian, Italian and Portuguese-contact us for availability of others)
Environmental Conditions	Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)

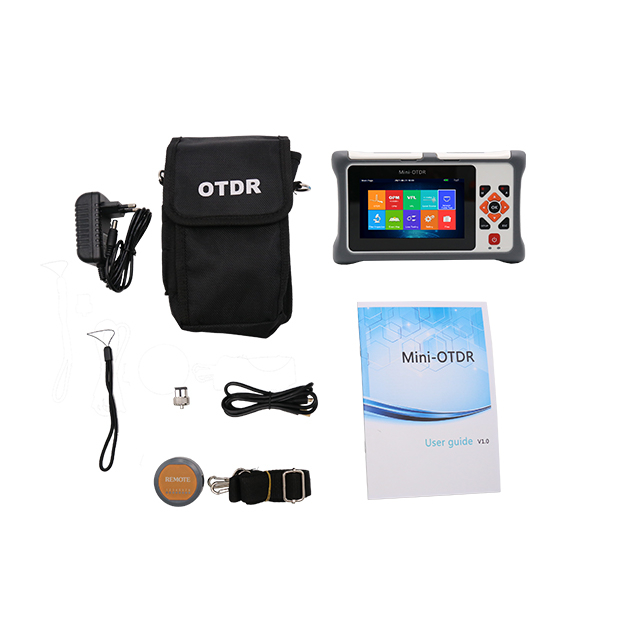

Accessories	Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter

OTDR Module

Pulse Width	Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20us Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs
Distance Range	Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km
Sampling Resolution	Minimum 0.2m
Sampling Point	Maximum 64,000 points
Linearity	≤0.05dB/dB
Averaging Time	10s, 15s, 30s, Real Time, Customized
Scale Indication	X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div
Distance Resolution	0.01m
Distance Accuracy	±(1m+measuring distance×3×10^-5+sampling resolution) (excluding IOR uncertainty)
Reflectance Accuracy	Single mode: ±2dB, multi-mode: ±4dB
IOR Setting	1.0000~1.9000, 0.0001 step
Units	km, miles, kfeet
OTDR Trace Format	Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up
Testing Modes	Visual fault locator: Visible red light for fiber identification and troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output) Field microscope probe
Fiber Event Analysis	-Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps)
Other Functions	Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison

VFL Module (Visual Fault Locator)

Wavelength (±20nm)	650nm
Power	10mw, CLASSIII B
Range	12km
Connector	FC/UPC
Launching Mode	CW/2Hz

OPM Module (Optical Power Meter)

Wavelength Range (±20nm)	800~1700nm
Calibrated Wavelength	850/1300/1310/1490/1550/1625/1650nm
Test Range	Type A: -65~+5dBm (standard); Type B: -50~+26dBm (optional)
Resolution	0.01dB
Accuracy	±0.35dB±1nW
Modulation Identification	270/1k/2k Hz, P _i_nput≥-40dBm
Connector	FC/UPC

OLS Module (Optical Laser Source)

Working Wavelength (±20nm)	Same as OTDR Wavelength
Output Power	-10 to -4dBm±2dB
Output Mode	CW/270/1k/2k Hz

FM Module (Fiber Microscope, software is free, hardware inspection probe is sold separately)

Magnification	400X
Resolution	1.0µm
View of Field	0.40×0.31mm
Storage/working Condition	-18℃~35℃
Dimension	235×95×30mm
Sensor	1/3 inch 2 million of pixel
Weight	150g
USB	1.1/2.0
Adapter②	SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC)

Ordering Information

Part Number③	Testing Wavelength (MM: ±20nm, SM: ±10nm)	Dynamic Range (dB)④	Event/Attenuation Dead-zone (m)⑤	Measuring Range (km)
1100MiNi-A22	1310/1550	22/20	3/8	70
1100MiNi-A24	1310/1550	24/22	3/8	80
1100MiNi-A26	1310/1550	26/24	3/8	90
1100MiNI-C30	1650	30	3/8	100

Notes:

① Typical, backlight off, sweeping halted at 25℃, 12 hours typical continuous testing.

② For more adapters, please contact us.

③ Part number including wavelength 1650nm is integrated with optical filter, which allow them to test PON network online and will not interrupt the fiber signal.

④ Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.

⑤ Event dead zone is measured with pulse width of 3ns(10ns); attenuation dead zone is measured with pulse width of 5ns (50ns).
