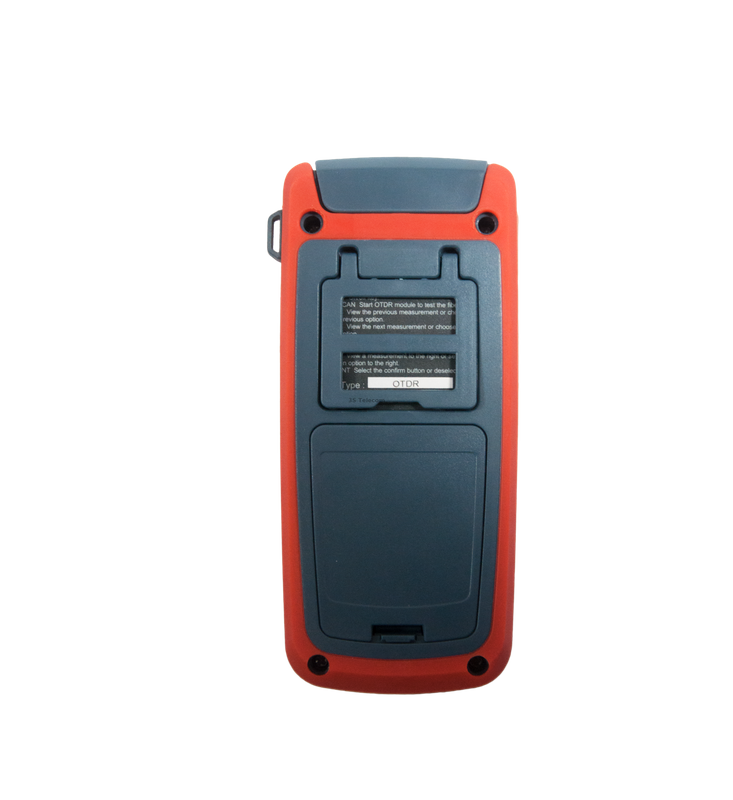

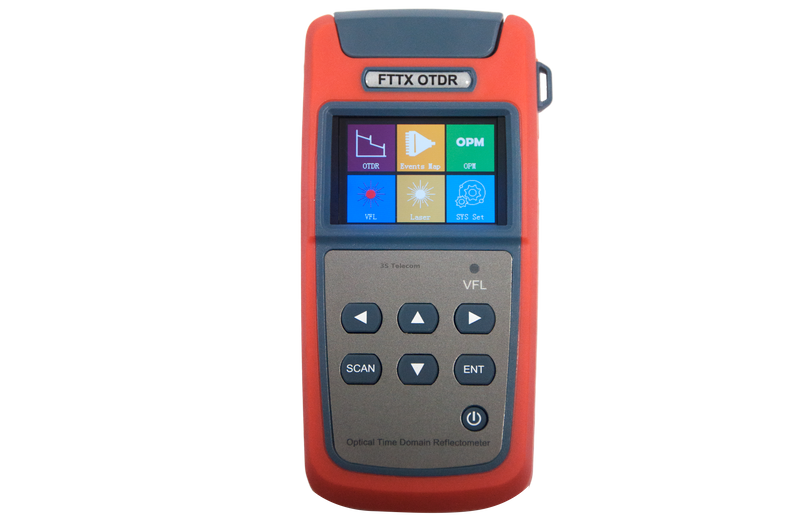

3S 400MiNi FTTX OTDR is the most cost effective testing instrument. It is the portable with smart size, easier for users carry. 400MiNi FTTX OTDR adopts the OTDR technical principles and integrates the powerful and useful analysis software. It enables the OTDR fiber ranger detect fiber faults location more accurately and easily.
Features:
Portable, rugged, lightweight, easy to use
More accurate testing results and better repeatability
Automatic Pulse Width Control design to ensure a convenient operation
Easy to identify the faults location
Built-in visual fault locator (VFL), conveniently to find the faults in dead zone
Dust, water and shock proof, designed for field use
Long battery life, up to 2000 measurements operation
2.6 inch screen, data saves in SOR format
3S 400MiNi FTTX OTDR is the most cost effective testing instrument. It is the portable with smart size, easier for users carry. 400MiNi FTTX OTDR adopts the OTDR technical principles and integrates the powerful and useful analysis software. It enables the OTDR fiber ranger detect fiber faults location more accurately and easily.
Features:
Portable, rugged, lightweight, easy to use
More accurate testing results and better repeatability
Automatic Pulse Width Control design to ensure a convenient operation
Easy to identify the faults location
Built-in visual fault locator (VFL), conveniently to find the faults in dead zone
Dust, water and shock proof, designed for field use
Long battery life, up to 2000 measurements operation
2.6 inch screen, data saves in SOR format
OTDR
Wavelength
Single wavelength 1310nm or 1550nm
Type of fiber
9/125um SM Fiber
Connector
SC/PC
Dynamic Range
22dB
Pulse Width
5ns~ 8000ns，Auto
Measurement
m
Event Dead Zone
3m
Attenuation Dead Zone
10m
Range accuracy
±（1m+2×10-4×distance）
Optical Power Meter
OPM Measurement Range
-50~+26dBm
OPM Working Wavelength
850/1300/1310/1490/1550/1625nm
Visual Fault Locator
VFL Output Power
≥10mW
Optical Ligth Source
OLS Wavelength
1310nm or 1550nm (same as wavelength)
Event Mapper
Built in the event mapper, it is the standard function.
Power Supply
3pcs of AA Alkaline Battery
Battery Work time
≥2000 times measure
Save Data
＞500
Work Temperature
-5~40℃
Save Temperature
-10~60℃
Humidity
0~85%（no condensation）
Net weight
300g

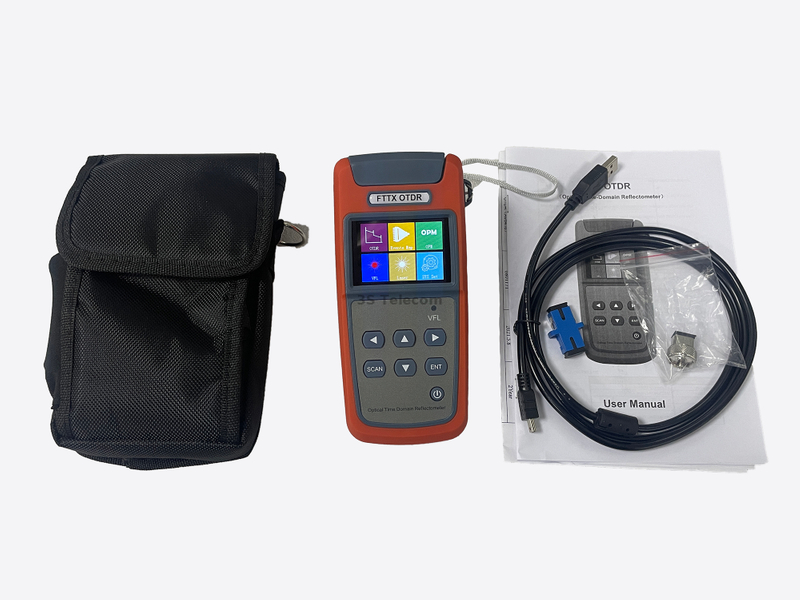

Packing List
400MiNi OTDR x1pcs, AA Alkaline Battery x3pcs, USB x1pcs, SC adapter x1pcs, Carry Bag x1pcs, User Manual x1pcs
How to order a 400MiNi FTTX OTDR?
Model Rules: 400MiNi-13-SC
Model
Wavelength
Connector Type
400MiNi
13=1310nm
15=1510nm
SC=SC/PC
AS=SC/APC
