PRODUCT DETAIL

Model:
100MiNi OTDR
Brand:
3STelecom

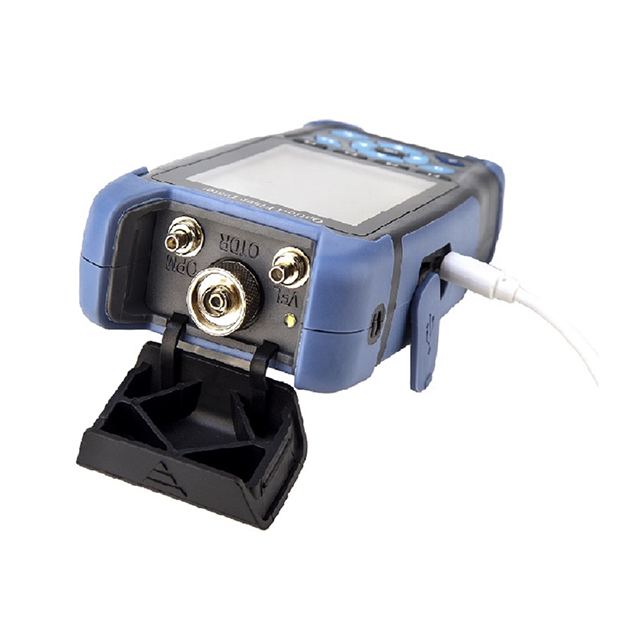

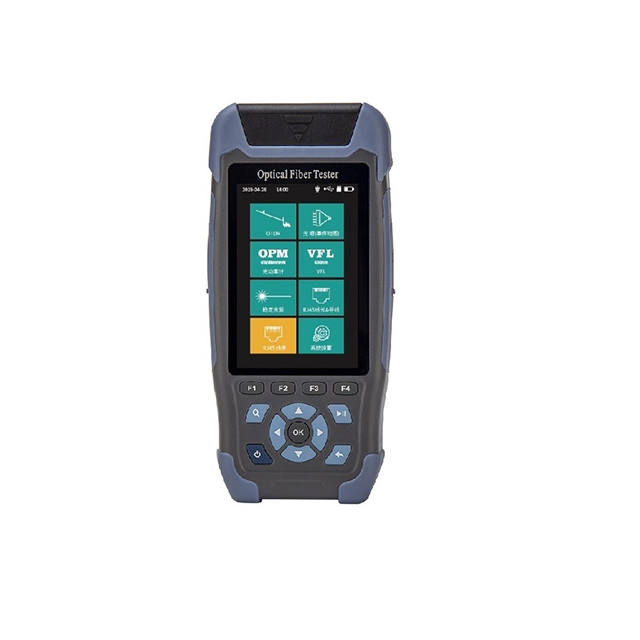

As fiber optics plays more and more important role in modern telecommunication and CATV networks，the requirements to the construction, test and maintenance of fiber optics links also become more prominent. 100MiNi OTDR with handheld design, compact and lightweight, is easy to carry and a useful tool. Event information through TFT color display and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.

100MiNi OTDR with 9 functions:

OTDR

Optical Power Meter

Optical Light Source

Visual Fault Locator

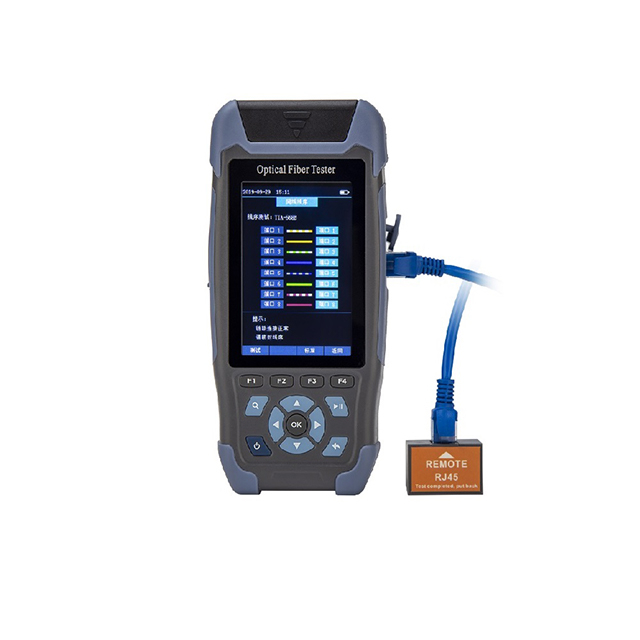

RJ45 Ethernet Cable Sequence

Smart Event Mapper

Ethernet Cable Distance

Ethernet Cable Tracker

LED Light

Smart OTDR Handheld OTDR Multifunctional OTDR Fiber Tester OTDR Smart Handheld OTDR Smart Handheld Multifunctional OTDR Smart Handheld Multifunctional Fiber Tester OTDR

GET PROFESSIONAL CONSULTING SERVICES

RELATED PRODUCTS

300MiNi OTDR Fiber Optical Reflectometer OPM VFL iOLM

200MiNi OTDR High Precision Optical Network Tester

1100MiNi OTDR Touch Screen OPM VFL OLS

2100Pro OTDR FTTx Fiber Optic Reflectometer

2200Max OTDR Fully Touch Screen Measurement Machine

MPO Optical Power Meter & MPO Light Source

Display	Colorful Screen, 3.5 inch
Interface	1xUSB, 1xOTDR, 1xVFL, 1xOPM, 1xCharging Port 1xRJ45 Port, 1x Memory Card Port
Power Supply	100V(ac) to 240V(ac), 50~60Hz
Battery	4000mAH Lithium battery Operating Time: 12hours, Telcordia GR-196-CORE
Power Saving	Back light: 0% to 100%, Auto off: 10 to 60mins
Data Storage	Internal memory: 500 curves, TF card supported
Language	English in Default
Environmental Conditions	Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)

Pulse Width	3ns to 10us
Distance Range	Max. 64km
Sampling Resolution	Minimum 16cm
Sampling Point	Maximum 65,000
Linearity	≤0.05dB/dB
Averaging Time	5s, 15s, 30s, 60s, 120s, 180s
Distance Resolution	0.001m
Distance Accuracy	±(1m+measuring distance×3×10^-5+sampling resolution) (excluding IOR uncertainty)
IOR Setting	1.0000~2.0000
Units	km
Event/Atten.Dead Zone	3/8m
Dynamic Range	24/22dB
OTDR Trace Format	Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up

Wavelength (±20nm)	650nm
Power	10mw, CLASSIII B
Range	12km

Wavelength	850/1300/1310/1490/1550/1625nm
Test Range	-50~+ 26dBm

Working Wavelength	1310/1550nm
Output Power	-5dBm
Modulation Frequency	270Hz, 330Hz, 1kHz, 2kHz
