Model:
2100Pro Series OTDR
Brand:
3STelecom

Ready For All Kinds Of Environment.

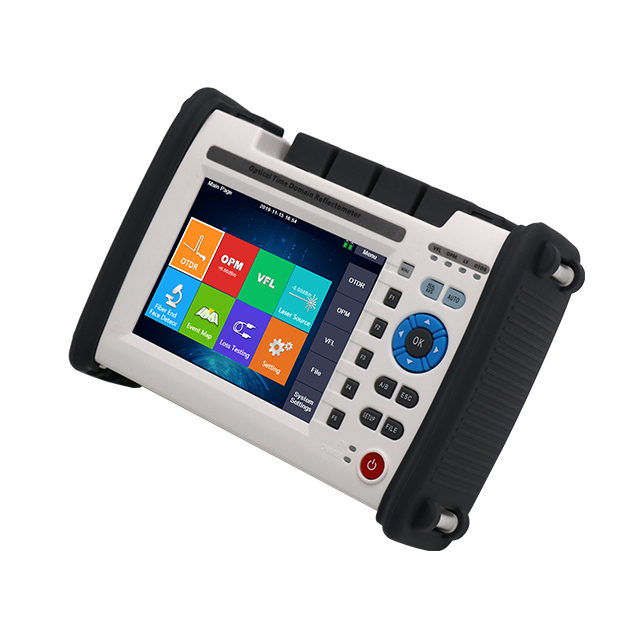

3S 2100PRO series OTDR is specially designed for tough outdoor jobs. Robust design, lightweight, easy operation, low-reflection LCD and more than 12 hours working time make it perfect in field testing.

What You Need Is All-in-one!

3S 2100PRO series OTDR is a highly integrated platform that features with four module, with a 5.6 inch touch sensitive TFT-LCD screen, a high-capacity Lithium-Ion battery, an optional microscope (through universal serial bus [USB] port), and built-in optical test functions, such as PON test module, visual fault locator (VFL), optical power meter and optical laser source, making it qualified in the installation, turn-up, and maintenance of FTTx/Access optical networks.

Main Functions

Multi-mode OTDR

Besides standard singlemode(1310/1550nm), 3S 2100PRO series OTDR supports multi-mode(850/1300m) test mode for option to analyze multi-mode fiber network.

VFL (visual fault locator)

Visible, continuous/modulated red light laser, easily identifies breaks, bends, faulty connectors and splices, in addition to other causes of signal loss. This basic, yet essential troubleshooting tool should be part of every field technician's toolbox. The VFL visually locates and detects faults over distances up to 10km by creating a bright-red glow at the exact location of the fault on singlemode or multimode fibers (available as standard module).

PON ONLINE TEST

3S 2100PRO series OTDR uses 1625nm or 1650nm wavelength to scan and analyze the access point and proceed online testing with optical filter, and will not disturb the service.

OPM (Optical Power Meter)

OTDR comes with optional built-in power meter that let technicians easily verify the presence of a signal.

OLS (Optical Laser Source)

3S 2100PRO series OTDR comes with built-in laser source through OTDR Port that let technicians easily verify the total loss of the local network with a power meter.

FM (Fiber Microscope)

The optional fiber inspection probe facilitates the inspection before the connection. OTDR offers this capability through a USB port connection, which allows quick and easy inspection of connector end faces for contamination and also enables it capture and store the image (software is free, hardware device fiber inspection probe is sold separately).

Smart Events Mapper (Single button measurement, Comprehensive network characterization, Easy to read report )

Measurement acquisitions with multiple pulse widths and smart-algorithm enable users to detect and comprehensively characterize network events by pressing one single button. Simple, icon-based map view for easy interpretation of network events.

General Specification

Size/Weight	215x155x68mm / 1.1kg (Battery included)
Display	5.6 inch touch-sensitive TFT-LCD screen with LED Backlight 800x480 TFT
Interface	2xUSB port (Type A x 1, Type B x 1), 4 x Optical Port(1xVFL port, 1xOPM port, 2xOTDR port)
Power Supply	Power supply AC/DC adapter, 12V(dc), 100V(ac) to 240V(ac), 50~60Hz
Battery	7.4V(dc)/2500mAh x 2pcs rechargeable lithium battery (with Air Traffic Certification) Operating time: 12 hours¹Telcordia GR-196-CORE Charging time: <3 hours (power off)
Power Saving	Backlight -Common/Highlight/Power saving/Customized, Auto Power Off -Never/1min/5min/10min/30min/60min
Data Storage	Internal memory: 16GB (about 100,000 groups of curves)
Language	Multi-language support including but not limited to Chinese, English, Spanish, French,Korean,ItalianandPortuguese-contact us for availability of others)
Environmental Conditions	Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation), Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)
Accessories	Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case, Optional: SC/ST/LC adapter, Bare fiber adapter

OTDR Module

Pulse Width	Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs
Distance Range	Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km
Sampling Resolution	Minimum 5cm
Sampling Point	Maximum 256,000 points
Linearity	≤0.05dB/dB
Averaging Time	10s, 15s, 30s, Real Time, Customized
Scale Indication	X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div
Distance Resolution	0.01m
Distance Accuracy	±(1m+measuring distance×3×10^-5+sampling resolution) (excluding IOR uncertainty)
Reflectance Accuracy	Single mode: ±2dB, multi-mode: ±4dB
IOR Setting	1.2000~1.5999, 0.0001 step
Units	km, miles, kfeet
OTDR Trace Format	Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up
Testing Modes	Visual fault locator: Visible red light for fiber identification and troubleshooting Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output) Field microscope probe
Fiber Event Analysis	-Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) -Reflective: 0.01 to 32dB (0.01dB steps) -Fiber end/break: 3 to 20dB (1dB steps)
Other Functions	Real time sweep: 1Hz Averaging modes: Timed (1 to 3600 sec.) Live Fiber detect: Verifies presence communication light in optical fiber Trace overlay and comparison

VFL Module (Visual Fault Locator)

Wavelength (±20nm)	650nm
Power	10mw, CLASSIII B
Range	12km
Connector	FC/UPC
Launching Mode	CW/2Hz

OPM Module (Optical Power Meter)

Wavelength Range (±20nm)	800~1700nm
Calibrated Wavelength	850/1300/1310/1490/1550/1625/1650nm
Test Range	Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional)
Resolution	0.01dB
Accuracy	±0.35dB±1nW
Modulation Identification	270/1k/2k Hz, P _i_nput≥-40dBm
Connector	FC/UPC

OLS Module (Optical Laser Source)

Working Wavelength (±20nm)	Same as OTDR Wavelength
Output Power	-5dBm±1dB
Output Mode	CW/270/1k/2k Hz

FM Module (Fiber Microscope, software is free, hardware inspection probe is sold separately):

Magnification	400X
Resolution	1.0µm
View of Field	0.40×0.31mm
Storage/working Condition	-18℃~35℃
Dimension	235×95×30mm
Sensor	1/3 inch 2 million of pixel
Weight	150g
USB	1.1/2.0
Adapter②	SC-PC-F (For SC/PC adapter) FC-PC-F (For FC/PC adapter) LC-PC-F (For LC/PC adapter) 2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC)

Ordering Information

Part Number③	Testing Wavelength (MM: ±20nm, SM: ±10nm)	Dynamic Range (dB)④	Event/Attenuation Dead-zone (m)⑤
PRO2100-A32	1310/1550	32/30	0.8/4
PRO2100-A35	1310/1550	35/33	0.8/4
PRO2100-A37	1310/1550	37/35	0.8/4
PRO2100-A40	1310/1550	40/38	0.8/4
PRO2100-A42	1310/1550	42/40	0.8/4
PRO2100-A45	1310/1550	45/43	0.8/4
PRO2100-B32	1625	32	0.8/4
PRO2100-B35	1625	35	0.8/4
PRO2100-B38	1625	38	0.8/4
PRO2100-AB35	1310/1550/1625	35/33/32	0.8/4
PRO2100-AB40	1310/1550/1625	40/38/37	0.8/4
PRO2100-AB42	1310/1550/1625	42/40/38	0.8/4
PRO2100-AB45	1310/1550/1625	45/43/40	0.8/4
PRO2100-C32	1650	32	0.8/4
PRO2100-C35	1650	35	0.8/4
PRO2100-C38	1650	38	0.8/4
PRO2100-AC35	1310/1550/1650	35/33/32	0.8/4
PRO2100-AC40	1310/1550/1650	40/38/37	0.8/4
PRO2100-AC42	1310/1550/1650	42/40/38	0.8/4
PRO2100-AC45	1310/1550/1650	45/43/40	0.8/4
PRO2100-AP35	1310/1490/1550	35/33/33	0.8/4
PRO2100-AP40	1310/1490/1550	40/36/38	0.8/4
PRO2100-M26	850/1300	22/26	2/6
PRO2100-AM32	1310/1550 & 850/1300	32/30 & 22/26	0.8/4 & 2/6
PRO2100-AM35	1310/1550 & 850/1300	35/32 & 22/26	0.8/4 & 2/6
PRO2100-AM40	1310/1550 & 850/1300	40/38 & 22/26	0.8/4 & 2/6

Notes:

① Typical, backlight off, sweeping halted at 25℃, 12 hours typical continuous testing.

② For more adapters, please contact us.

③ Part number including wavelength 1625nm, 1650nm and 1490nm are integrated with optical filter, which allow them to test PON network online (by using 1625nm, 1650nm or 1490nm wavelength) and will not interrupt the fiber signal.

④ Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.

⑤Event dead zone is measured with pulse width of 3ns(10ns); attenuation dead zone is measured with pulse width of 5ns (50ns).
