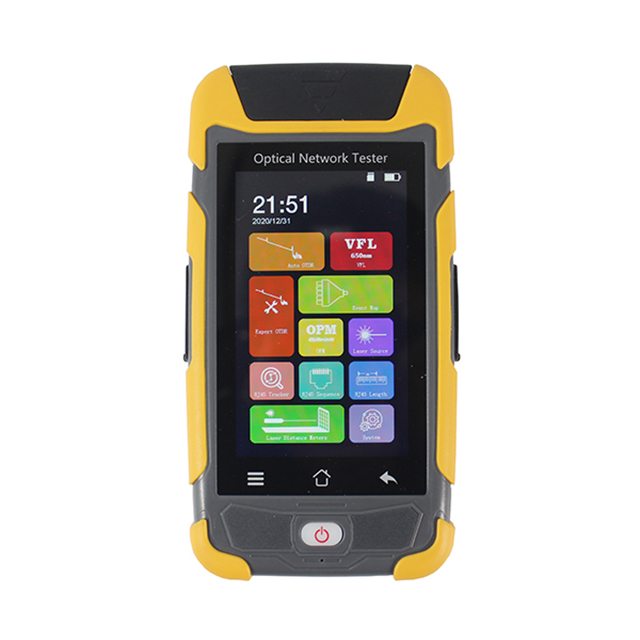

General Specification
Size/Weight | 174 x 92 x 45mm / 400g (Battery included) |
Display | 4.3 inch touch-sensitive IPS TFT Screen, 800x480 Resolution |
Interface | USB, TF Card Port, Rj45 Port, OTDR port, VFL port, Power Meter Port, Charging Port |
Power Supply | Input: 100V(ac) to 240V(ac), 50~60Hz, 0.6A; Output: 5V(DC), 2A 4000mAh/5V Lithium battery (with air traffic certification) |
Working Time | >8 hours |
Power Saving | Intelligent power management Auto power off: Never/1min/5min/10min/30min/60min |
Data Storage | 4GB (about 200,000 curves) |
Language | English in Default |
Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation) |
OTDR Module
Pulse Width | 3ns,5ns,10ns,20ns,30ns,50ns,80ns,160ns,320ns,500ns,800ns,1μs,2μs,5μs,10μs,20μs |
Distance Range | 500m,1km, 2km, 4km, 8km, 16km, 32km, 64km, 100km |
Sampling Resolution | Minimum 0.2m |
Sampling Point | Maximum 256,000 points |
Linearity | ≤0.05dB/dB |
Averaging Time | Setting by user |
Scale Indication | X axis: 4~70m/div, Y axis: 0.09~5dB/div |
Distance Resolution | 0.001m |
Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
| IOR Setting | 1.0~2.0, 0.0001 step |
Units | km |
OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up |
VFL Module (Visual Fault Locator)
Wavelength (±20nm) | 650nm |
Power | 10mw, CLASSIII B |
Range | 12km |
Connector | FC/UPC |
Launching Mode | CW/2Hz |
OPM Module (Optical Power Meter)
Wavelength Range (±20nm) | 800~1700nm |
Calibrated Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |
Test Range | -70~+ 10dBm or -50~+ 26dBm (in default) |
Resolution | 0.01dB |
Accuracy | ±0.35dB±1nW |
Modulation Identification | 270/1k/2k Hz, P input≥-40dBm |
Connector | FC/UPC |
OLS Module (Optical Laser Source)
Working Wavelength (±20nm) | Same as OTDR Wavelength |
Output Power | >-5dBm
|
Output Mode | CW/270/1k/2k Hz |
Ordering Information
| Part Number | 200MiNi-A28 | 200MiNi-A30 | 200MiNi-B26 | 200MiNi-M22
|
|---|
Wavelength (nm)
| 1310/1550 | 1310/1550 | 1625 | 850/1300 |
Dynamic Range (dB) | 28/26 | 30/28 | 26 | 22 |
Testing Range
| 1.2m to 90km | 1.2m to 100km | 1.2 to 90km | 1.2m to 60km |
| Auto OTDR | √ | √ | √ | √ |
Expert OTDR | √ | √ | √ | √ |
Power Meter | √ | √ | √ | √ |
| Light Source | √ | √ | √ | √ |
| Visual Fault Locator | √ | √ | √ | √ |
| Insertion Loss Testing | √ | √ | √ | √ |
| Head Lamp | √ | √ | √ | √ |
| Event Map | √ | √ | √ | √ |
| Rj45 Cable Distance | √ | √ | √ | √ |
| Rj45 Cable Sequence | √ | √ | √ | √ |
| Rj45 Cable Tracking | √ | √ | √ | √ |
| Space Distance | √ | √ | √ | √ |
| Active Fiber Testing | x | x | √ | x |
Notes:
① Typical, backlight off, sweeping halted at 25℃, 8 hours typical continuous testing.
② For more adapters, please contact us.
③ Part number including wavelength 1625nm is integrated with optical filter, which allow them to test PON network online and will not interrupt the fiber signal.
④ Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.
⑤ Event dead zone is measured with pulse width of 3ns(10ns); attenuation dead zone is measured with pulse width of 5ns (50ns).
