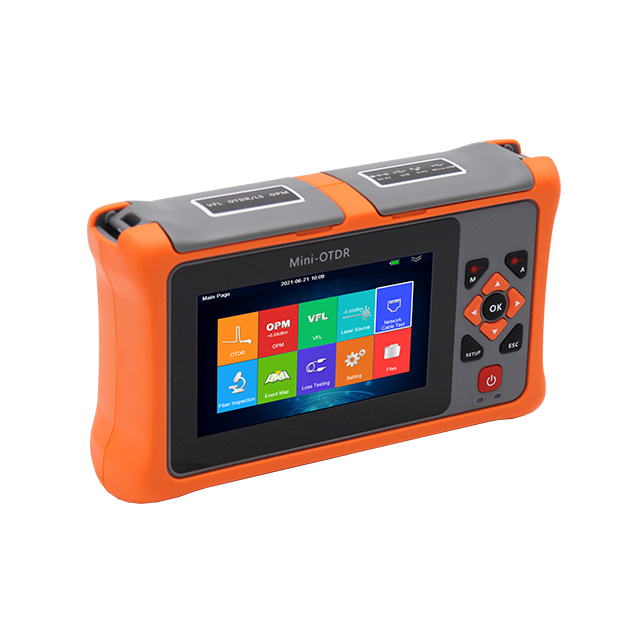

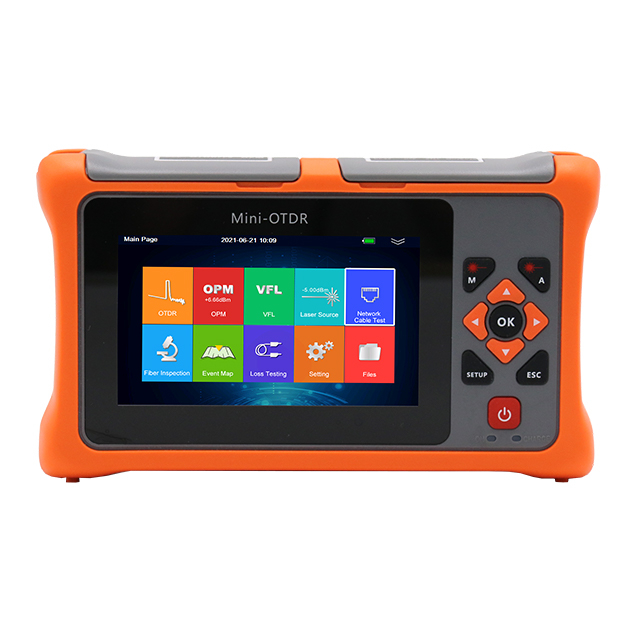

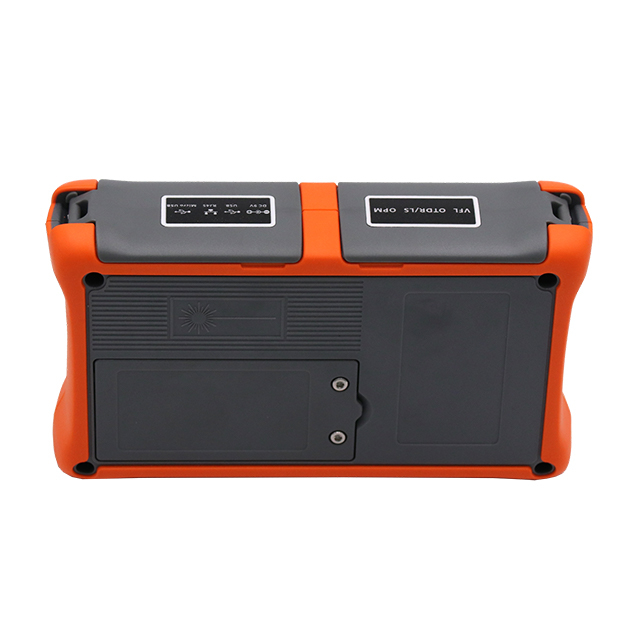

1100MiNi OTDR FTTH PON 1625nm 1650nm Live Testing

Display

4.3 inch touch-sensitive TFT-LCD, resolution 800x480

Interface

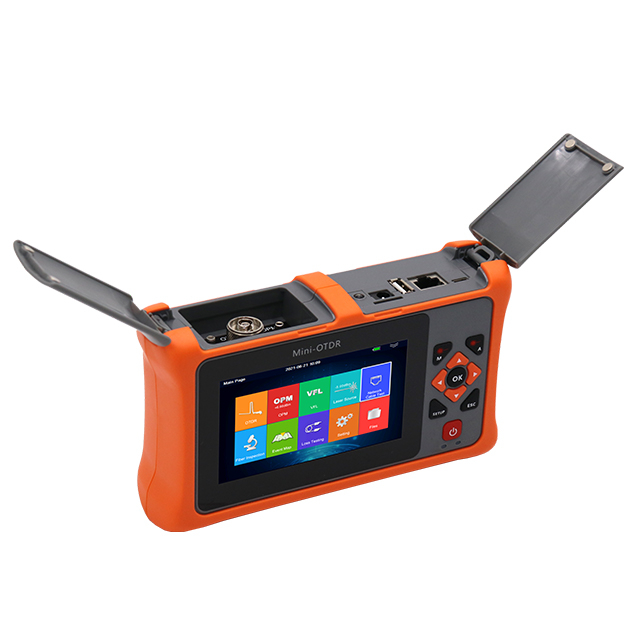

2xUSB port (Type A x 1, Micro USB x 1), 1 x OTDR port, 1 x VFL port, 1 x OPM port, 1 x Charging port

Power Supply

Power supply AC/DC adapter

Input: 100V(ac) to 240V(ac), 50~60Hz, 0.8A

Output: 9V(DC), 2A

Battery

3.7V(dc)/5200mAh x 1pcs rechargeable lithium battery (with Air Traffic Certification)

Operating time: 10 hours①, Telcordia GR-196-CORE

Charging time: <3 hours (power off)

Power Saving

Backlight: Common/Highlight/Power saving/Customized

Auto Power Off: Never/1min/5min/10min/30min/60min

Data Storage

Internal memory: SD card 8GB (about 100,000 groups of curves)

Language

Multi-language support including but not limited to Chinese, English, Spanish, French, Korean, Russian, Italian and Portuguese-contact us for availability of others)

Environmental Conditions

Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)

Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)

Accessories

Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord,

User guide, CD disk, carrying case

Optional: SC/ST/LC adapter, Bare fiber adapter

Distance Range

Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km

Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km

Sampling Resolution

Minimum 0.2m

Sampling Point

Maximum 64,000 points

Linearity

≤0.05dB/dB

Averaging Time

10s, 15s, 30s, Real Time, Customized

Scale Indication

X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div

Distance Resolution

0.01m

Distance Accuracy

±(1m+measuring distance×3×10^-5+sampling resolution) (excluding IOR uncertainty)

Reflectance Accuracy

Single mode: ±2dB, multi-mode: ±4dB

IOR Setting

1.0000~1.9000, 0.0001 step

Units

km, miles, kfeet

OTDR Trace Format

Telcordia universal, SOR, issue 2 (SR-4731)

OTDR: User selectable automatic or manual set-up

Testing Modes

Visual fault locator: Visible red light for fiber identification and troubleshooting

Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)

Field microscope probe

Fiber Event Analysis

-Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps)

-Reflective: 0.01 to 32dB (0.01dB steps)

-Fiber end/break: 3 to 20dB (1dB steps)

Other Functions

Real time sweep: 1Hz

Averaging modes: Timed (1 to 3600 sec.)

Live Fiber detect: Verifies presence communication light in optical fiber

Trace overlay and comparison

Power

10mw, CLASSIII B

Range

12km

Connector

FC/UPC

Launching Mode

CW/2Hz

Calibrated Wavelength

850/1300/1310/1490/1550/1625/1650nm

Test Range

Type A: -65~+5dBm (standard); Type B: -50~+26dBm (optional)

Resolution

0.01dB

Accuracy

±0.35dB±1nW

Modulation Identification

270/1k/2k Hz, P _input≥-40dBm

Connector

FC/UPC

Output Power

-10 to -4dBm±2dB

Output Mode

CW/270/1k/2k Hz

Resolution

1.0µm

View of Field

0.40×0.31mm

Storage/working Condition

-18℃~35℃

Dimension

235×95×30mm

Sensor

1/3 inch 2 million of pixel

Weight

150g

USB

1.1/2.0

Adapter②

SC-PC-F (For SC/PC adapter)

FC-PC-F (For FC/PC adapter)

LC-PC-F (For LC/PC adapter)

2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC)

1100MiNi-A22

1310/1550

22/20

3/8

70

1100MiNi-A24

1310/1550

24/22

3/8

80

1100MiNi-A26

1310/1550

26/24

3/8

90

1100MiNI-C30

1650

30

3/8

100
