PRODUCT DETAIL

Model:

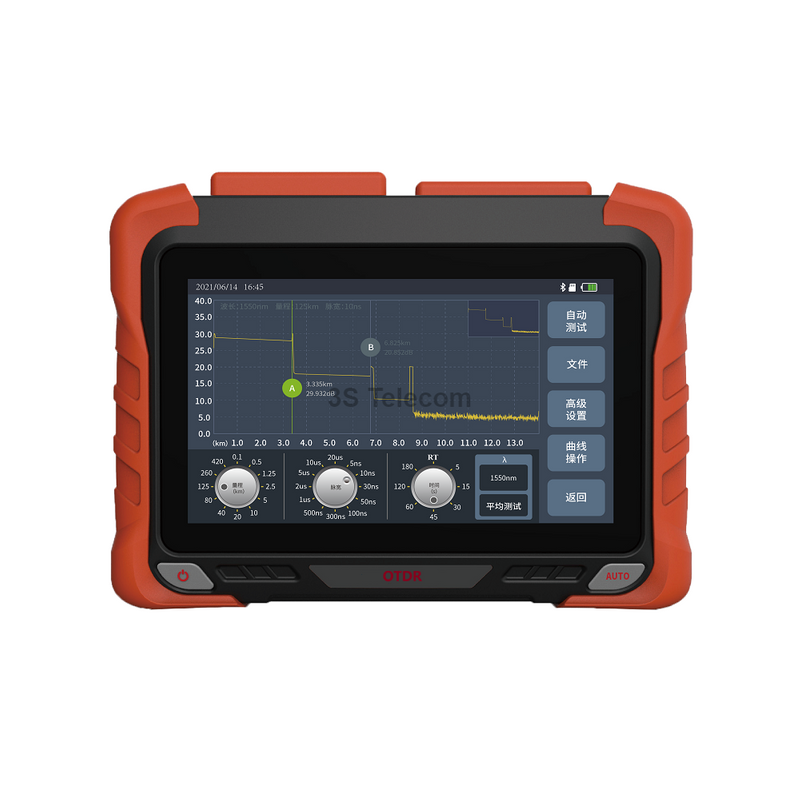

2000PON Series OTDR
Brand:
3STelecom

Description:

3S 2000PON Series OTDR with excellent intelligent hardware and software design, the accuracy of short fiber test and automatic test is much higher. 2000PON Series OTDR can test through 1:64 PLC splitter. It is not only used to test the optical fiber length, loss and fiber connection quality. And also it is applied into the test of engineering construction and fiber optic link maintenance.

2000PON Series OTDR is operated by fully touch screen. There is no need operation buttons at all. Besides high precision OTDR function, it is embedded with additional 9 useful functions. They are fiber optic laser source, fiber optic power meter, visual fault locator, smart event map, fiber-end-face inspection, fiber optical loss test, Ethernet test, App remote control and test, and file management.

Features:

Short Event Dead Zone 0.8 Meter, easily test short length patch cord
Support Single Mode, Multi Mode, Single Mode & Multi Mode
OTDR Test Report Printing Files Batch Processing
Multi-wavelength Simultaneous Test, Automatic Analysis of Test Results
Online Detection, Effective APD Active Protection
PON Network Live Test
Support Fast Charging Protocol and Power Bank
Smart Phone APP Remote Control
7 inch touch screen, data saves in SOR format
Ethernet Test Support Ping/PPOE testing

General

Dimension / Weight	215 × 160 × 50mm / 1.2kgs
Display	7 inch color LCD Touch Screen, resolution 800×480
Interface	USB-A, Type-C port, RJ45 LAN 10M/100M bit/s
Power Supply	AC/DC adapter: Input：100V～240V, 50/60Hz； Output: 5V/3A, 9V/2A, 12V/1.5A； Lithium battery: 3.7V, 10400mAh
Data Storage	Internal storage: 2GB (20,000 curves) External storage：64GB
Environmental Conditions	Operating temperature and humidity: -10℃~+50℃ Storage temperature and humidity: -20℃~+70℃ Relative humidity: 0～95％, Non Condensing

OTDR Module

Pulse Width	3ns, 5ns, 10ns, 30ns, 50ns, 80ns, 100ns, 200ns, 300ns, 500ns, 800ns, 1us, 2us, 3us, 5us, 8us, 10us, 20us
Testing Range	100m, 500m, 1.25km, 2.5km, 5km, 10km, 20km, 40km, 80km, 125km, 260km, 420km
Sampling Resolution	Minimum 1.5cm
Sampling Point	Maximum 256,000 points
Distance Accuracy	±（0.75m+ Sample interval +0.0025％×Test distance）
Loss Accuracy	±0.03dB/dB
Loss Resolution	0.001dB
Loss Threshold	0.01dB
File Format	SOR Standard File Format
Reflectance Accuracy	±2dB
Loss Analysis Mode	4-point method /5-point method
Laser Safety Level	Class Ⅱ
Refresh Rate	4Hz (Typ.)
Fiber Connector	FC/UPC (Interchangeable SC and ST）

OPM Module (Optical Power Meter)

Wavelength Range (±20nm)	800~1700nm
Calibrated Wavelength	850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm
Test Range	Type B: -50dBm～+26dBm, Type A: -70dBm～+6dBm
Accuracy	±5%
Connector	2.5mm Universal Connector, applicable for FC, SC and ST

OLS Module (Optical Light Source)

Working Wavelength	Same as OTDR output wavelength
Output Power	≥-5dBm
Accuracy	±0.5dB
Connector	FC/UPC (Interchangeable SC and ST）

VFL Module (Visual Fault Locator)

Wavelength (±20nm)	650nm
Power	10mw,CLASSIII B
Range	12km
Connector	FC/UPC
Launching Mode	CW / 1Hz / 2Hz

Ordering Information:

Part Number	Wavelength (nm)	Dynamic Range (dB)①	Filter	Event/Attenuation/PON Dead-zone (m)②
2000PON-B38	1625 ±20	38	High Pass >1595nm Isolation >40dB (1270nm -1585nm)	0.8/4/30
2000PON-C38	1650 ±5	38	Band Pass 1650nm ±7nm Isolation >40dB (1650nm ±10nm)	0.8/4/30
2000PON-AB38	1310/1550 ±20 1625 ±20	38/36/36	High Pass >1595nm Isolation >40dB (1270nm -1585nm)	0.8/4/30
2000PON-AB40	1310/1550 ±20 1625 ±20	40/38/38	High Pass >1595nm Isolation >40dB (1270nm -1585nm)	0.8/4/30
2000PON-AB42	1310/1550 ±20 1625 ±20	42/40/40	High Pass >1595nm Isolation >40dB (1270nm -1585nm)	0.8/4/30
2000PON-AC38	1310/1550 ±20 1625 ±5	38/36/36	Band Pass 1650nm ±7nm Isolation >40dB (1650nm ±10nm)	0.8/4/30

Notes:

①Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.

②Event dead zone is measured with pulse width of 3ns; attenuation dead zone is measured with pulse width of 5ns.

2000Smart Series OTDR Kits List:

Item	Description	Quantity
1	Host (battery included)	1
2	AC/DC adapter	1
3	U-disk (including analysis software, instructions)	1
4	Data line	1
5	OTDR SC adapter	1
6	OPM SC adapter	1
7	User's Manual	1
8	Calibration Certificate	1
9	Qualification Certificate/After-sales Service Guarantee Card	1
10	Clean cotton slices	10
11	Leather knob	1
12	Instrument backpack (with straps)	1
