Descriptions of 500MiNi Smart OTDR:

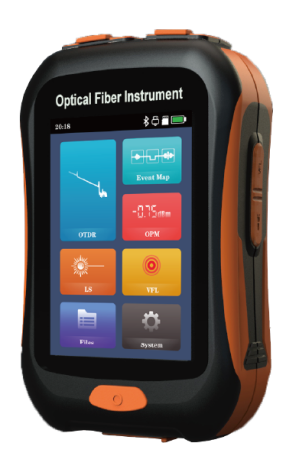

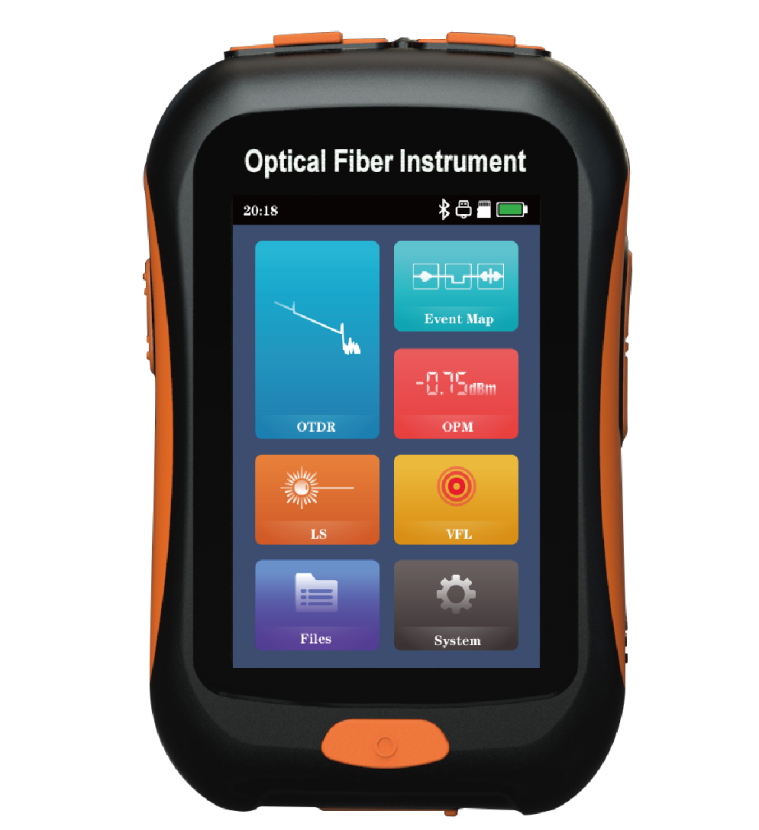

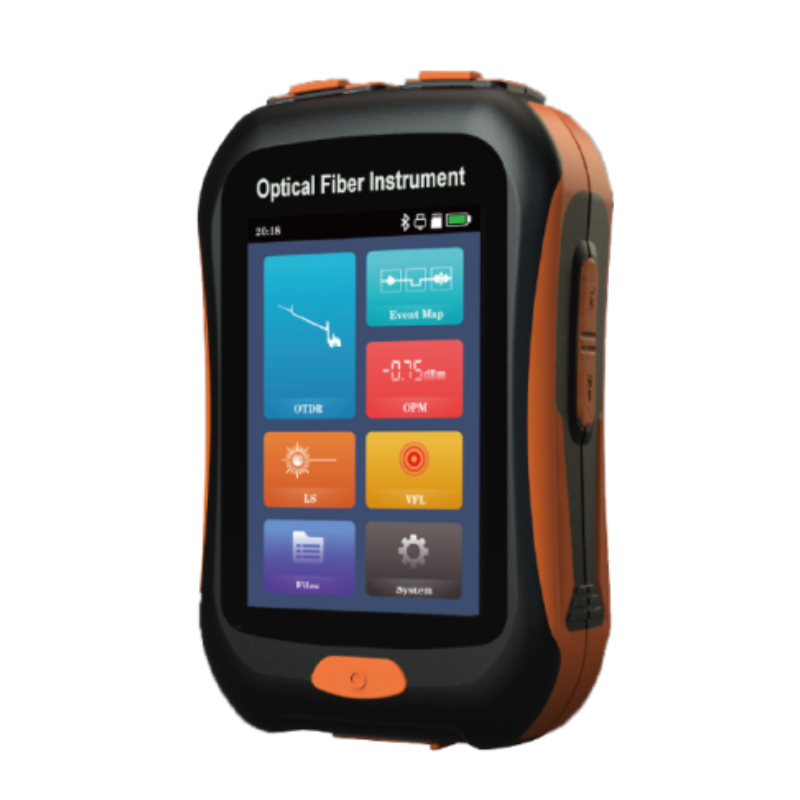

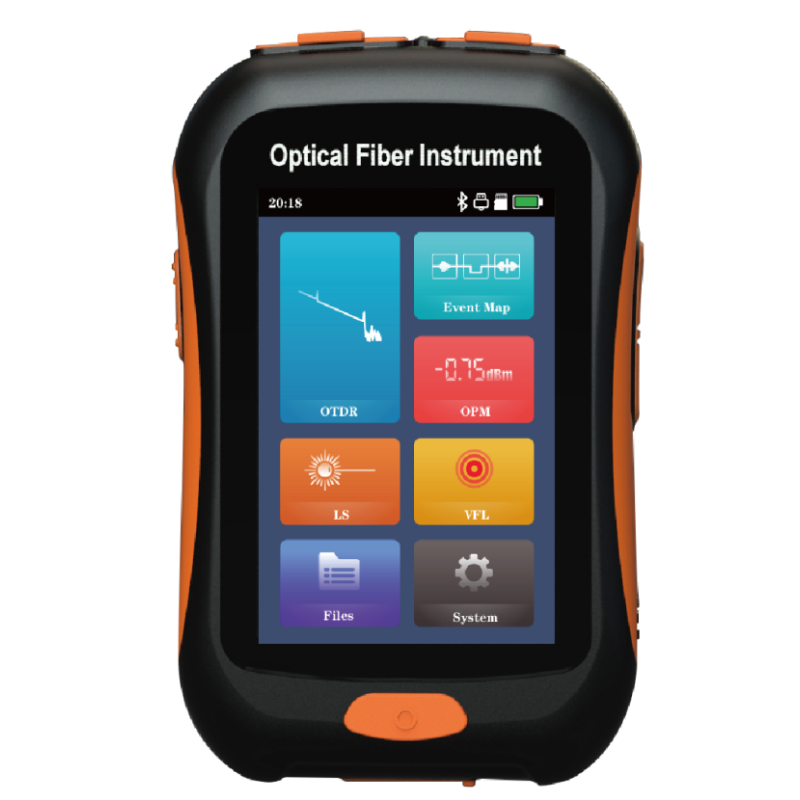

3S 500MiNi Smart Optical Time Domain Reflectometer is an intelligent smart OTDR with multiple functions including OTDR, intelligent event map, optical power meter, visual fault locator (red light source), stable laser source, flashlight and file management. It supports multi-touch and smooth operation by adopting a 3.5-inch high-definition touch screen. Its smart body design is very friendly for engineers to carry in the field.
500MiNi Smart OTDR adopts 1550nm wavelength and built-in high-efficiency wavelength isolation. It can perform optical testing on 1490nm and 1577nm links. It supports up to about +10dBm with optical test capability, and the maximum measurement range is 80km.
500Mini Smart OTDR is used to measure the fiber cable length, loss, connection quality and other parameters of the optical fiber. It can easily test the break point, bend, and loss point of the optical fiber link. It is suitable for fiber optical link maintenance and emergency repair testing by installation and maintenance personnel.
Functions and Settings of 500MiNi Smart OTDR:
| | | | |

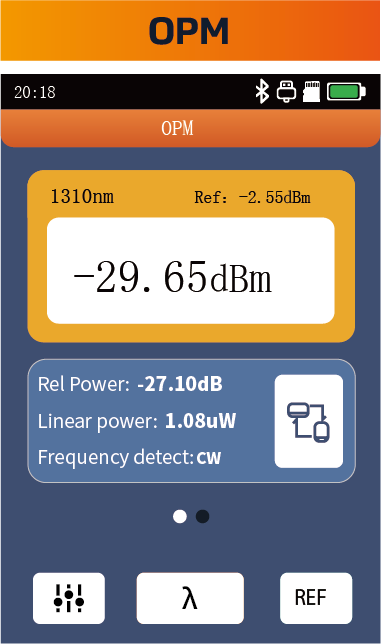

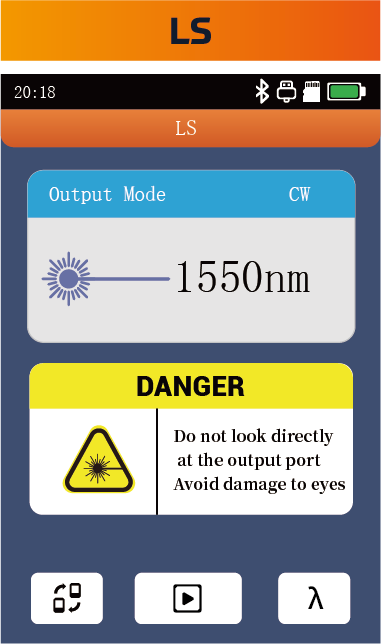

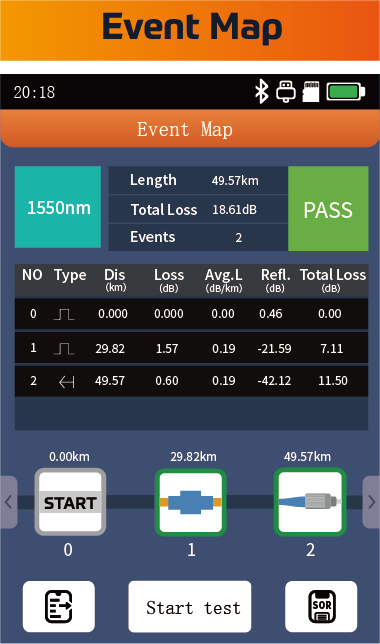

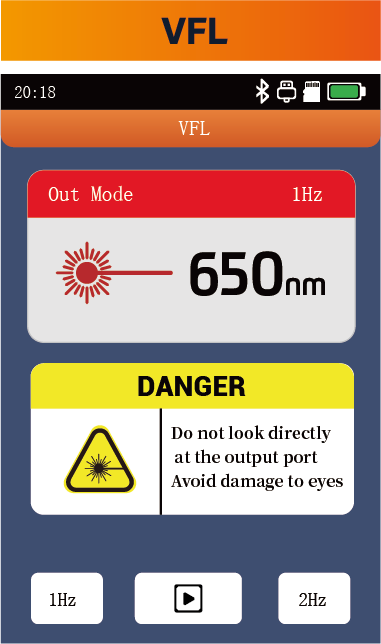

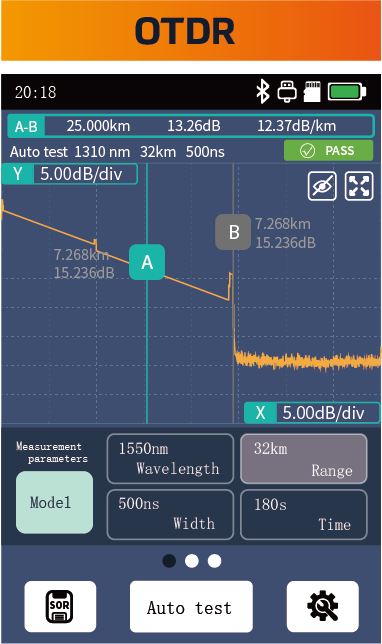

| OTDR Test Interface | Optical Laser Source | Visual Fault Locator | Optical Power Meter | OTDR Event Map |
Features of 500MiNi Smart OTDR:
1. Small and intelligent test performance, compact design and easy to carry
2. 3.5-inch high-definition full touch screen, support multi-touch, friendly interaction
3. Multiple functions (8functions) in one machine including OTDR, OLS, OPM, VFL, Event Map, Touch screen, Flashlight and File Management
4. Working wavelength 1550nm with filter, support on live test
5. Battery working time is more than 4 hours,safety guarantee
6. Short event dead zone 2.5m, the maximum test range is 80km
7. High-performance processor, smooth control
8. Intelligent link analysis, intuitive display of analysis events
Specifications of 500MiNi Smart OTDR:
1. 500MiNi Smart OTDR spec
OTDR |
Part Number | 500MiNi (on live test) |
Fiber Type | G.652D single-mode fiber |
Wavelength | 1550nm±20nm |
Dynamic Range | 20dB |
Event Dead Zone | 2.5m |
Attenuation Dead Zone | 10m |
Test range | 100m/300m/500m/1.25km/2.5km/5km/10km/20km/40km/80km |
Pulse width | 5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/ 1μs/2μs/3μs/5μs/8μs/10μs/20μs |
Ranging Accuracy | ±（1m+sampling interval+0.005％×distance） |
Linearity | ±0.05dB/dB |
Max sampling points | ≥20000 |
Max sample resolution | ≤0.03m |
Loss resolution | 0.01dB |
Loss threshold | 0.20dB |
Distance resolution | 0.01m |
Refractive index | 1.00000~2.00000 |
Reflection accuracy | ±3dB |
File format | SOR Standard File Format |
Loss measurement mode | 4-point/5-point |
Laser Safety Level | Class II |
Optical connector | SC/PC |
2. 500MiNi Smart OTDR -OPM spec
OPM |
Wave range | 800nm~1700nm |
Calibrated | 850/980/1300/1310/1490/1550/1625/1650nm |
Range | -70~+6dBm（optional）/-50~+26dBm（standard） |
Identification frequency | CW/270Hz/330Hz/1kHz/2kHz |
Resolution | 0.01dB |
Uncertainty | ±5% |
Optical connector | Universal Connector |
3. 500MiNi Smart OTDR -OLS spec
OLS |
Wavelength | Same as OTDR output wavelength |
Laser type | FP-LD |
Output Power | ≥-5dBm |
Stability | CW，±0.5dB/15min（tested after 15min warm-up after startup） |
Connector | SC/PC |
Output mode | CW/270Hz/330Hz/1kHz/2kHz |
4. 500MiNi Smart OTDR -VFL spec
VFL |
Working wave | 650nm±20nm |
Output power | ≥10mW |
Working mode | CW/1Hz/2Hz |
Connector | Universal Connector |
5. 500MiNi Smart OTDR -general spec
General |
Display | Full touch 3.5 inches，320×480 color LCD |
Power supply | AC/DC adapter: Input：100V～240V，50/60Hz，0.6A Output：5V，2A，Lithium polymer battery：3.7V，2200mAh |
Working hours | Standby＞6h，continuous test＞4h |
Data storage | Internal：≥2000 pieces |
Data interface | Type-C USB |
Working temperature | -10℃～+50℃ |
Storage temperature | -40℃～+70℃ |
Relative humidity | 0～95％ No condensation |
Total Weight | ≤200g（including battery） |
Size | 126mm×80mm×37mm |
